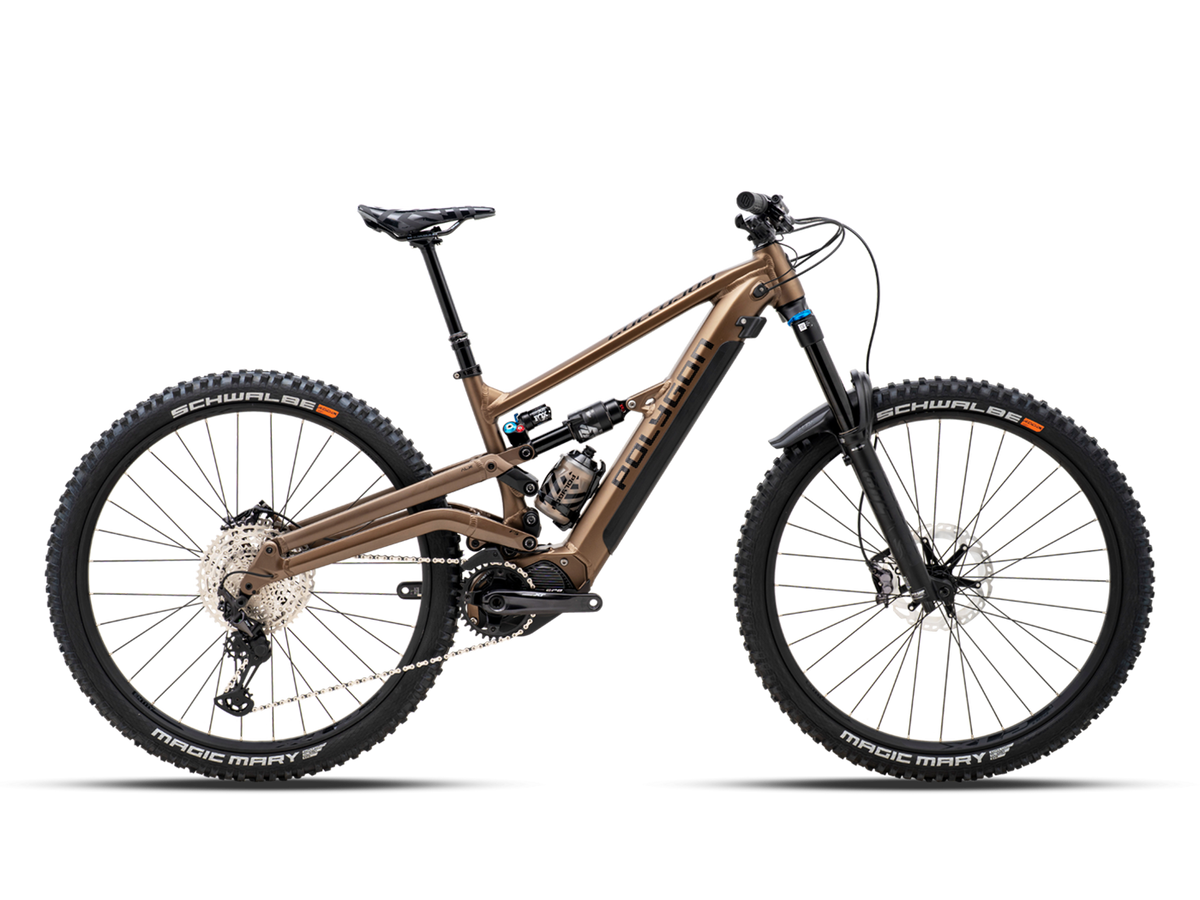

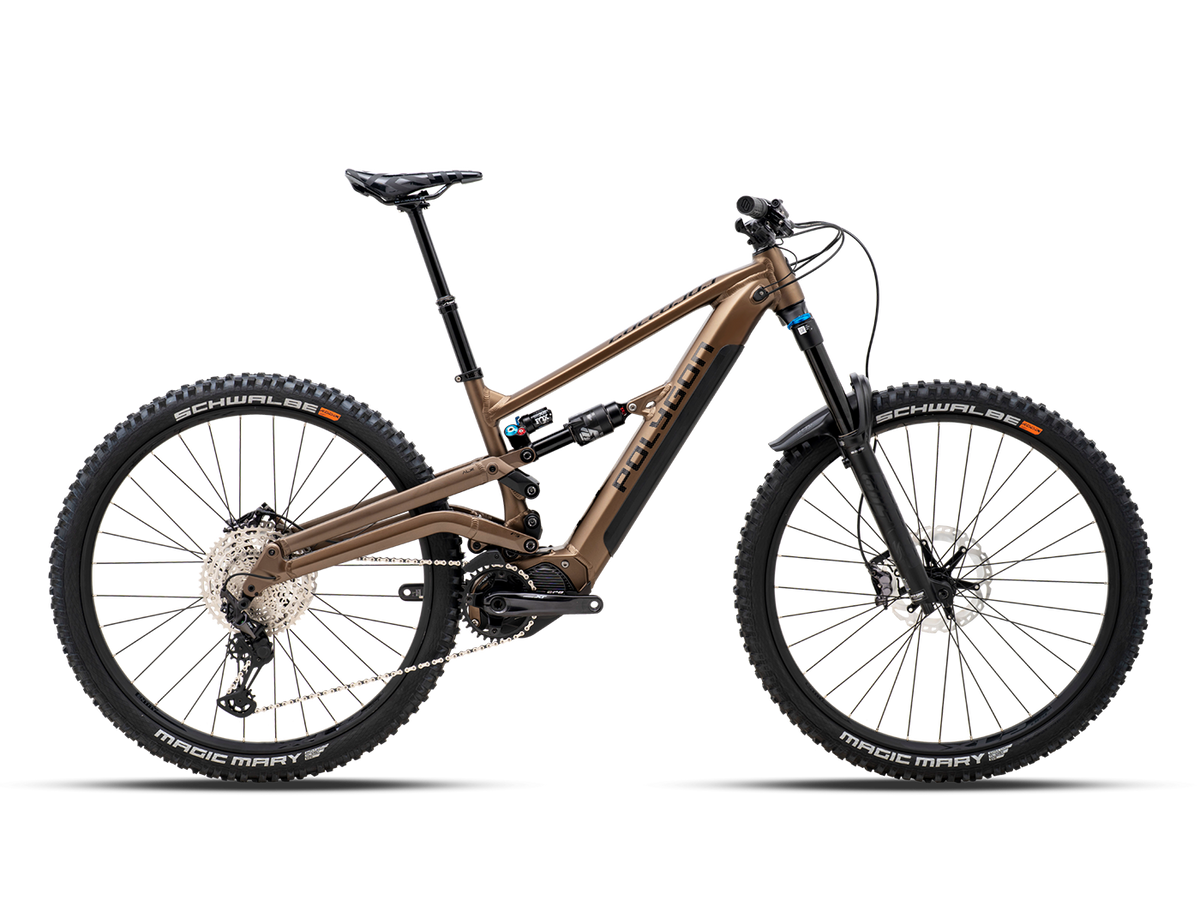

2026 Polygon Collosus N8E C1

By Polygon
$6,799.00 CAD

In stock at supplier warehouse - Usually ships within 5 business days. More info

502942005
Color: Brown
Size
View details
Description

COLLOSUS NE: Enduro Energised

Enduro E-MTB | 160mm Travel | ALX Alloy | 29" Wheels

The Polygon COLLOSUS NE series delivers unrivalled performance and spec for any rider seeking a gravity-focused E-MTB. Integrated with a powerful Shimano EP8 motor and a long-range 630Wh battery, the COLLOSUS NE provides a natural, fluid power delivery without the excess weight. Confidence-inspiring geometry, our signature Independent Floating Suspension (IFS) system, and mullet setup capability make this the perfect rig for big days and even bigger descents.
Technical Specifications

Frameset

  • Frameset: ALX ENDURO FRAME
  • Fork: FOX 38 FLOAT PERFORMANCE, FLOAT EVOL, 160mm TRAVEL, OFFSET: 44mm, GRIP, 3POS, W/ FENDER
  • Rear Shock: FOX FLOAT X2, AIR SPRING, 2 POSITION ADJUST, HSC-LSC, HSR-LSR, E2E: 205x65mm
  • Frame Color: METALIC BROWN
  • Decal Color: BLACK

Drivetrain

  • Shifter: SHIMANO XT SL-M8100-R 1X12-SPEED TRIGGER
  • Crank: SHIMANO SM-CRE80-12-B 34T CHAINRING
  • Cassette: SHIMANO DEORE CS-M6100 12-SPEED 10-51T
  • Rear Derailleur: SHIMANO XT RD-M8100-SGS 12-SPEED
  • Chain: KMC E12 FOR 12-SPEED
  • Pedal: ALLOY FLAT W/ REPLACEABLE PIN

Cockpit

  • Saddle: ENTITY XTEND, CR-MO ø7mm
  • Seatpost: TRANZ X JD-YSP23JL 150mm (S, M) / 170mm (L, XL) TRAVEL, DxL: 30.9 x 459mm (S, M) / 499mm (L, XL)
  • Handlebar: ENTITY, W: 780mm, BB: 35mm, R/D: 25mm, B: 9degree
  • Handlestem: ENTITY, EXT: 35mm, BB: 35mm, R/D: 0degree
  • Headset: FSA NO.57E W/ SEALED BEARING, ZS 44/28.6 | ZS 56/40

Wheel & Tire

  • Wheel Set: ENTITY XL3 TUBELESS READY
  • Wheel Size: 29"
  • Tire: SCHWALBE MAGIC MARY EVO 29"x2.60" 622x65 SUPER GRAVITY TLE ADDIX SOFT
  • Rim: ALLOY DOUBLE WALL H:17.5mm W: 35mm 622-35 32H FOR TYRE 622-54/76 TL READY
  • Hub: F: SHIMANO HB-TC500-15-B 15x110mm 32H CL / R: SHIMANO FH-TC500-MS-B 12x148mm 32H CL FOR MICRO SPLINE
  • Spokes: 14G STAINLESS NDS:294mm DS:292mm W/ 12mm BRASS NIPPLE

Brake

  • Brake Lever: SHIMANO XT BL-M8100
  • Brake Caliper: SHIMANO XT M8120 HYDRAULIC DISC
  • Rotor: SHIMANO XT F: RT-MT800 203 CL / R: RT-EM810 203 CL

Electric Parts

  • Motor: SHIMANO DU-EP801 MID MOTOR (25kph / 20mph)
  • Sensor: SHIMANO EW-SS301 W/ 760mm CABLE
  • Battery: SHIMANO BT-EN806 FOR DOWN TUBE INTEGRATED - 630Wh (36V, 17.5Ah)
Geometry
S M L XL
Height (cm) 155-165 165-175 175-185 185-195
Seat Tube Length (A) 400 410 420 430
Seat Tube Angle (B) 70 70 70 70
Effective Seat Tube Angle (C) 77 77 77 77
Head Tube Length (D) 100 105 110 120
Head Tube Angle (E) 64.5 64.5 64.5 64.5
Effective Top Tube (F) 594.56 615.6 636.65 658.73
Bb Height (G) 345 345 345 345
Bb Offset (H) 35 35 35 35
Chainstay Length (I) 435 435 435 435
Wheelbase (J) 1212.09 1234.25 1256.4 1280.7
Frame Reach (K) 450 470 490 510
Frame Stack (L) 626.16 630.68 635.19 644.22
Standover Height (M) 710 710 710 709
Product Variants SKU/UPC
  • 2026 Polygon Collosus N8E C1: Brown / SM: SKU: 502942005 - UPC:
  • 2026 Polygon Collosus N8E C1: Brown / MD: SKU: 502942006 - UPC:
  • 2026 Polygon Collosus N8E C1: Brown / LG: SKU: 502942007 - UPC:
  • 2026 Polygon Collosus N8E C1: Brown / XL: SKU: 502942008 - UPC:
