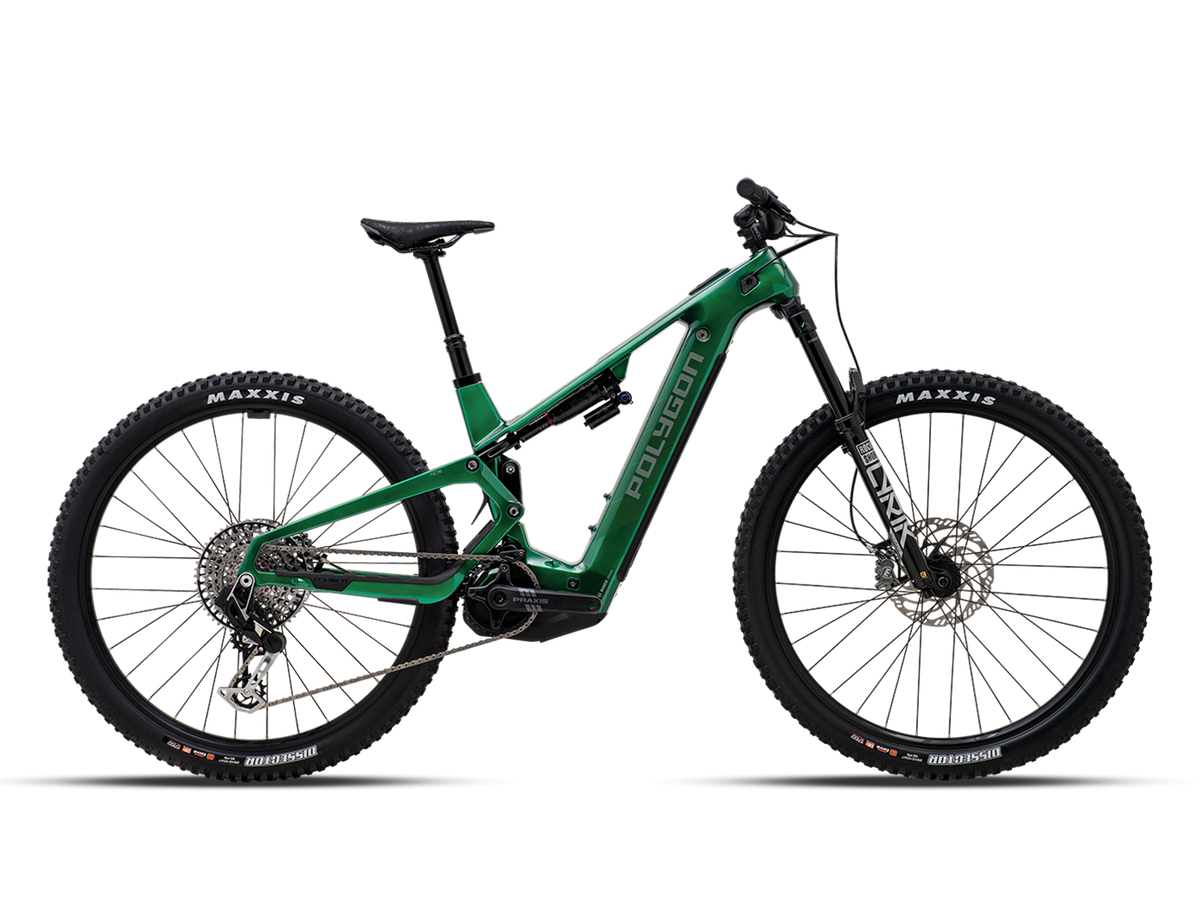

2026 Polygon Collosus TE0 CB C1

By Polygon
$11,199.00 CAD
503368001
Color: Green
Size
View details
Description

COLLOSUS TE: The Perfect E-MTB for Big Mountain Missions

Trail E-MTB | 160mm/150mm Travel | ACX Carbon | 29" Wheels

The Polygon COLLOSUS TE is our flagship full power E-MTB, ready to take you to every corner of the trail map. Armed with an ACX carbon frame, powerful Bosch CX Performance Line motor, removable 800Wh battery and IFS compact suspension, the COLLOSUS TE delivers a precision-tuned ride that’s as agile as it is powerful.
Technical Specifications

Frameset

  • Frameset: ACX CARBON E-TRAIL 150mm TRAVEL
  • Fork: ROCKSHOX LYRIK ULTIMATE, 160mm TRAVEL
  • Rear Shock: ROCKSHOX SUPER DELUXE SELECT+, E2E 230x60mm
  • Size: S, M, L, XL
  • Frame Color: DEEP RACING GREEN
  • Decal Color: SILVER

Drivetrain

  • Shifter: SRAM EC AXS POD CONTROLLER, 1x12-SPEED
  • Crank: PRAXIS EC TYPE 2, 34T
  • Cassette: SRAM XS-1297-A1 XX EAGLE T-TYPE, 10-52T XD DRIVER
  • Rear Derailleur: SRAM XX EAGLE T-TYPE AXS
  • Chain: SRAM XX EAGLE T-TYPE

Cockpit

  • Saddle: XTENT
  • Seatpost: TRANZ X JD-YSP39KL 170mm (S, M) / 200mm (L, XL) TRAVEL, DxL: 34.9x495mm (S, M) / 556mm (L, XL)
  • Handlebar: RACE FACE CHESTER 35, W: 780mm, BB: 35mm, R/D: 35mm, B: 8degree
  • Handlestem: RACE FACE AFFECT R 35, EXT: 40mm, BB: 35mm, R/D: 0mm
  • Headset: FSA NO.42/47/ACB, IS 42/28.6 | IS 52/40

Wheel & Tire

  • Wheel Set: MT9 TUBELESS READY
  • Tire: MAXXIS DISSECTOR 29"x2.40" 622x61 TUBELESS READY
  • Rim: ALLOY DOUBLE WALL FV H:18mm 622x36 32H FOR TYRE 622-54/76 W/ TUBELESS TAPE
  • Hub: F: DT SWISS 370 HYBRID CLASSIC 15x110mm 32H 6-BOLT / R: DT SWISS 370 HYBRID CLASSIC 12x148mm 32H 6-BOLT FOR XD DRIVER
  • Spokes: F: STAINLESS 14G NDS:292mm DS:294mm W/ 12mm BRASS NIPPLE / R: STAINLESS 14G NDS:294mm DS:292mm W/ 12mm BRASS NIPPLE

Brake

  • Brake Lever: MAGURA MT7 W/ HC3 LEVER
  • Brake Caliper: MAGURA MT7 HYDRAULIC DISC
  • Rotor: MAGURA MDR C, 203MM 6-BOLT

Electric Parts

  • Motor: BOSCH PERFORMANCE LINE CX BDU3840
  • Sensor: BOSCH RIM MAGNET
  • Battery: BOSCH POWERTUBE 800 HORIZONTAL
Geometry
S M L XL
Height (cm) 155-165 165-175 175-185 185-195
Seat Tube Length (A) 390 400 415 430
Seat Tube Angle (B) 72.6 73 73.3 73.5
Effective Seat Tube Angle (C) 77 77 75 77
Head Tube Length (D) 90 100 115 130
Head Tube Angle (E) 62.5 64.5 64.5 64.5
Effective Top Tube (F) 568.8 610.5 630.1 652.5
Bb Height (G) 340 340 340 340
Bb Offset (H) 38 38 38 38
Chainstay Length (I) 450 449 450 450
Wheelbase (J) 1216 1245 1272 1298
Frame Reach (K) 440 465 485 505
Frame Stack (L) 620 629 643 656
Standover Height (M) 738 733 727 722
Seatpost Insertion Depth 140 150 165 180
Product Variants SKU/UPC
  • 2026 Polygon Collosus TE0 CB C1: Green / SM: SKU: 503368001 - UPC:
  • 2026 Polygon Collosus TE0 CB C1: Green / MD: SKU: 503368002 - UPC:
  • 2026 Polygon Collosus TE0 CB C1: Green / LG: SKU: 503368003 - UPC:
  • 2026 Polygon Collosus TE0 CB C1: Green / XL: SKU: 503368004 - UPC:
