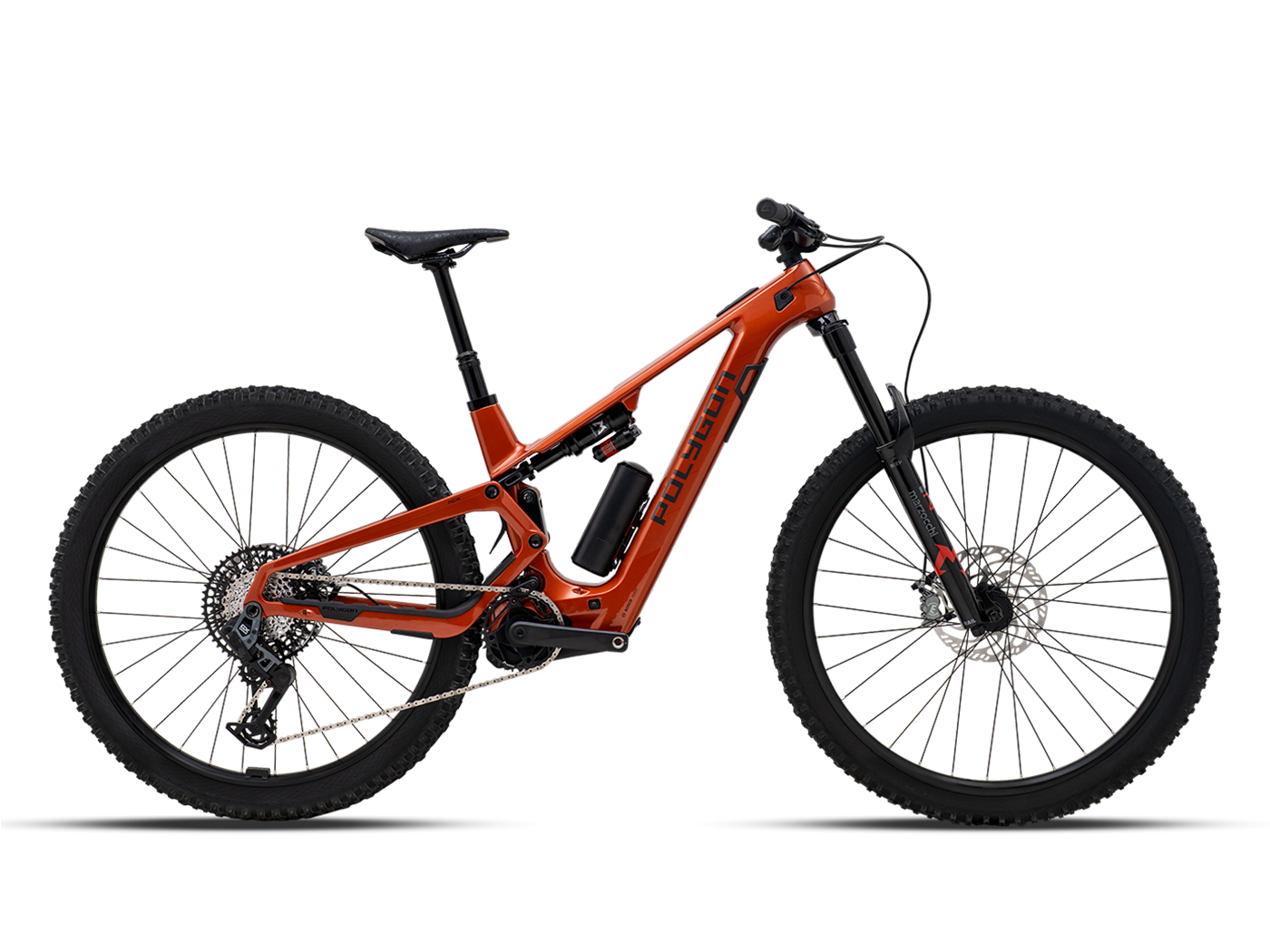

2026 Polygon Collosus TEL 8 CB C1

COLLOSUS TLE: A Lightweight E-MTB Ready to Charge the Trails

Trail E-MTB | 160mm/140mm Travel | ACX Carbon | 29" Wheels

The Polygon COLLOSUS TLE is our answer to delivering unmatched performance in a long-travel E-MTB, without the compromises so often seen in the gravity-electric category. Drawing inspiration from the success of our COLLOSUS N and DH models, the TLE reintroduces carbon construction and integrates our Independent Floating Suspension (IFS) system, refined to be lighter, stiffer, and more efficient than ever. With a custom-tuned ride feel and dialed-in kinematics, it meticulously balances anti-squat, anti-rise, and a progressive leverage curve to deliver precise climbing efficiency, confident braking, and plush responsiveness on every descent. Built around a full 29er platform, the TLE features Fox-tuned shocks and a versatile shock yoke for extensive adjustability. It is also future-ready, featuring a Bosch drive system with a range-extender option and a Bosch PowerMore 250Wh battery included as standard so you’re ready for all-day epics and technical alpine adventures alike.

Frameset

• Frameset: ACX e-MTB
• Fork: MARZOCCHI BOMBER Z1, 160mm TRAVEL, OFFSET: 44mm, AIR SPRING, RAIL DAMPER,REBOUND ADJUST
• Rear Shock: MARZOCCHI BOMBER AIR, E2E: 210x55mm
• Frame Color: BLACK / BRONZE
• Decal Color: BLACK SILVER

Drivetrain

• Shifter: SRAM EC AXS POD CONTROLLER, 1x12-SPEED TRIGGER
• Crank: SRAM CR T-TYPE, 34T
• Cassette: SRAM GX EAGLE T-TYPE 10-52T XD DRIVER
• Rear Derailleur: SRAM GX EAGLE T-TYPE AXS
• Chain: SRAM GX EAGLE T-TYPE

Cockpit

• Saddle: XTENT, CR-MO ø7mm
• Seatpost: TRANZ X JD-YSP39KL 170mm (S, M) / 200mm (L, XL) TRAVEL, DxL: 34.9 x 495mm (S, M) / 556mm (L, XL)
• Handlebar: POLYGON EXPERT, W: 780mm, BB: 35mm, R/D: 30mm, B: 9degree
• Handlestem: POLYGON EXPERT, EXT: 35mm, BB: 35mm, R/D: 0mm
• Headset: FSA NO.42/47/ACB, IS 42/28.6 | IS 52/40

Wheel & Tire

• Wheel Set: MT6 TUBELESS READY
• Wheel Size: 29"
• Tire: MAXXIS DISSECTOR 29"x2.40" 622x65, TLE
• Rim: F: ALLOY DOUBLE WALL FV H:18mm 622x36 32H FOR TYRE 622-54/76 W/ TUBELESS TAPE / R: ALLOY DOUBLE WALL FV H:18mm 622x36 32H FOR TYRE 622-54/76 W/ TUBELESS TAPE
• Hub: F: DT SWISS 370 HYBRID CLASSIC 15x110mm 32H 6-BOLT / R: DT SWISS 370 HYBRID CLASSIC 12x148mm 32H 6-BOLT FOR XD DRIVER
• Spokes: F: STAINLESS 14G NDS:292mm DS:294mm W/ 12mm BRASS NIPPLE / R: STAINLESS 14G NDS:294mm DS:292mm W/ 12mm BRASS NIPPLE

Brake

• Brake Lever: MAGURA HC3
• Brake Caliper: MAGURA MT7 HYDRAULIC DISC
• Rotor: MAGURA MDR C, 203MM 6-BOLT

Electric Parts

• Motor: BOSCH PERFORMANCE LINE SX BDU3145
• Sensor: BOSCH RIM MAGNET
• Battery: BOSCH COMPACTTUBE 400 FIXED MOUNT HORIZONTAL

	S	M	L	XL
Height (cm)	155-165	165-175	175-185	185-195
Seat Tube Length (A)	390	400	415	430
Seat Tube Angle (B)	72.2	72.6	72.9	73.1
Effective Seat Tube Angle (C)	76.6	76.6	76.6	76.6
Head Tube Length (D)	90	95	105	120
Head Tube Angle (E)	64.1	64.1	64.1	64.1
Effective Top Tube (F)	586	607	627	648
Bb Height (G)	343	343	343	343
Bb Offset (H)	35	35	35	35
Chainstay Length (I)	450	450	450	450
Wheelbase (J)	1215	1242	1266	1293
Frame Reach (K)	435	461	481	501
Frame Stack (L)	614	619	628	642
Standover Height (M)	748	757	764	770
Seatpost Insertion Depth	140	150	165	180
