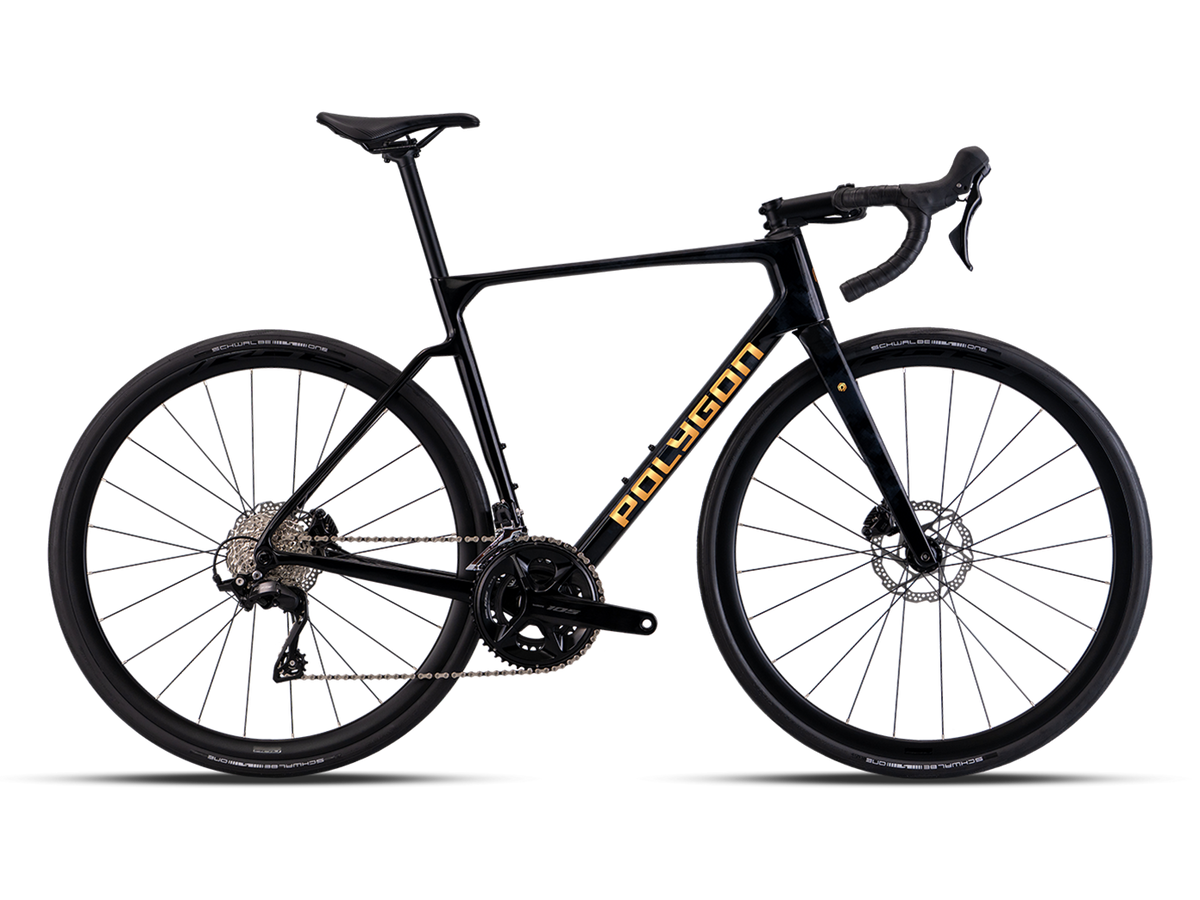

2026 Polygon Strattos 7

By Polygon
$2,599.00 CAD

In stock at supplier warehouse - Usually ships within 5 business days. More info

503769002
Color: Black
Size
View details
Description

Comfort That Goes the Distance

Strattos combines a lightweight carbon frame and fork with an optimized endurance geometry that reduces fatigue and enhances control. The result is a smoother, more efficient ride—built to go longer without compromise.​
Technical Specifications

Frameset

  • Frameset: CARBON ENDURANCE
  • Fork: CARBON ENDURANCE
  • Frame Color: METALLIC BLACK
  • Decal Color: BRONZE

Drivetrain

  • Shifter: SHIMANO 105 R7120, 2x12 SPEED
  • Crank: SHIMANO 105 R7100, 50/34T
  • Cassette: SHIMANO 105 R7101, 11-34T
  • Rear Derailleur: SHIMANO 105 R7100
  • BB: TOKEN T47 FOR 24mm SPINDLE, 68mm
  • Chain: KMC X12

Cockpit

  • Saddle: LINC GLYD
  • Seatpost: POLYGON EXPERT ALLOY, DxL: 27.2x350mm
  • Handlebar: POLYGON EXPERT ALLOY, W: 380mm (XXS, XS, S) / 400mm (M, L) / 420mm (XL, XXL), BB: 31.8mm, R/D: 125mm
  • Handlestem: POLYGON EXPERT ALLOY, E: 90mm (XXS) / 100mm (XS, S) / 110mm (M, L) / 120mm (XL, XXL), BB: 31.8mm, R/D: 7degree
  • Headset: INTEGRATED (IS) SEALED BEARING FOR OS HEAD TUBE, IS 52/28.6 | IS 52/40

Wheel & Tire

  • Wheel Set: POLYGON RD6 DISC
  • Tire: SCHWALBE ONE ADDIX TLE 700x30C
  • Rim: ALLOY DOUBLE WALL 622-19 24H FOR TYRE 622-28/62, DISC TUBELESS READY
  • Hub: F: ALLOY THRU AXLE 12x100mm 24H SEALED BEARINGS CL, R: ALLOY THRU AXLE 12x142mm 24H SEALED BEARINGS CL
  • Spokes: F: STAINLESS SPOKES NDS: 278mm DS: 280mm, R: STAINLESS SPOKES NDS: 280mm DS: 278mm

Brake

  • Brake Lever: SHIMANO 105 R7120
  • Brake Caliper: SHIMANO 105 HYDRAULIC DISC
  • Rotor: SHIMANO RT54 160mm CENTER LOCK
Geometry
XXS XS S M L XL XXL
Height (cm) 151-161 154-164 162-170 168-176 174-181 180-187 185-195
Seat Tube Length (A) 400 430 470 520 560 580 610
Seat Tube Angle (B) 74.5 74.5 74 73.5 73 73 73
Effective Seat Tube Angle (C) 74.5 74.5 74 73.5 73 73 73
Head Tube Length (D) 100 115 125 136 162 191 217
Head Tube Angle (E) 70.5 70.5 71.5 72 72 72 72
Effective Top Tube (F) 498.4 507.2 525.1 542.4 564.3 580.97 597.61
Bb Height (G) 268 268 268 270.5 270.5 273 273
Bb Offset (H) 76.5 76.5 76.5 74 74 71.5 71.5
Chainstay Length (I) 415 415 415 415 415 415 415
Wheelbase (J) 975.1 985.1 989.3 995.2 1012.3 1030.7 1047.84
Frame Reach (K) 355 360 369 378 387 396 405
Frame Stack (L) 516.9 531.1 544.3 555 580 605 630
Standover Height (M) 686.1 711.4 747.4 784.5 821.7 845 868.9
Product Variants SKU/UPC
  • 2026 Polygon Strattos 7: Black / XXS: SKU: 503769001 - UPC:
  • 2026 Polygon Strattos 7: Black / XS: SKU: 503769002 - UPC:
  • 2026 Polygon Strattos 7: Black / SM: SKU: 503769003 - UPC:
  • 2026 Polygon Strattos 7: Black / MD: SKU: 503769004 - UPC:
  • 2026 Polygon Strattos 7: Black / LG: SKU: 503769005 - UPC:
  • 2026 Polygon Strattos 7: Black / XL: SKU: 503769006 - UPC:
  • 2026 Polygon Strattos 7: Black / XXL: SKU: 503769007 - UPC:
