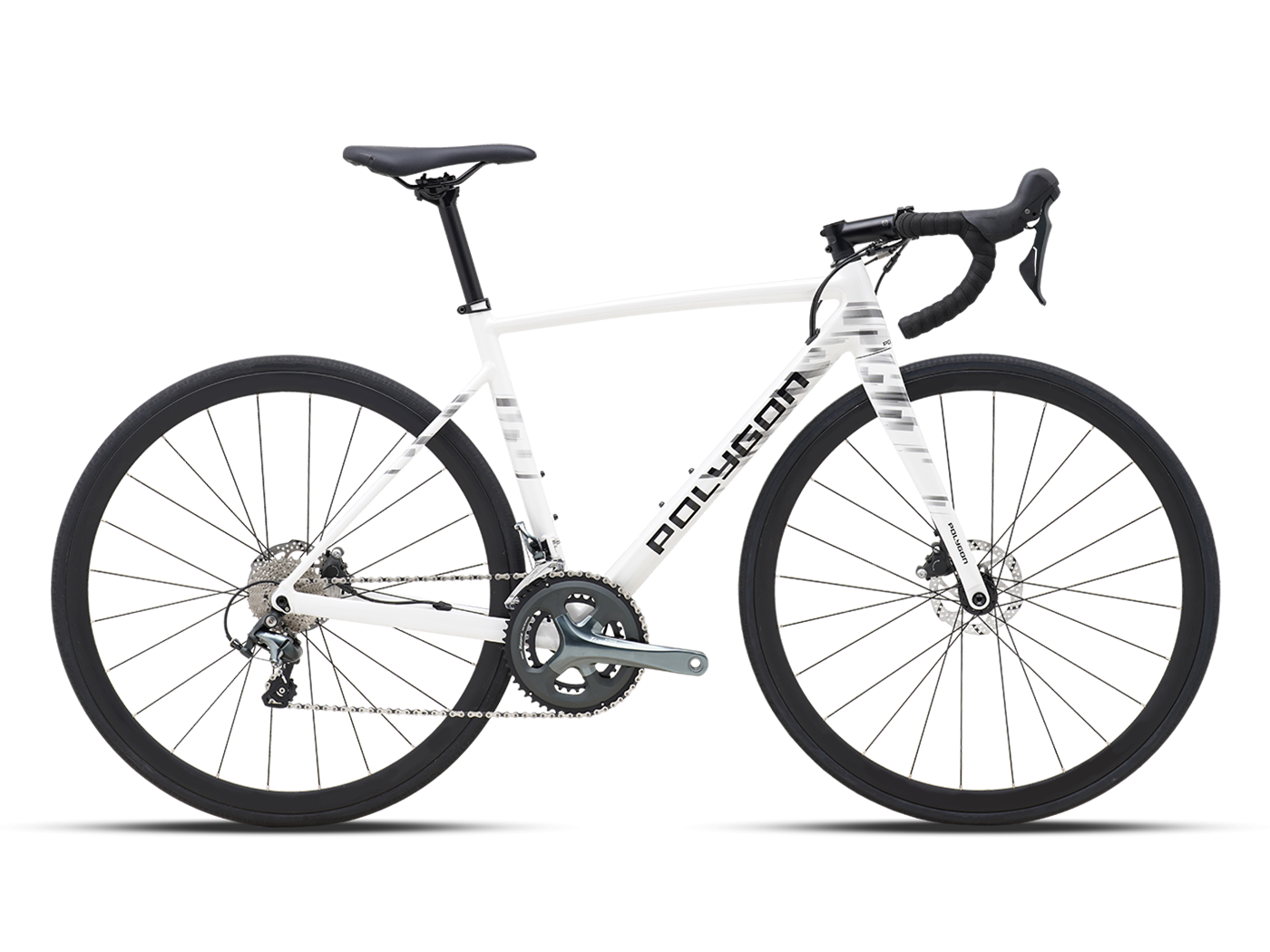

2026 Polygon Strattos S4D

By Polygon
$1,599.00 CAD
503191002
Color: White
Size
View details
Description

STRATTOS S: Unbeatable Value Road Bike

Endurance Road Comfort | ALX Alloy Frame | 4 Available Builds

The Polygon STRATTOS S road bike is your gateway to unforgettable road cycling adventures. Designed around a lightweight ALX alloy frame and vibration-damping carbon fork, we spec'd a mix of Shimano components to offer unbeatable value. The STRATTOS S is the perfect first road bike for many but a quality ride for all.
Technical Specifications

Frameset

  • Frameset: ALX ALL-ROUND
  • Fork: ACX ALL-ROUND
  • Frame Color: WHITE
  • Decal Color: GREY - BLACK

Drivetrain

  • Shifter: SHIMANO TIAGRA ST-R4720, 2x10-SPEED DUAL CONTROL LEVER
  • Crank: SHIMANO TIAGRA FC-4700 50/34T
  • Cassette: SHIMANO TIAGRA CS-HG500 12-28T
  • Rear Derailleur: SHIMANO TIAGRA RD-4700-SS DIRECT ATTACH
  • BB: SHIMANO BB-RS501, BSA THREADED 68mm
  • Chain: KMC X10

Cockpit

  • Saddle: BLACK, STEEL ø 7mm
  • Seatpost: POLYGON SPORT ALLOY, DxL: 27.2 x 350mm
  • Handlebar: POLYGON SPORT ALLOY, W: 400mm (XS, S, M) / 420mm (L, XL) , BB: 31.8mm, R/D: 124mm, B/R: 80mm
  • Handlestem: POLYGON OE ALLOY, EXT: 90mm (XS, S) / 100mm (M, L) / 110mm (XL), BB: 31.8mm, R/D: 7degree
  • Headset: ZERO STACK (ZS) SEALED BEARING FOR TAPER HEAD TUBE, IS 42/28.6 | IS 52/40

Wheel & Tire

  • Wheel Set: POLYGON RD6 DISC
  • Tire: SCHWALBE ONE ADDIX 700x28C
  • Rim: 622-19 24H FOR TYRE 622-28/62 DISC TUBELESS READY
  • Hub: F: ALLOY THRU AXLE 12x100mm 24H SEALED BEARINGS 6-BOLTS / R; ALLOY THRU AXLE 12x142mm 24H SEALED BEARINGS 6-BOLTS

Brake

  • Brake Lever: SHIMANO TIAGRA ST-R4720
  • Brake Caliper: SHIMANO BR-4770 HYDRAULIC
  • Rotor: TRP TR-29 140mm 6-BOLTS
Geometry
XXS XS S M L XL
Height (cm) 144-154 154-164 162-170 168-176 174-181 180-187
Seat Tube Length (A) 390 450 470 500 520 550
Seat Tube Angle (B) 75.5 75 74.5 74 73.5 73
Effective Seat Tube Angle (C) 75.5 75 74.5 74 73.5 73
Head Tube Length (D) 90 90 105 130 155 185
Head Tube Angle (E) 70.5 72 72.5 73 73 73
Effective Top Tube (F) 498 515 525 540 555 570
Bb Height (G) 272 272 272 274.5 274.5 277
Bb Offset (H) 72.5 72.5 72.5 70 70 67.5
Chainstay Length (I) 415 415 415 415 415 415
Wheelbase (J) 975.45 975.54 977.32 984.83 995.01 1005.89
Frame Reach (K) 371.43 382.5 383.5 387.1 390 391.6
Frame Stack (L) 490.02 494.4 510.3 533.3 557.2 583.4
Standover Height (M) 654.13 696.7 715.7 746.5 767.1 797
Product Variants SKU/UPC
  • 2026 Polygon Strattos S4D: White / XS: SKU: 503191002 - UPC:
  • 2026 Polygon Strattos S4D: White / SM: SKU: 503191003 - UPC:
  • 2026 Polygon Strattos S4D: White / MD: SKU: 503191004 - UPC:
  • 2026 Polygon Strattos S4D: White / LG: SKU: 503191005 - UPC:
  • 2026 Polygon Strattos S4D: White / XL: SKU: 503191006 - UPC:
