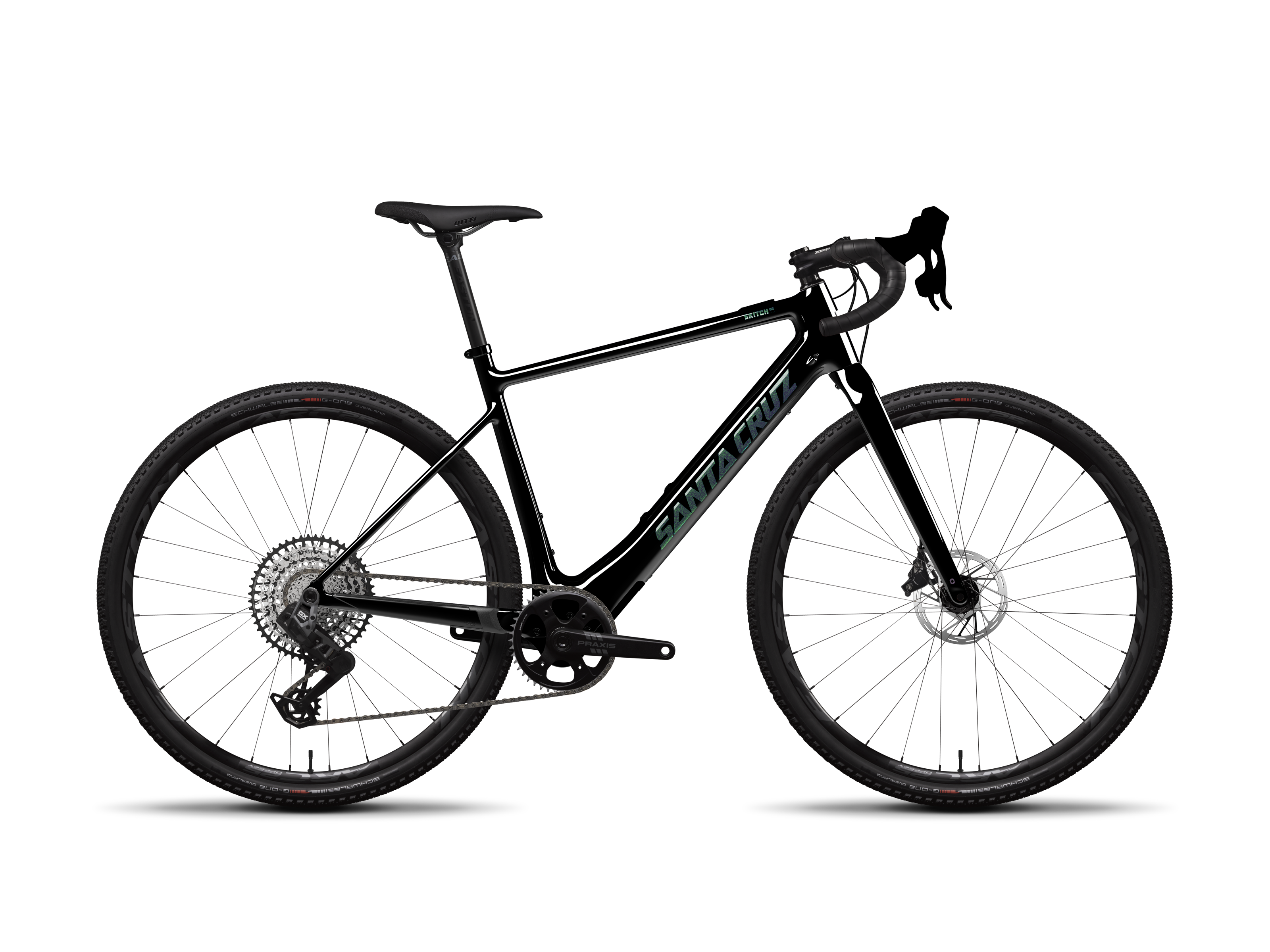

2026 Santa Cruz Skitch CC GX AXS-Kit

By Santa Cruz
$9,499.00 CAD

This product is only available for in-store pickup.

58-26300-398-2-887-000001-11
Color: Gloss Black
Size
View details
Description

The Skitch is the ultimate city-slicking, traffic-flicking, alleycat-slipping, rat race-escaping teleportation device. The powerful and light motor gives you a nudge to spend less time behind a glass windscreen and more time with your knees in the breeze. You’ll look for even more excuses to get on your bike because even a city commute can be as much fun as bike park laps.



Specs



*Please note: we make every effort to ensure accuracy of spec information, but they are subject to change.

Frame
Material Carbon CC
Frame Carbon CC Gravel
Weight 30.04lbs / 13.62kg
Wheel Size 700c
Suspension
Fork Carbon
Shock N/A
Drivetrain
Bottom Bracket N/A
Cassette SRAM GX 1275 Eagle T-Type, 10-52t
Chain SRAM GX Eagle T-Type, Flattop, 12spd
Chainguide N/A
Crankset Praxis eTor AL, 107BCD S: 165mm, M/L: 170mm, XL/XXL: 172.mm
Rear Derailleur SRAM GX Eagle AXS T-Type, 12spd
Right Shifter SRAM Rival AXS
Brakes
Brakes SRAM Rival
Front Rotor SRAM Paceline, Centerlock, 160mm
Rear Rotor SRAM Paceline, Centerlock, 160mm
Cockpit
Grips / Bar Tape Velo Bar Tape
Handlebars Zipp Service Course 70 XPLR AL Bar, 31.8 S: 42cm, M: 44cm, L/XL/XXL: 46cm
Headset FSA IS-2/47/42 ACB
Saddle WTB Silverado Medium, CroMo
Seatpost Easton EC70, 27.2, Zero Offset All Sizes: 350mm
Stem Zipp Service Course Stem All Sizes: 70mm
Wheels
Front Rim Easton ARC Offset 25 700c
Front Hub DT Swiss 370, 12x100, Centerlock, 28h
Front Tire Schwalbe G-One Overland, Pro EVO, 700x45c
Rear Rim Easton ARC Offset 25 700c
Rear Hub DT Swiss 370, 12x148, XD, Centerlock, 28h
Rear Tire Schwalbe G-One Overland, Pro EVO, 700x45c
Valves Reserve Fillmore Valves
Ebike
Battery Fazua 430Wh Integrated Battery
Drive Unit Fazua Ride 60
Battery Charger Fazua Charger
Specs
Rear Brake Mount Flatmount 160mm Direct
Fork Axle to Crown 430mm
Fork Offset 45mm
Headset IS 41 /IS52
Max Chainring Size 46t
Max Rotor Size 180mm
Max Tire Clearance 50mm
Rear Spacing 148mm
UDH Compatible Yes



Geometry



All units are in millimeters or degrees.
s m l xl xxl
Reach 390 405 420 435 450
Stack 563 579 596 610 630
Head tube angle 69° 69° 69° 69° 69°
Head Tube Length 105 125 145 160 180
Rear Center 430 430 430 430 430
Front Center 624 646 668 689 711
BB Height 279 281 281 283 283
BB Drop 78 76 76 74 74
Wheelbase 1047 1070 1092 1112 1135
Top Tube Length 551 571 591 610 630
Seat Tube Length 455 485 515 545 575
Standover Height 728 753 778 804 830
Seat Tube Angle 74° 74° 74° 74° 74°
 Size Guide


Small

5'1"-5'6"Reach: 390mm

Medium

5'4"-5'10"Reach: 405mm

Large

5'7"-6'0"Reach: 420mm

X-Large

5'10"-6'3"Reach: 435mm

XX-Large

6'1"-6'6"Reach: 450mm
Product Variants SKU/UPC
  • 2026 Santa Cruz Skitch CC GX AXS-Kit: Gloss Black / SM: SKU: 58-26300-398-2-887-000001-11 - UPC: 192219524344
  • 2026 Santa Cruz Skitch CC GX AXS-Kit: Matte Iron Ore / SM: SKU: 58-26300-398-2-888-000001-11 - UPC: 192219524382
  • 2026 Santa Cruz Skitch CC GX AXS-Kit: Gloss Black / MD: SKU: 58-26300-398-3-887-000001-11 - UPC: 192219524429
  • 2026 Santa Cruz Skitch CC GX AXS-Kit: Matte Iron Ore / MD: SKU: 58-26300-398-3-888-000001-11 - UPC: 192219524467
  • 2026 Santa Cruz Skitch CC GX AXS-Kit: Gloss Black / LG: SKU: 58-26300-398-4-887-000001-11 - UPC: 192219524504
  • 2026 Santa Cruz Skitch CC GX AXS-Kit: Matte Iron Ore / LG: SKU: 58-26300-398-4-888-000001-11 - UPC: 192219524542
  • 2026 Santa Cruz Skitch CC GX AXS-Kit: Gloss Black / XL: SKU: 58-26300-398-5-887-000001-11 - UPC: 192219524580
  • 2026 Santa Cruz Skitch CC GX AXS-Kit: Matte Iron Ore / XL: SKU: 58-26300-398-5-888-000001-11 - UPC: 192219524627
  • 2026 Santa Cruz Skitch CC GX AXS-Kit: Gloss Black / XXL: SKU: 58-26300-398-6-887-000001-11 - UPC: 192219524665
  • 2026 Santa Cruz Skitch CC GX AXS-Kit: Matte Iron Ore / XXL: SKU: 58-26300-398-6-888-000001-11 - UPC: 192219524702
