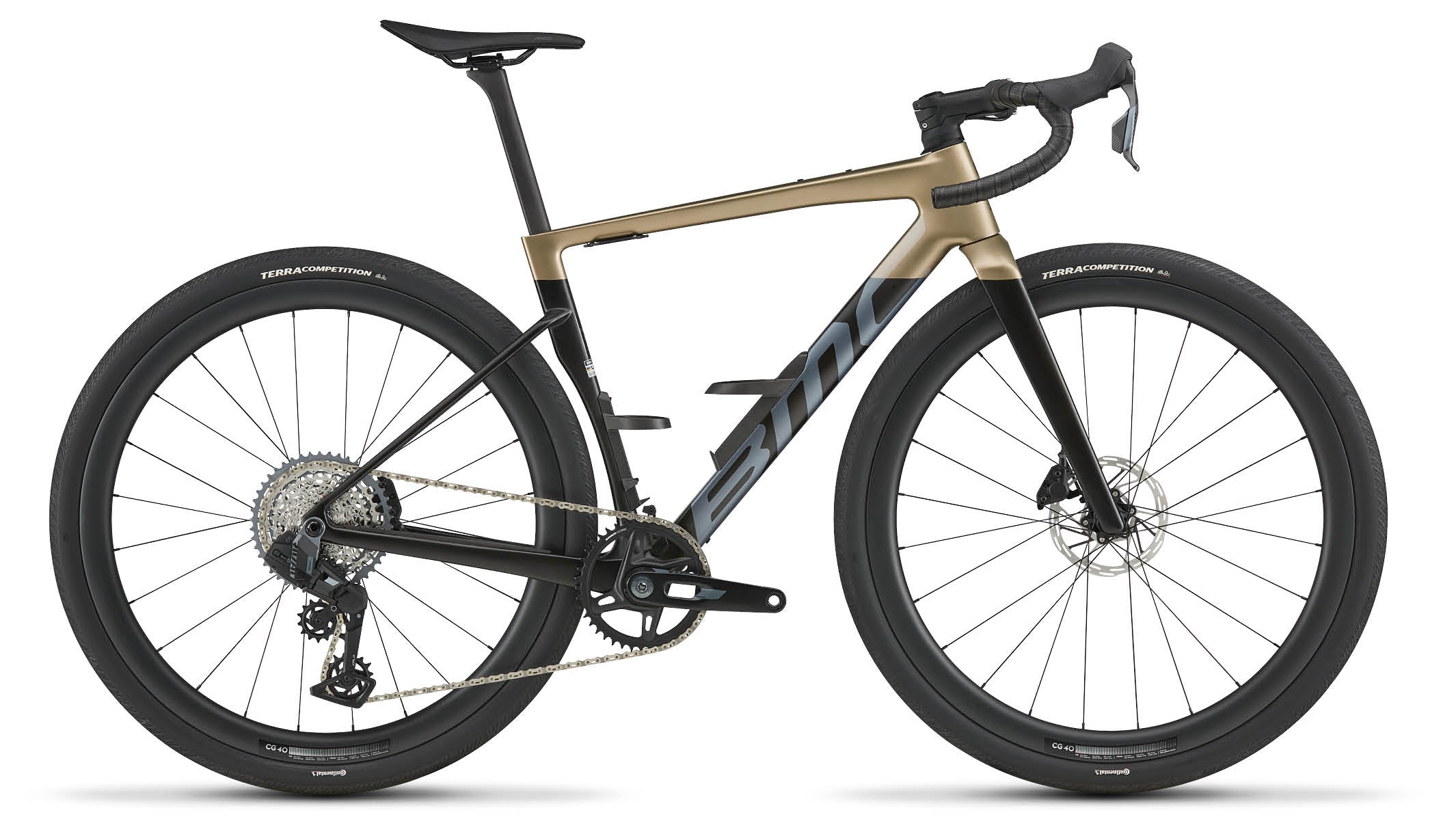

2027 BMC Kaius 01 Three

By BMC
$7,699.00 CAD

This product is available for in-store pickup only.

In stock at supplier warehouse - Usually ships within 5 business days. More info

30008308
Color: Moss Gold / Carbon
Size
View details
Description

Designed from day one for racing, the Kaius 01 THREE is faster, more aero and more responsive than the competition. With a 7% aerodynamic gain at 40 km/h, this gravel race bike cuts through long headwinds and fast race sections with less effort. The 01 Premium Carbon frame provides serious power transfer while improved compliance, 52mm tire clearance and stability allow you to stay committed when the race heats up. This build pairs our fastest gravel platform with a SRAM Rival XPLR AXS groupset with direct mount rear derailleur for race-ready shifting and braking. Up front, our RSM01 integrated stem and HB D4 alloy bars create a dependable, clean cockpit. CG40 carbon wheels keep your Kaius fast and in control.

Technical Specifications

Frame

Kaius 01 Gen 2 | 01 Premium Carbon with Aerocore Design | ICS Technology Stealth Cable Routing | Full Mount - UDH | TCC Race Compliance Level | Flat Mount Disc | 12 x 142mm Thru-Axle

Fork

Kaius 01 Gen 2 | 01 Premium Carbon | ICS Technology, Stealth Cable Routing | TCC Race Compliance Level | Stealth Dropout Design | Flat Mount Disc | 12 x 100mm Thru-Axle

Stem

BMC RSM 01 | Integrated Cockpit System Technology

Handlebar

BMC HB D4 03, 0, 12 | Alloy 6061 | Endurance Geometry | 125mm drop, 70mm reach, 12° flare

Grips

BMC Tacky 3mm

Seatpost

Teammachine SLR 01 Gen 5 | 01 Premium Carbon Aero Shaped Seatpost | 0mm Offset Size 47-51 and 10mm Offset Size 54-61

Saddle

Fizik Vento Argo X5 | 140mm

Crankset

SRAM Rival XPLR AXS Wide (FC-RIV-1W-E1)

Chainrings

42T

Cassette

SRAM Rival XPLR (CS-XG-1351-E1)

Cassette Size

10-46T

Chain

SRAM Rival (CN-RIV-E1)

Rear Derailleur

SRAM Rival XPLR AXS (RD-RIV-1E-E1)

Shifters

SRAM Rival AXS (ED-RIV-E1)

Gears

1 x 13

Bottom Bracket

SRAM DUB T47 85.5 Road Wide Bottom Bracket (BB-DUB-T47-A1)

Brake Levers / Calipers

SRAM Rival AXS (ED-RIV-E1)

Rotors

SRAM Paceline Rotor (RT-PLN-A2)

Rotor Size (F/R)

160 / 160mm

Rims

CG 40 Carbon | Tubeless Ready | 40mm

Hubs (F/R)

TXC-812 & TXC-2406 Center Lock

Tires

Continental Terra Competition Race Rapid | Tubeless | 45mm

Tubeless Information

Tubeless Rim | Tubeless Tires

In the Box

Aerocore Bottle Cages

Tire Clearance

52mm measured tire

Weight without Pedals

8.3kg | Size 54 as pictured with all accessories

ASTM Classification

Level 2

System Weight Limit

120kg

Specifications are subject to change.

Geometry
Size 47 51 54 56 58 61
Rider Height <166 166-174 172-180 178-186 184-192 >190
Reach 385 392 396 400 405 409
Stack 521 541 561 581 606 631
Bar Drop 125 125 125 125 125 125
Bar Reach 70 70 70 70 70 70
Bar Width 390/438 390/438 390/438 410/458 410/458 430/478
BB Drop 79 79 79 79 79 79
Crank Length 165 165 170 170 172.5 172.5
Fork Length 397 397 397 397 397 397
Fork Rake 50 50 50 45 45 45
Front Center 597 611 614 619 633 645
Head Tube 88 109 126 147 173 199
Head Tube Angle 70.8° 70.8° 70.8° 71.6° 71.6° 71.6°
Rear Center 425 425 425 425 425 425
Seat Angle 74.3° 74.3° 73.8° 73.8° 73.8° 73.8°
Seat Tube 429 449 471 485 509 533
Seatpost Length 335 335 385 385 405 405
Seatpost Offset 0 0 10 10 10 10
Standover Height 739 758 779 795 815 838
Stem Angle -8° -8° -8° -8° -8° -8°
Stem Length 80 90 90 100 100 110
Top Tube 531 544 559 569 587 598
Trail 72 72 72 72 72 72
Wheelbase 1010 1024 1027 1032 1045 1058
Product Variants SKU/UPC
  • 2027 BMC Kaius 01 Three: Moss Gold / Carbon / 47: SKU: 30008308 - UPC: 7630906537053
  • 2027 BMC Kaius 01 Three: Moss Gold / Carbon / 51: SKU: 30008309 - UPC: 7630906537046
  • 2027 BMC Kaius 01 Three: Moss Gold / Carbon / 54: SKU: 30008310 - UPC: 7630906537039
  • 2027 BMC Kaius 01 Three: Moss Gold / Carbon / 56: SKU: 30008311 - UPC: 7630906537022
  • 2027 BMC Kaius 01 Three: Moss Gold / Carbon / 58: SKU: 30008312 - UPC: 7630906537015
  • 2027 BMC Kaius 01 Three: Moss Gold / Carbon / 61: SKU: 30008313 - UPC: 7630906537084
