2027 Mondraker Arid Carbon RR

By Mondraker
$9,999.00 CAD

In stock at supplier warehouse - Usually ships within 5 business days. More info

MO-010-27119BK
Color: Superblack
Size
View details
Description

The ARID was born from a single, clear conviction: build one bike capable of going anywhere, doing anything, and doing it fast, just for the fun of it. Not a race bike that tolerates adventure. Not an adventure bike that tolerates racing. A bike genuinely capable of both, with no compromises and no apologies.

Technical Specifications

Frame
Arid Stealth Air Carbon, in-tube storage, T47 bottom bracket, tapered head tube, HHG internal cable routing, 12x142mm rear axle, UDH, 1X drivetrain design, Flatmount brake compatible.

Sizes
S: 410mm / M: 450mm / ML: 480mm / L: 510mm / XL: 540mm

Fork
Steatlh Air Carbon tapered steerer tube, HHG, fllat mount integrated fork

Headset
Onoff IS52/IS52, 1-1/8", 1.5" head tube, sealed bearings, Internal cable routing

Stem
Onoff Semi-Integrated, 31.8mm barbore, rise: -7°, length: S size: 60mm, M size: 70mm, ML size 70mm, L size: 80mm, XL size: 90mm

Handlebar
Onoff S9 GR Carbon 16º bar flare. Width sizes S size: 400mm M size: 420mm ML size: 420mm L size: 440mm XL size: 460mm

Grips
Fizik Terra Solocush Tacky Bartape

Seatpost
Onoff S9 Carbon 15-R, diameter 27.2mm, length: S size: 400mm, M size: 400mm, ML size 400mm, L size: 450m, XL size: 450mm

Saddle
Fizik Vento Argo X5 140mm

Front brake
Sram Force AXS HRD 2 piece caliper, Paceline 160mm Centerlock rotor, steel-backed organic pad

Rear brake
Sram Force AXS HRD, 2 piece caliper, Paceline 160mm Centerlock rotor, steel-backed organic pad

Brake lever
Sram Force, eTap shift logic, Bonus button ANT+, tooled reach adjust, carbon brake lever

Rims
Zipp 303 XPLR S, carbon, 32mm internal width, 54mm rim depth, hookless, 24 spokes

Spokes
CX-Sprint - Black

Front hub
76 Disc Brake, 12x100mm,Centerlock

Rear hub
176 Disc Brake, 12x142mm, XDR 3 Pawls leaf springs, Centerlock. XDR Freehub

Front tire
Goodyear XPLR Inter 700x45

Rear tire
Goodyear XPLR Inter 700x45

Crankset
Sram Force XPLR AXS Carbon, Power meter, DUB WIDE axle, S size: 165mm M size: 165mm ML size: 170mm L size: 172,5mm XL size: 172,5mm, CL 47,5

Rings
Sram 40T Direct mount, alloy, narrow-wide

Bottom bracket
Sram DUB T47 BSA, sealed bearings, 85,5mm

Chain
Sram X0 Eagle T-Type, 12s Flattop, Powerlock

Rear derrailleur
Sram X0 Eagle AXS T-Type,12s

Shift levers
Sram Force AXS HRD, 13s,

Casette
Sram XS-1295, 10-52T, T-Type 12s

Weight
8,1 kg

Geometry
Frame size S M M/L L XL
A Seattube length 410 mm 450 mm 480 mm 510 mm 540 mm
B Toptube length 520 mm 550 mm 580 mm 600 mm 630 mm
C Bottom bracket drop -75 -75 -75 -75 -75
D Bottom bracket height 269 mm 269 mm 269 mm 269 mm 269 mm
E Chainstay length 425 mm 425 mm 425 mm 425 mm 425 mm
F Seat tube angle 73° 73° 73° 73° 73°
G Effective seattube angle 74° 74° 74° 74° 74°
H Headtube angle 70° 70° 70° 70° 70°
I Fork Offset 45 mm 45 mm 45 mm 45 mm 45 mm
J Wheelbase 1003 mm 1035 mm 1067 mm 1089 mm 1121 mm
K Headtube length 100 mm 125 mm 145 mm 175 mm 200 mm
L Reach 363 mm 386 mm 411 mm 423 mm 446 mm
M Stack 548 mm 572 mm 591 mm 619 mm 642 mm
N Stem Length 60 mm 70 mm 70 mm 80 mm 90 mm
O Fork Height 420 mm 420 mm 420 mm 420 mm 420 mm
Product Variants SKU/UPC

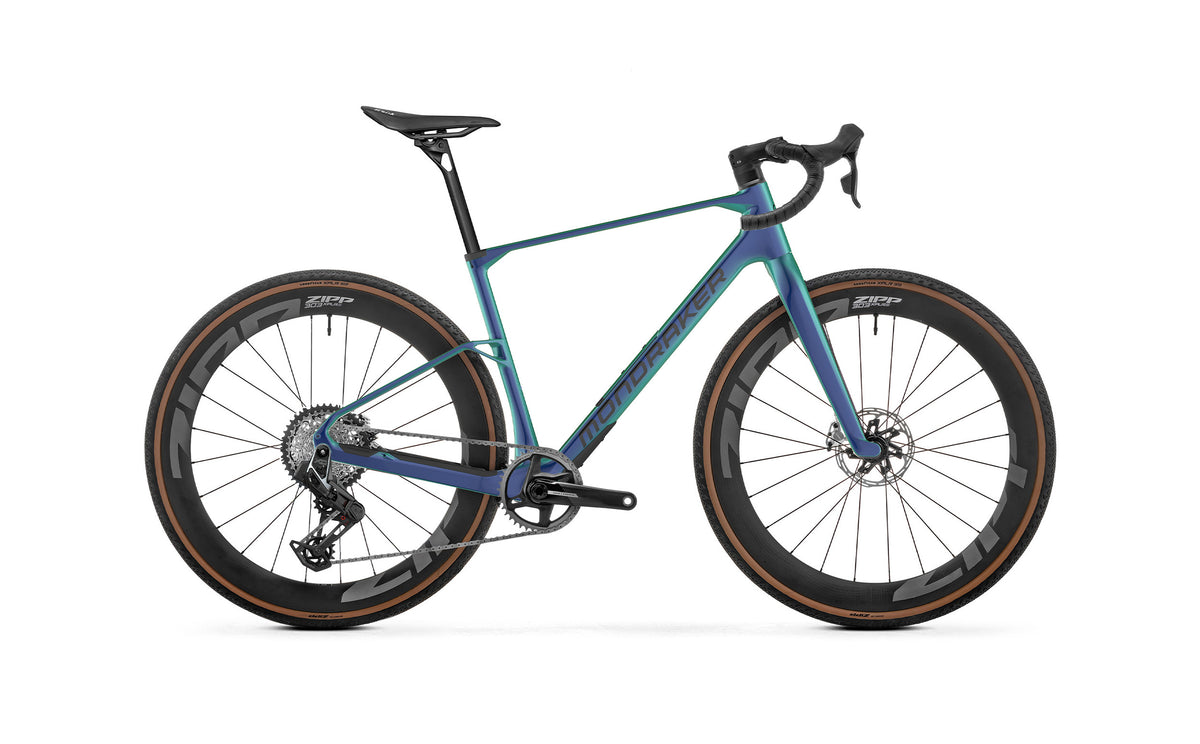

  • 2027 Mondraker Arid Carbon RR: Atmos / SM: SKU: MO-010-27119AT - UPC:

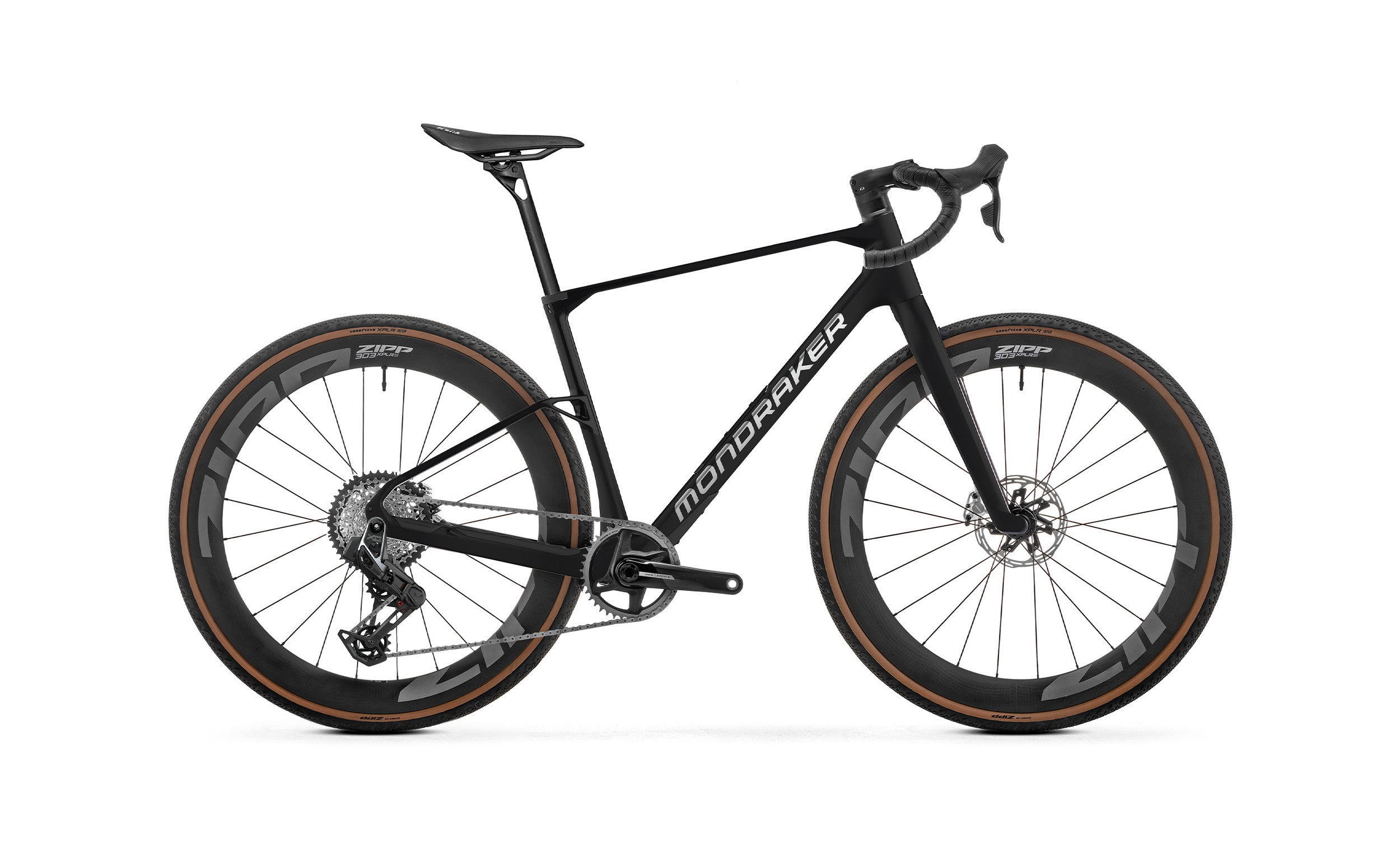

  • 2027 Mondraker Arid Carbon RR: Superblack / SM: SKU: MO-010-27119BK - UPC:

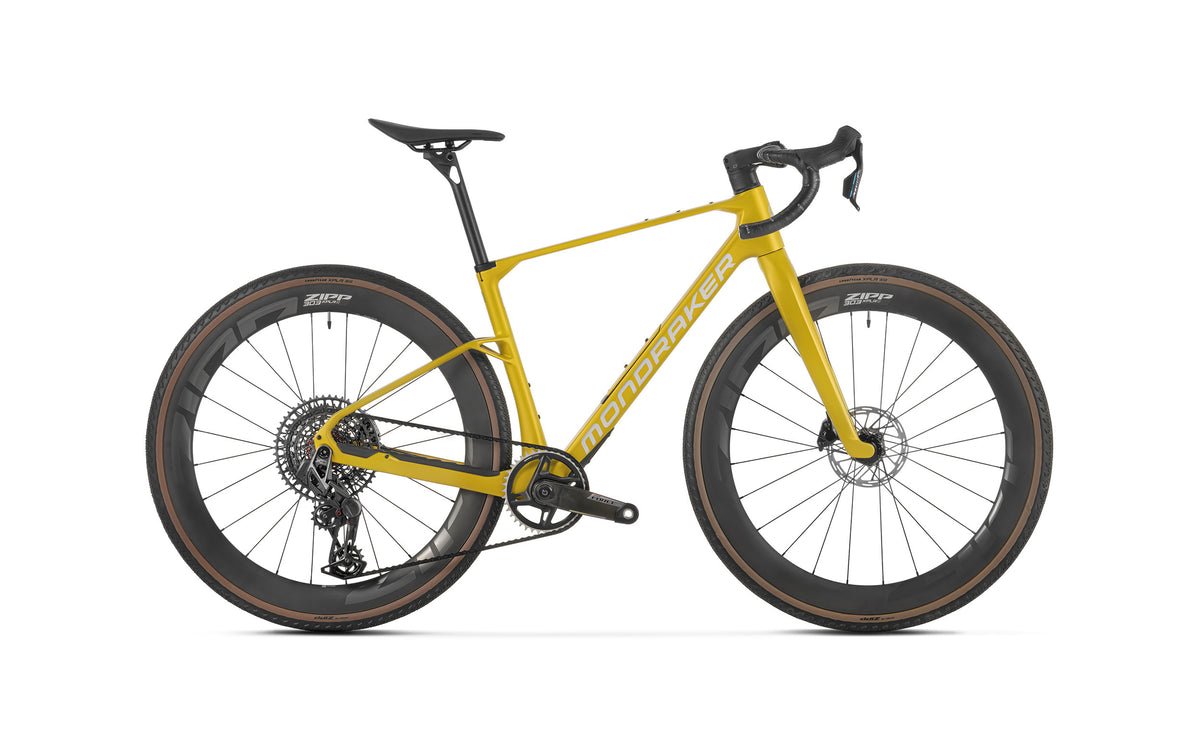

  • 2027 Mondraker Arid Carbon RR: Suncore / SM: SKU: MO-010-27119SU - UPC:

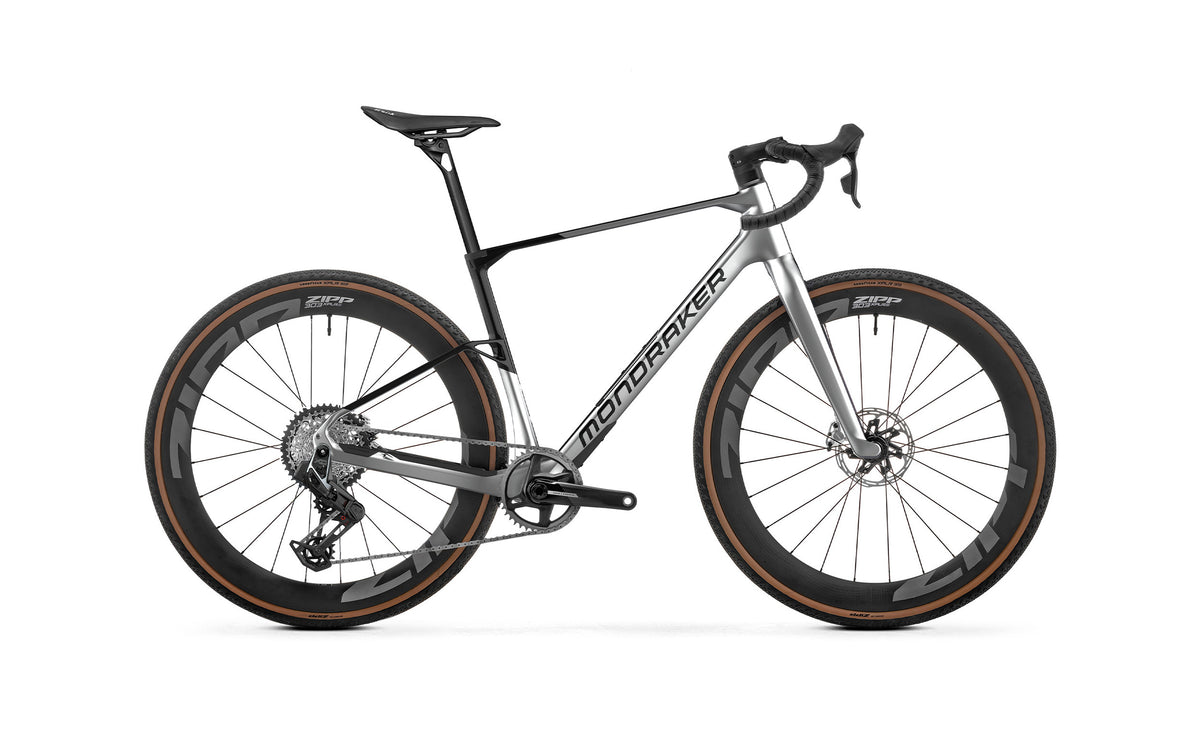

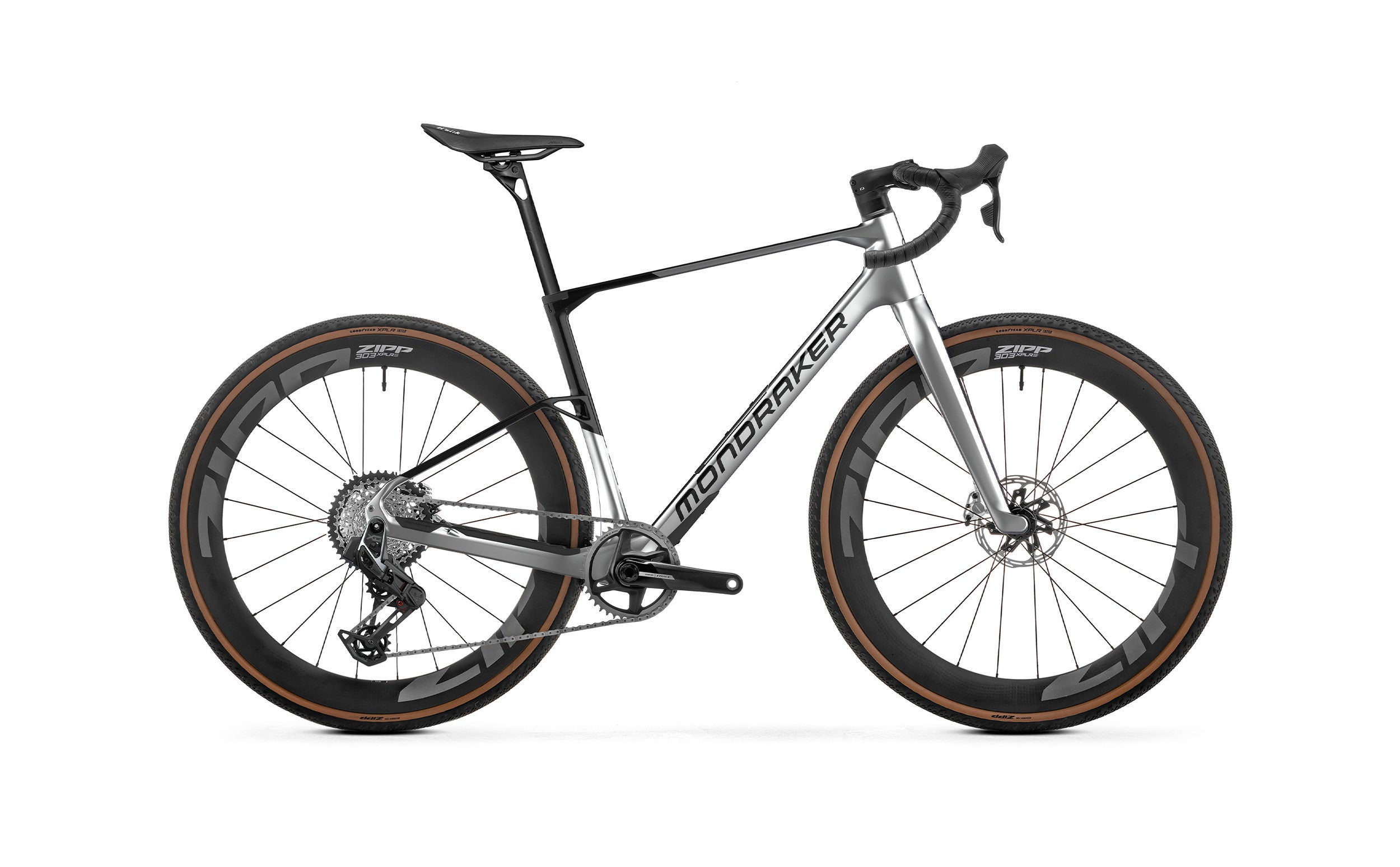

  • 2027 Mondraker Arid Carbon RR: Silverflash / SM: SKU: MO-010-27119SV - UPC:
  • 2027 Mondraker Arid Carbon RR: Atmos / MD: SKU: MO-010-27120AT - UPC:
  • 2027 Mondraker Arid Carbon RR: Superblack / MD: SKU: MO-010-27120BK - UPC:
  • 2027 Mondraker Arid Carbon RR: Suncore / MD: SKU: MO-010-27120SU - UPC:
  • 2027 Mondraker Arid Carbon RR: Silverflash / MD: SKU: MO-010-27120SV - UPC:
  • 2027 Mondraker Arid Carbon RR: Atmos / M/L: SKU: MO-010-27121AT - UPC:
  • 2027 Mondraker Arid Carbon RR: Superblack / M/L: SKU: MO-010-27121BK - UPC:
  • 2027 Mondraker Arid Carbon RR: Suncore / M/L: SKU: MO-010-27121SU - UPC:
  • 2027 Mondraker Arid Carbon RR: Silverflash / M/L: SKU: MO-010-27121SV - UPC:
  • 2027 Mondraker Arid Carbon RR: Atmos / LG: SKU: MO-010-27122AT - UPC:
  • 2027 Mondraker Arid Carbon RR: Superblack / LG: SKU: MO-010-27122BK - UPC:
  • 2027 Mondraker Arid Carbon RR: Suncore / LG: SKU: MO-010-27122SU - UPC:
  • 2027 Mondraker Arid Carbon RR: Silverflash / LG: SKU: MO-010-27122SV - UPC:
  • 2027 Mondraker Arid Carbon RR: Atmos / XL: SKU: MO-010-27123AT - UPC:
  • 2027 Mondraker Arid Carbon RR: Superblack / XL: SKU: MO-010-27123BK - UPC:
  • 2027 Mondraker Arid Carbon RR: Suncore / XL: SKU: MO-010-27123SU - UPC:
  • 2027 Mondraker Arid Carbon RR: Silverflash / XL: SKU: MO-010-27123SV - UPC:
