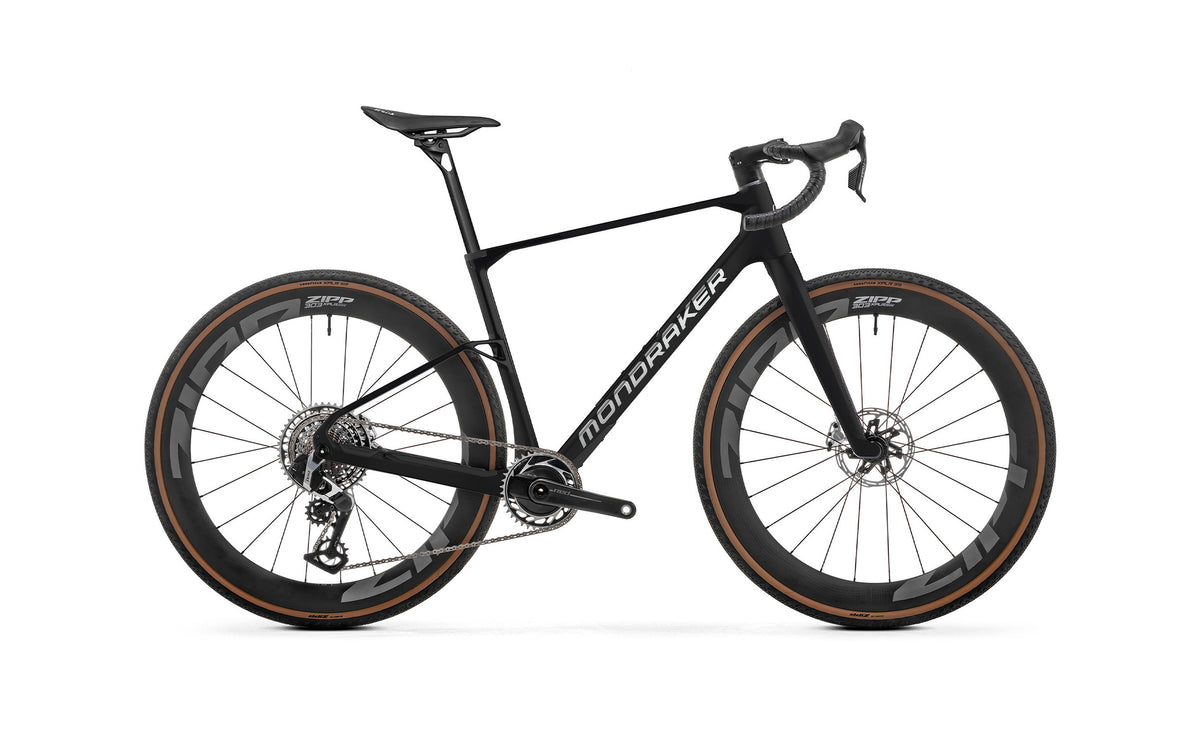

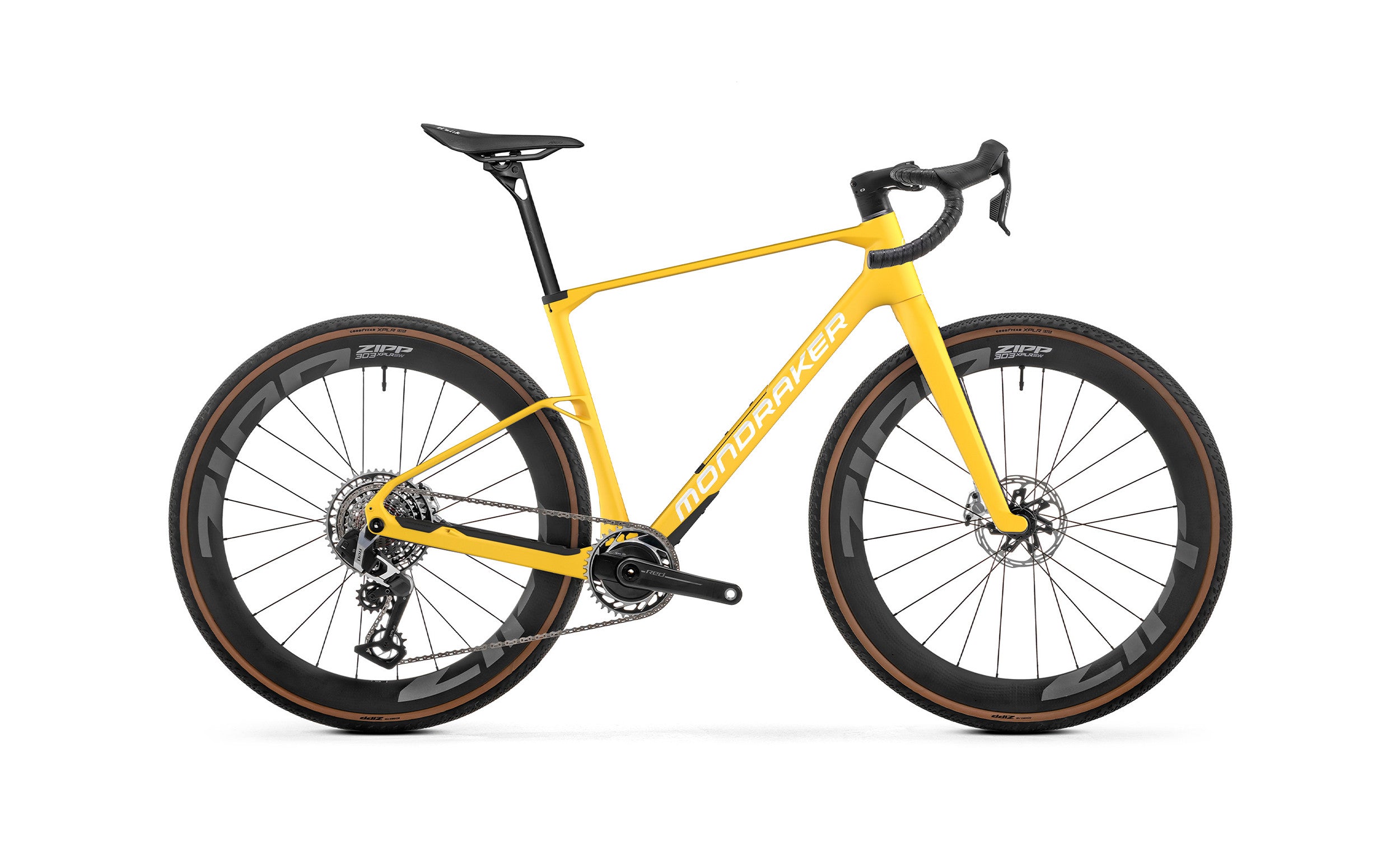

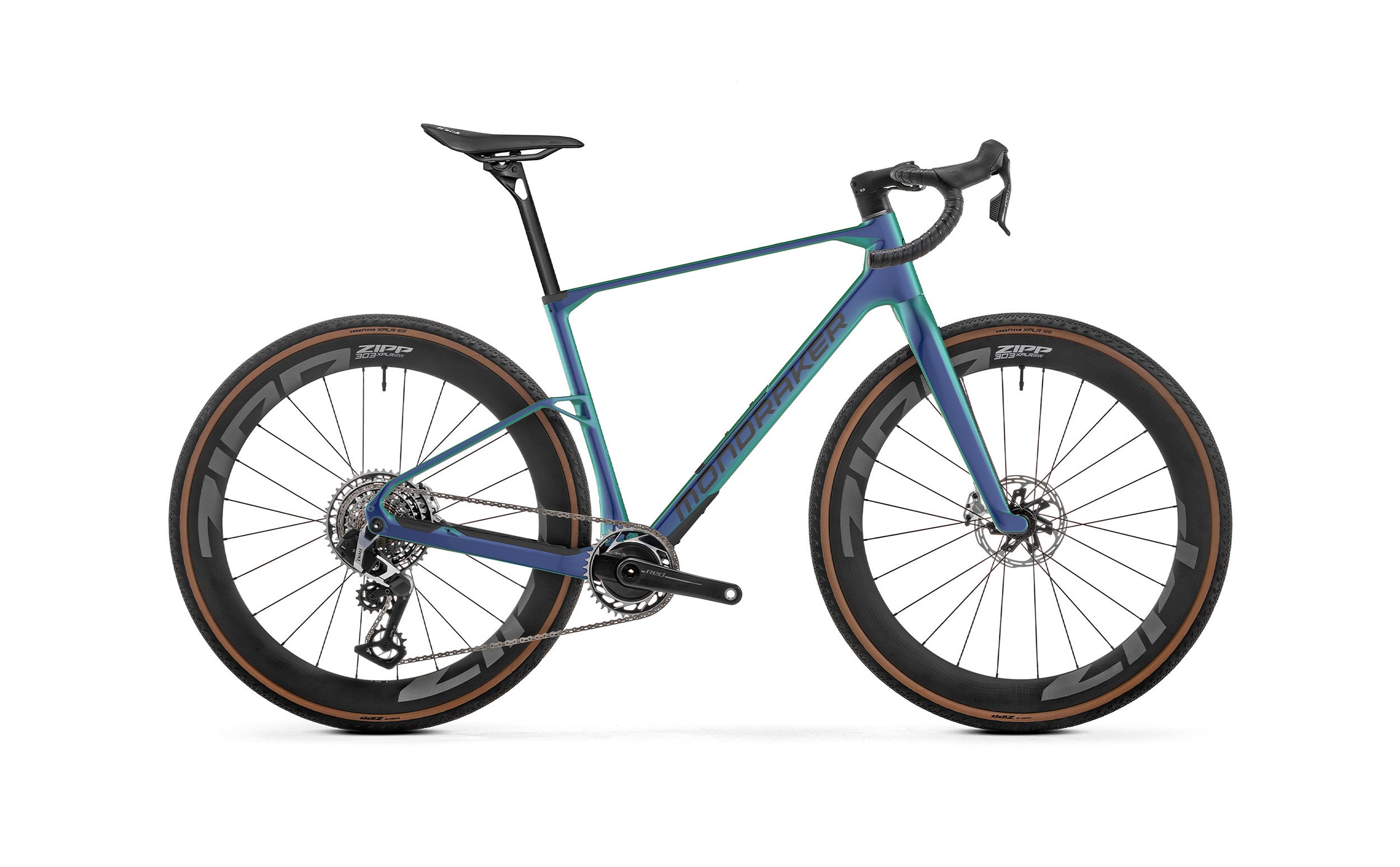

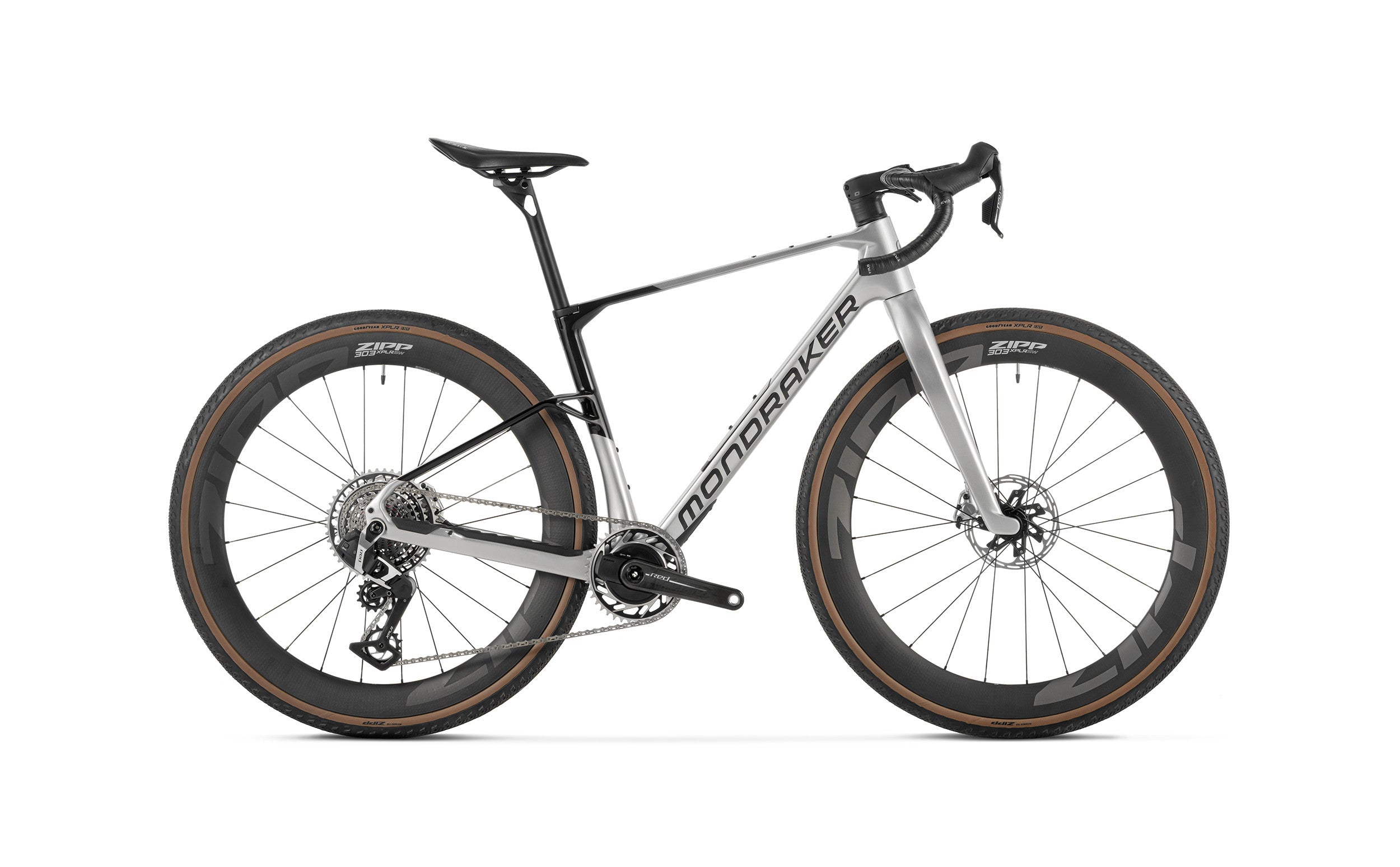

2027 Mondraker Arid Carbon RR SL

By Mondraker
$14,999.00 CAD

In stock at supplier warehouse - Usually ships within 5 business days. More info

MO-010-27125AT
Color: Atmos
Size
View details
Description

The ultimate expression of the ARID . Equipped with SRAM RED XPLR AXS and Zipp 303 XPLR SW wheels, the RR SL is designed for riders who demand uncompromised performance. Light, fast and ready to race at the highest level, it stands at the pinnacle of Mondraker Gravel.

Technical Specifications

Frame
Arid Stealth Air Carbon, in-tube storage, T47 bottom bracket, tapered head tube, HHG internal cable routing, 12x142mm rear axle, UDH, 1X drivetrain design, Flatmount brake compatible.

Sizes
S: 410mm / M: 450mm / ML: 480mm / L: 510mm / XL: 540mm

Fork
Steatlh Air Carbon tapered steerer tube, HHG, fllat mount integrated fork

Headset
Onoff IS52/IS52, 1-1/8", 1.5" head tube, sealed bearings, Internal cable routing

Stem
Onoff Semi-Integrated, 31.8mm barbore, rise: -7°, length: S size: 60mm, M size: 70mm, ML size 70mm, L size: 80mm, XL size: 90mm

Handlebar
Onoff S9 GR Carbon 16º bar flare. Width sizes S size: 400mm M size: 420mm ML size: 420mm L size: 440mm XL size: 460mm

Grips
Fizik Terra Solocush Tacky Bartape

Seatpost
Onoff S9 Carbon 15-R, diameter 27.2mm, length: S size: 400mm, M size: 400mm, ML size 400mm, L size: 450m, XL size: 450mm

Saddle
Fizik Vento Argo 00 140mm

Front brake
Sram Red AXS 2 piece caliper, Paceline 160mm Centerlock rotor, steel-backed organic pad

Rear brake
Sram Red AXS 2 piece caliper, Paceline 160mm Centerlock rotor, steel-backed organic pad

Brake lever
Sram Red, contact point adjustment, tooled reach adjust, carbon levers

Rims
Zipp 303 XPLR SW, carbon, 32mm internal width,54mm rim depth, hookless, 24 spokes

Spokes
CX-Ray - Black

Front hub
ZR1 DB, 12x100mm, Centerlock

Rear hub
ZR1 DB, 12x142mm, XDR 6 Pawls, Compression Springs, 66T Ratchet, Centerlock. XDR Freehub

Front tire
Goodyear XPLR Inter 700x45

Rear tire
Goodyear XPLR Inter 700x45

Crankset
Sram Red XPLR carbon, Power meter, DUB WIDE axle, thread-mount chainring, S size: 165mm M size: 167,5mm ML size: 170mm L size: 172,5mm XL size: 172,5mm, CL 47,5

Rings
Sram 40T Thread Mount, alloy, narrow-wide

Bottom bracket
Sram DUB T47 BSA, sealed bearings, 85,5mm

Chain
Sram Red, 13s Flattop, Powerlock

Rear derrailleur
Sram Red XPLR AXS, 13s

Shift levers
Sram Red XPLR AXS, 13s

Casette
Sram XG-1391, 10-46T, 13s

Weight
7,6 kg

Geometry
Frame size S M M/L L XL
A Seattube length 410 mm 450 mm 480 mm 510 mm 540 mm
B Toptube length 520 mm 550 mm 580 mm 600 mm 630 mm
C Bottom bracket drop -75 -75 -75 -75 -75
D Bottom bracket height 269 mm 269 mm 269 mm 269 mm 269 mm
E Chainstay length 425 mm 425 mm 425 mm 425 mm 425 mm
F Seat tube angle 73° 73° 73° 73° 73°
G Effective seattube angle 74° 74° 74° 74° 74°
H Headtube angle 70° 70° 70° 70° 70°
I Fork Offset 45 mm 45 mm 45 mm 45 mm 45 mm
J Wheelbase 1003 mm 1035 mm 1067 mm 1089 mm 1121 mm
K Headtube length 100 mm 125 mm 145 mm 175 mm 200 mm
L Reach 363 mm 386 mm 411 mm 423 mm 446 mm
M Stack 548 mm 572 mm 591 mm 619 mm 642 mm
N Stem Length 60 mm 70 mm 70 mm 80 mm 90 mm
O Fork Height 420 mm 420 mm 420 mm 420 mm 420 mm
