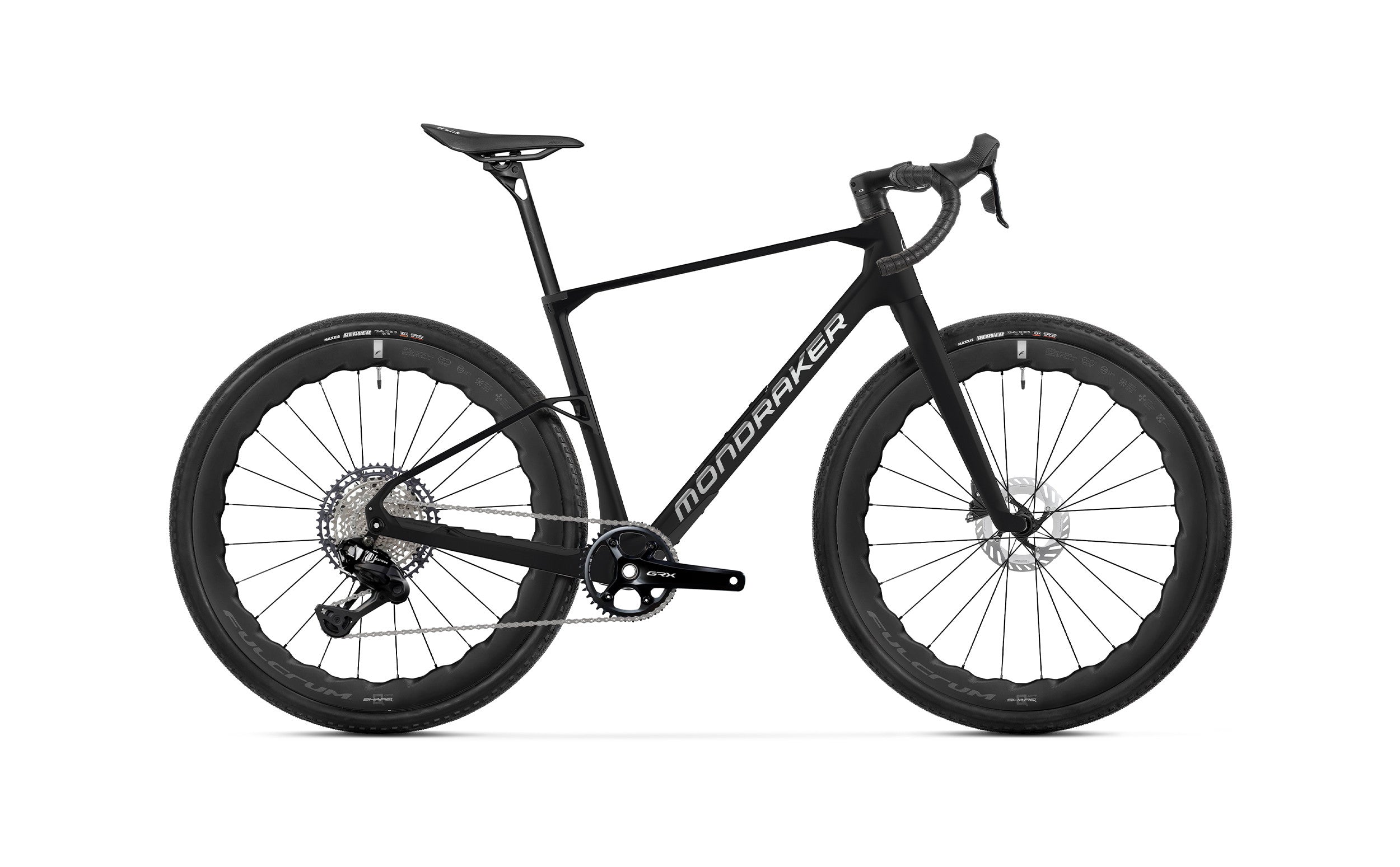

2027 Mondraker Arid Carbon RS

By Mondraker
$8,799.00 CAD

In stock at supplier warehouse - Usually ships within 5 business days. More info

MO-010-27114BK
Color: Superblack
Size
View details
Description

The ARID was born from a single, clear conviction: build one bike capable of going anywhere, doing anything, and doing it fast, just for the fun of it. Not a race bike that tolerates adventure. Not an adventure bike that tolerates racing. A bike genuinely capable of both, with no compromises and no apologies.

Technical Specifications

Frame
Arid Stealth Air Carbon, in-tube storage, T47 bottom bracket, tapered head tube, HHG internal cable routing, 12x142mm rear axle, UDH, 1X drivetrain design, Flatmount brake compatible.

Sizes
S: 410mm / M: 450mm / ML: 480mm / L: 510mm / XL: 540mm

Fork
Steatlh Air Carbon tapered steerer tube, HHG, fllat mount integrated fork

Headset
Onoff IS52/IS52, 1-1/8", 1.5" head tube, sealed bearings, Internal cable routing.

Stem
Onoff Semi-Integrated, 31.8mm barbore, rise: -7°, length: S size: 60mm, M size: 70mm, ML size 70mm, L size: 80mm, XL size: 90mm

Handlebar
Onoff S9 GR Carbon 16º bar flare. Width sizes S size: 400mm M size: 420mm ML size: 420mm L size: 440mm XL size: 460mm

Grips
Fizik Terra Solocush Tacky Bartape

Seatpost
Onoff S9 Carbon 15-R, diameter 27.2mm, length: S size: 400mm, M size: 400mm, ML size 400mm, L size: 450m, XL size: 450mm

Saddle
Fizik Vento Argo X5 140mm

Front brake
Shimano GRX RX825, RX820 caliper, CL-800 ice tech 160mm centerlock rotor, resin pad

Rear brake
Shimano GRX RX825, RX820 caliper, CL-800 ice tech 160mm centerlock rotor, resin pad

Brake lever
Shimano GRX RX825, contact point adjustment, tooled reach adjust, aluminium lever.

Rims
Fulcrum Sharq GR, Carbon 2-Wave Rim, 47-52mm height, 30mm internal width, Hooked Rim

Spokes
Fulcrum A3RO 3mm

Front hub
Fulcrum, 12x100mm, Steel Cup & Cone Bearings, Centerlock

Rear hub
Fulcrum, 12x142mm, Steel Cup & Cone Bearings, Centerlock, MS Freehub

Front tire
Maxxis Reaver 700x45, HYPR-X compound, EXO protection, tubeless ready, 120 TPI, folding bead

Rear tire
Maxxis Reaver 700x45, HYPR-X compound, EXO protection, tubeless ready, 120 TPI, folding bead

Crankset
Shimano GRX RX820, S size: 170mm M size: 170mm ML size: 170mm L size: 172,5mm XL size: 175mm, CL 49,7

Rings
Shimano 40T, alloy

Bottom bracket
Token T47 BSA sealed bearings, 85,5mm

Chain
Shimano XT CN-M8100, 12s, Quick-Link

Rear derrailleur
Shimano GRX RX827 DI2, 12s

Shift levers
Shimano GRX RX825 DI2 dual lever

Casette
Shimano XT CS-M8200 ,10-51T, Hyperglide+, 12s

Derailleur hanger
Sram UDH

Weight
8,9 kg

Geometry
Frame size S M M/L L XL
A Seattube length 410 mm 450 mm 480 mm 510 mm 540 mm
B Toptube length 520 mm 550 mm 580 mm 600 mm 630 mm
C Bottom bracket drop -75 -75 -75 -75 -75
D Bottom bracket height 269 mm 269 mm 269 mm 269 mm 269 mm
E Chainstay length 425 mm 425 mm 425 mm 425 mm 425 mm
F Seat tube angle 73° 73° 73° 73° 73°
G Effective seattube angle 74° 74° 74° 74° 74°
H Headtube angle 70° 70° 70° 70° 70°
I Fork Offset 45 mm 45 mm 45 mm 45 mm 45 mm
J Wheelbase 1003 mm 1035 mm 1067 mm 1089 mm 1121 mm
K Headtube length 100 mm 125 mm 145 mm 175 mm 200 mm
L Reach 363 mm 386 mm 411 mm 423 mm 446 mm
M Stack 548 mm 572 mm 591 mm 619 mm 642 mm
N Stem Length 60 mm 70 mm 70 mm 80 mm 90 mm
O Fork Height 420 mm 420 mm 420 mm 420 mm 420 mm
Product Variants SKU/UPC
  • 2027 Mondraker Arid Carbon RS: Atmos / SM: SKU: MO-010-27114AT - UPC:
  • 2027 Mondraker Arid Carbon RS: Superblack / SM: SKU: MO-010-27114BK - UPC:
  • 2027 Mondraker Arid Carbon RS: Suncore / SM: SKU: MO-010-27114SU - UPC:
  • 2027 Mondraker Arid Carbon RS: Silverflash / SM: SKU: MO-010-27114SV - UPC:
  • 2027 Mondraker Arid Carbon RS: Atmos / MD: SKU: MO-010-27115AT - UPC:
  • 2027 Mondraker Arid Carbon RS: Superblack / MD: SKU: MO-010-27115BK - UPC:
  • 2027 Mondraker Arid Carbon RS: Suncore / MD: SKU: MO-010-27115SU - UPC:
  • 2027 Mondraker Arid Carbon RS: Silverflash / MD: SKU: MO-010-27115SV - UPC:
  • 2027 Mondraker Arid Carbon RS: Atmos / M/L: SKU: MO-010-27116AT - UPC:
  • 2027 Mondraker Arid Carbon RS: Superblack / M/L: SKU: MO-010-27116BK - UPC:
  • 2027 Mondraker Arid Carbon RS: Suncore / M/L: SKU: MO-010-27116SU - UPC:
  • 2027 Mondraker Arid Carbon RS: Silverflash / M/L: SKU: MO-010-27116SV - UPC:
  • 2027 Mondraker Arid Carbon RS: Atmos / LG: SKU: MO-010-27117AT - UPC:
  • 2027 Mondraker Arid Carbon RS: Superblack / LG: SKU: MO-010-27117BK - UPC:
  • 2027 Mondraker Arid Carbon RS: Suncore / LG: SKU: MO-010-27117SU - UPC:
  • 2027 Mondraker Arid Carbon RS: Silverflash / LG: SKU: MO-010-27117SV - UPC:
  • 2027 Mondraker Arid Carbon RS: Atmos / XL: SKU: MO-010-27118AT - UPC:
  • 2027 Mondraker Arid Carbon RS: Superblack / XL: SKU: MO-010-27118BK - UPC:
  • 2027 Mondraker Arid Carbon RS: Suncore / XL: SKU: MO-010-27118SU - UPC:
  • 2027 Mondraker Arid Carbon RS: Silverflash / XL: SKU: MO-010-27118SV - UPC:
