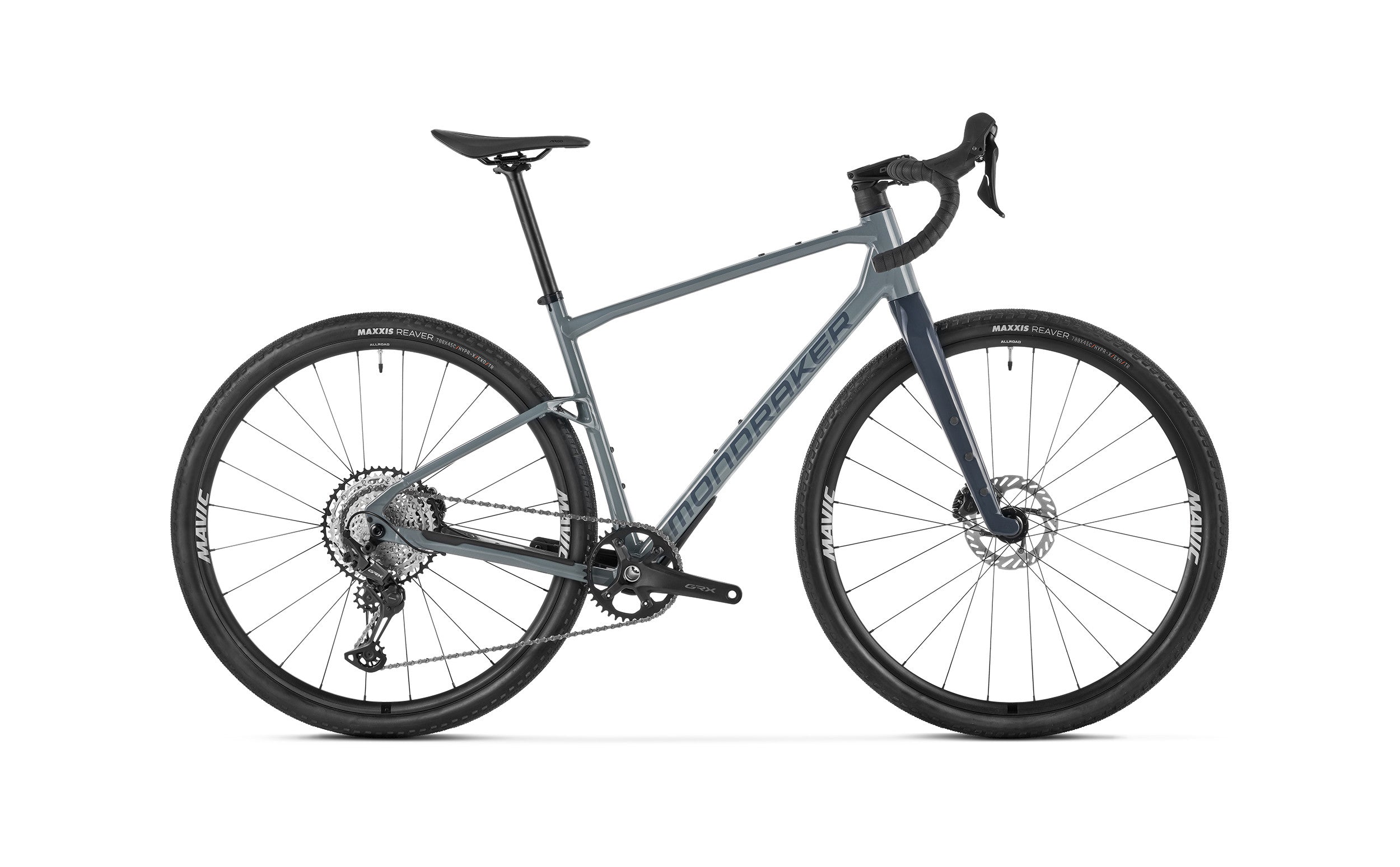

2027 Mondraker Arid S

By Mondraker
$3,999.00 CAD

In stock at supplier warehouse - Usually ships within 5 business days. More info

MO-010-27079
Color: Greyhound Grey
Size
View details
Technical Specifications

Frame
Arid 6061 Alloy Stealth Evo, hydroformed tubing, T47 bottom bracket, tapered head tube, HHG internal cable routing, 12x142mm rear axle, 1X drivetrain design, Flatmount brake compatible.

Sizes
S: 410mm / M: 450mm / ML: 480mm / L: 510mm / XL: 540mm

Fork
Steatlh Air Carbon tapered steerer tube, HHG, fllat mount integrated fork

Headset
Onoff IS52/IS52, 1-1/8", 1.5" head tube, sealed bearings, Internal cable routing.

Stem
Onoff S3, 31.8mm barbore, 6061 alloy, rise: -7°, length: S size: 60mm, M size: 70mm, ML size 70mm, L size: 80mm, XL size: 90mm

Handlebar
Onoff S3 GR 16º bar flare. Width sizes: S size: 400mm M size: 420mm ML size: 420mm L size: 440mm XL size: 460mm

Grips
Onoff HEX Bartape

Seatpost
Onoff S3 0-R, diameter 27,2mm, length 400mm

Saddle
Fizik Vento Argo X5 140mm

Front brake
Shimano GRX RX610, RX410 caliper, CL-700 ice tech 160mm centerlock rotor, resin pad

Rear brake
Shimano GRX RX610, RX410 caliper, CL-700 ice tech 160mm centerlock rotor, resin pad

Brake lever
Shimano GRX RX610, tooled reach adjust, aluminium lever.

Rims
Mavic Allroad Disc, 25mm internal width, hookless, 28 spokers

Spokes
Mavic Steel J Bent spokes

Front hub
Mavic, 12x100mm, Centerlock

Rear hub
Mavic infinity hub, 12x142mm, XD ID360 Ratchet system, Centerlock, MS Freehub

Front tire
Maxxis Reaver 700x45, HYPR-X compound, EXO protection, tubeless ready, 120 TPI, folding bead

Rear tire
Maxxis Reaver 700x45, HYPR-X compound, EXO protection, tubeless ready, 120 TPI, folding bead

Crankset
Shimano GRX RX610, S size: 165mm M size: 170mm ML size: 170mm L size: 172,5mm XL size: 175mm, CL 49,7

Rings
Shimano 40T, direct mount, steel

Bottom bracket
Token T47 BSA sealed bearings, 85,5mm

Chain
Shimano SLX CN-M7100, Quick-Link

Rear derrailleur
Shimano GRX RX822-SGS, 12s

Shift levers
Shimano GRX RX610 dual control, alloy lever

Casette
Shimano SLX CS-M7100, Hyperglide+, 10-51, 12s

Derailleur hanger
Sram UDH

Weight
10,8 kg

Geometry
Frame size S M M/L L XL
A Seattube length 410 mm 450 mm 480 mm 510 mm 540 mm
B Toptube length 520 mm 550 mm 580 mm 600 mm 630 mm
C Bottom bracket drop -75 -75 -75 -75 -75
D Bottom bracket height 269 mm 269 mm 269 mm 269 mm 269 mm
E Chainstay length 425 mm 425 mm 425 mm 425 mm 425 mm
F Seat tube angle 73° 73° 73° 73° 73°
G Effective seattube angle 74° 74° 74° 74° 74°
H Headtube angle 70° 70° 70° 70° 70°
I Fork Offset 45 mm 45 mm 45 mm 45 mm 45 mm
J Wheelbase 1003 mm 1035 mm 1067 mm 1089 mm 1121 mm
K Headtube length 100 mm 125 mm 145 mm 175 mm 200 mm
L Reach 363 mm 386 mm 411 mm 423 mm 446 mm
M Stack 548 mm 572 mm 591 mm 619 mm 642 mm
N Stem Length 60 mm 70 mm 70 mm 80 mm 90 mm
O Fork Height 420 mm 420 mm 420 mm 420 mm 420 mm
Product Variants SKU/UPC
  • 2027 Mondraker Arid S: Greyhound Grey / SM: SKU: MO-010-27079 - UPC:
  • 2027 Mondraker Arid S: Greyhound Grey / MD: SKU: MO-010-27080 - UPC:
  • 2027 Mondraker Arid S: Greyhound Grey / M/L: SKU: MO-010-27081 - UPC:
  • 2027 Mondraker Arid S: Greyhound Grey / LG: SKU: MO-010-27082 - UPC:
  • 2027 Mondraker Arid S: Greyhound Grey / XL: SKU: MO-010-27083 - UPC:
  • 2027 Mondraker Arid S: Rustbelt Red / SM: SKU: MO-010-27084 - UPC:
  • 2027 Mondraker Arid S: Rustbelt Red / MD: SKU: MO-010-27085 - UPC:
  • 2027 Mondraker Arid S: Rustbelt Red / M/L: SKU: MO-010-27086 - UPC:
  • 2027 Mondraker Arid S: Rustbelt Red / LG: SKU: MO-010-27087 - UPC:
  • 2027 Mondraker Arid S: Rustbelt Red / XL: SKU: MO-010-27088 - UPC:
