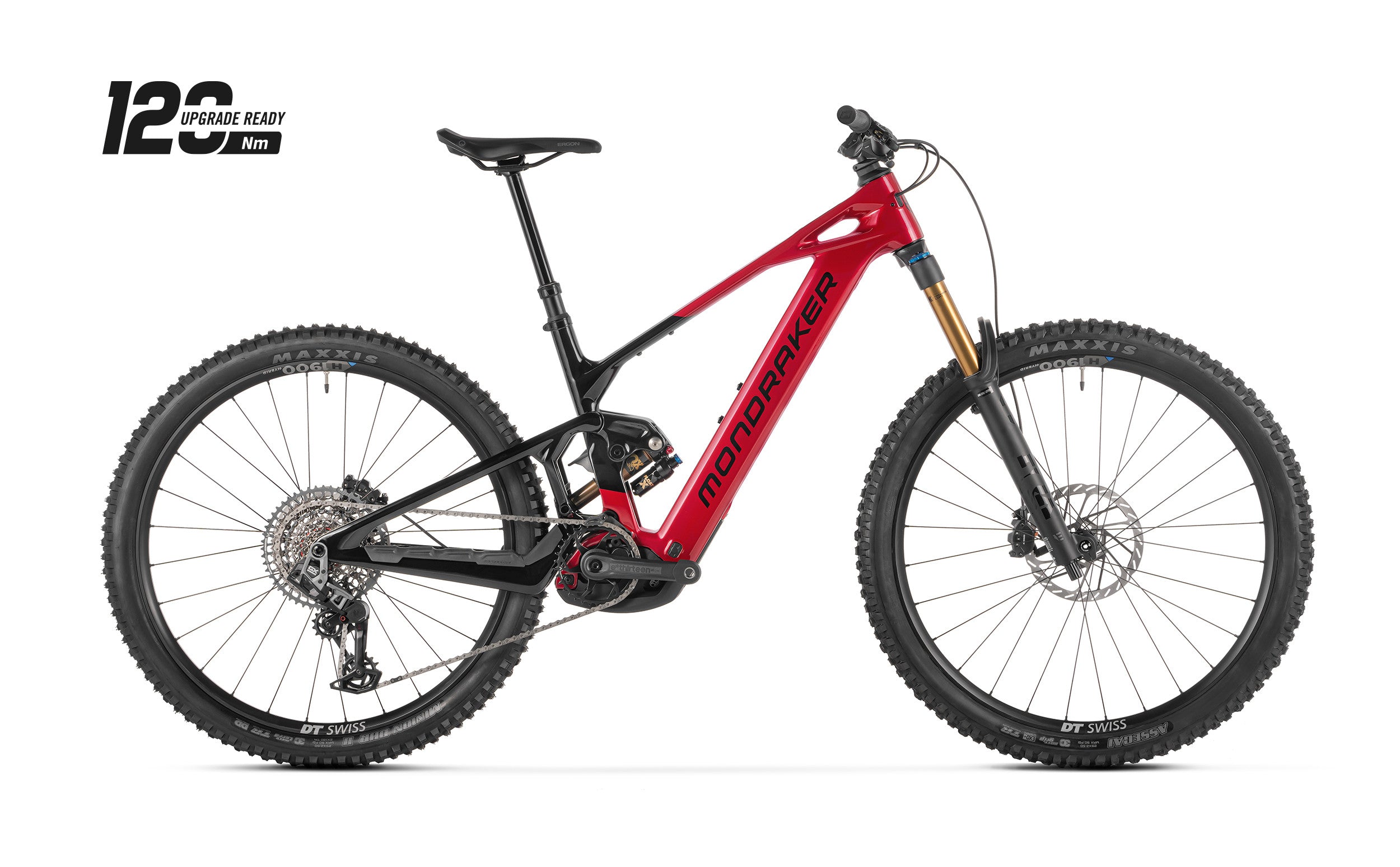

Crafty Carbon counts on an all-new carbon fibre frame manufactured from Stealth Air Carbon. There are 5 builds available in 5 different sizes , with two different chainstay lengths depending on size. The R build features a carbon fibre frame with an aluminium rear triangle. The other 4 builds, the RR, RR S and RR SL, are carbon fibre throughout.
Frame
Crafty Stealth Air full Carbon, Updated Zero Suspension System, 150mm travel, Forward Geometry, internal removable battery, Boost 12x148mm rear axle, UDH, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers.
Sizes
S: 380mm / M: 410mm / ML: 435mm / L: 460mm / XL: 490mm
Rear shock
Fox Float-X Factory Kashima EVOL LV, 185x55mm. Settings: compression 2 positions lever, low-speed compression, low-speed rebound, air preload. Trunnion top mount, 30x8mm bottom bushings
Shock settings
CS50 compression, RL70 rebound, 1,1 Bleed, Rezi B60, LML, MCU, 0.2 Volume Spacer
Fork
Fox 38 29 Float GRIPX2 Factory Kashima, 160mm, tapered steerer tube, Boost 15x110mm Kabolt axle, 44mm offset. Settings: high and low-speed compression, high and low-speed rebound, air preload
Headset
Acros custom ZS56/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs without blocklock
Stem
Onoff S6 30mm 0º, 6061 forged alloy + CNC, 31.8mm barbore
Handlebar
Onoff S6 1.0 7050 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 38mm rise.
Grips
Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size
Seatpost
Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 140-115mm (388-235mm), M size: 160-135mm (428-255mm), ML size: 180-155mm (468-275mm), L size: 210-185mm (528-305mm), XL size: 210-185mm (528-305mm)
Saddle
Ergon SM-10
Front brake
Sram Maven Bronze, 18 millimeter 4-piston caliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Rear brake
Sram Maven Bronze, 18 millimeter 4-piston caliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Brake lever
Sram Maven Bronze , SwingLink and lever pivot bushings, tools-free reach adjust
Rims
DT Swiss Hybrid H 1900 SPLINE, aluminum, hooked / crotchet tubeless TC, 30mm internal width, tubeless ready, 28 spokes.
Spokes
DT Swiss Straightpull spokes, DT Hybrid I, black
Front hub
DT Swiss 370, Boost 15x110mm, IS 6 bolts
Rear hub
DT Swiss 370 with 18T Ratchet LN System, Boost 12x148mm, IS 6 bolts, XD freehub
Front tire
Maxxis Assegai 29x2.5WT, tubeless ready, 3C Maxx Grip compound, EXO+ protection, 60TPI, folding bead
Rear tire
Maxxis Minion DHR II 29x2.5 WT, tubeless ready, 3C MaxxTerra compound, DD casing, 2x120TPI, folding bead
Crankset
E.13 Helix Core E*Spec Plus, All sizes: 155mm
Rings
Sram Eagle 34T T-Type, direct mount, steel, CL55
Chain
Sram GX Eagle T-Type, 12s Flattop, Powerlock
Rear derrailleur
Sram GX Eagle AXS, T-Type, 12s
Shift levers
Sram Eagle AXS Pod MMX, 12s
Casette
Sram XS-1275, 10-52T, T-Type, 12s
Weight
23,7 kg
Display
Kiox 400C / Bosch Mini Remote
Motor
Bosch Performance Line CX (25Km/h) SMART SYSTEM (BDU384Y)
Battery
Bosch Powertube 800Wh
| Frame size | S [Std/Low] | M [Std/Low] | M/L [Std/Low] | L [Std/Low] | XL [Std/Low] | |
|---|---|---|---|---|---|---|
| A | Seattube length | 380 mm | 410 mm | 435 mm | 460 mm | 490 mm |
| B | Toptube length | 581 mm/582 mm | 596 mm/597 mm | 618 mm/619 mm | 640 mm/641 mm | 662 mm/663 mm |
| C | Bottom bracket drop | -25 mm/-30 mm | -25 mm/-30 mm | -25 mm/-30 mm | -25 mm/-30 mm | -25 mm/-30 mm |
| D | Bottom bracket height | 350 mm/345 mm | 350 mm/345 mm | 350 mm/345 mm | 350 mm/345 mm | 350 mm/345 mm |
| E | Chainstay length | 455 mm/456 mm | 455 mm/456 mm | 455 mm/456 mm | 465 mm/466 mm | 465 mm/466 mm |
| F | Seat tube angle | 73°/72.65° | 73°/72.65° | 73°/72.65° | 73°/72.65° | 73°/72.65° |
| G | Effective seattube angle | 77.95°/77.6° | 77.95°/77.6° | 77.95°/77.6° | 77.95°/77.6° | 77.95°/77.6° |
| H | Headtube angle | 64.5°/64.15° | 64.5°/64.15° | 64.5°/64.15° | 64.5°/64.15° | 64.5°/64.15° |
| I | Fork Offset | 44 mm | 44 mm | 44 mm/44 mm | 44 mm | 44 mm/44 mm |
| J | Wheelbase | 1240 mm/1241 mm | 1255 mm/1256 mm | 1280 mm/1281 mm | 1314 mm/1315 mm | 1338 mm/1339 mm |
| K | Headtube length | 120 mm | 120 mm | 130 mm | 140 mm | 150 mm |
| L | Reach | 445 mm/441 mm | 460 mm/456 mm | 480 mm/476 mm | 500 mm/496 mm | 520 mm/516 mm |
| M | Stack | 638 mm/641 mm | 638 mm/641 mm | 647 mm/650 mm | 656 mm/659 mm | 665 mm/668 mm |
