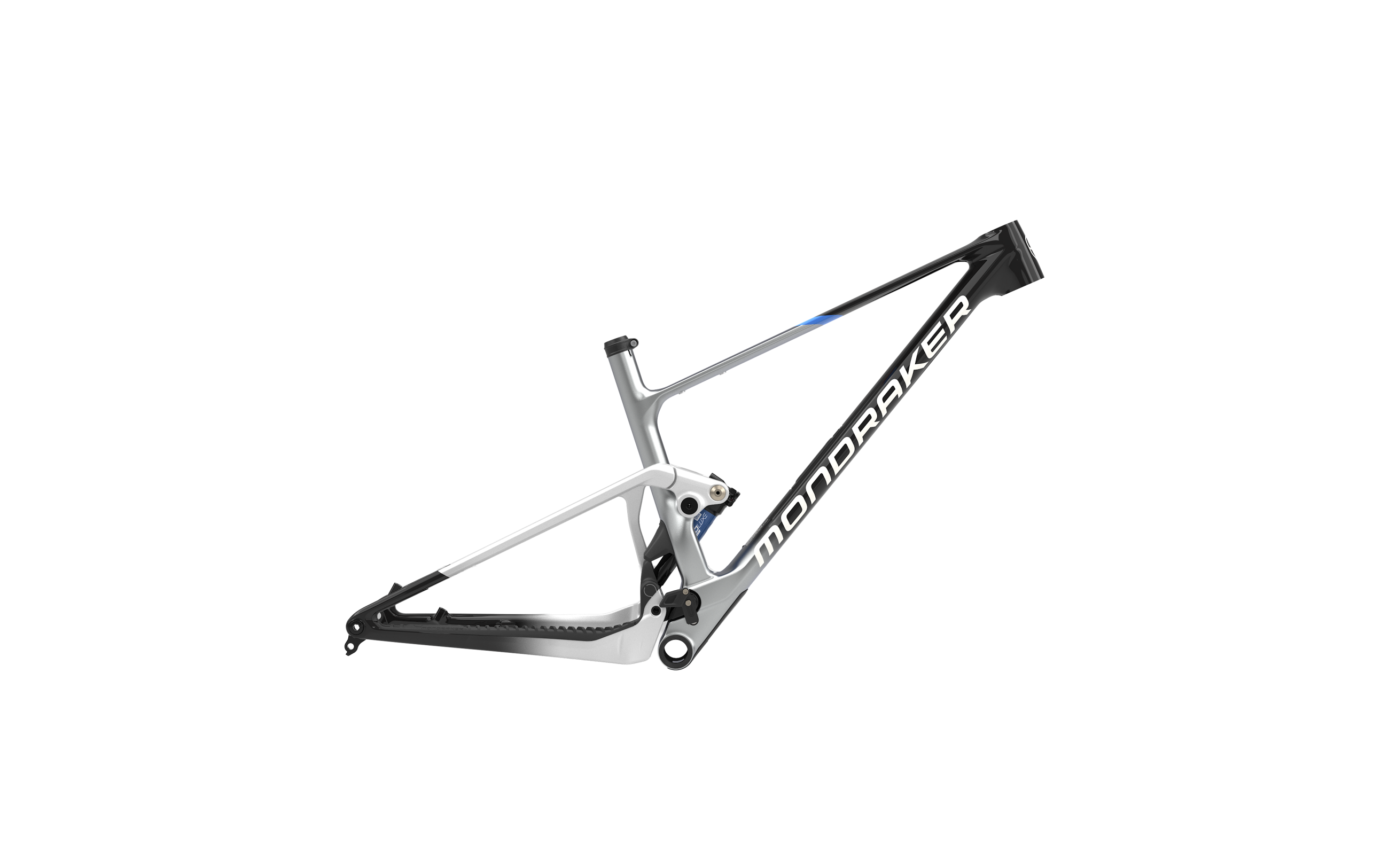

Frame
F-Podium 29 Stealth Air Full Carbon, XCO Optimized Zero Suspension System, 110mm, XC Forward Geometry, Carbon Monoblock upper link, BSA bottom bracket, tapered head tube, HHG internal cable routing, dedicated 1X drivetrain design, Boost 12x148mm rear axle, UDH, shock mudguard, postmount rear brake mount.
Sizes
S: 410mm / M: 440mm / L: 470mm / XL: 500mm
Rear shock
Rockshox SID Luxe Ultimate 3P Remote in Pull DebonAir, 165x45mm. Settings: 3 position remote,, low-speed rebound, air preload. Trunnion top mount, 30x8mm bottom bushings
Shock settings
Medium compression, medium rebound, Lockout 430, 1 Token
Headset
Acros custom IS52/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs with blocklock
Fork remote
RockShox TwistLoc Ultimate FullSprint 125 A1
Derailleur hanger
Sram UDH
| Frame size | S | M | L | XL | |
|---|---|---|---|---|---|
| A | Seattube length | 410 mm | 440 mm | 470 mm | 500 mm |
| B | Toptube length | 576 mm | 601 mm | 629,4 mm | 657,8 mm |
| C | Bottom bracket drop | -40 mm | -40 mm | -40 mm | -40 mm |
| D | Bottom bracket height | 335 mm | 335 mm | 335 mm | 335 mm |
| E | Chainstay length | 435 mm | 435 mm | 435 mm | 435 mm |
| F | Seat tube angle | 72,5° | 72,9° | 73,2° | 73,5° |
| G | Effective seattube angle | 76,2° | 76,2° | 76,2° | 76,2° |
| H | Headtube angle | 66,5° | 66,5° | 66,5° | 66,5° |
| I | Fork Offset | 44 mm | 44 mm | 44 mm | 44 mm |
| J | Wheelbase | 1152 mm | 1177 mm | 1208 mm | 1239 mm |
| K | Headtube length | 90 mm | 90 mm | 105 mm | 120 mm |
| L | Reach | 430 mm | 455 mm | 480 mm | 505 mm |
| M | Stack | 594,6 mm | 594,6 mm | 608,3 mm | 622,1 mm |
