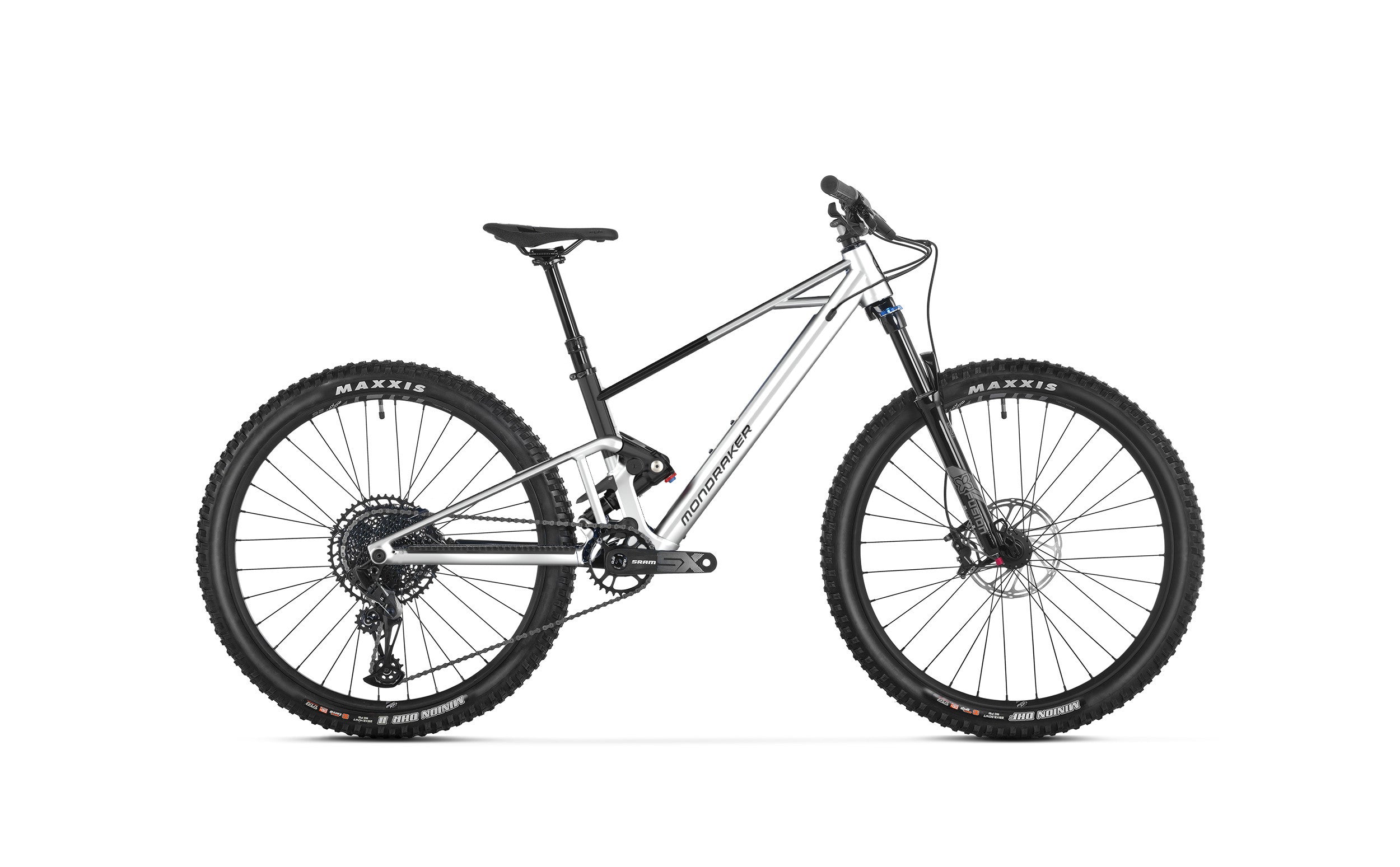

2027 Mondraker F-Trick 26

Frame
F-Trick 26 6061 Alloy Stealth Evo, hydroformed tubing, Zero Suspension System, 130mm travel, one piece bolt-on upper link, 12x148mm rear axle, UDH, 73mm BSA bottom bracket, HHG internal cable routing, dedicated 1x drivetrain design.

Sizes
One size: 350mm

Rear shock
X-Fusion 02PRO R, 165x45mm. Settings: low-speed rebound, air preload. Trunnion top, 50x8mm bottom bushings

Shock settings
A-Tune light compression

Fork
X-Fusion Slant RC 26, 140mm, air spring, tapered steerer tube, 15x100mm axle, 34mm aluminum stanchions, 41mm offset. Settings: lockout, rebound, air preload

Headset
Onoff ZS44/ZS56, 1-1/8", 1.5" head tube, ACB sealed bearings, top 42x30x7x45ºx45º, bottom 52x40x8x45ºx45º

Stem
Onoff S3 30mm 0º, 6061 forged alloy, 31.8mm barbore

Handlebar
MDK XC 1.0, 6061 alloy, rise: 25mm, width: 680mm, 9º backsweep, 5º upsweep, 31.8mm barbore

Grips
Onoff Beehive, 1lock-on, 135mm

Seatpost
X-Fusion Manic LC internal, diameter 31.6mm, 1X Remote lever, 125mm

Saddle
SDG Fly JR

Front brake
Shimano MT520, 4-piston caliper, RT56 180mm IS 6 bolts rotor, resin pads

Rear brake
Shimano MT520, 4-piston caliper, RT56 180mm IS 6 bolts rotor, resin pads

Brake lever
Shimano MT501, servo wave, alloy lever

Rims
MDK-XP1 26 TLR, 25mm internal width, tubeless ready, 32 spokes

Spokes
CN round stainless steel

Front hub
DA210FS02, 15x100mm, cup & cone ball bearings, IS 6 bolts

Rear hub
DA207R 12x148mm, cup & cone ball bearings, IS 6 bolts, HG freehub

Front tire
Maxxis Minion DHF 26x2.5, Tubeless ready, 3C MAXX TERRA, EXO Protection, 60TPI, folding bead

Rear tire
Maxxis Minion DHR II 26x2.4, Tubeless ready, EXO Protection, 60TPI, folding bead

Crankset
Sram 70 T-Type, DUB axle, Direct mount chain ring, 155mm

Rings
30T, Alloy, T-type

Bottom bracket
Sram DUB BSA, sealed bearings, 73mm

Pedals
SDG Slater JR

Chain
Sram 70 T-Type, 12s Flattop, PowerLock

Rear derrailleur
Sram 70 Eagle, T-Type, 12s

Shift levers
Sram Trigger 70, 12s, T-Type Actuation

Casette
Sram XS-1270, 10-52T, 12s

Weight
14,7 kg
