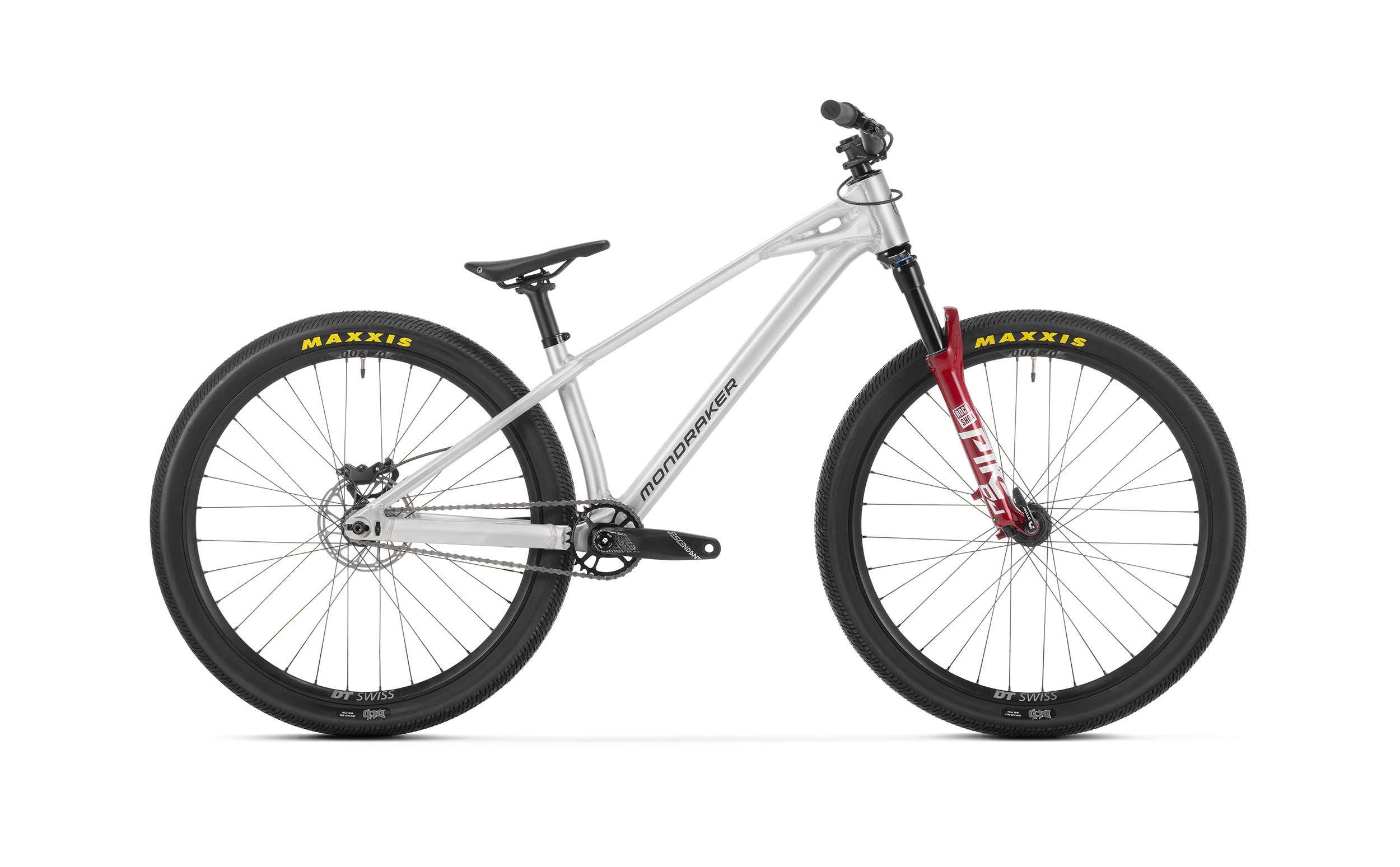

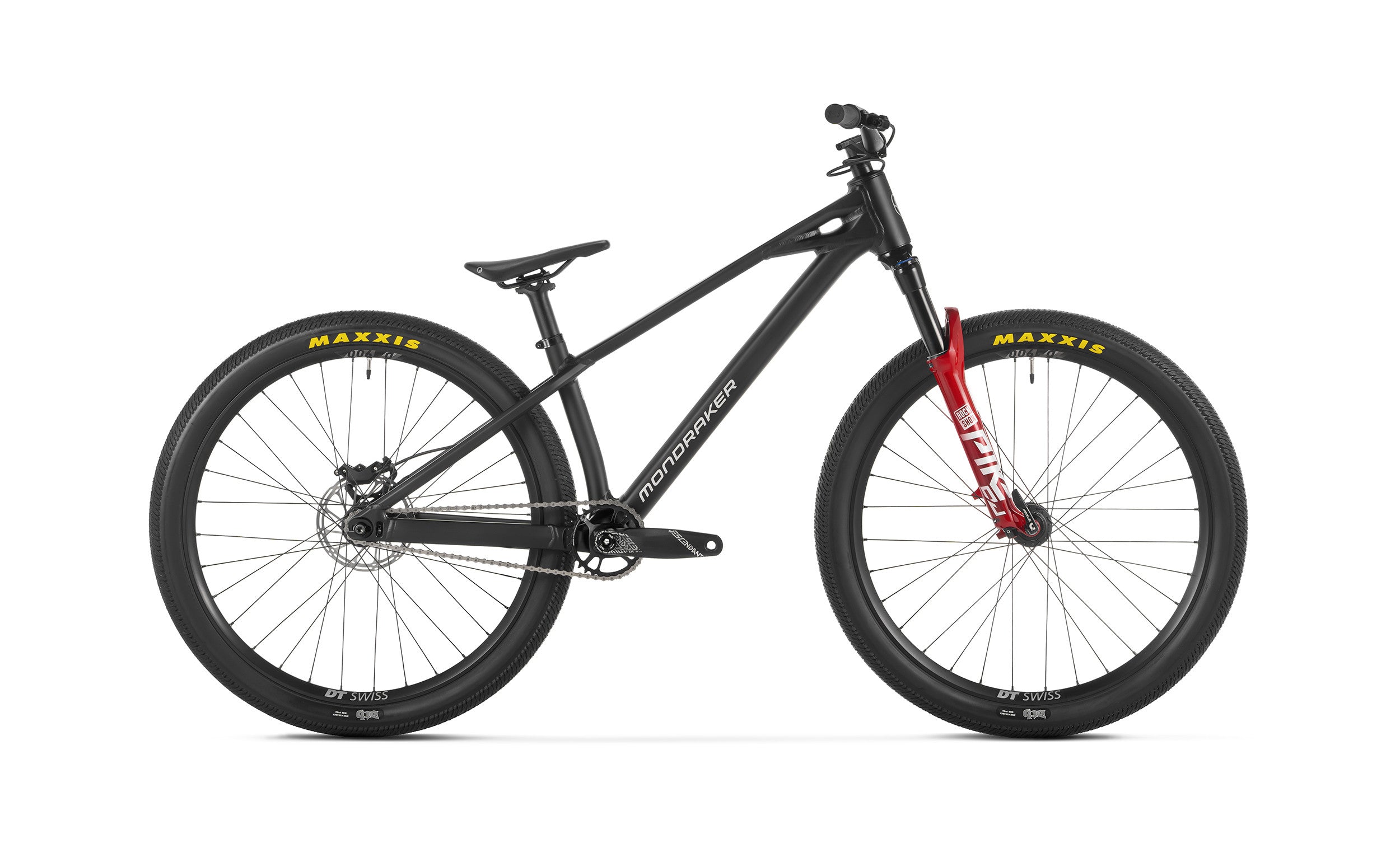

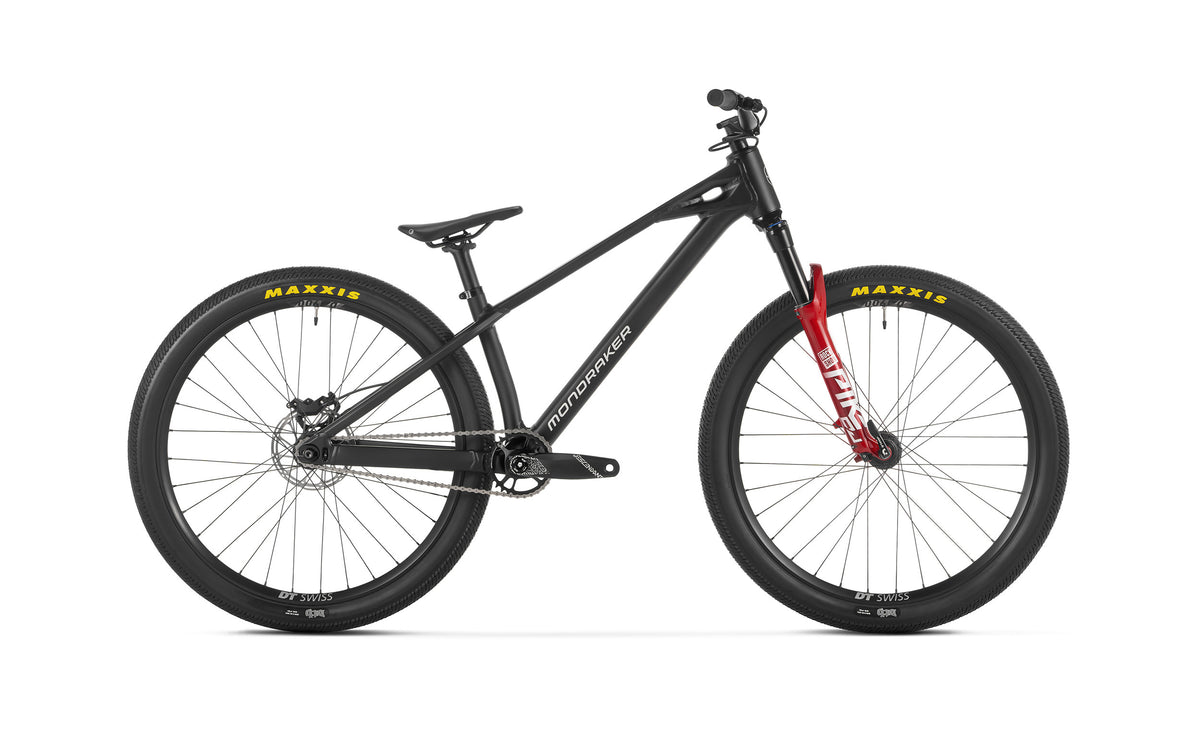

The latest bike to join our gravity collection, alongside the proven Summum DH race bike, and new Anark park bike.
With instantly recognisable Mondraker aesthetics, the KAOZ is a frame for creative riding and has some unique features.
Whether that’s carving concrete bowls; pumping hard packed rollers or boosting off sculpted lips - KAOZ is the bike for expressing yourself.
Frame
Kaoz 6061 Alloy Stealth Evo, 26" Forward Geometry, BSA73,10x135mm rear axle, Sliding Dropouts, Single Speed
Sizes
M: 415mm / L: 440mm
Fork
RockShox PIKE DJ, 26",, 100mm, Charger damper, tapered steerer tube, 15x100mm axle, 40mm offset.
Headset
Onoff custom ZS56/ZS56, 1-1/8", 1.5" head tube
Stem
Onoff S3 30mm 0º, 6061 forged alloy, 31.8mm barbore
Handlebar
Onoff S6 1.5 7050 alloy, rise:38mm , width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore
Grips
Onoff Desert Pro, CNC lock-on, 135mm.
Seatpost
Onoff S3 DH Alloy, diameter 31.6mm, length 300mm
Saddle
Ergon SM10 DH Black
Rear brake
Sram DB8, 4-piston caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pads
Brake lever
Sram DB8, tool reach adjust, lever pivot bushings
Rims
DT Swiss D 1900 Classic, 30mm internal width, aluminum pinned rim joint, tubeless ready, 32 spokes
Spokes
DT J-bend spokes, DT competition®, black
Front hub
DT Swiss 370, Boost 15x100mm, IS 6 bolts
Rear hub
DT Swiss 370 Classichub with 36T Ratchet LN, Singlespeed with sprocket 12T, 10x135mm bolts-on, IS 6 bolts
Front tire
Maxxis DTH 26x2.3, single compound, 60TPI, Tubeless ready, Foldable
Rear tire
Maxxis DTH 26x2.3, single compound, 60TPI, Tubeless ready, Foldable
Crankset
Sram Truvativ Descendant 6K, DUB axle, Direct mount chain ring, 165mm CL 49´0
Rings
Sram Eagle 30T, steel, X-Sync 2
Bottom bracket
Sram DUB BSA, sealed bearings, 73mm
Chain
Sram PC-1, Singlespeed, PowerLock 1s
Weight
11,5 kg
| Frame size | M | L | |
|---|---|---|---|
| A | Seattube length | 330 mm | 330 mm |
| B | Toptube length | 599 mm | 623 mm |
| C | Bottom bracket drop | - 21 mm | - 21 mm |
| D | Bottom bracket height | 315mm | 315 mm |
| E | Chainstay length | 385mm | 385 mm |
| F | Seat tube angle | 72 º | 72 º |
| G | Effective seattube angle | 72 º | 72 º |
| H | Headtube angle | 68.5 º | 68.5 º |
| I | Fork Offset | 40 mm | 40 mm |
| J | Wheelbase | 1057 mm | 1082 mm |
| K | Headtube length | 115 mm | 115 mm |
| L | Reach | 415 mm | 440 mm |
| M | Stack | 565 mm | 565 mm |
