Frame

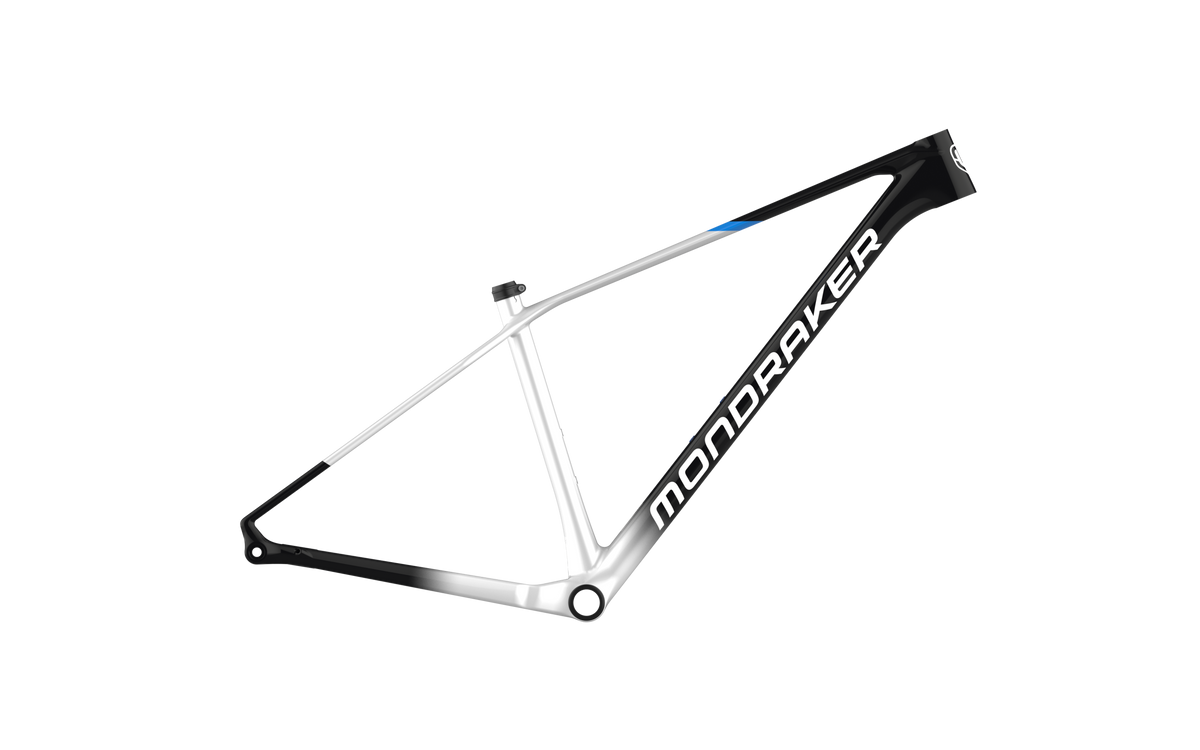

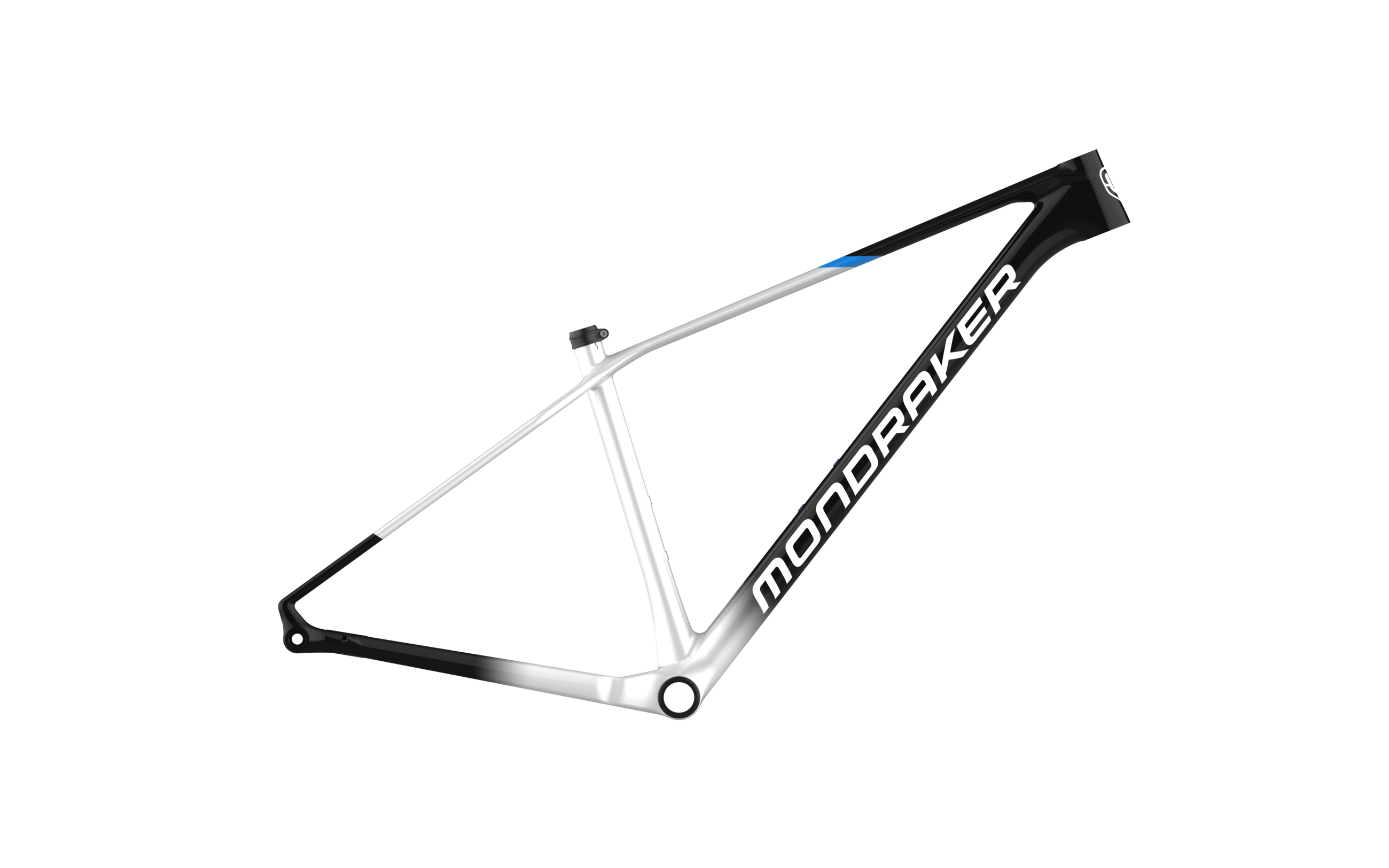

Podium 29 Stealth Air Carbon, XC Forward Geometry, BSA bottom bracket, tapered head tube, HHG internal cable routing, Boost 12x148mm rear axle, UDH, dedicated 1X drivetrain design, Flatmount brake compatible,
Sizes
S: 390mm / M: 420mm / L: 470mm / XL: 510mm
Headset
Onoff IS42/IS52, 1-1/8", 1.5" head tube, sealed bearings
Derailleur hanger
Sram UDH
| Frame size | S | M | L | XL | |
|---|---|---|---|---|---|
| A | Seattube length | 390 mm | 420 mm | 470 mm | 510 mm |
| B | Toptube length | 590 mm | 611mm | 632 mm | 650 mm |
| C | Bottom bracket drop | -65 mm | -65 mm | -65 mm | -65 mm |
| D | Bottom bracket height | 300 mm | 300 mm | 300 mm | 300 mm |
| E | Chainstay length | 430 mm | 430 mm | 430 mm | 430 mm |
| F | Seat tube angle | 73° | 73° | 73° | 73° |
| G | Effective seattube angle | 74.5° | 74.5° | 74.5° | 74.5° |
| H | Headtube angle | 68,5° | 68,5° | 68,5° | 68.5° |
| I | Fork Offset | 44 mm | 44 mm | 44 mm | 44 mm |
| J | Wheelbase | 1107 mm | 1128 mm | 1150 mm | 1170 mm |
| K | Headtube length | 85 mm | 90 mm | 100 mm | 115 mm |
| L | Reach | 425 mm | 444 mm | 463 mm | 477 mm |
| M | Stack | 598 mm | 602 mm | 611 mm | 625 mm |
