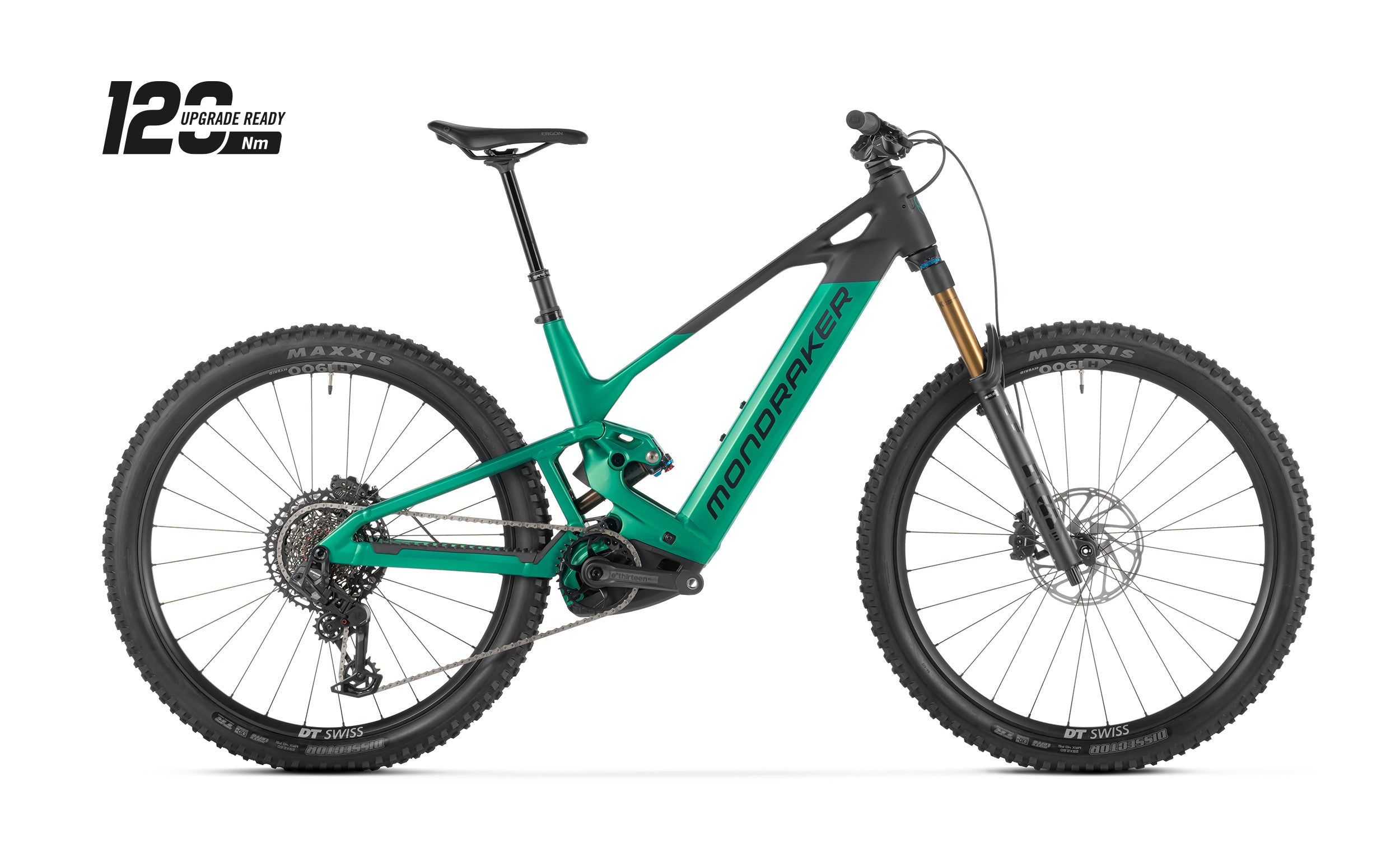

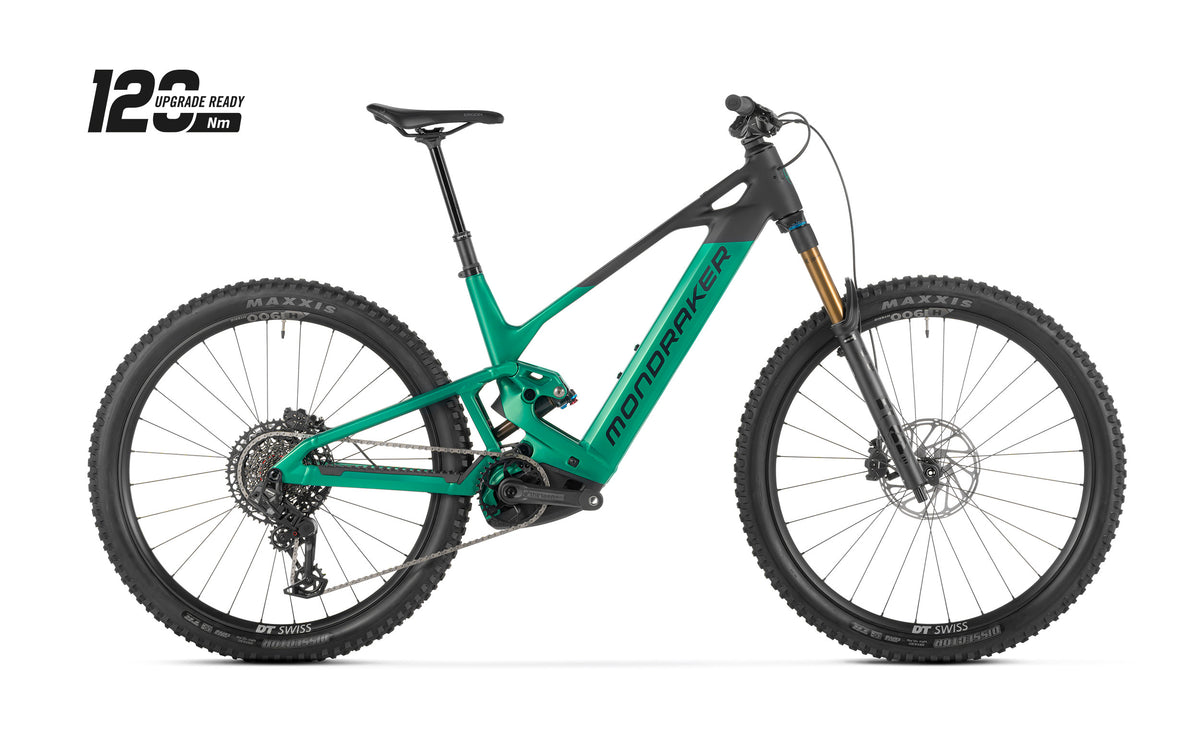

With the Scree, we’ve created an ebike that delivers everything both first-time ebike riders and those stepping up from a non-assist bike need for. A model featuring 29” wheels, 130mm rear and 150mm front travel, a 100Nm Bosch CX Gen 5 motor, and a removable 800Wh Bosch battery.
Everything we’ve learned from the iconic Crafty and Level enduro bikes, adapted to make your ride as fun as possible, and built around Stealth Alloy aluminium frame with polished welds and a purposefully low standover height to help keep the centre of gravity down, improving both handling and rider comfort at the same time.
Frame
Scree 6061 Alloy Stealth Evo, Updated Zero Suspension System, 130mm travel, Forward Geometry, internal removable battery, Boost 12x148mm rear axle, UDH, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers.
Sizes
S: 380mm / M: 410mm / ML: 435mm / L: 460mm / XL: 490mm
Rear shock
Fox Float Factory Kashima EVOL 165x45mm. Settings: Settings: 2-position compression (Open/Firm), rebound, air preload. Trunnion top mount, 30x8mm bottom bushings
Shock settings
CM compression, SCLRM5.1 rebound, CMM, 0.6 volume spacer
Fork
Fox 36 29 Float GRIPX2 Factory Kashima, 150mm, tapered steerer tube, Boost 15x110mm Kabolt axle, 44mm offset. Settings: high and low-speed compression, high and low-speed rebound, air preload
Headset
Acros custom ZS56/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs without blocklock
Stem
Onoff S6 30mm 0º, 6061 forged alloy + CNC, 31.8mm barbore
Handlebar
Onoff S6 1.0 7050 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 38mm rise.
Grips
Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size
Seatpost
X-Fusion Manic TA, Travel adjust, diameter 31.6mm,1X Remote lever, S size: 361x125mm, M size: 425x150mm), ML size: 469x170mm, L size: 532x200, XL size: 532x200
Saddle
Ergon SMC10 Gel
Front brake
Sram Maven Base, 18 millimeter 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Rear brake
Sram Maven Base, 18 millimeter 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Brake lever
Sram Maven Base , Directlink and lever pivot bushings, tools-free reach adjust
Rims
DT Swiss Hybrid H 1900 SPLINE, aluminum, hooked / crotchet tubeless TC, 30mm internal width, tubeless ready, 28 spokes.
Spokes
DT Swiss Straightpull spokes, DT Hybrid I, black
Front hub
DT Swiss 370, Boost 15x110mm, IS 6 bolts
Rear hub
DT Swiss 370 with 18T Ratchet LN System, Boost 12x148mm, IS 6 bolts, XD freehub
Front tire
Maxxis Dissector 29x2.6, Tubeless ready, 3C MaxxTerra compound EXO+ protection, 60TPI, folding bead
Rear tire
Maxxis Dissector 29x2.6, Tubeless ready, 3C MaxxTerra compound EXO+ protection, 60TPI, folding bead
Crankset
E.13 Helix Core E*Spec Plus, All sizes: 160mm
Rings
Sram Eagle 34T T-Type, direct mount, steel, CL55
Chain
Sram GX Eagle T-Type, 12s Flattop, Powerlock
Rear derrailleur
Sram S1000 Eagle AXS T-Type, 12s
Shift levers
Sram Eagle AXS Pod MMX, 12s
Casette
Sram XS-1270, 10-52T, T-Type, 12s
Weight
25,6 kg
Display
Kiox 400C / Bosch Mini Remote
Motor
Bosch Performance Line CX (25Km/h) SMART SYSTEM (BDU384Y)
Battery
Bosch Powertube 800Wh
| Frame size | S | M | ML | L | XL | |
|---|---|---|---|---|---|---|
| A | Seattube length | 380 mm | 410 mm | 435 mm | 460 mm | 490 mm |
| B | Toptube length | 587,6 mm | 607,6 mm | 628,8 mm | 650,7 mm | 672,8 mm |
| C | Bottom bracket drop | -35 mm | -35 mm | -35 mm | -35 mm | -35 mm |
| D | Bottom bracket height | 340 mm | 340 mm | 340 mm | 340 mm | 340 mm |
| E | Chainstay length | 456 mm | 456 mm | 456 mm | 456 mm | 456 mm |
| F | Seat tube angle | 74° | 74° | 74° | 74° | 74° |
| G | Effective seattube angle | 77° | 77° | 77° | 77° | 77° |
| H | Headtube angle | 65,5° | 65,5° | 65,5° | 65,5° | 65,5° |
| I | Fork Offset | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| J | Wheelbase | 1221,2 mm | 1241,2 mm | 1263,3 mm | 1287,4 mm | 1311,5 mm |
| K | Headtube length | 125 mm | 125 mm | 130 mm | 140 mm | 150 mm |
| L | Reach | 440 mm | 460 mm | 480 mm | 500 mm | 520 mm |
| M | Stack | 644,6 mm | 644,6 mm | 649,2 mm | 658,3 mm | 667,4 mm |
