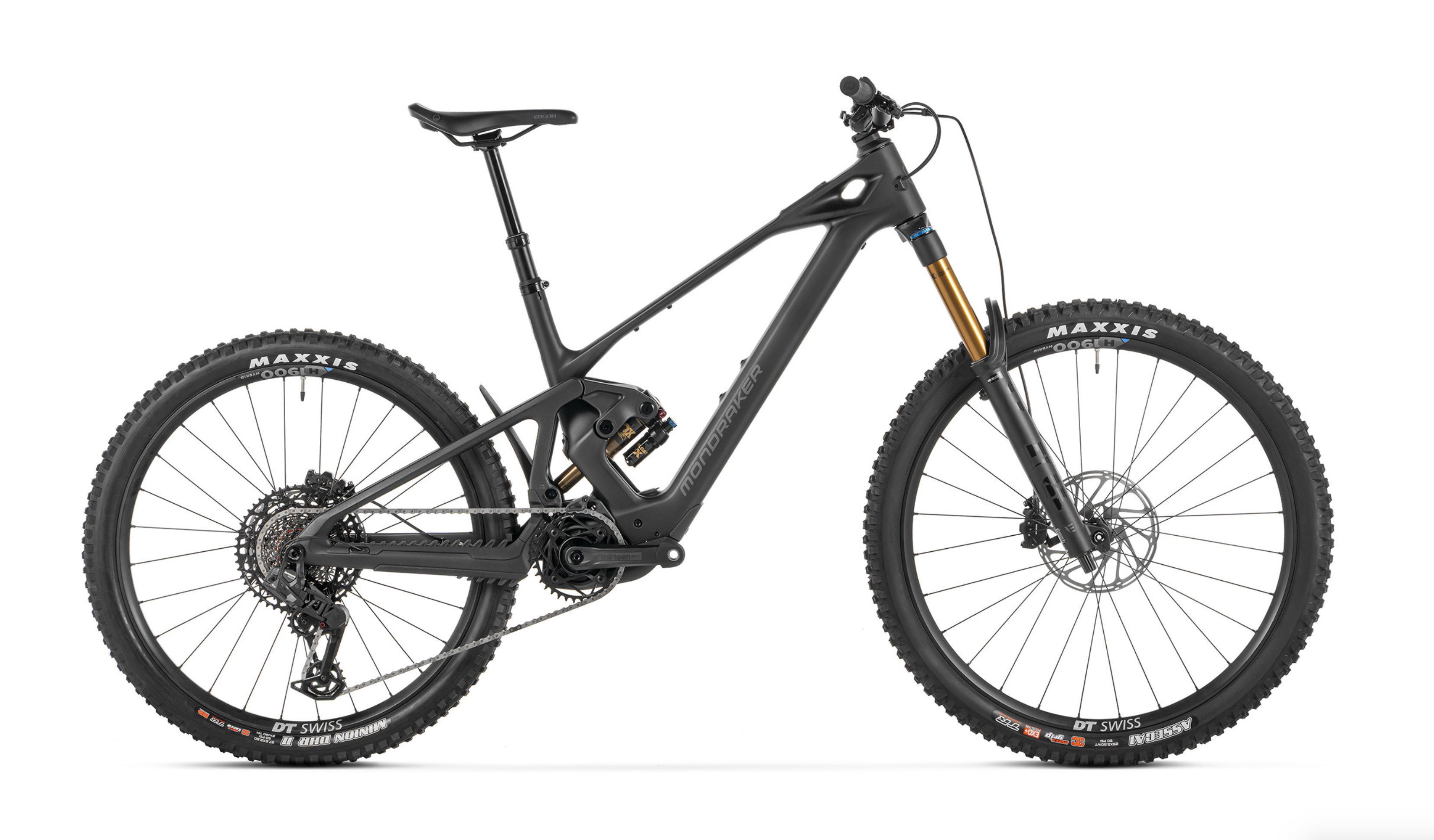

2027 Mondraker Zendit RR

By Mondraker
$12,999.00 CAD
MO-010-27US191
Color: Vortex Grey
Size
View details
Description

The flagship Mondraker e-MTB that boasts a new level of performance, achieved from the latest frame design and ZERO suspension kinematics, with seamless integration of the powerful new Avinox M2S drive system.

  • Rear shock · Fox Float X Factory Kashima Evol
  • Fork · Fox 38 29 Float GRIP X2 Factory Kashima, 170mm
  • Front brake · Sram Maven Base
  • Rear derailleur · Sram S1000 Eagle AXS, T-Type, 12s
  • Motor · Avinox M2S Drive Unit
Technical specs
  • frame

    Frame

    Zendit Stealth Air full Carbon, Updated Zero Suspension System, 165mm travel, Forward Geometry, internal battery, Boost 12x148mm rear axle, UDH, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers.

           sizes

    Sizes

    S: 380mm / M: 410mm / ML: 435mm / L: 460mm / XL: 490mm
  • rear shock

    Rear shock

    Fox Float X Factory Kashima Evol LV 205x65mm. 2-positions lever compresion (Open/Firm), low-speed compression, low-speed rebound, air preload. Trunnion top mount, 30x8mm bottom bushings.

           shock settings

    Shock settings

    CS 30 compression, 1,1 Bleed, RL50 rebound, Rezi B40, LML, standard MCU, 0 volume spacers
  • fork

    Fork

    Fox 38 29 Float GRIP X2 Factory Kashima, 170mm, tapered steerer tube, Boost 15x110mm Kabolt axle, 44mm offset. High and low-speed compression, high and low-speed rebound, air preload.

           headset

    Headset

    Acros custom ZS56/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs, without blocklock.
  • stem

    Stem

    Onoff S6 30mm 0º, 6061 forged alloy + CNC, 31.8mm barbore

           handlebar

    Handlebar

    Onoff S6 1.0 7050 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 38mm rise.
  • grips

    Grips

    Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size

           seatpost

    Seatpost

    Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 140-115mm (388-235mm), M size: 160-135mm (428-255mm), ML size: 180-155mm (468-275mm), L size: 210-185mm (528-305mm), XL size: 210-185mm (528-305mm)
  • saddle

    Saddle

    Ergon SM10 E-Mountain Black.

           front brake

    Front brake

    Sram Maven Base, 18-millimeter 4 piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads.
  • rear brake

    Rear brake

    Sram Maven Base, 18-millimeter 4 piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads.

           brake lever

    Brake lever

    Sram Maven Base , Directlink and lever pivot bushings, tools-free reach adjust
  • rims

    Rims

    DT Swiss Hybrid H 1900 SPLINE, aluminum, hooked / crotchet tubeless TC, 30mm internal width, tubeless ready, 28 spokes.

           spokes

    Spokes

    DT Swiss Straightpull spokes, DT Hybrid I, black
  • front hub

    Front hub

    DT Swiss 370, Boost 15x110mm, IS 6 bolts

           rear hub

    Rear hub

    DT Swiss 370 with 18T Ratchet LN System, Boost 12x148mm, IS 6 bolts, HG freehub
  • front tire

    Front tire

    Maxxis Assegai 29x2.5WT, tubeless ready, 3C Maxx Grip compound, EXO+ protection, 60TPI, folding bead

           rear tire

    Rear tire

    Maxxis Minion DHR II 27.5x2.5 WT, tubeless ready, 3C MaxxTerra compound, DD protection, 120x2TPI, folding bead
  • crankset

    Crankset

    e*thirteen Helix Race e*spec alloy. All sizes: 155mm

           rings

    Rings

    Sram Eagle 36T T-Type, 104BCD, steel, CL55
  • chain

    Chain

    Sram GX Eagle T-Type, 12s Flattop, w/Powerlock

           rear derrailleur

    Rear derrailleur

    Sram S1000 Eagle AXS, T-Type, 12s
  • shift levers

    Shift levers

    Sram Eagle AXS Pod Controller w/discrete clamp, 12s

           casette

    Casette

    Sram XS 1270, 10-52T, T-Type, 12s
  • others

    Others

    Sram AXS Extension Cord / Avinox 4A Charger

           weight

    Weight

    22.8 Kg
  • display

    Display

    Avinox DP100 Display / Avinox BC100 Wireless Controller (L&R)

           motor

    Motor

    Avinox M2S
  • battery

    Battery

    Avinox 800Wh Battery



 Geometry

  Frame size S M M/L L XL
A Seattube length 380mm 410mm 435mm 460mm 490mm
B Toptube length 586mm 606mm 628mm 650mm 672mm
C Bottom bracket drop 6mm 6mm 6mm 6mm 6mm
D Bottom bracket height 345mm 345mm 345mm 345mm 345mm
E Chainstay length 450mm 450mm 450mm 455mm 455mm
F Seat tube angle 73.5° 73.5° 73.5° 73.5° 73.5°
G Effective seattube angle 77° 77° 77° 77° 77°
H Headtube angle 63.5° 63.5° 63.5° 63.5° 63.5°
I Fork Offset 44mm 44mm 44mm 44mm 44mm
J Wheelbase 1241mm 1261mm 1286mm 1315mm 1339mm
K Headtube length 110mm 110mm 120mm 130mm 140mm
L Reach 440mm 460mm 480mm 500mm 520mm
M Stack 631mm 631mm 640mm 649mm 658mm
N Stem Length null null null null null
O Fork Height null null null null null
Product Variants SKU/UPC
  • 2027 Mondraker Zendit RR: Vortex Grey / SM: SKU: MO-010-27US191 - UPC: 624316183105
  • 2027 Mondraker Zendit RR: Vortex Grey / MD: SKU: MO-010-27US192 - UPC: 624316183112
  • 2027 Mondraker Zendit RR: Vortex Grey / M/L: SKU: MO-010-27US193 - UPC: 624316183129
  • 2027 Mondraker Zendit RR: Vortex Grey / LG: SKU: MO-010-27US194 - UPC: 624316183136
  • 2027 Mondraker Zendit RR: Vortex Grey / XL: SKU: MO-010-27US195 - UPC: 624316183143
  • 2027 Mondraker Zendit RR: Saturn / SM: SKU: MO-010-27US196 - UPC: 624316183150
  • 2027 Mondraker Zendit RR: Saturn / MD: SKU: MO-010-27US197 - UPC: 624316183167
  • 2027 Mondraker Zendit RR: Saturn / M/L: SKU: MO-010-27US198 - UPC: 624316183174
  • 2027 Mondraker Zendit RR: Saturn / LG: SKU: MO-010-27US199 - UPC: 624316183181
  • 2027 Mondraker Zendit RR: Saturn / XL: SKU: MO-010-27US200 - UPC: 624316183198
