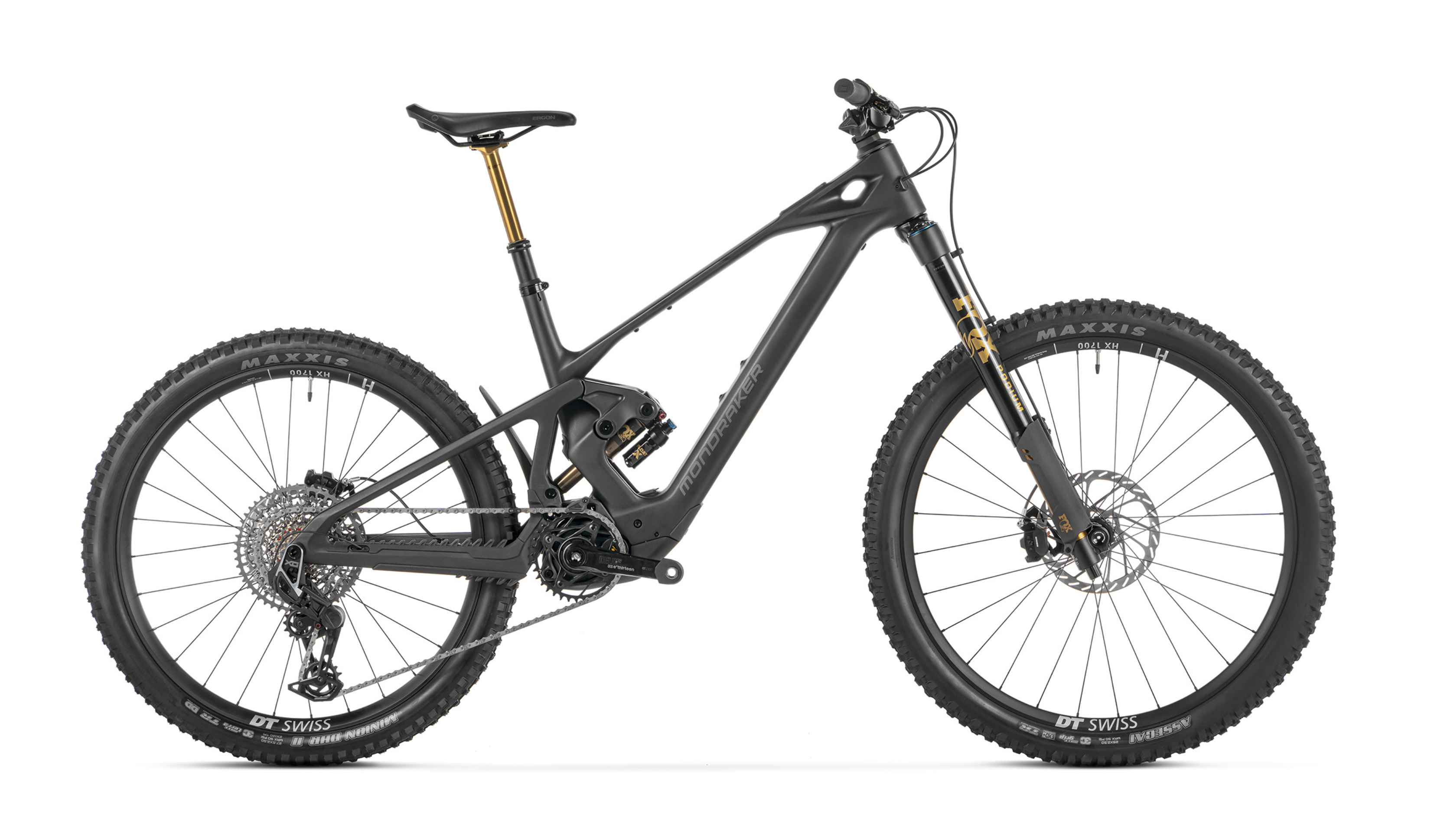

2027 Mondraker Zendit RR S

By Mondraker
$15,499.00 CAD
MO-010-27US201
Color: Vortex Grey
Size
View details
Description

  • The the flagship Mondraker e-MTB that boasts a new level of performance, achieved from the latest frame design and ZERO suspension kinematics, with seamless integration of the powerful new Avinox M2S drive system.

    • Rear shock · Fox Float X Factory Kashima Evol
    • Fork · Fox Podium 29 Float GRIP X2 Factory Kashima, 170mm
    • Front brake · Sram Maven Silver
    • Motor · Avinox M2S Drive Unit
    • Battery · Avinox 800Wh Battery / Avinox 4A Charger


Technical specs
  • frame

    Frame

    Zendit Stealth Air full Carbon, Updated Zero Suspension System, 165mm travel, Forward Geometry, internal battery, Boost 12x148mm rear axle, UDH, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers.

           sizes

    Sizes

    S: 380mm / M: 410mm / ML: 435mm / L: 460mm / XL: 490mm
  • rear shock

    Rear shock

    Fox Float X Factory Kashima Evol LV 205x65mm. 2-positions lever compresion (Open/Firm), low-speed compression, low-speed rebound, air preload. Trunnion top mount, 30x8mm bottom bushings.

           shock settings

    Shock settings

    CS 30 compression, 1,1 Bleed, RL50 rebound, Rezi B40, LML, standard MCU, 0 volume spacers
  • fork

    Fork

    Fox Podium 29 Float GRIP X2 Factory Kashima, 170mm, tapered steerer tube, Boost 20x110mm thru axle, 44mm offset. High and low-speed compression, high and low-speed rebound, air preload.

           headset

    Headset

    Acros custom ZS56/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs, without blocklock.
  • stem

    Stem

    Onoff S9 30mm 0º, Full CNC, 31.8mm barbore.

           handlebar

    Handlebar

    Onoff S9 1.0 Carbon, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 38mm rise.
  • grips

    Grips

    Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size.

           seatpost

    Seatpost

    Fox Transfer Factory Kashima internal, adjustable travel, diameter 31.6mm, S size: 95mm -120mm, M size: 125mm -150mm, ML size L size: 155mm -180mm, L size: 155mm -180mm, XL size: 185mm -210mm
  • saddle

    Saddle

    Ergon SM10 E-Mountain Black.

           front brake

    Front brake

    Sram Maven Silver, 18 millimeter 4-piston caliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
  • rear brake

    Rear brake

    Sram Maven Silver, 18 millimeter 4-piston caliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads

           brake lever

    Brake lever

    Sram Maven Silver, SwingLink and lever pivot bushings, tools-free reach adjust
  • rims

    Rims

    DT Swiss Hybrid HX 1700 Spline, 30mm internal width, welded aluminum, tubeless ready, 28 spokes

           spokes

    Spokes

    DT Swiss Straightpull spokes, DT Hybrid III, black
  • front hub

    Front hub

    DT Swiss 350, Boost 20x110mm, IS 6 bolts

           rear hub

    Rear hub

    DT Swiss 350 Classic with 24T Ratchet System, Boost 12x148mm, IS 6 bolts, XD freehub
  • front tire

    Front tire

    Maxxis Assegai 29x2.5WT, tubeless ready, 3C Maxx Grip compound, EXO+ protection, 60TPI, folding bead

           rear tire

    Rear tire

    Maxxis Minion DHR II 27.5x2.5 WT, tubeless ready, 3C MaxxTerra compound, DD protection, 120x2TPI, folding bead
  • crankset

    Crankset

    e*thirteen Helix Race e*spec alloy. All sizes: 155mm

           rings

    Rings

    Sram Eagle 36T T-Type, 104BCD, steel, CL55
  • chain

    Chain

    Sram GX Eagle T-Type, 12s Flattop, w/Powerlock

           rear derrailleur

    Rear derrailleur

    Sram X0 Eagle AXS T-Type, 12s
  • shift levers

    Shift levers

    Sram Eagle AXS Pod Controller Rocker Paddle w/discrete clamp, 12s

           casette

    Casette

    Sram XS 1275, 10-52T, T-Type, 12s
  • others

    Others

    Sram AXS Extension Cord / Avinox 4A Charger

           weight

    Weight

    22.9 Kg
  • display

    Display

    Avinox DP100 Display / Avinox BC100 Wireless Controller (L&R)

           motor

    Motor

    Avinox M2S
  • battery

    Battery

    Avinox 800Wh Battery
Geometry

  Frame size S M M/L L XL
A Seattube length 380mm 410mm 435mm 460mm 490mm
B Toptube length 586mm 606mm 628mm 650mm 672mm
C Bottom bracket drop 6mm 6mm 6mm 6mm 6mm
D Bottom bracket height 345mm 345mm 345mm 345mm 345mm
E Chainstay length 450mm 450mm 450mm 455mm 455mm
F Seat tube angle 73.5° 73.5° 73.5° 73.5° 73.5°
G Effective seattube angle 77° 77° 77° 77° 77°
H Headtube angle 63.5° 63.5° 63.5° 63.5° 63.5°
I Fork Offset 44mm 44mm 44mm 44mm 44mm
J Wheelbase 1241mm 1261mm 1286mm 1315mm 1339mm
K Headtube length 110mm 110mm 120mm 130mm 140mm
L Reach 440mm 460mm 480mm 500mm 520mm
M Stack 631mm 631mm 640mm 649mm 658mm
N Stem Length null null null null null
O Fork Height null null null null null
Product Variants SKU/UPC
  • 2027 Mondraker Zendit RR S: Vortex Grey / SM: SKU: MO-010-27US201 - UPC: 624316183204
  • 2027 Mondraker Zendit RR S: Vortex Grey / MD: SKU: MO-010-27US202 - UPC: 624316183211
  • 2027 Mondraker Zendit RR S: Vortex Grey / M/L: SKU: MO-010-27US203 - UPC: 624316183228
  • 2027 Mondraker Zendit RR S: Vortex Grey / LG: SKU: MO-010-27US204 - UPC: 624316183235
  • 2027 Mondraker Zendit RR S: Vortex Grey / XL: SKU: MO-010-27US205 - UPC: 624316183242

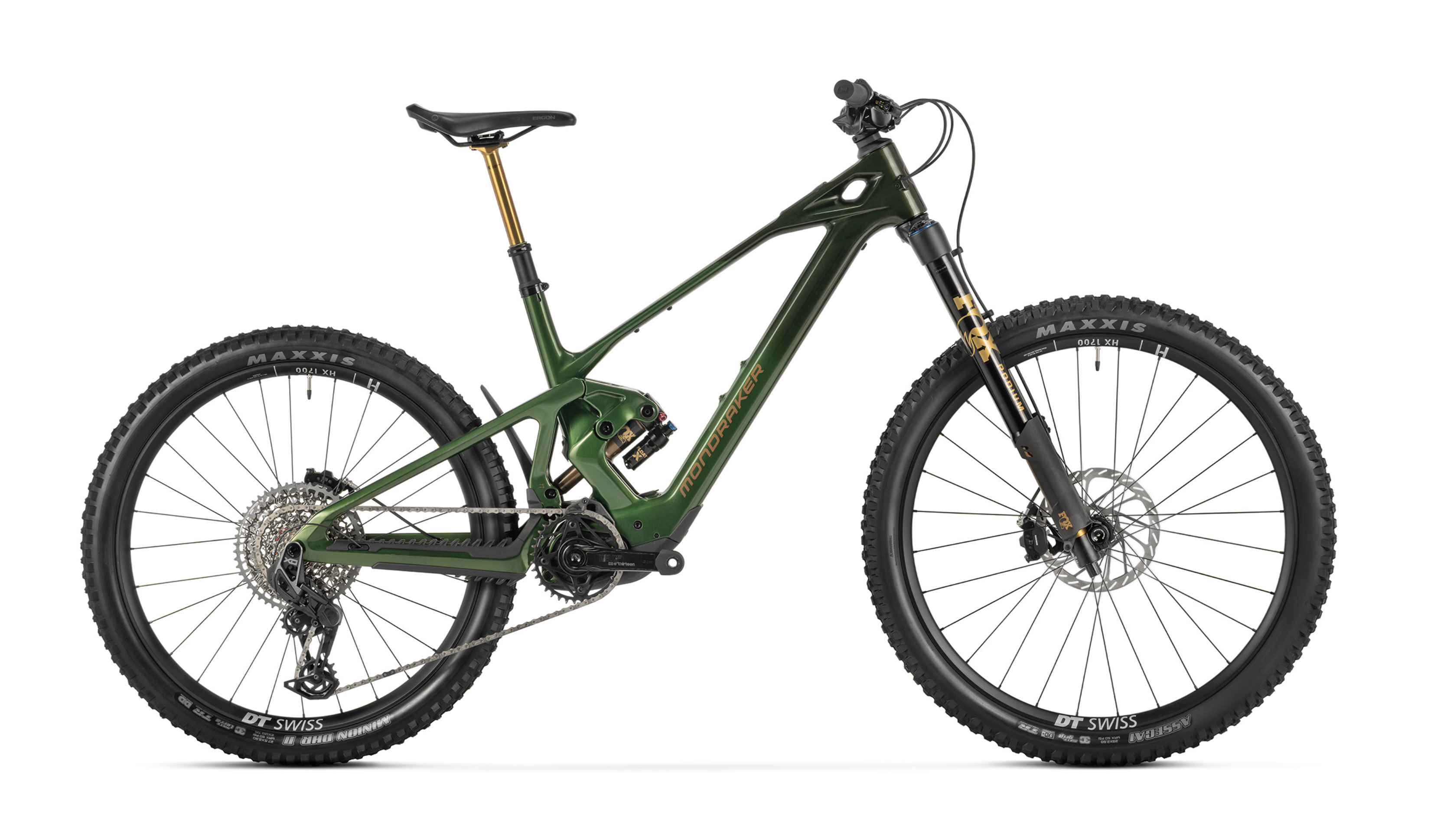

  • 2027 Mondraker Zendit RR S: Hunter Green / SM: SKU: MO-010-27US206 - UPC: 624316183259
  • 2027 Mondraker Zendit RR S: Hunter Green / MD: SKU: MO-010-27US207 - UPC: 624316183266
  • 2027 Mondraker Zendit RR S: Hunter Green / M/L: SKU: MO-010-27US208 - UPC: 624316183273
  • 2027 Mondraker Zendit RR S: Hunter Green / LG: SKU: MO-010-27US209 - UPC: 624316183280
  • 2027 Mondraker Zendit RR S: Hunter Green / XL: SKU: MO-010-27US210 - UPC: 624316183297
