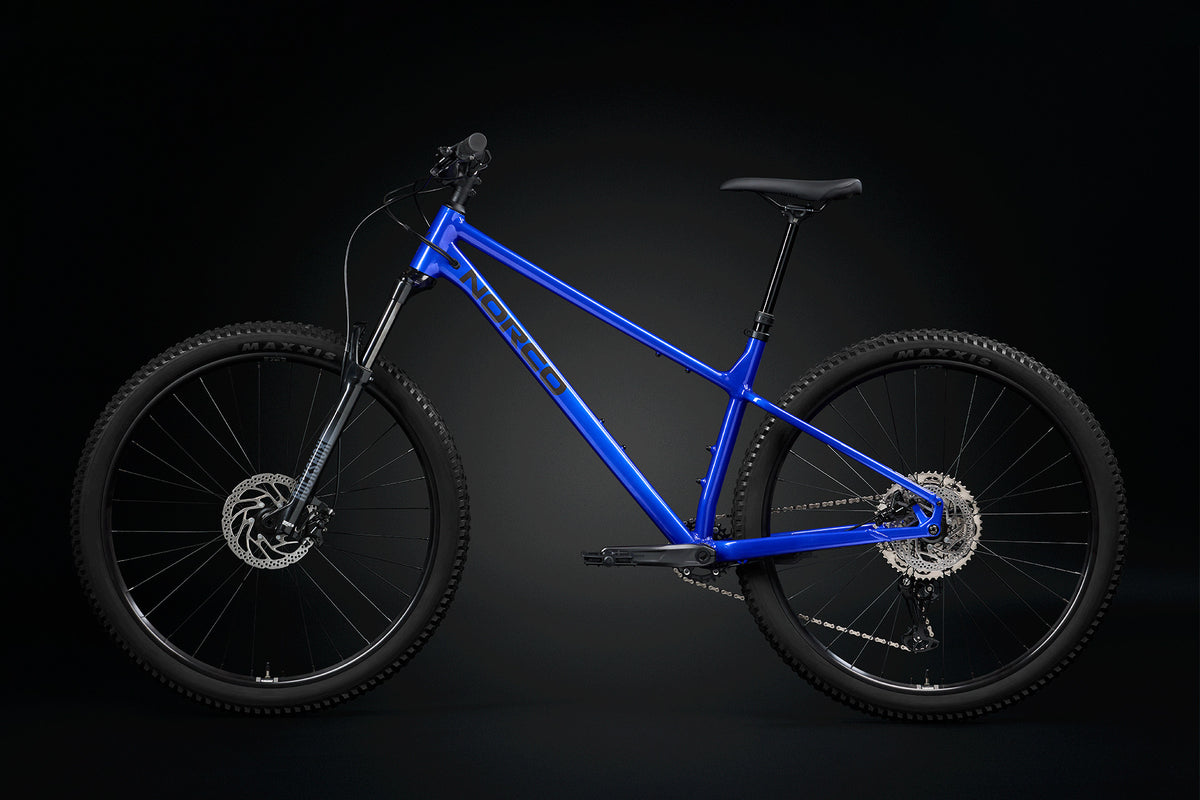

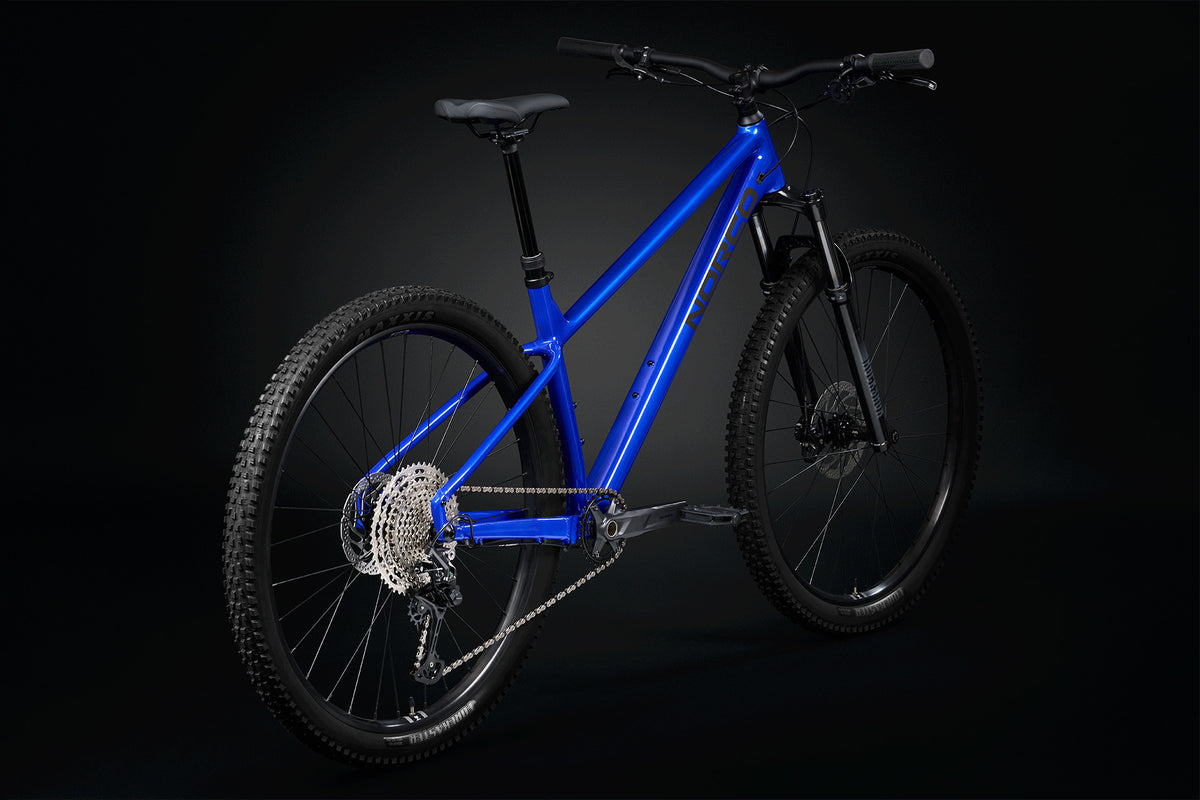

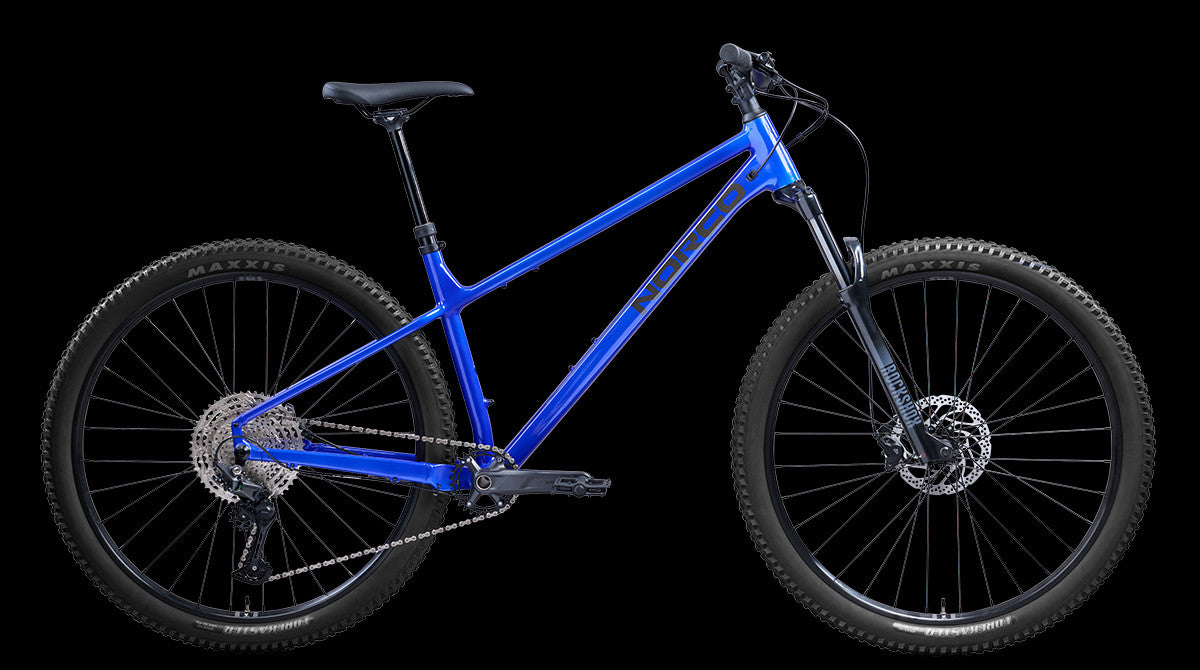

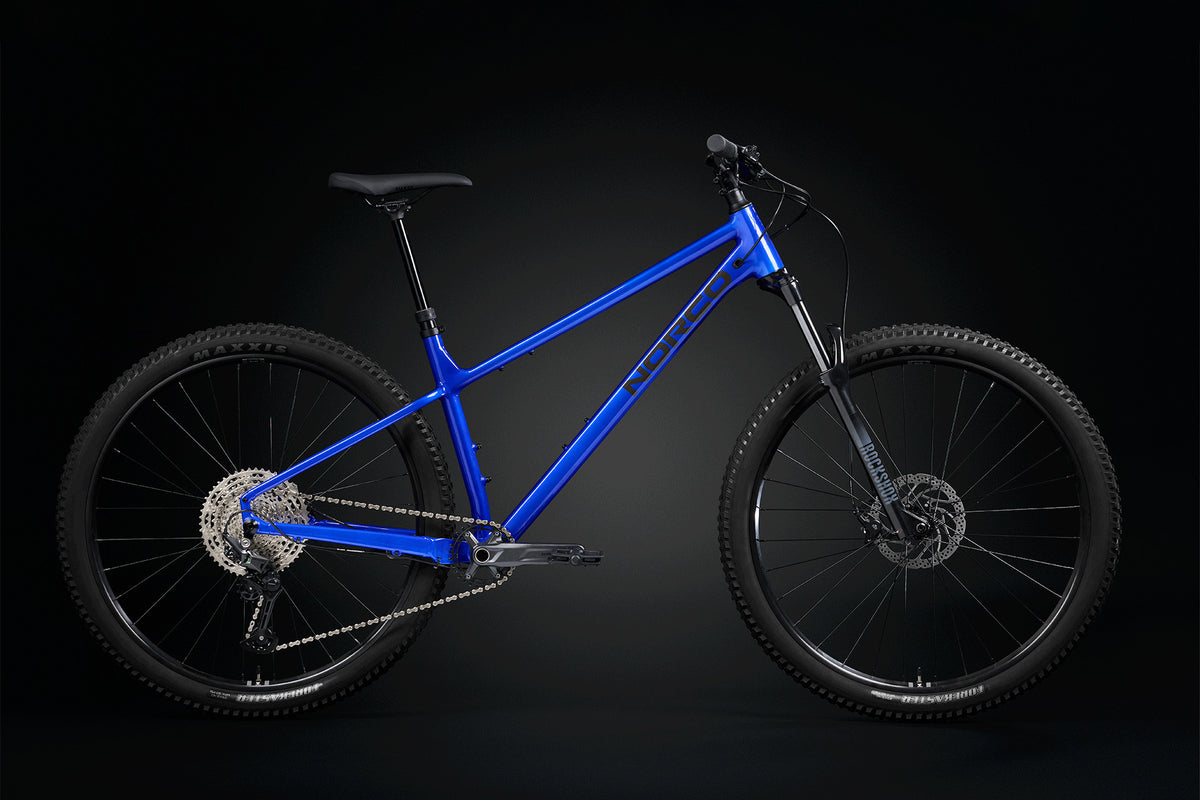

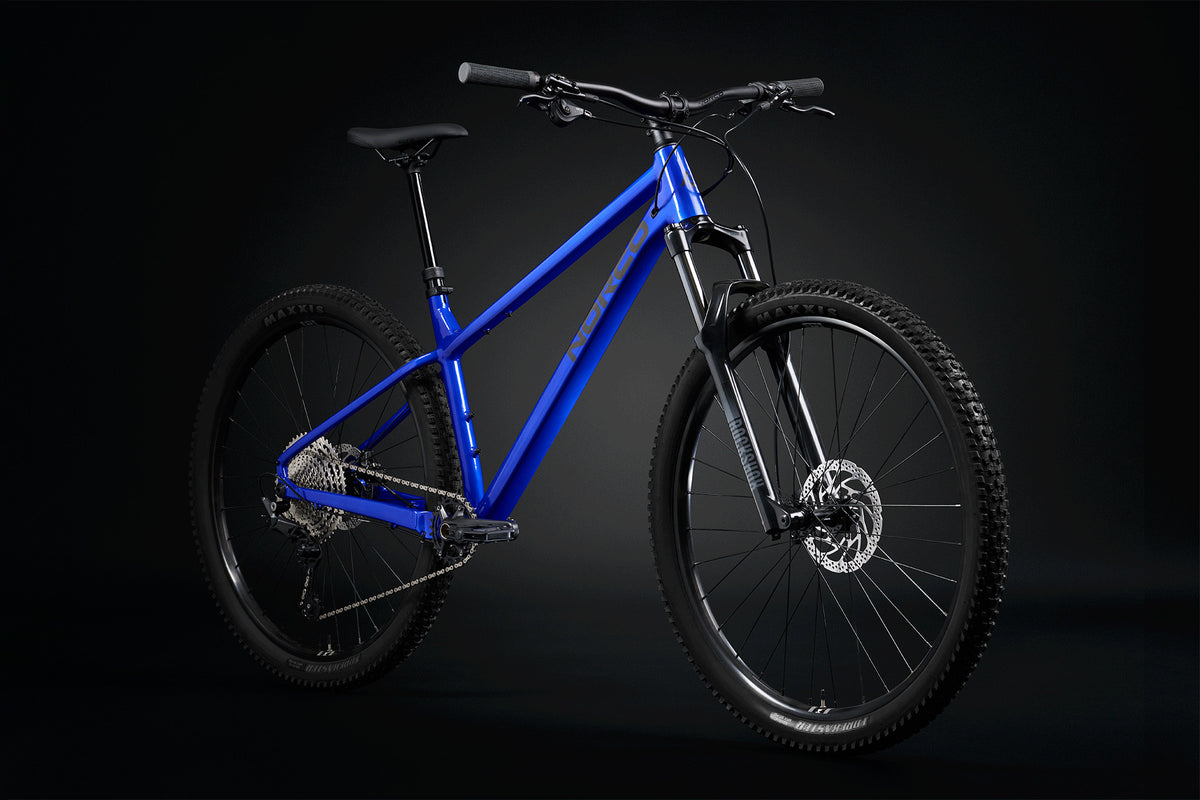

Charger A1 is a durable, modern hardtail trail bike with progressive geometry, stable handling, and premium frame features.
Frame
Aluminum, Smooth Welding, 12x148mm Boost, Tapered HT, UDH Hanger
Fork

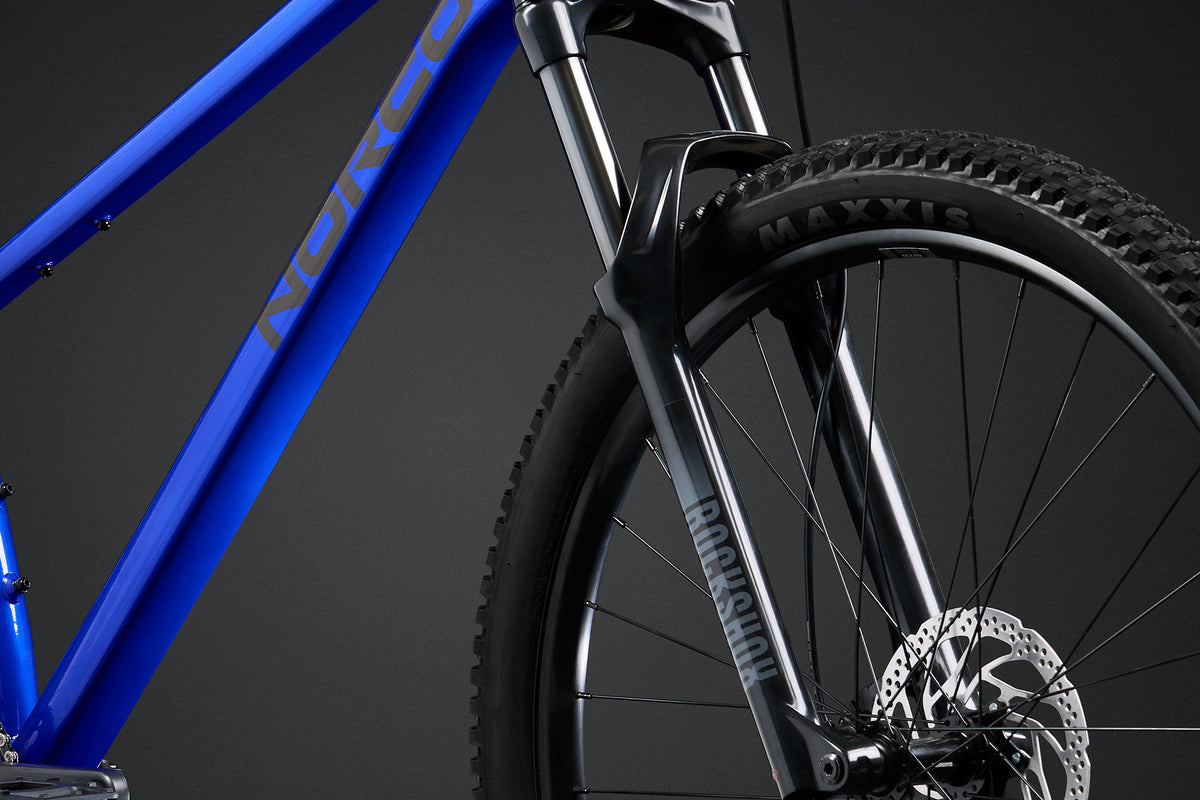

Rockshox Judy S TK Air, 130mm, 51mm offset, 15x110mm Boost
Rear Shifter
Shimano Deore SL-M6200-R, 12spd
Rear Derailleur
Shimano Deore RD-M6200, SGS, 12spd

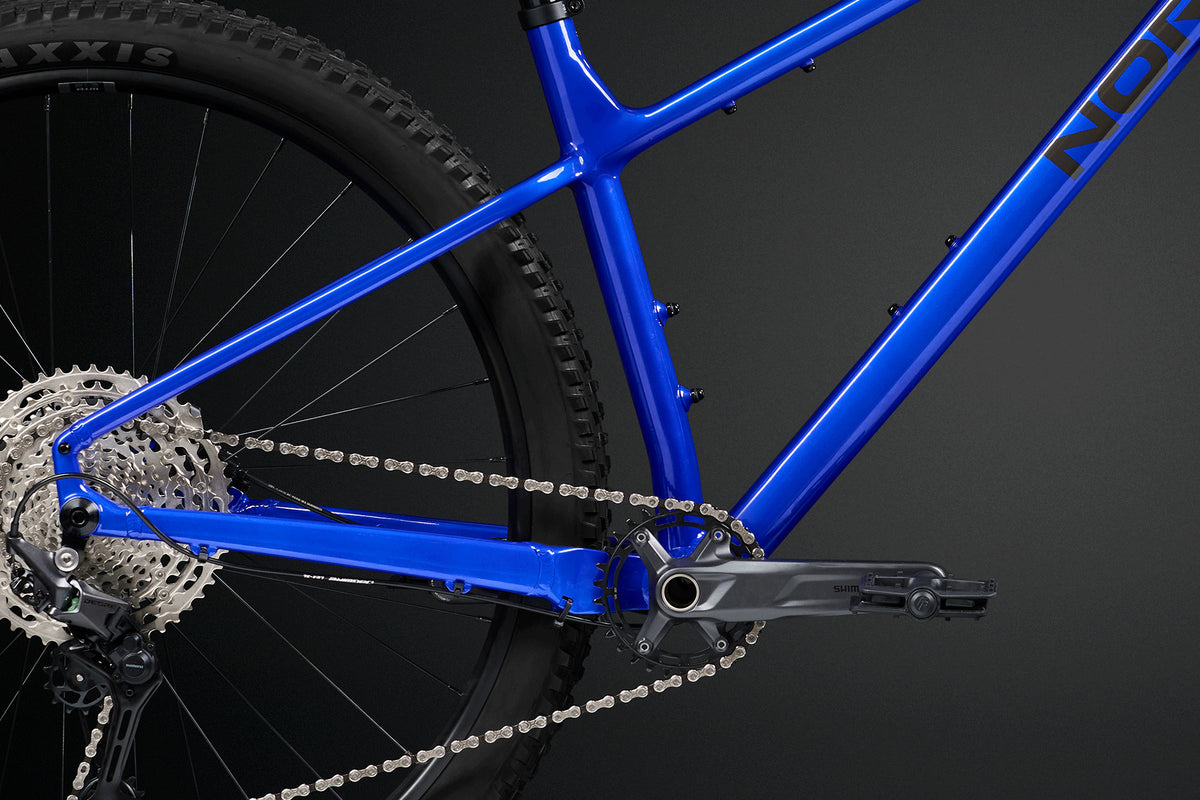

Crankset
Shimano Deore FC-MT512 2 pc, 30T, 170mm (S-M), 175mm (L - XXL)
Bottom Bracket
Shimano BB-MT501, BSA 73mm
Cassette
Shimano Deore CS-M6200-12, 10-51T, 12sp
Chain
KMC 12spd
Front Brake
Shimano Deore BD-MT410, Resin pads
Front Brake Rotor
Shimano RT-26, 180mm, c-lock
Rear Brake
Shimano Deore BD-MT410, Resin pads
Rear Brake Rotor
Shimano RT-26, 180mm, c-lock
Brake Levers
Shimano Deore BD-MT410

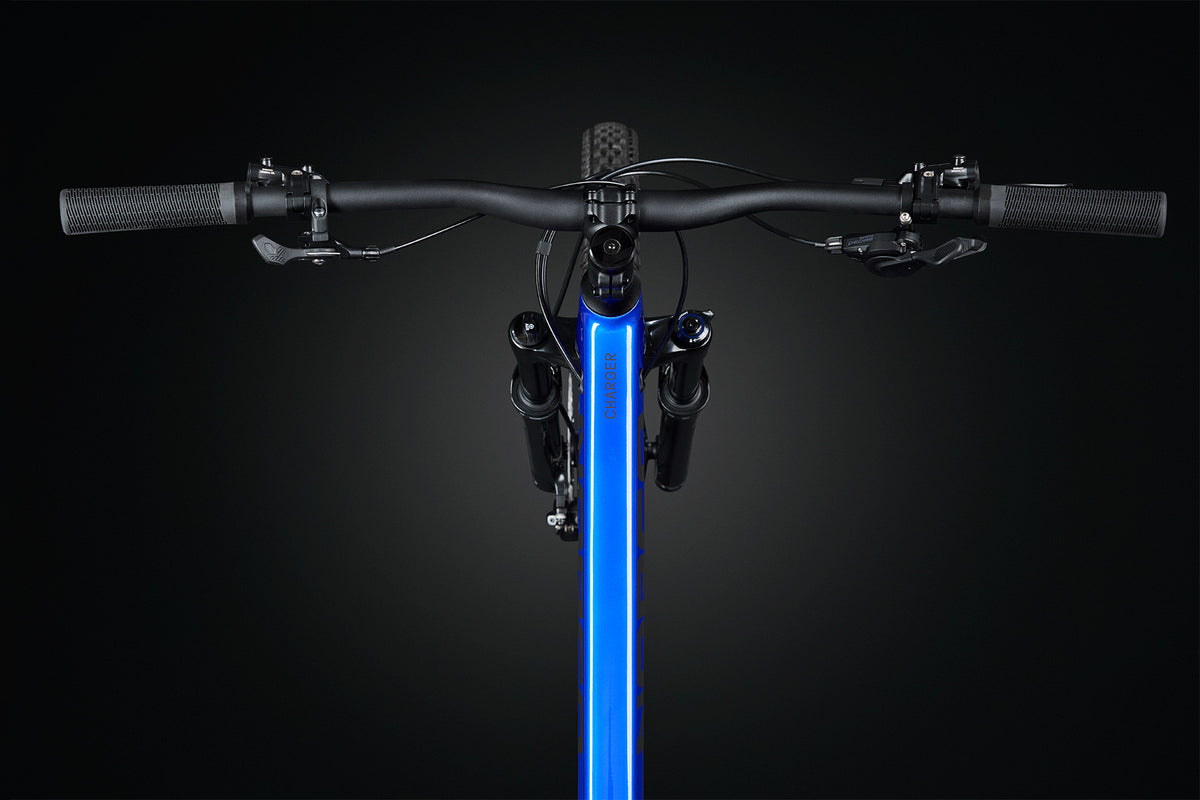

Handlebar
Norco Aluminum, 760mm (S), 780mm (M,L,XL, XXL) 30mm Rise
Stem
Alloy 40mm Length, 31.8mm Clamp
Seatpost
X-Fusion Manic LC, 31.6mm, 130mm (S), 150mm (M), 170mm (L/XL/XXL)
Headset
FSA Integrated Sealed Bearings No. 42 ; Tapered 1-1/8" - 1.5" ( IS42/28.6 | IS52/40 )
Headset Spacer
3x10mm
Saddle
WTB Volt Med, 142x265 mm
Grips
Norco lock-On, 130mm
Pedals
Nylon Flat Pedal, Chromoly Axle
Seatpost Clamp
Norco Alloy Bolted, 34.9mm ID
Front Hub
Shimano HB-MTC500-15-B,15x110mm Boost, 32H, C-lock
Rear Hub
Shimano FH-TC500-MS-B, 12x148mm Boost, Micro Spline, 32H, C-lock
Rims
WTB ST TCS 2.0, 27mm ID, 32H
Front Tire
Maxxis Forekaster, 29x2.4" (27.5X2.25"size S), Wire
Rear Tire
Maxxis Forekaster, 29x2.4" (27.5X2.25"size S), Wire
Spokes/Nipples
Stainless Steel, 14g
| S | M | L | XL | XXL | |
|---|---|---|---|---|---|
| Wheel Size | 27.5" | 29" | 29" | 29" | 29" |
| Travel (mm front) | 130 | 130 | 130 | 130 | 130 |
| Reach | 420 | 450 | 480 | 510 | 540 |
| Stack | 617 | 633 | 642 | 651 | 661 |
| Head Tube Angle | 65 | 65 | 65 | 65 | 65 |
| Fork Offset | 42 | 51 | 51 | 51 | 51 |
| Seat Tube Length | 370 | 400 | 430 | 480 | 530 |
| Effective Seat Tube Angle | 75 | 75.25 | 75.5 | 75.75 | 76 |
| Rear Centre Length | 425 | 430 | 430 | 435 | 435 |
| Bottom Bracket Drop | 34 | 54 | 54 | 54 | 54 |
| Bottom Bracket Height | 324 | 324 | 324 | 324 | 324 |
| Horizontal Top Tube | 585 | 617 | 646 | 675 | 705 |
| Wheelbase | 1162 | 1203 | 1237 | 1277 | 1311 |
| Standover | 616 | 667 | 667 | 709 | 744 |
| Head Tube Length | 140 | 120 | 130 | 140 | 150 |
| Trail | 121 | 121 | 121 | 121 | 121 |
| Recommended Seatpost Drop | 130 | 150 | 170 | 170 | 170 |
| Maximum Post Insertion | 265 | 300 | 325 | 375 | 425 |
| Stem Length | 40 | 40 | 40 | 40 | 40 |
| Crank Length | 170 | 170 | 175 | 175 | 175 |
| Tire Size | 2.2" – 2.4" | 2.2" – 2.4" | 2.2" – 2.4" | 2.2" – 2.4" | 2.2" – 2.4" |
| Water Bottle Compatible | 1 x 620 mL | 1 x 620mL and 1 x 750 mL | 2 x 750 mL | 2 x 750 mL | 2 x 750 mL |
