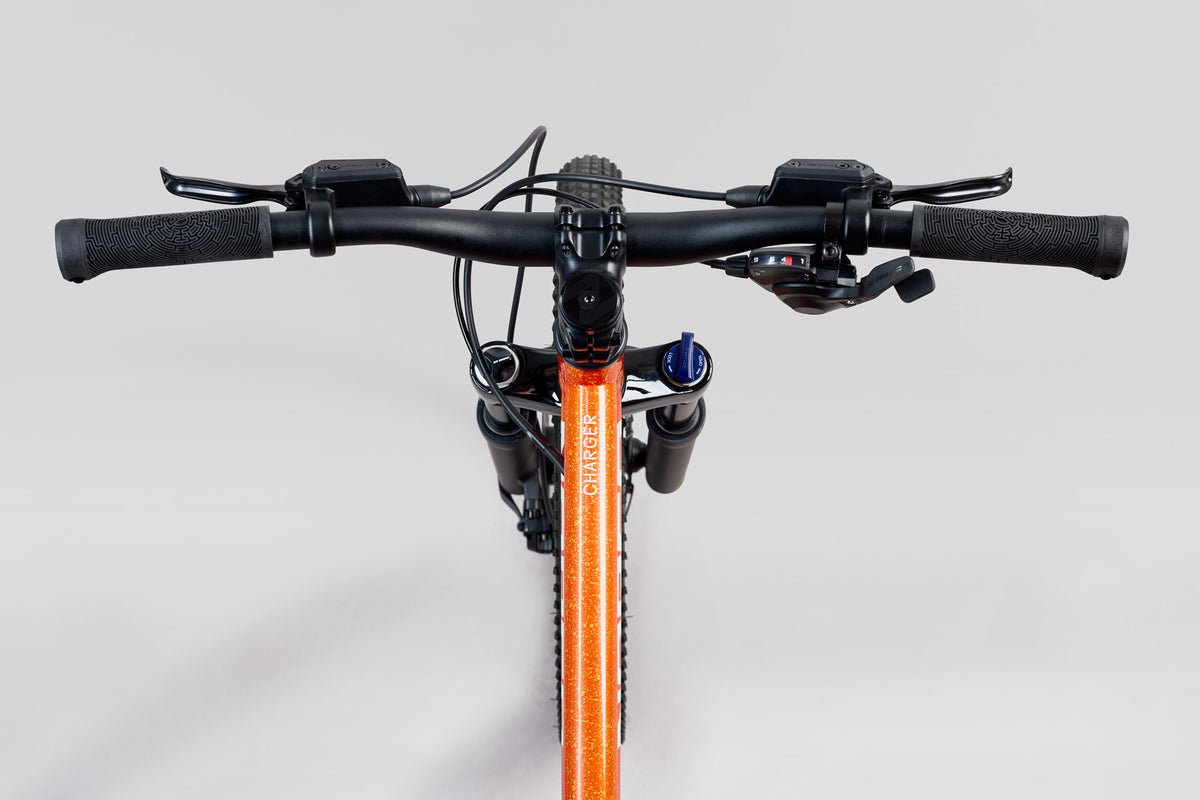

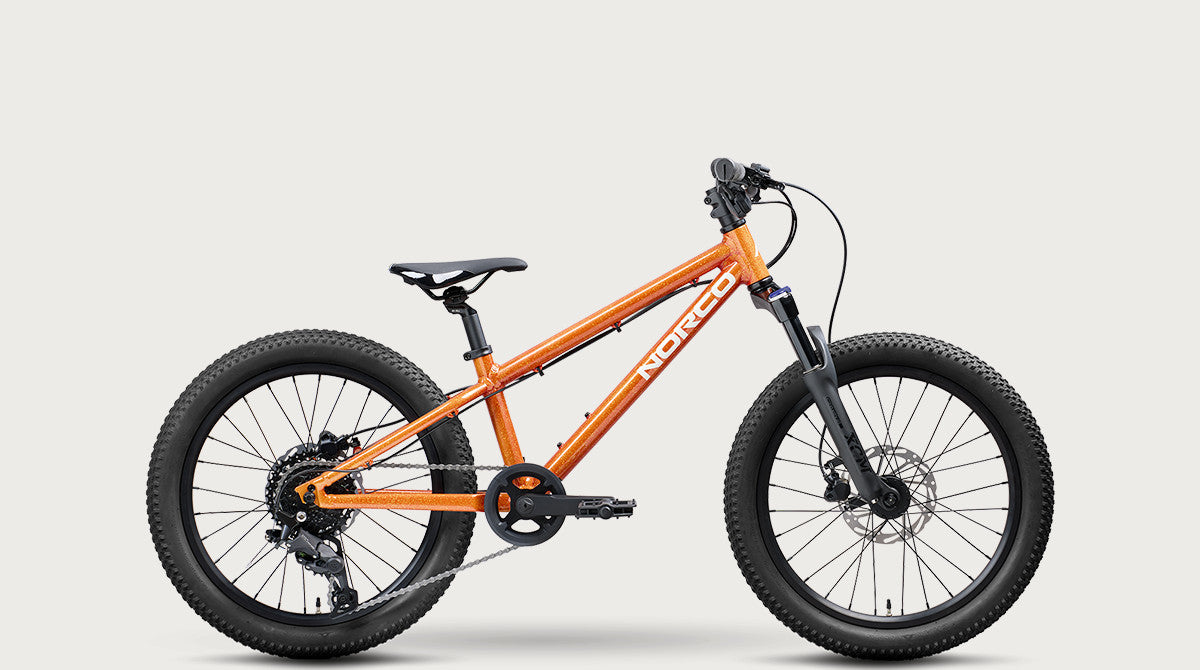

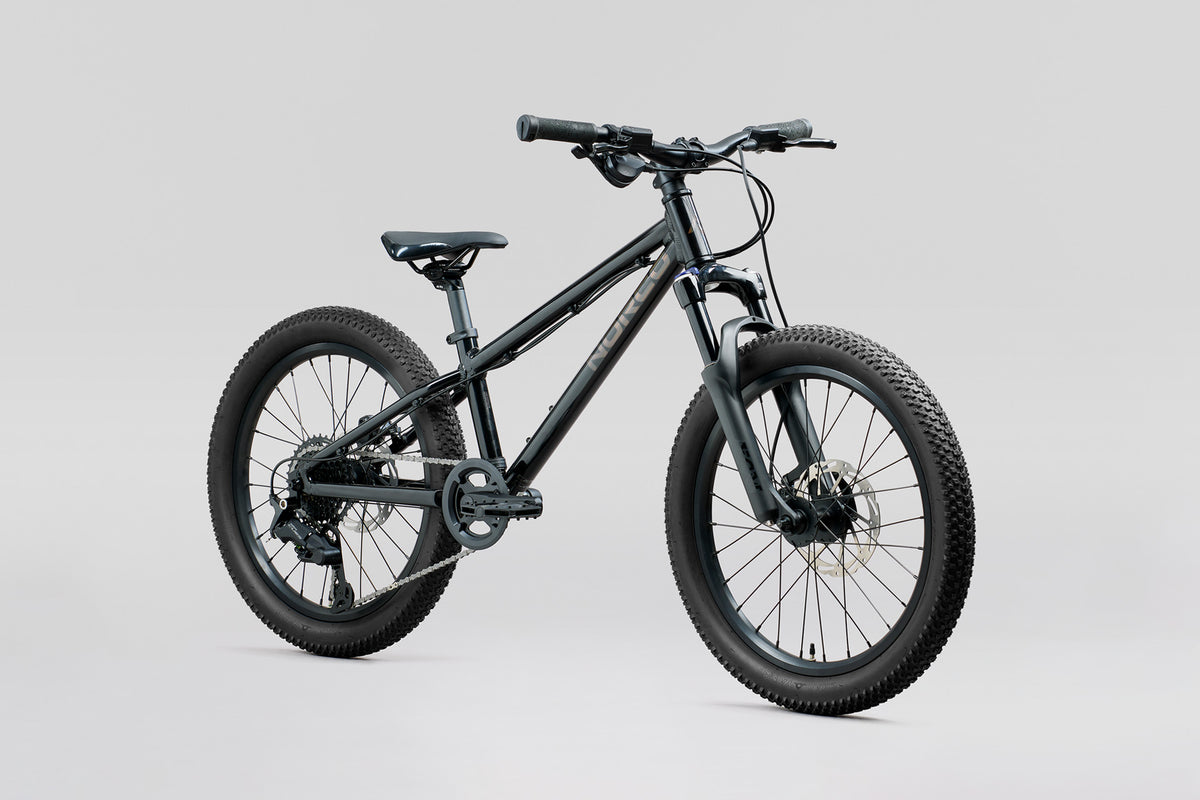

2027 Norco Charger 20

By Norco
$950.00 CAD
1230327054
Color: Orange
Size
View details
Description

Charger Youth 20 is a durable and lightweight kid's bike, perfect for exploring local trails, commuting to school, or going on adventures with the family.

Technical Specifications
Frameset

Frame

Aluminum, 9x135 QR, 20"

Fork

SR Suntour XCR Air w/LO 80mm 9x100 QR

Drivetrain

Rear Shifter

Shimano Cues SL-U4050-9R

Rear Derailleur

Shimano Cues RD-U4010

Crankset

Alloy 3pc 127mm, 28T Narrow Wide

Bottom Bracket

Sealed bearing, 68mm BSA

Cassette

Shimano Cues CS-LG300-9, 11-36T, 9sp

Chain

KMC XGlide

Brakes

Front Brake

Tektro HD-M3121

Front Brake Rotor

Tektro 160mm rotor, 6-bolt

Rear Brake

Tektro HD-M3121

Rear Brake Rotor

Tektro 160mm rotor, 6-bolt

Brake Levers

Tektro HD0M3121, Hydraulic 2-Finger Jr. Levers

Components

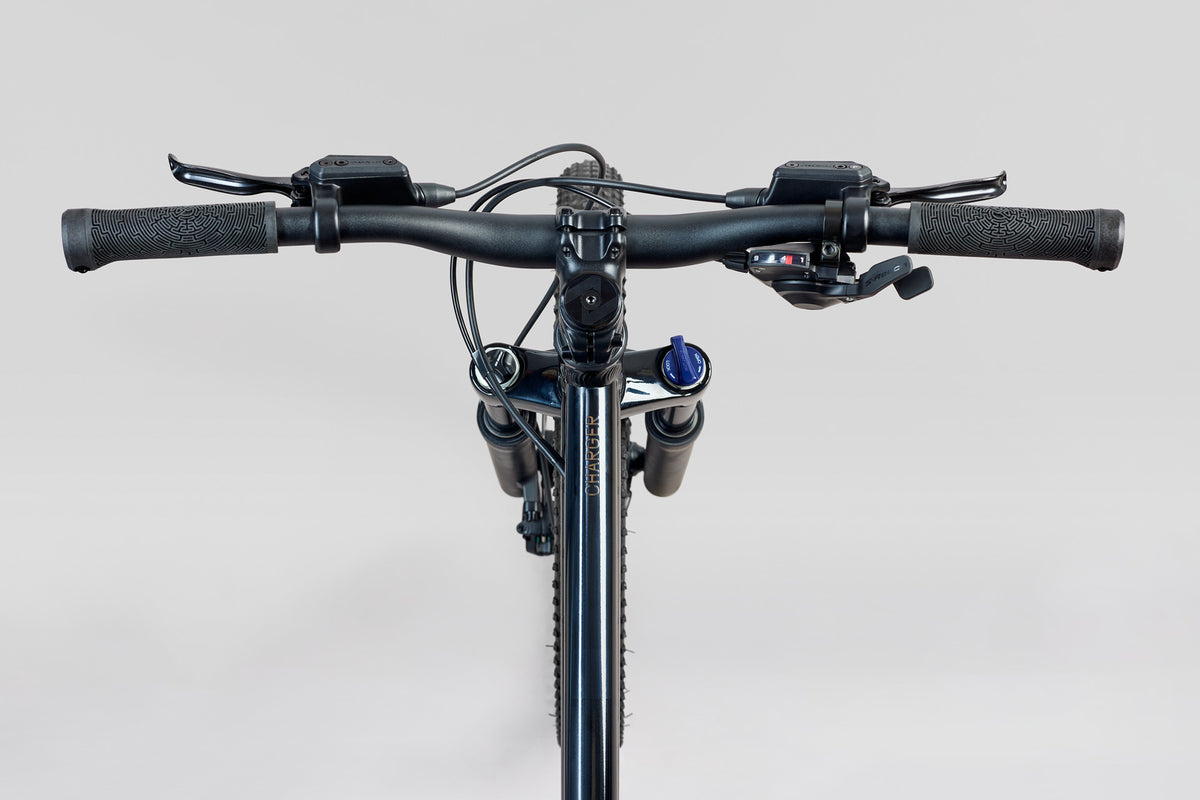

Handlebar

Alloy Jr. Riser, 580mm, 25mm Rise

Stem

Alloy, 31.8mm Clamp, 45mm Length

Seatpost

Norco Alloy 27.2mm, 250mm Length

Headset

External Cup Ball Bearing, 1-1/8"

Saddle

Norco Youth, Steel Rail

Grips

Norco Youth, 116mm Length

Pedals

Jr. MTB Flat, 9/16"

Seatpost Clamp

Norco Alloy Bolted, 31.8mm ID

Wheels

Front Hub

Formula DC-1420, 9x100mm QR, 28H, 6-Bolt

Rear Hub

Formula DC-1425, 10x135mm QR, HG, 28H, 6-Bolt

Rims

Aluminum DW, 28H, 20" MTB

Front Tire

CY Trail 20x2.25" ,Wire

Rear Tire

CY Trail 20x2.25" ,Wire

Spokes/Nipples

Stainless Steel w/Brass Niples - Black

Geometry
Wheel Size 20"
Travel (mm front/mm rear) 80
Reach 302
Stack 441
Head Tube Angle 67.5
Fork Offset 40
Seat Tube Length 255
Effective Seat Tube Angle 72
Rear Centre Length 338
Bottom Bracket Drop 7
Bottom Bracket Height 248
Horizontal Top Tube 445
Wheelbase 863
Standover 452
Head Tube Length 95
Trail 62
Stem Length 35
Crank Length 140
Product Variants SKU/UPC

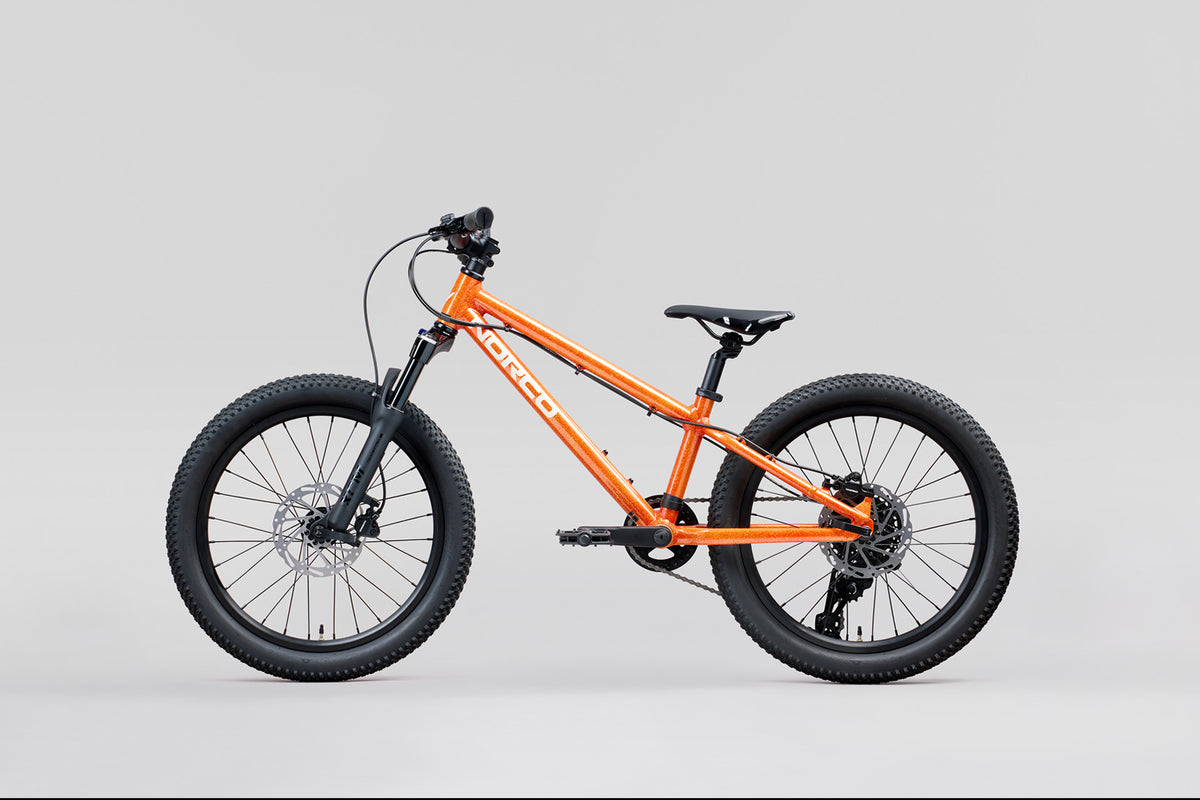

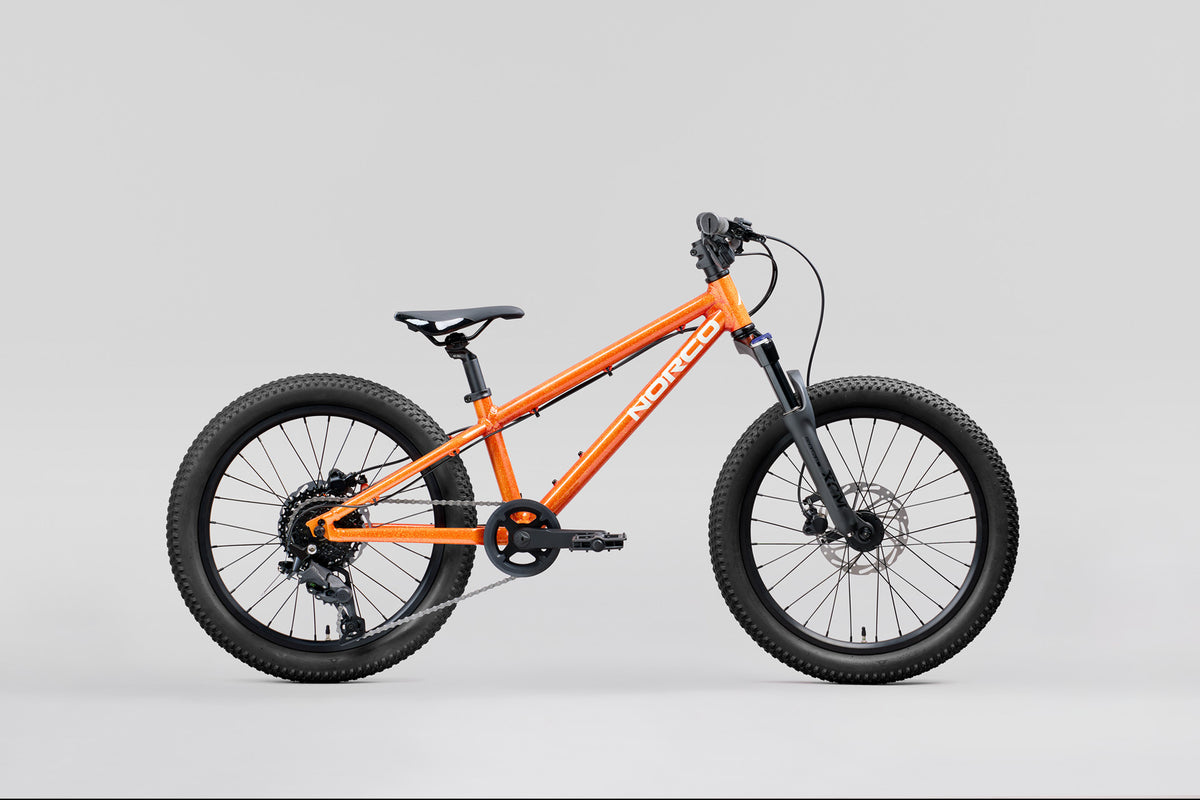

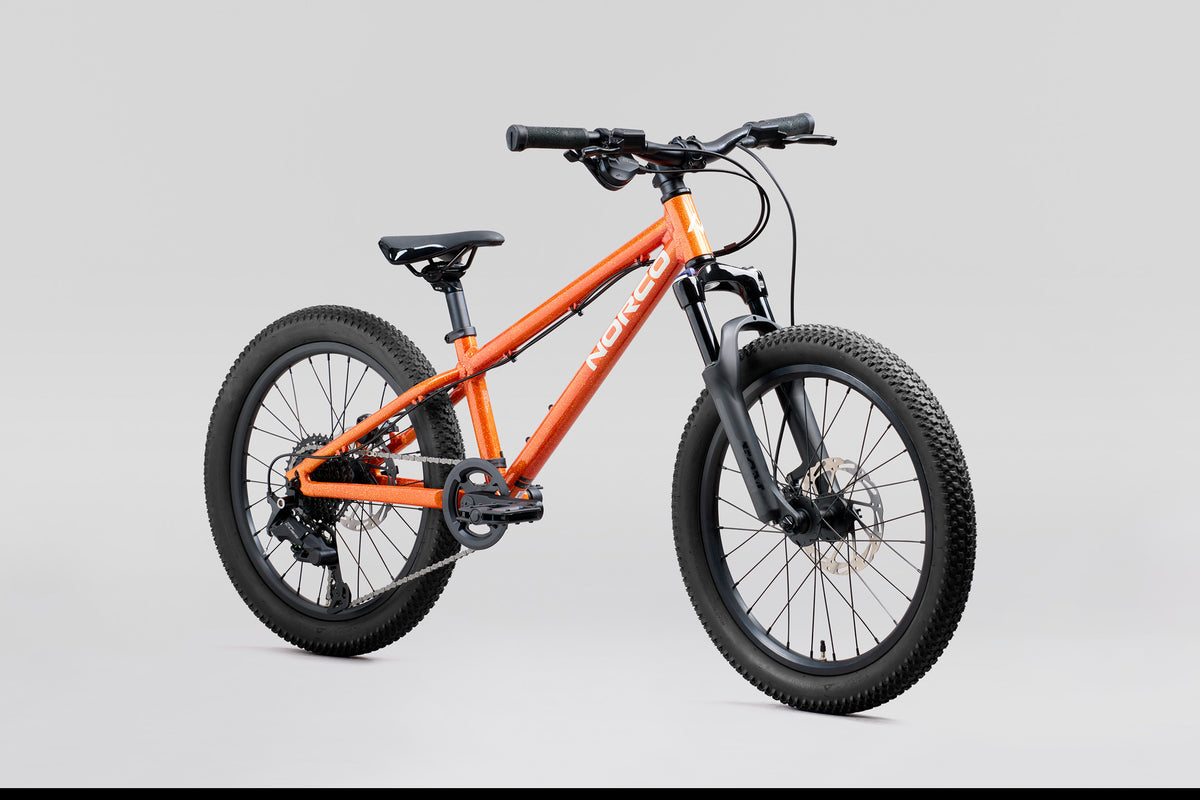

  • 2027 Norco Charger 20: Orange / OS: SKU: 1230327054 - UPC: 058817783265

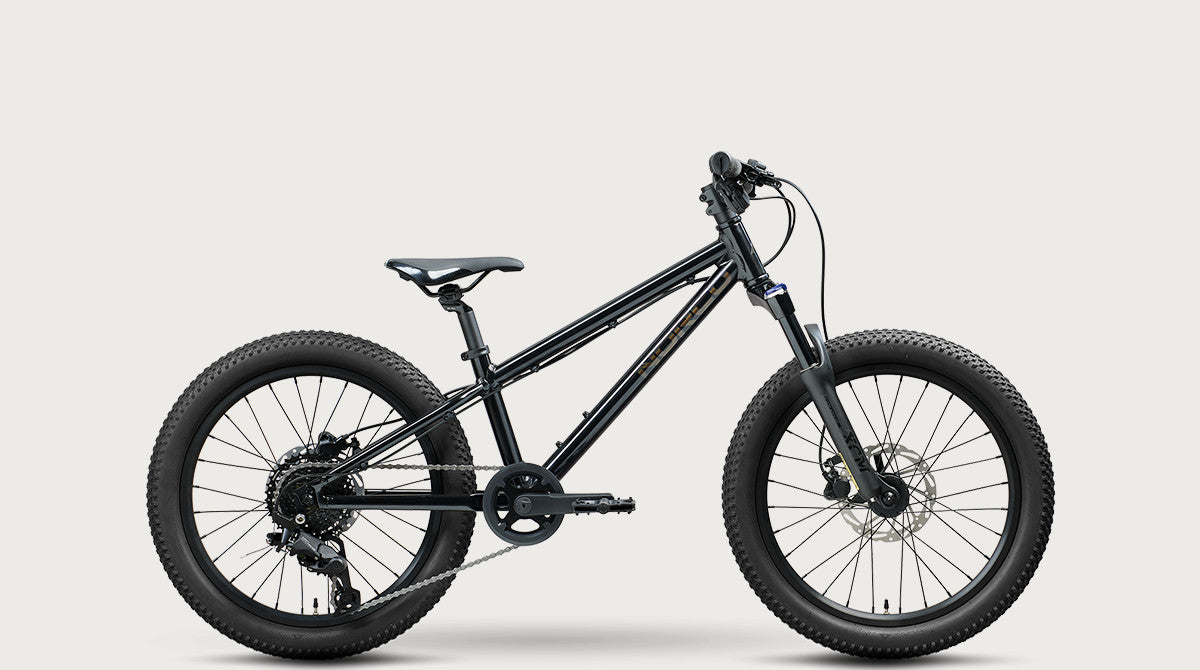

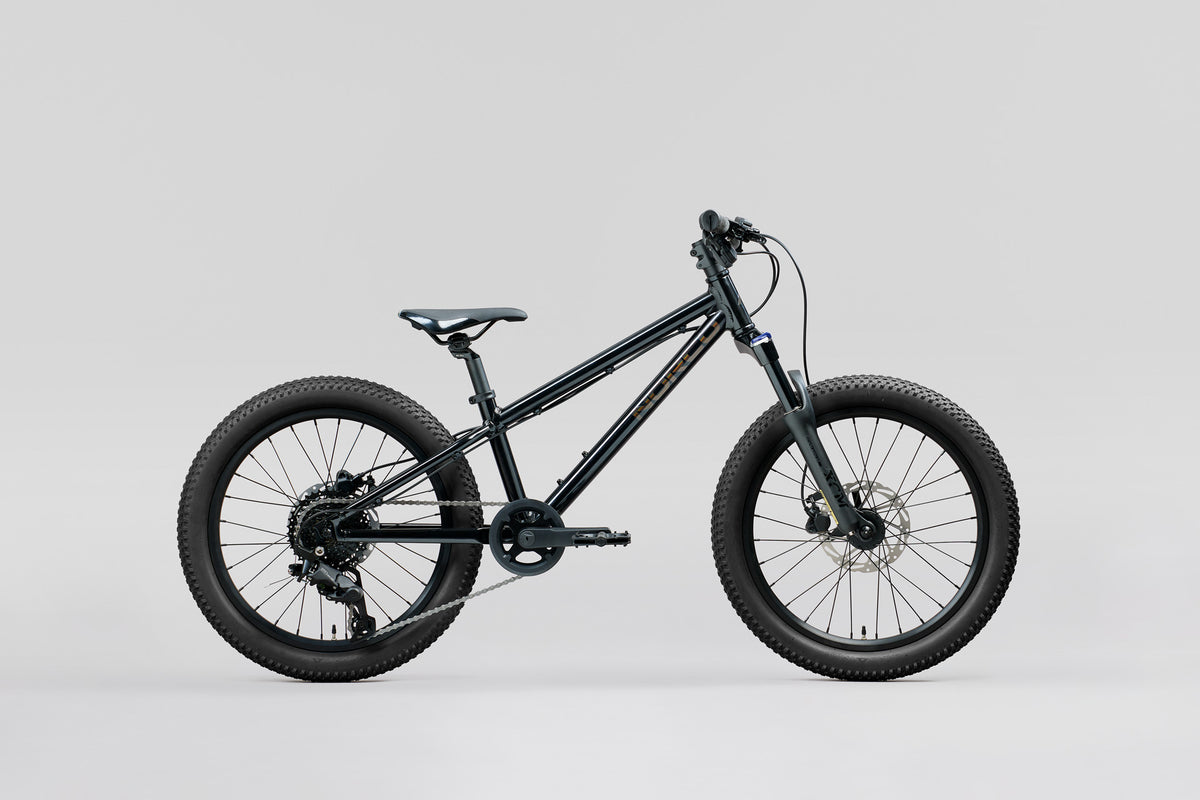

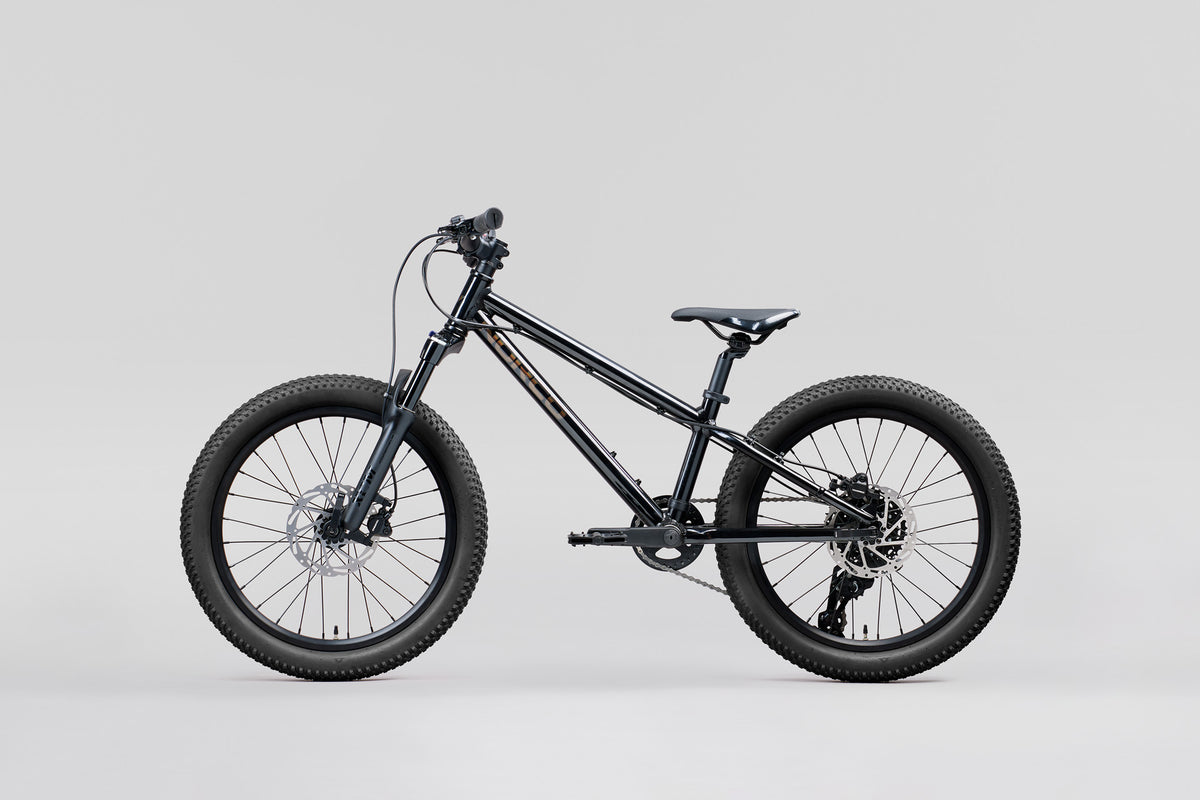

  • 2027 Norco Charger 20: Black / OS: SKU: 1230317054 - UPC: 058817782367
