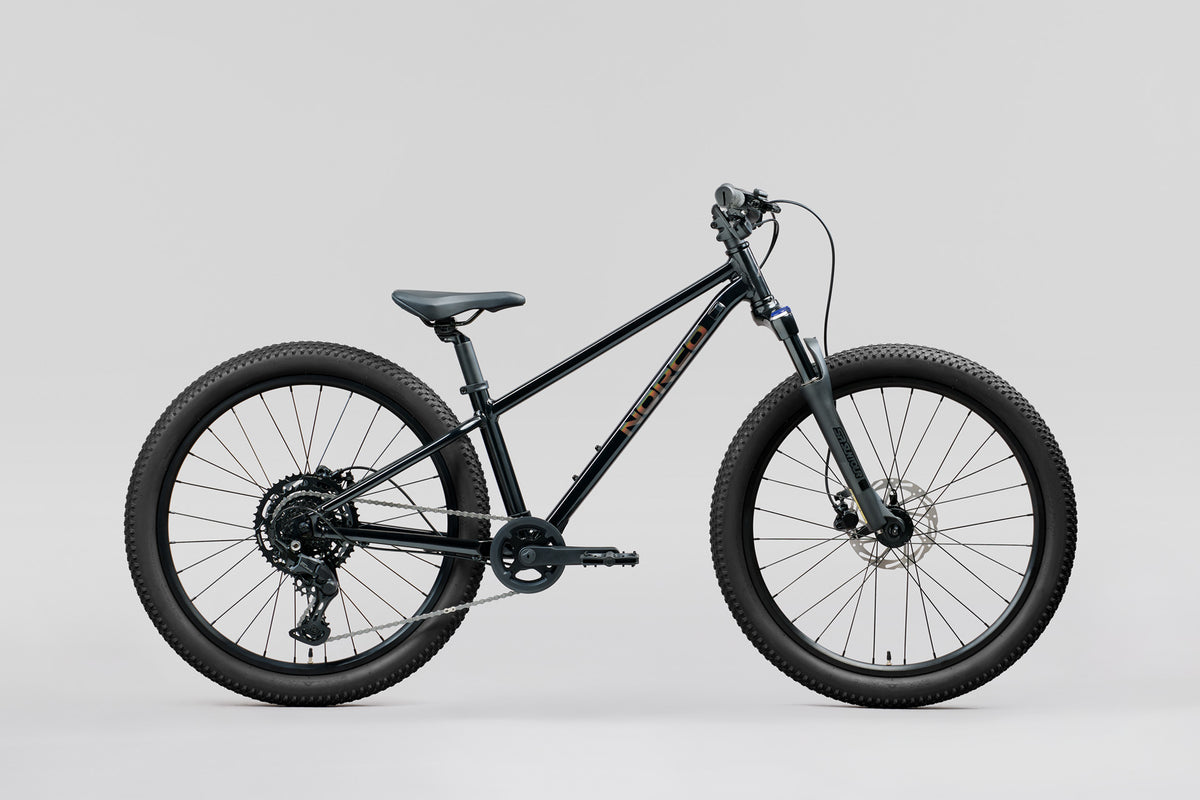

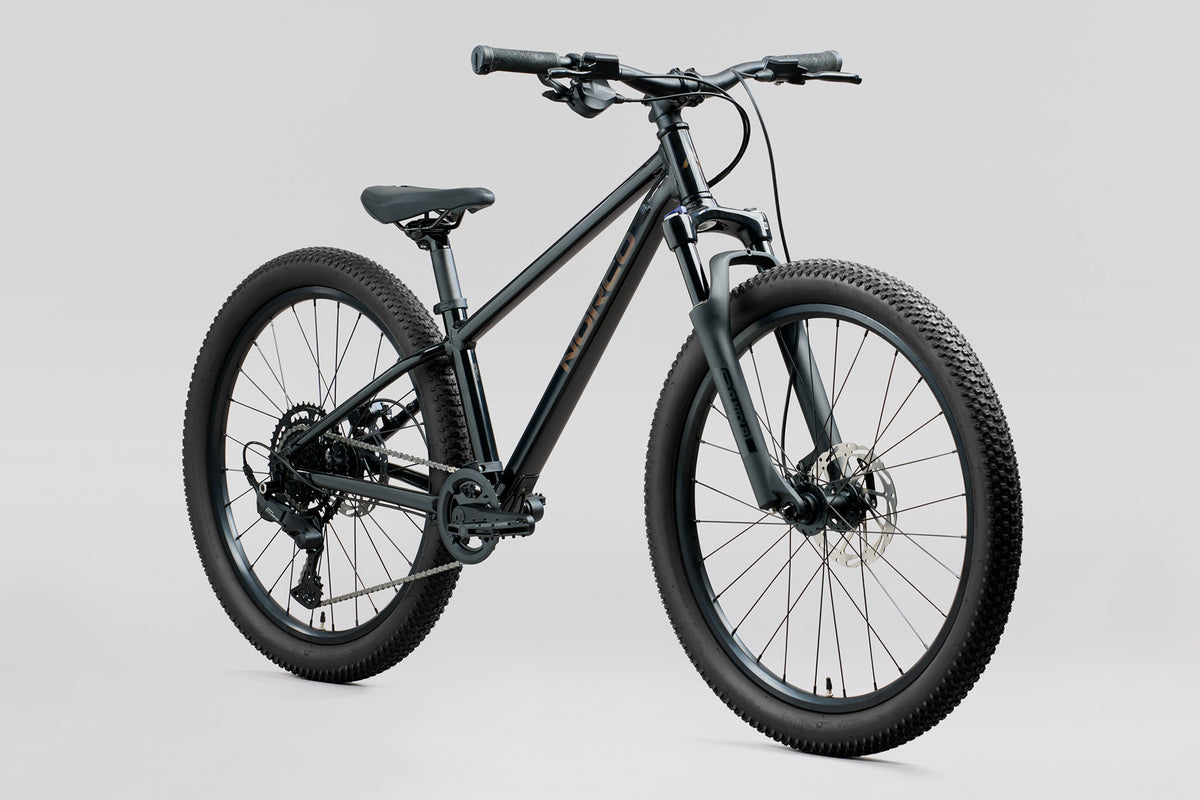

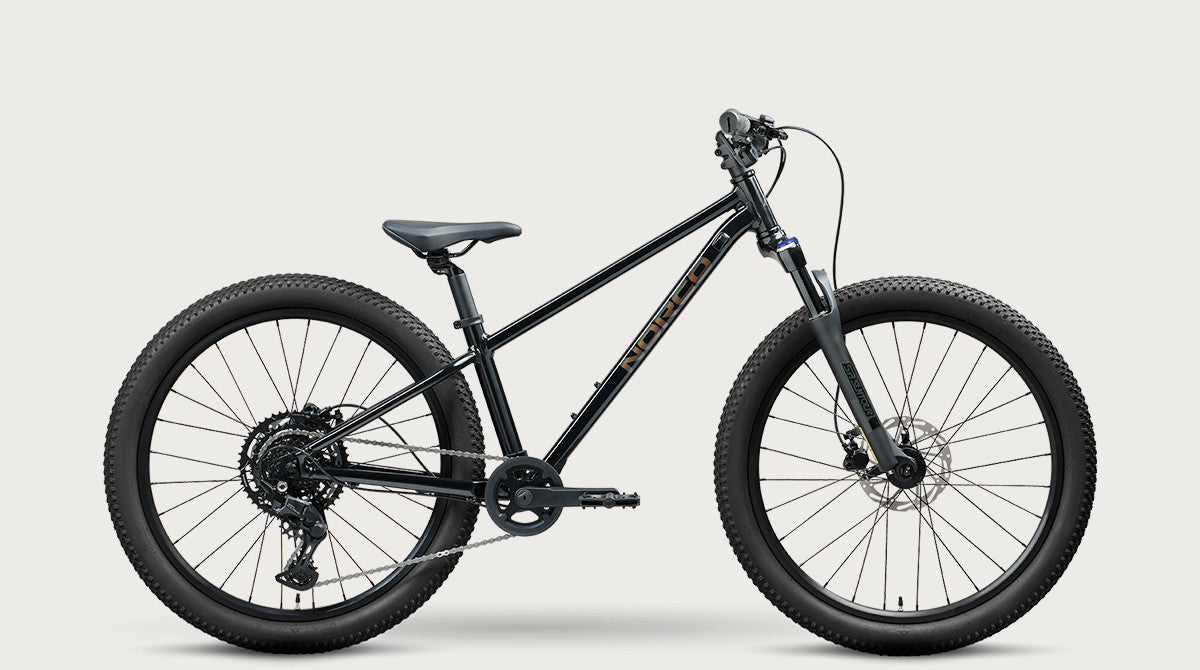

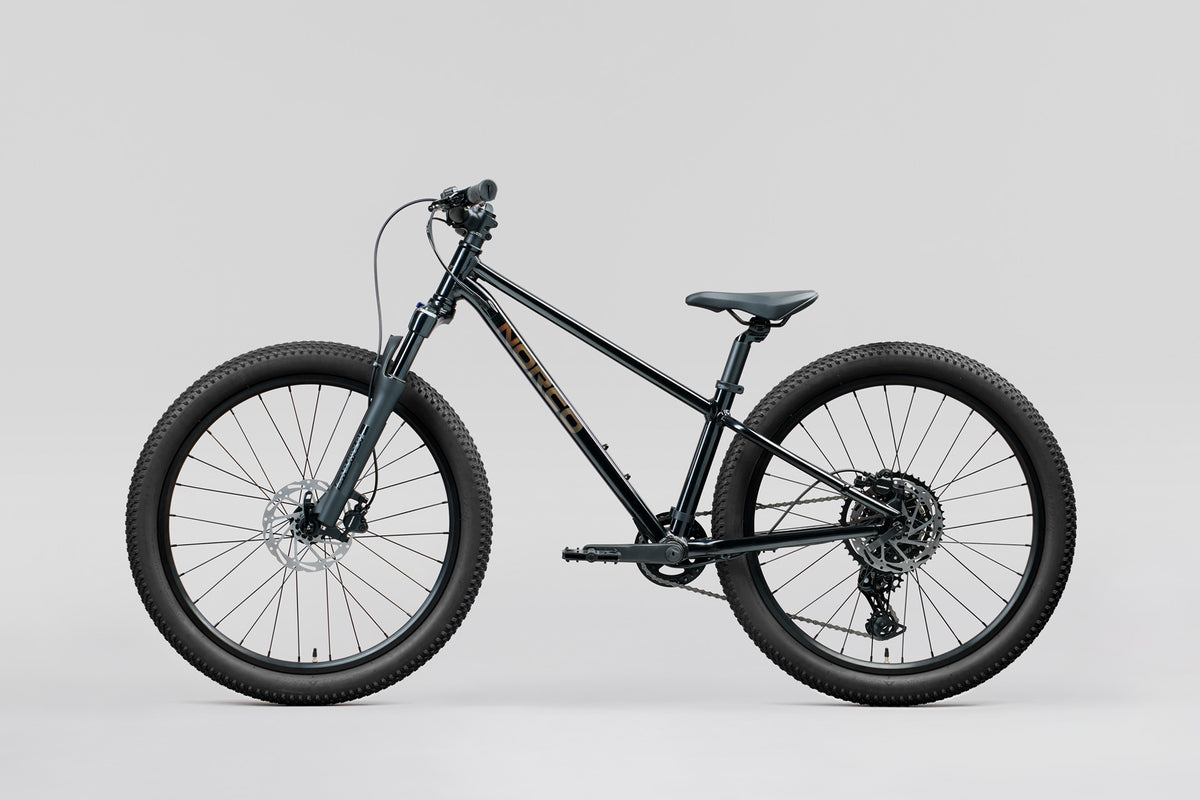

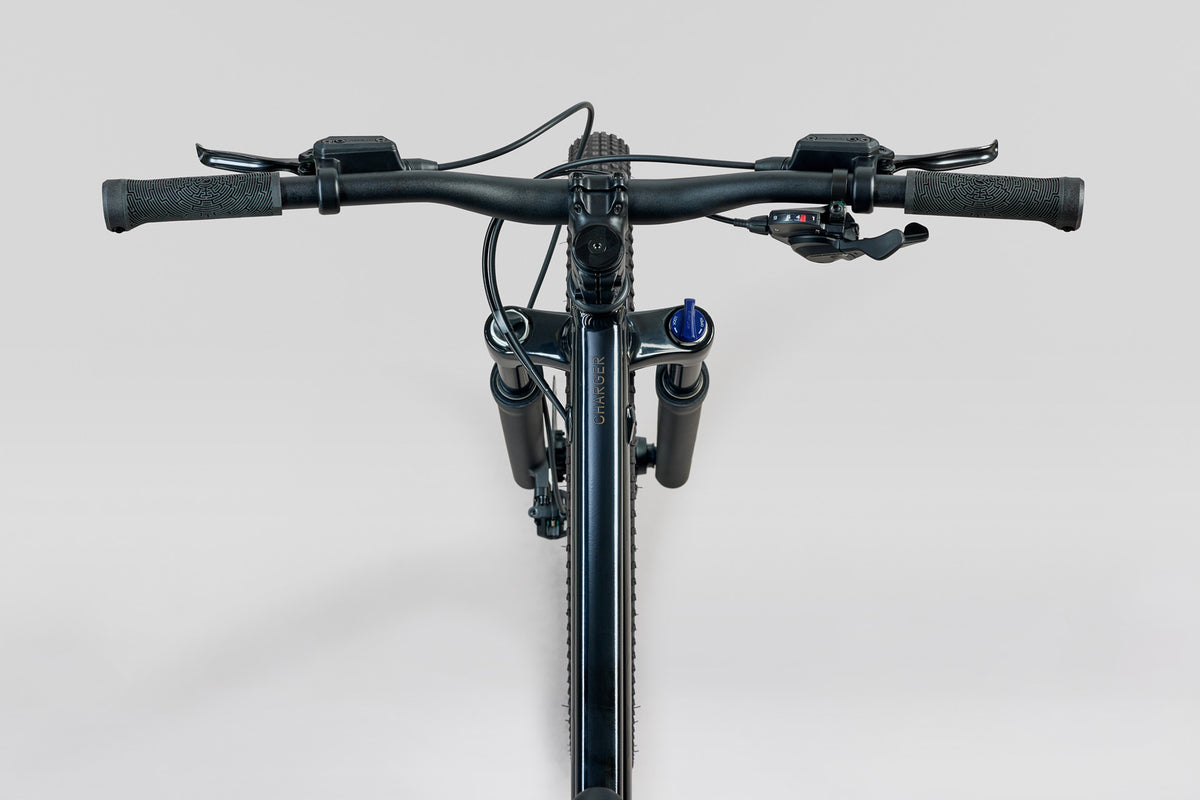

2027 Norco Charger 24

By Norco
$1,050.00 CAD
1230217454
Color: Black
Size
View details
Description

Charger Youth 24 is a durable and lightweight kid's bike, perfect for exploring local trails, commuting to school, or going on adventures with the family.

Technical Specifications
Frameset

Frame

Aluminum, 9x135 QR, 24"

Fork

SR Suntour XCT Air NLO 70mm 9x110 QR

Drivetrain

Rear Shifter

Shimano Cues SL-U40000-9R

Rear Derailleur

Shimano Cues RD-U4000

Crankset

Alloy 3pc 140mm, 28T Narrow Wide

Bottom Bracket

Sealed bearing, 68mm BSA

Cassette

Shimano Cues CS-LG300-9, 11-46T, 9sp

Chain

KMC XGlide

Brakes

Front Brake

Tektro HD-M3121

Front Brake Rotor

Tektro 160mm rotor, 6-bolt

Rear Brake

Tektro HD-M3121

Rear Brake Rotor

Tektro 160mm rotor, 6-bolt

Brake Levers

Tektro HD0M3121, Hydraulic 2-Finger Jr. Levers

Components

Handlebar

Alloy Jr. Riser, 640mm, 30mm Rise

Stem

Alloy, 31.8mm Clamp, 45mm Length

Seatpost

Norco Alloy 31.6mm, 250mm Length

Headset

External Cup Ball Bearing, 1-1/8"

Saddle

Norco Jr XC, Steel Rail

Grips

Norco Youth, 116mm Length

Pedals

Jr. MTB Flat, 9/16"

Seatpost Clamp

Norco Alloy Bolted, 34.9mm ID

Wheels

Front Hub

WZ MT02-1, 9x110mm QR, 28H, 6-Bolt

Rear Hub

Formula DC-1425, 10x135mm QR, HG, 28H, 6-Bolt

Rims

Aluminum DW, 28H, 24" MTB

Front Tire

CY Trail 24x2.25" ,Wire

Rear Tire

CY Trail 24x2.25" ,Wire

Spokes/Nipples

Stainless Steel w/Brass Niples - Black

Geometry
Wheel Size 24"
Travel (mm front/mm rear) 80
Reach 341
Stack 519
Head Tube Angle 67.5
Fork Offset 40
Seat Tube Length 270
Effective Seat Tube Angle 72
Rear Centre Length 380
Bottom Bracket Drop 40
Bottom Bracket Height 266
Horizontal Top Tube 510
Wheelbase 961
Standover 503
Head Tube Length 100
Trail 83
Stem Length 35
Crank Length 152
Product Variants SKU/UPC
  • 2027 Norco Charger 24: Black / SM: SKU: 1230217454 - UPC: 058817782381

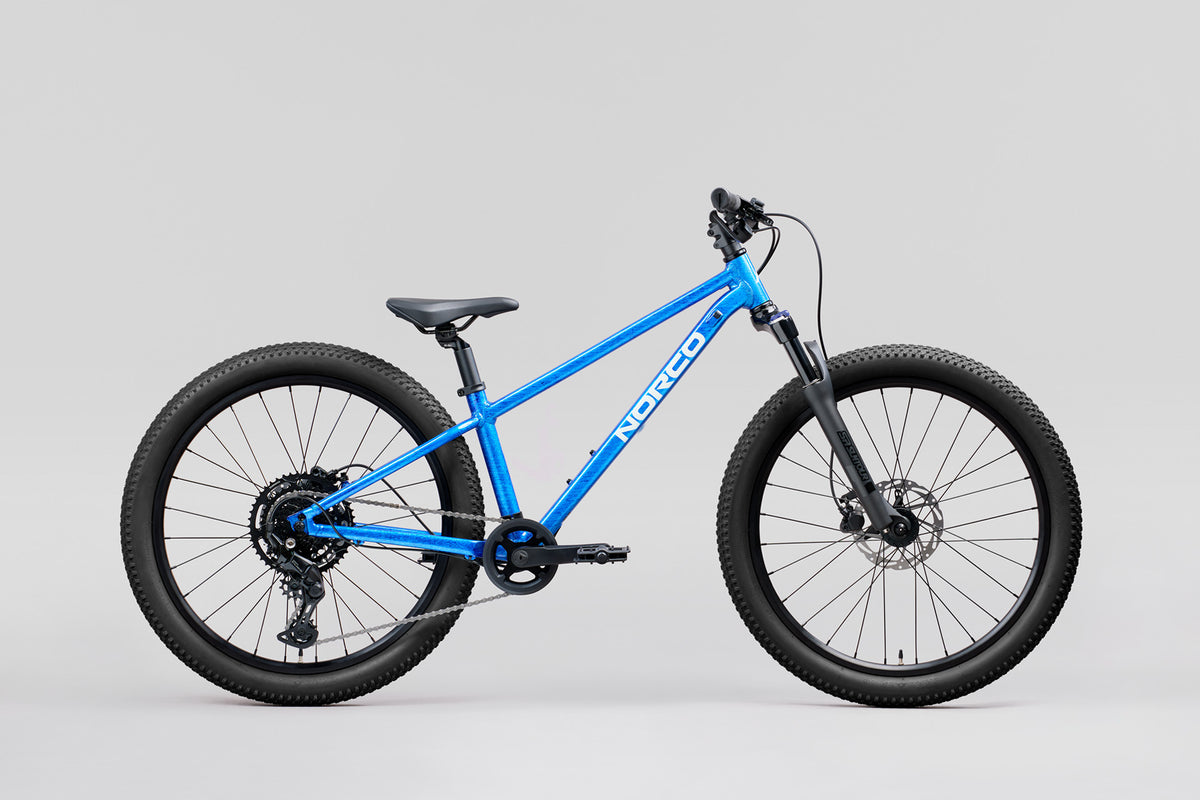

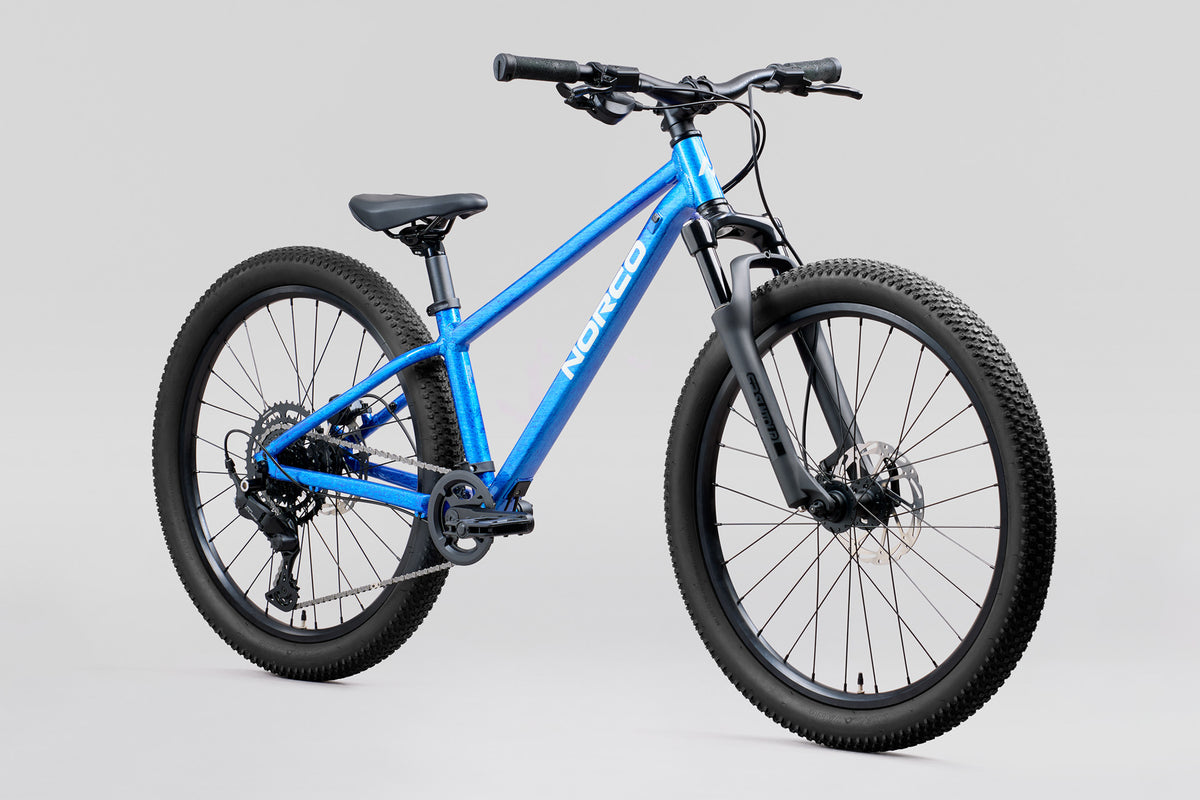

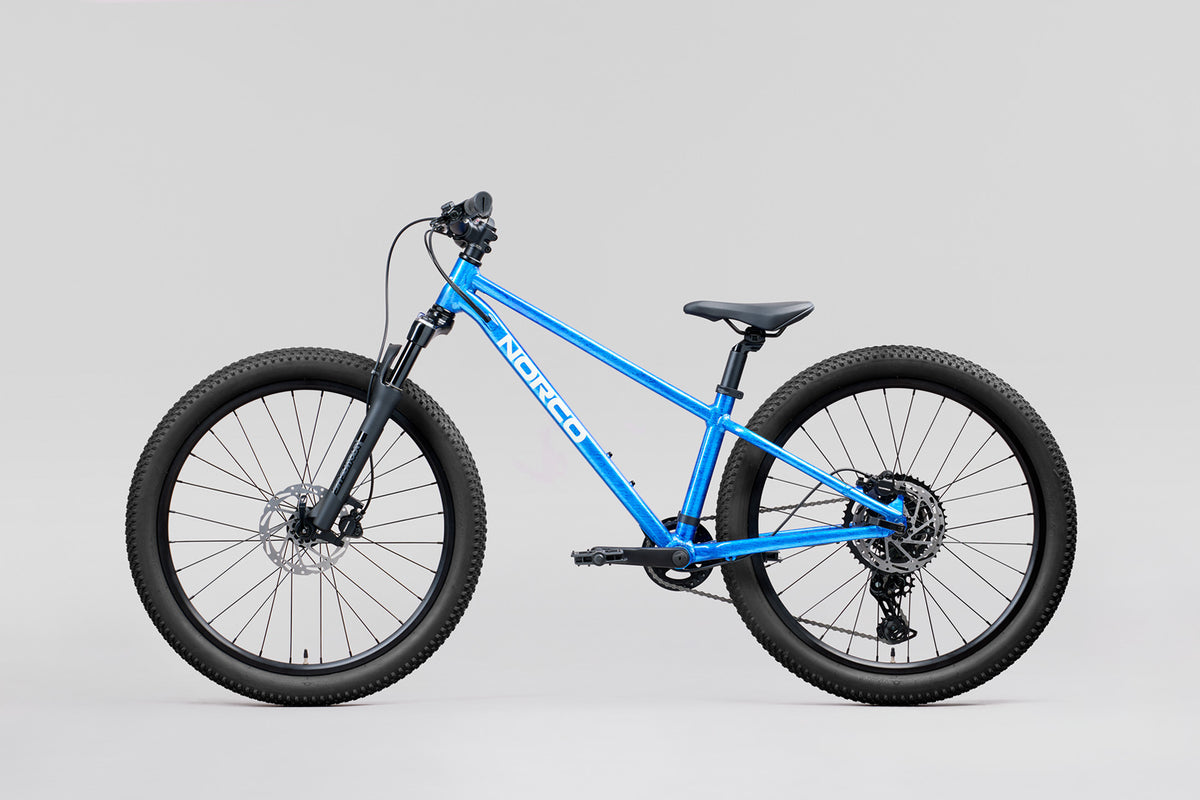

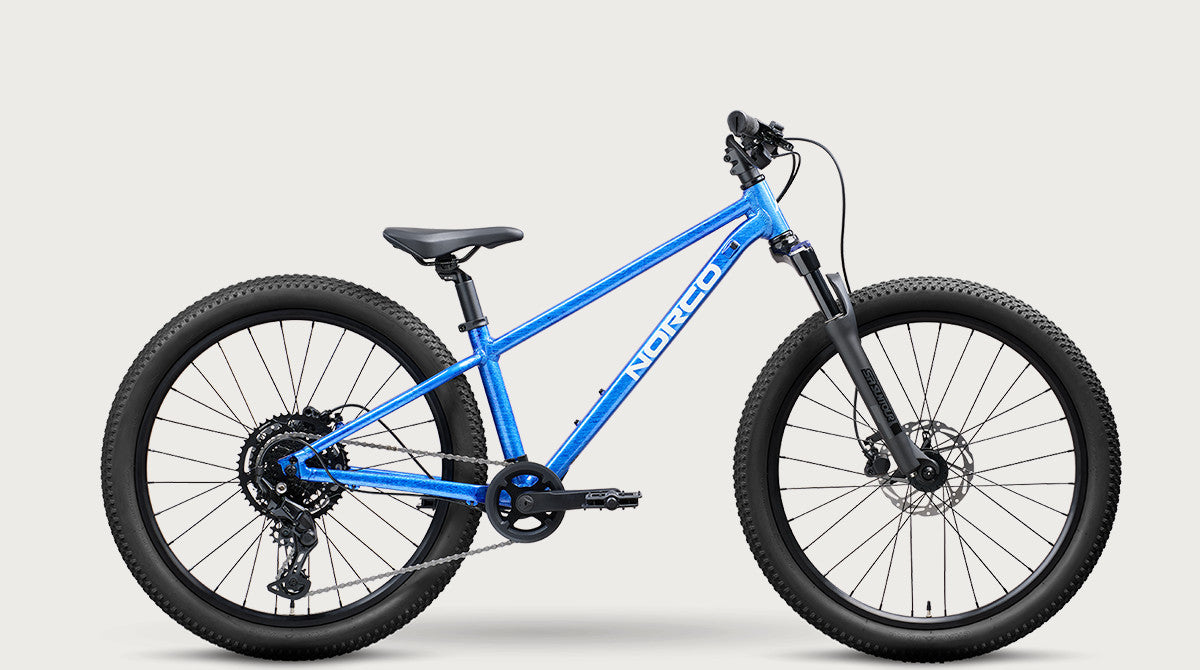

  • 2027 Norco Charger 24: Blue / SM: SKU: 1230227454 - UPC: 058817783289
