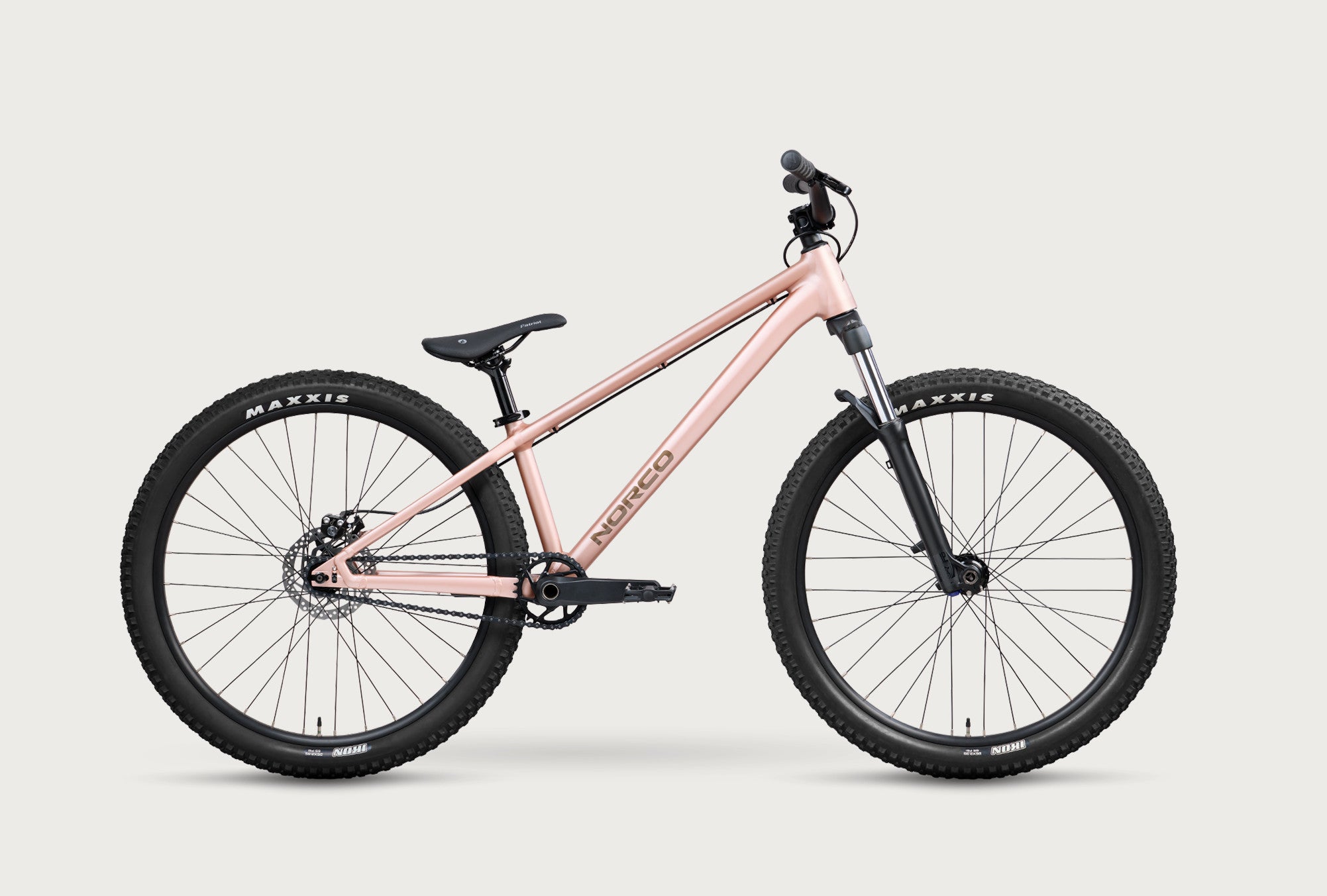

The Rampage 1 is purpose-built for big air, taking inspiration from two decades of riding and building dirt jumpers with a light but strong frame and balanced, agile geometry for finding your flow.
Frame
Aluminum DJ 26", Smooth Welding
Fork
Manitou Circus Comp, 100mm, 20x110mm
Crankset
Prowheel Forged Alloy 2Pc, 30T, 165mm
Bottom Bracket
Sealed Cartridge, ISIS 73mm
Cassette
Single speed, 14T
Chain
KMC Z1, 1/2 x 3/32"
Front Brake
Tektro MD-M280, Mechanical Disc, Resin Pads
Front Brake Rotor
Tektro TR160-52, 160mm, 1.8mm Thickness , 6-bolt
Rear Brake
Shimano Sora BR-R317, Mechanical, Resin Pads
Rear Brake Rotor
Shimano SM-RT26, 160mm, 6-Bolt
Brake Levers
Tektro Alloy
Handlebar
RaceFace Atlas, 800mm, 55mm Rise
Stem
Norco CNC Alloy, 35mm Length, 35mm Clamp
Seatpost
Alloy 27.2mm ID, 200mm Length
Headset
Tapered 1-1/8"- 1.5",(ZS44/28.6 | ZS56/40)
Saddle
SDG Patriot
Grips
Norco w/ small flange, 130mm length
Pedals
FM Resin BMX w/ Metal Pins
Seatpost Clamp
Norco Alloy QR, 31.8mm ID
Front Hub
KT sealed bearing, 20x110, 32H, 6-Bolt
Rear Hub
KT sealed bearing, 3/8" nutted axle, 32H, 14T SS sprocket, 6-Bolt
Rims
XD-155 DW, 32h, F/R 26", 26.6mm ID
Front Tire
Maxxis Ikon, 3C Maxx Speed, 26"x 2.35, Folding
Rear Tire
Maxxis Ikon, 3C Maxx Speed, 26"x 2.35, Folding
| Short | Medium | Long | |
|---|---|---|---|
| Wheel Size | 26" | 26" | 26" |
| Travel (mm front) | 100 | 100 | 100 |
| Reach | 405 | 435 | 465 |
| Stack | 554 | 564 | 573 |
| Head Tube Angle | 68.5 | 68.5 | 68.5 |
| Fork Offset | 40 | 40 | 40 |
| Seat Tube Length | 300 | 300 | 300 |
| Effective Seat Tube Angle | 75 | 75 | 75 |
| Rear Centre Length | 379 | 379 | 379 |
| Bottom Bracket Drop | 20 | 20 | 20 |
| Bottom Bracket Height | 328 | 328 | 328 |
| Horizontal Top Tube | 554 | 586 | 619 |
| Wheelbase | 1037 | 1071 | 1104 |
| Standover | 599 | 599 | 599 |
| Head Tube Length | 105 | 115 | 125 |
| Trail | 94 | 94 | 94 |
| Maximum Post Insertion | 245 | 245 | 245 |
| Stem Length | 35 | 35 | 35 |
| Crank Length | 165 | 165 | 165 |
| Tire Size | 2.35" – 2.5" | 2.35" – 2.5" | 2.35" – 2.5" |
