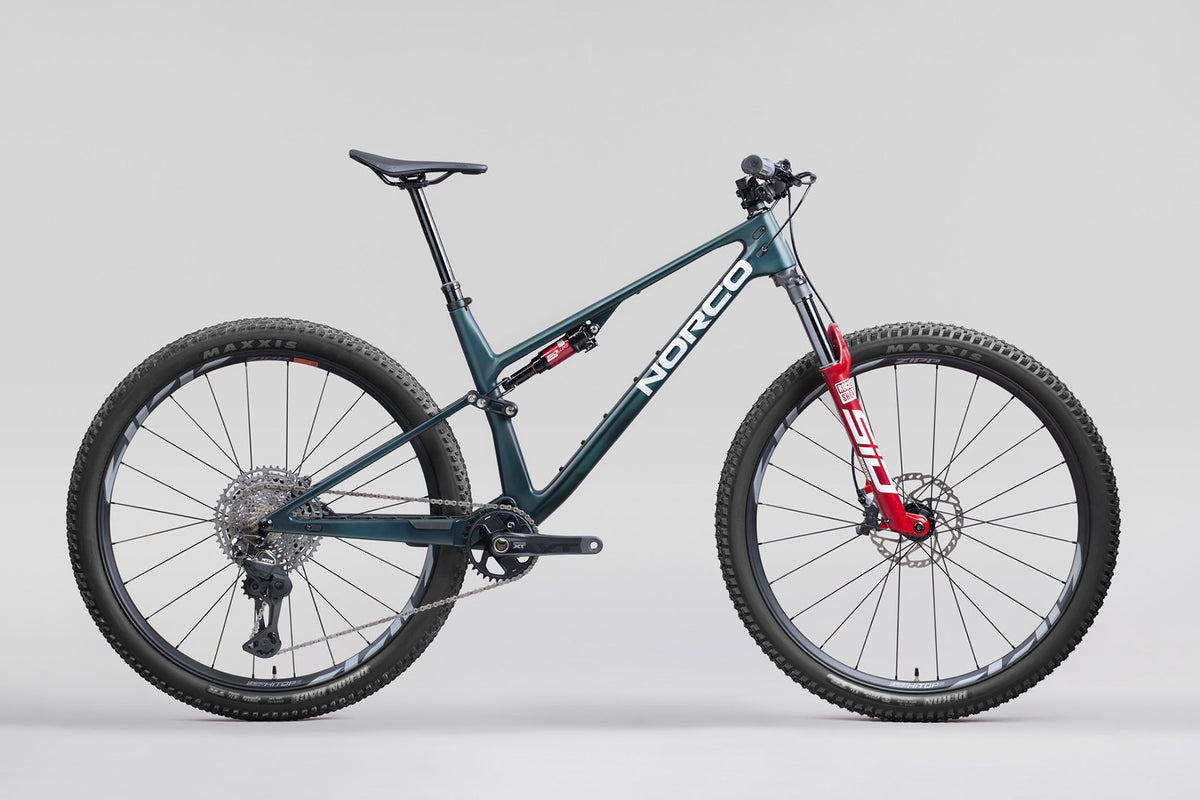

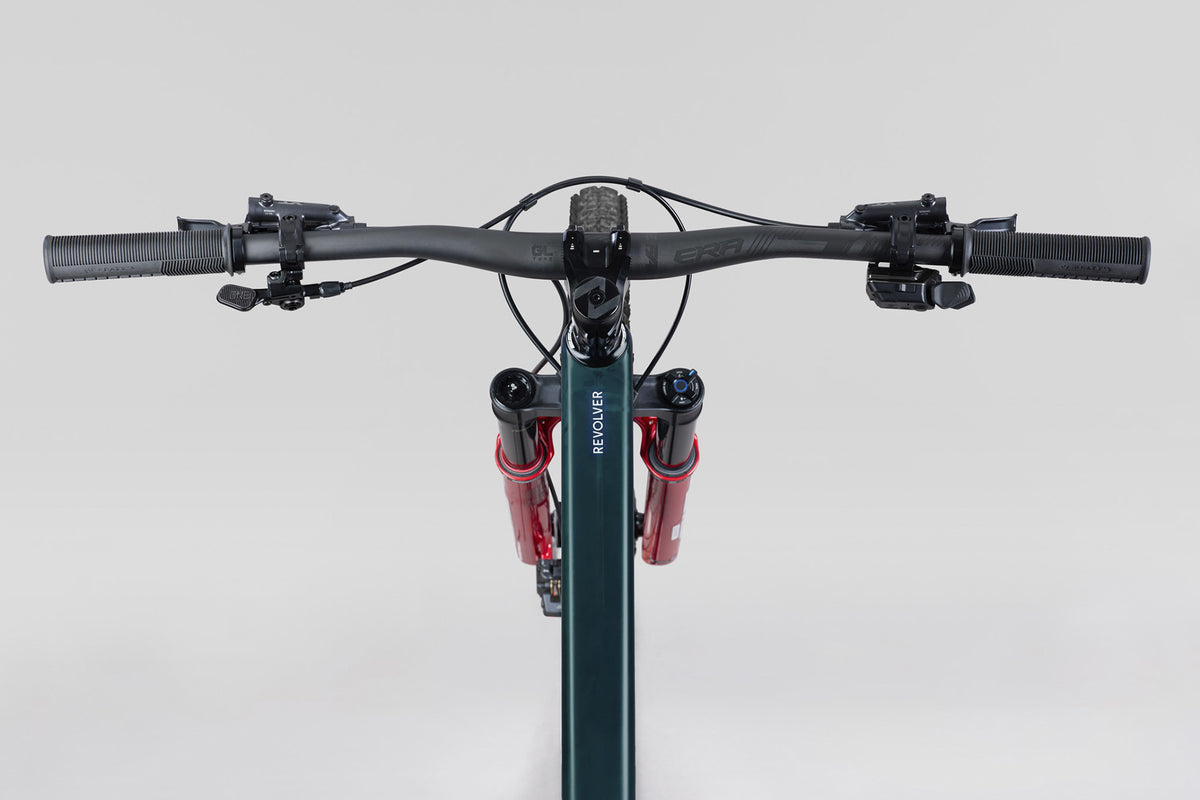

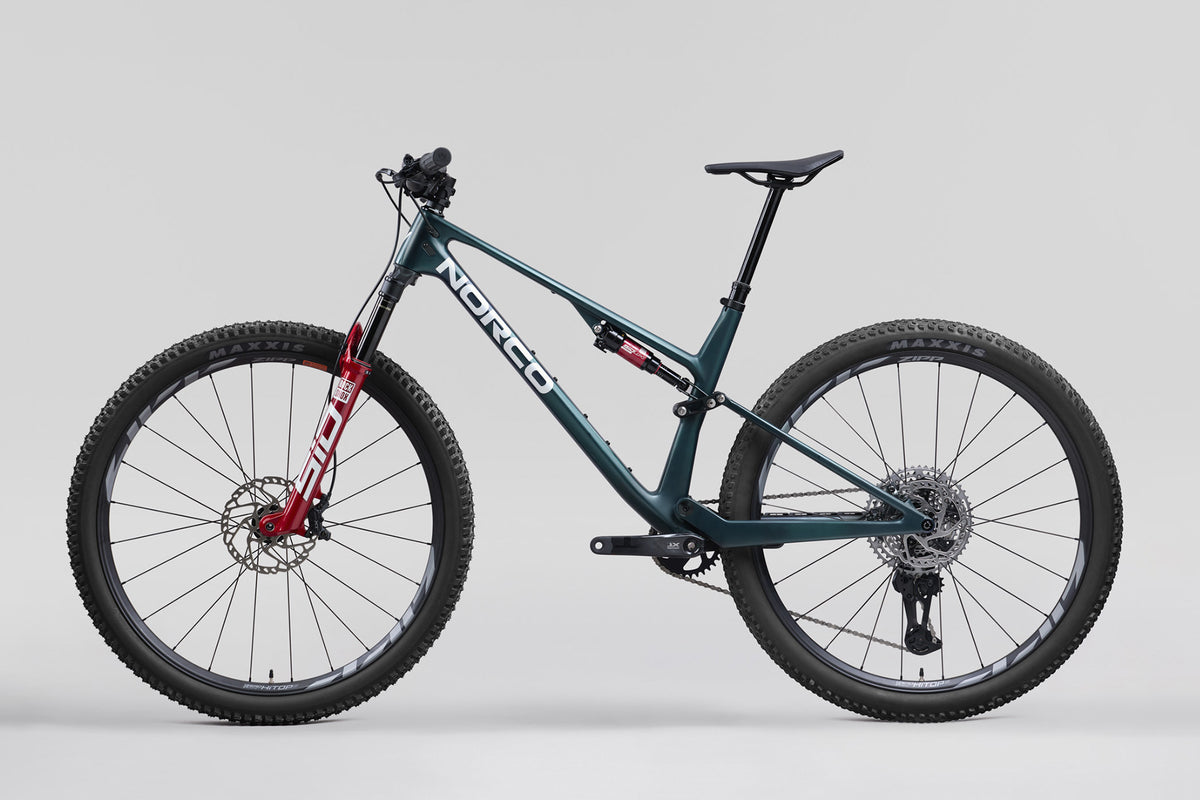

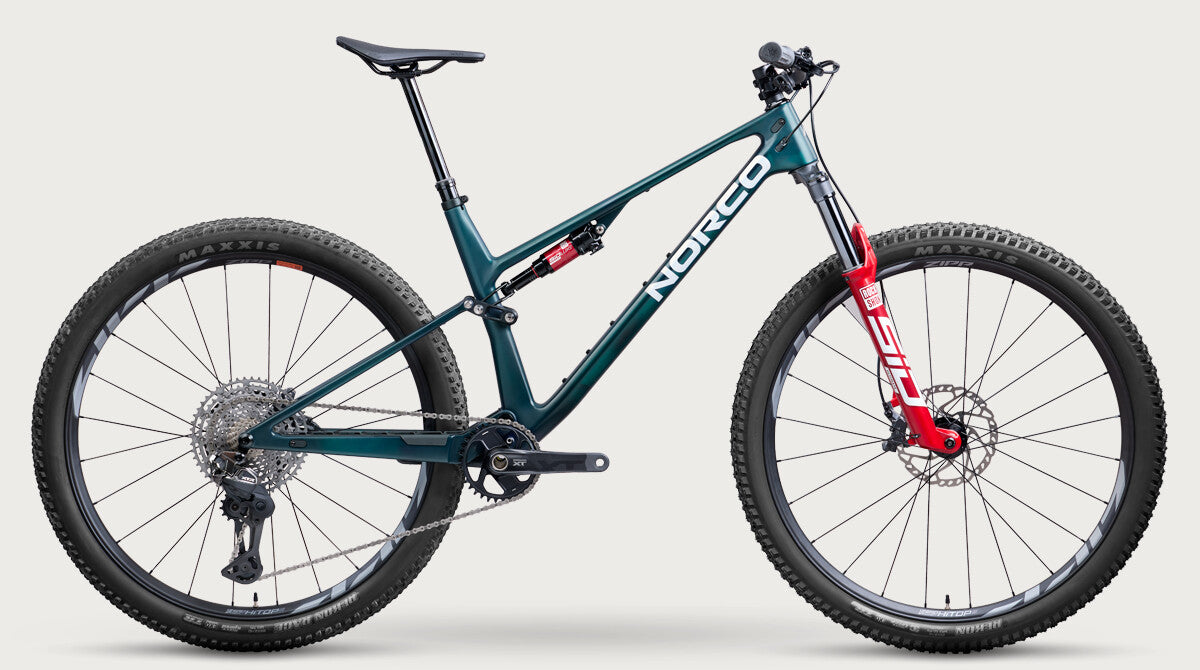

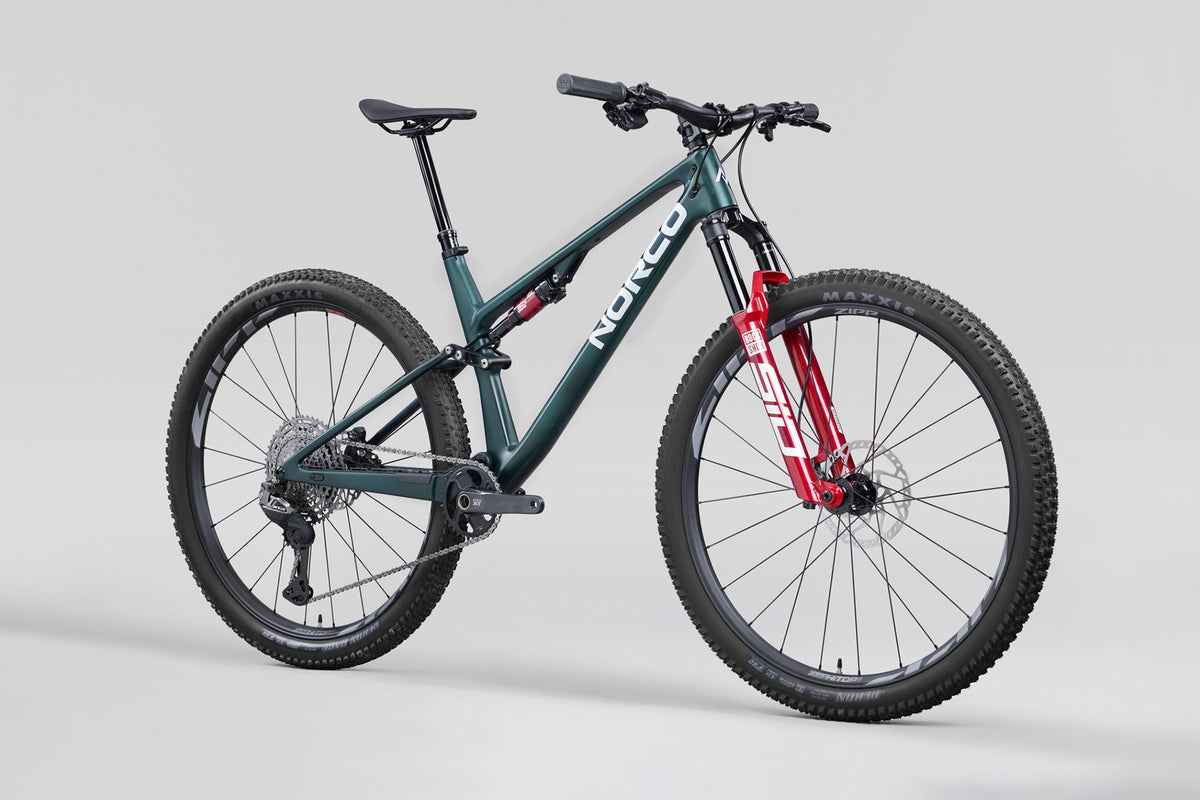

Revolver C1 sets the bar for what a Cross-Country bike can do. With 120 mm of front travel and 115 mm at the rear, it's fast, efficient, and capable.
Quick and snappy on acceleration, whether you're going up or ready to rip down, its suspension performance is well beyond what you can expect from a shorter travel bike. Head out for epic days, attack climbs, and crush descents, while cruising through the singletrack; it's the best choice for stage races or all-day adventures.
Frame
Carbon Frame, 115mm Travel, UDH, Eagle Transmission Compatible, Ride Aligned™
Fork
RockShox Sid Ultimate 3P, 120mm, 44mm offset
Rear Shock
RockShox SIDLuxe Ultimate, 190x42.5mm, Std eyelet
Rear Shifter
Shimano XTR Di2 SW-M9250-IR, 12sp
Rear Derailleur
Shimano XTR RD-9250 Di2, 12sp, SGS
Crankset
Shimano Deore XT FC-M8200, 34T, CL55, 165mm (S1,S2), 170mm (S3,S4,S5)
Bottom Bracket
Shimano BB-MT501, BSA 73mm
Cassette
Shimano XTR CS-M900-12, 10-51T, 12sp
Chain
Shimano Deore CN-M9100-12, 12sp
Front Brake
Shimano Deore XT BR-M8220 4-P, Metallic pads
Front Brake Rotor
Shimano SM-RT66, 180mm, 6-bolt
Rear Brake
Shimano Deore XT BR-M8220 4-P, Metallic pads
Rear Brake Rotor
Shimano SM-RT66, 160mm, 6-bolt
Brake Levers
Shimano Deore XT BL-M8200
Handlebar
RaceFace ERA35, 760mm (S1,S2,S3) / 780 (S4,S5), 20mm Rise
Stem
Norco CNC Alloy, 50mm Length, 35mm Clamp
Seatpost
OneUp V3 w/ One Up 1x lever, 31.6mm, 150mm (S1-S2) -180mm (S3) -210mm (S4) -240mm (S5)
Headset
FSA Integrated Sealed Bearings No. 42 ; Tapered 1-1/8" - 1.5" ( IS42/28.6 | IS52/40 )
Saddle
Fizik Ridon, MG Rail
Grips
Peaty's Monarch, Mushroom, Thin
Seatpost Clamp
Norco Alloy Nutted Clamp, 34.9mm ID
Front Hub
Zipp 1Zero Hitop S, 15x110mm Boost, 6-bolt
Rear Hub
Zipp 1Zero Hitop S, 12x148mm Boost, Microspline, 6-bolt
Rims
Zipp 1Zero Hitop S Carbon, 30mm ID, 29"
Front Tire
Maxxis Rekon, 3C MaxxTerra EXO, 29x2.4"
Rear Tire
Maxxis Rekon Race, NEW Maxx Speed EXO 29x2.4"
Feature 1
Zipp 1Zero HitOP B1
| 1 | 2 | 3 | 4 | 5 | |
|---|---|---|---|---|---|
| Wheel Size | 29" | 29" | 29" | 29" | 29" |
| Travel (mm front/mm rear) | 120/115 | 120/115 | 120/115 | 120/115 | 120/115 |
| Reach | 422.5 | 447.5 | 472.5 | 497.5 | 522.5 |
| Stack | 589 | 598 | 607 | 616 | 625 |
| Head Tube Angle | 66.5 | 66.5 | 66.5 | 66.5 | 66.5 |
| Fork Offset | 44 | 44 | 44 | 44 | 44 |
| Seat Tube Length | 392 | 434 | 453 | 477 | 491 |
| Effective Seat Tube Angle | 75 | 75.25 | 75.5 | 75.75 | 76 |
| Rear Centre Length | 422 | 426 | 430 | 434 | 438 |
| Bottom Bracket Drop (Front/Rear) | 36/36 | 36/36 | 36/36 | 36/36 | 36/36 |
| Bottom Bracket Height | 338 | 338 | 338 | 338 | 338 |
| Horizontal Top Tube | 580 | 605 | 629 | 654 | 678 |
| Wheelbase | 1131 | 1164 | 1197 | 1230 | 1263 |
| Standover | 677 | 681 | 685 | 692 | 698 |
| Head Tube Length | 90 | 100 | 110 | 120 | 130 |
| Trail | 115 | 115 | 115 | 115 | 115 |
| Recommended Seatpost Drop | 150 | 150 | 170 | 200 | 230 |
| Maximum Post Insertion | 250 | 250 | 270 | 300 | 330 |
| Stem Length | 50 | 50 | 50 | 50 | 50 |
| Crank Length | 165 | 165 | 170 | 170 | 170 |
| Tire Size | 2.35" – 2.5" | 2.35" – 2.5" | 2.35" – 2.5" | 2.35" – 2.5" | 2.35" – 2.5" |
| Water Bottle Compatible | 1 x 750 mL | "2 x 620mL or 1 x 750 mL" | "2 x 620mL or 1 x 750 mL" | 2 x 750 mL | 2 x 750 mL |
