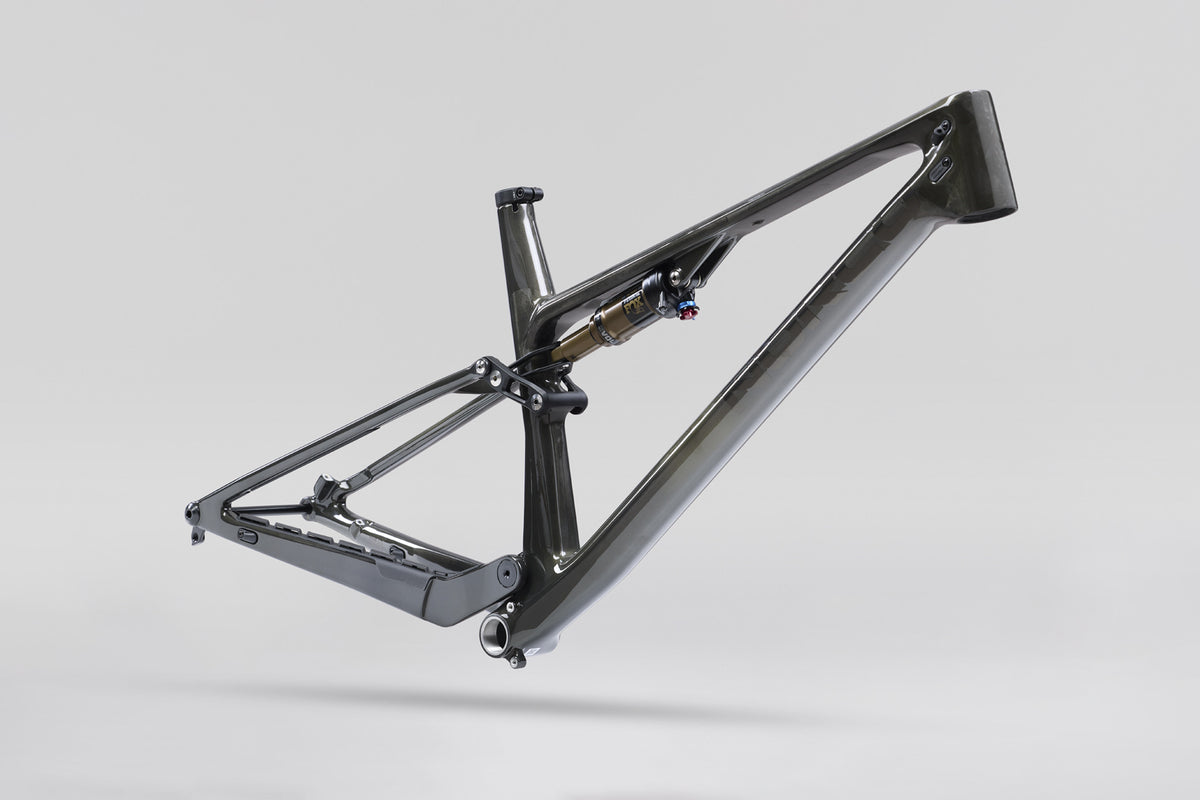

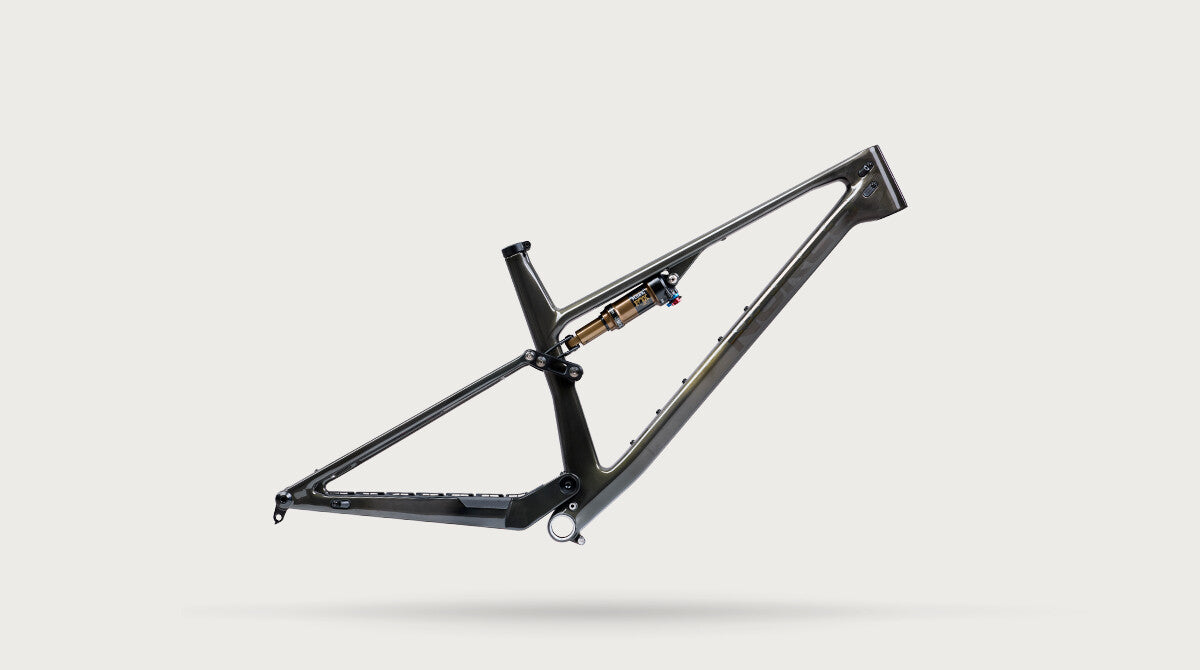

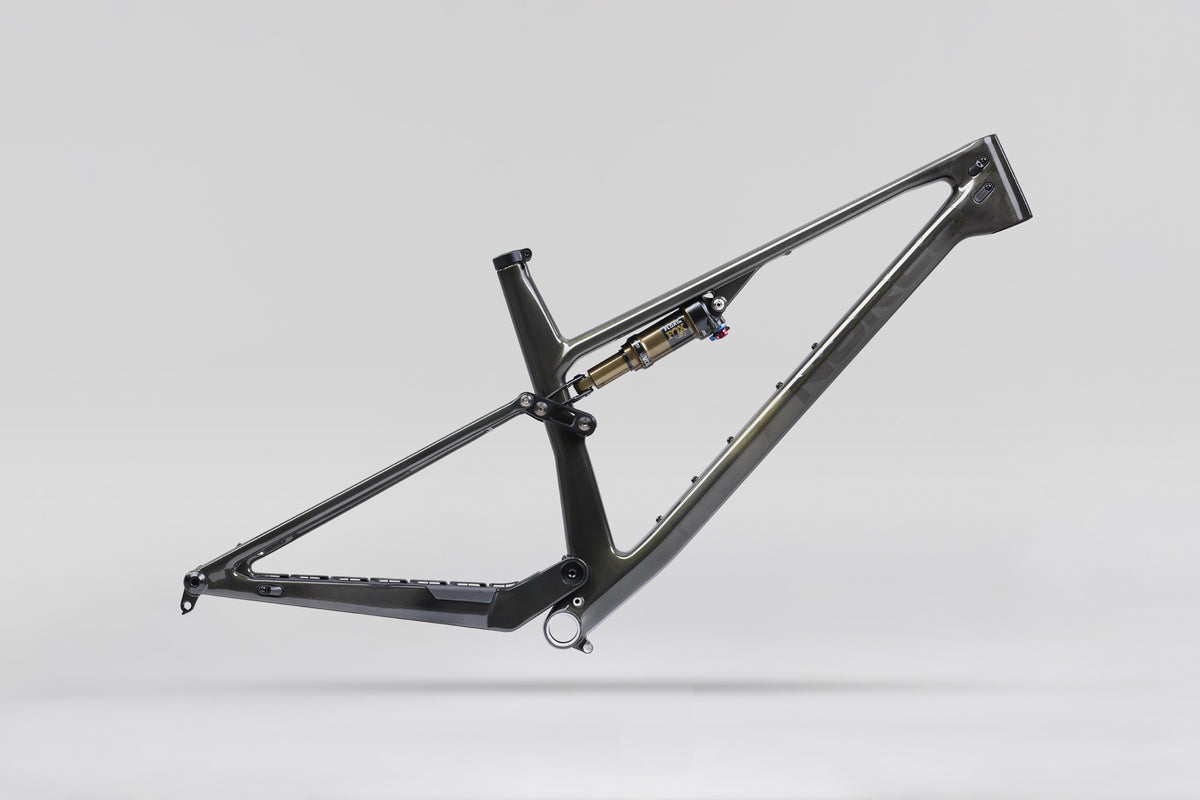

Revolver is the lightest full-suspension frame Norco has ever built, with a surprising amount of capability. At the core of its efficiency is our advanced approach to a Flex-Pivot suspension design. With aggressive XC geometry and a carbon frame layup optimized for each frame size to enhance stiffness and compliance, Revolver maintains consistent kinematic and weight distribution across all sizes. It's a strong foundation for any rider to drive up and charge down, beyond the expected.
Frame
Carbon Frame, 120mm Travel, UDH, Eagle Transmission Compatible, Ride Aligned™
Rear Shock
Fox Factory Float SL, 190x45mm, Std eyelet
Seatpost Clamp
Norco Alloy Nutted Clamp, 34.9mm ID
| 1 | 2 | 3 | 4 | 5 | |
|---|---|---|---|---|---|
| Wheel Size | 29" | 29" | 29" | 29" | 29" |
| Travel (mm front/mm rear) | 130/120 | 130/120 | 130/120 | 130/120 | 130/120 |
| Reach | 418 | 443 | 468 | 493 | 518 |
| Stack | 592 | 601 | 611 | 620 | 629 |
| Head Tube Angle | 66 | 66 | 66 | 66 | 66 |
| Fork Offset | 44 | 44 | 44 | 44 | 44 |
| Seat Tube Length | 392 | 434 | 453 | 477 | 491 |
| Effective Seat Tube Angle | 74.5 | 74.75 | 75 | 75.25 | 75.5 |
| Rear Centre Length | 422 | 426 | 430 | 434 | 438 |
| Bottom Bracket Drop (Front/Rear) | 32/32 | 32/32 | 32/32 | 32/32 | 32/32 |
| Bottom Bracket Height | 342 | 342 | 342 | 342 | 342 |
| Horizontal Top Tube | 581 | 606 | 631 | 655 | 680 |
| Wheelbase | 1135 | 1168 | 1201 | 1234 | 1267 |
| Standover | 683 | 687 | 691 | 698 | 704 |
| Head Tube Length | 90 | 100 | 110 | 120 | 130 |
| Trail | 118 | 118 | 118 | 118 | 118 |
| Recommended Seatpost Drop | 150 | 150 | 170 | 200 | 230 |
| Maximum Post Insertion | 250 | 250 | 270 | 300 | 330 |
| Stem Length | 50 | 50 | 50 | 50 | 50 |
| Crank Length | 165 | 165 | 170 | 170 | 170 |
| Tire Size | 2.35" – 2.5" | 2.35" – 2.5" | 2.35" – 2.5" | 2.35" – 2.5" | 2.35" – 2.5" |
| Water Bottle Compatible | 1 x 750 mL | "2 x 620mL or 1 x 750 mL" | "2 x 620mL or 1 x 750 mL" | 2 x 750 mL | 2 x 750 mL |
