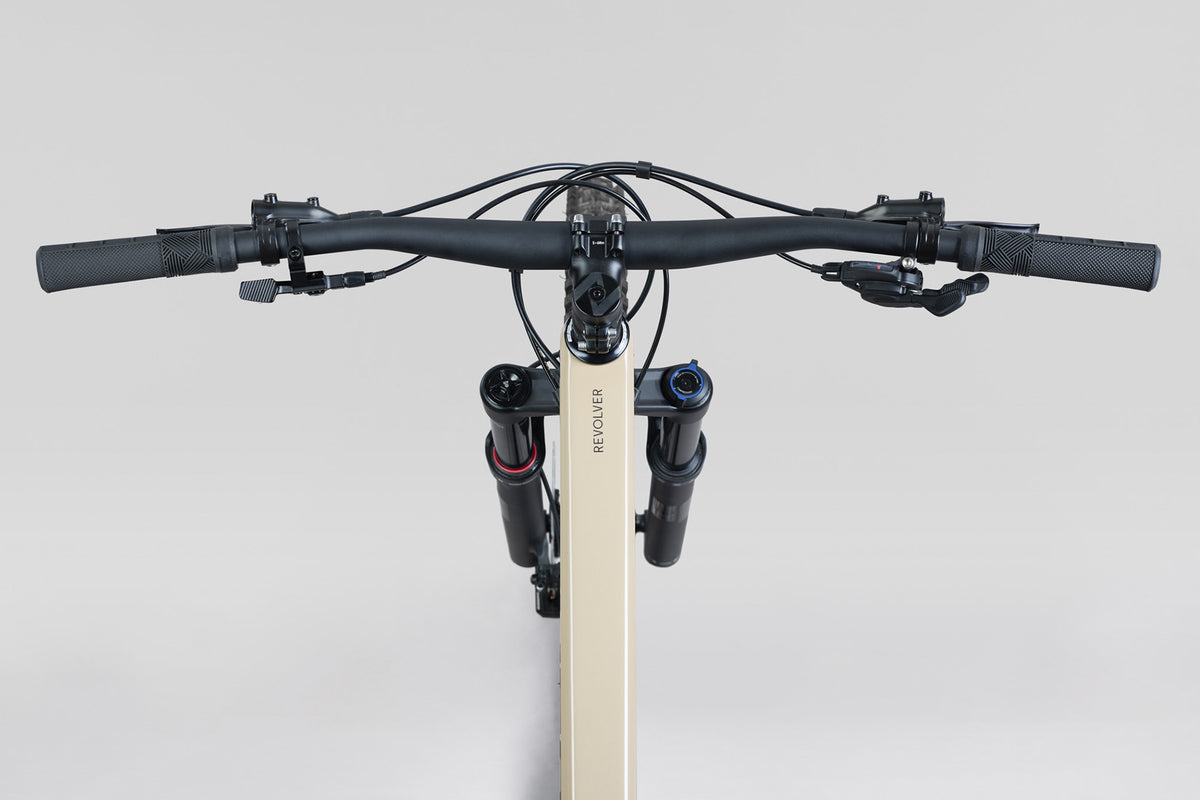

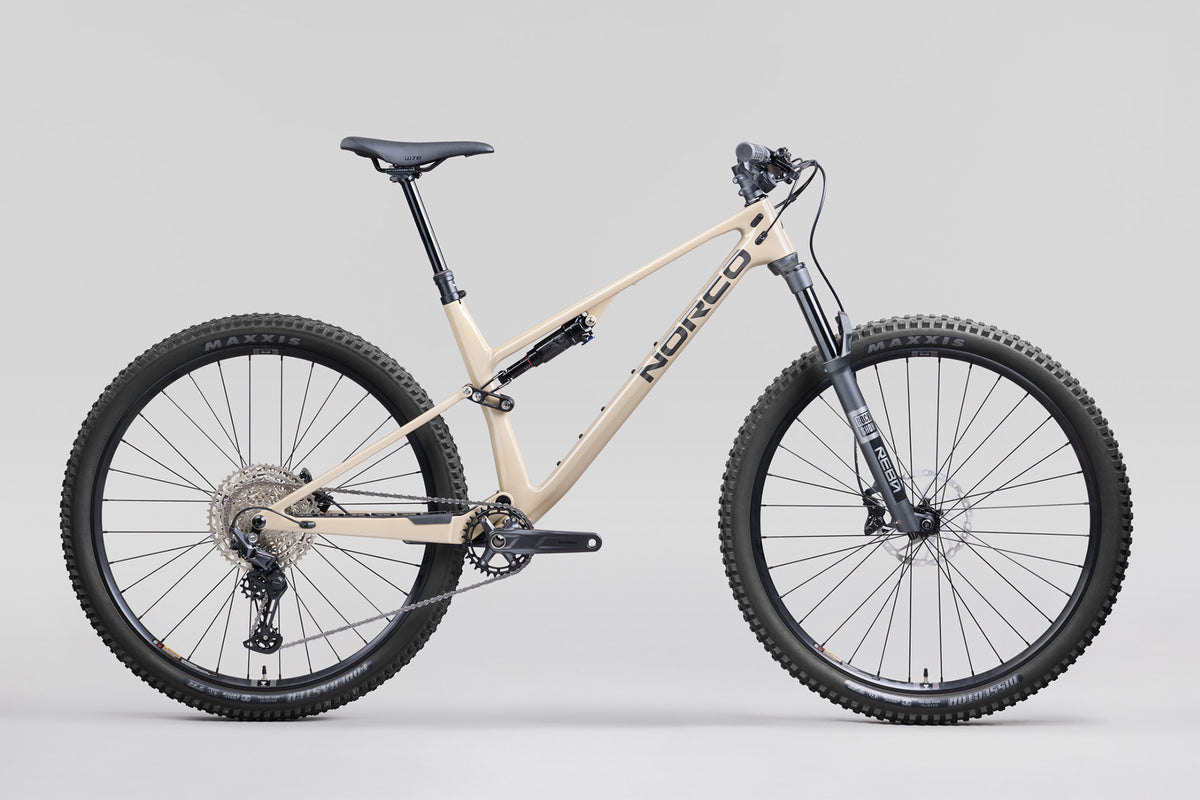

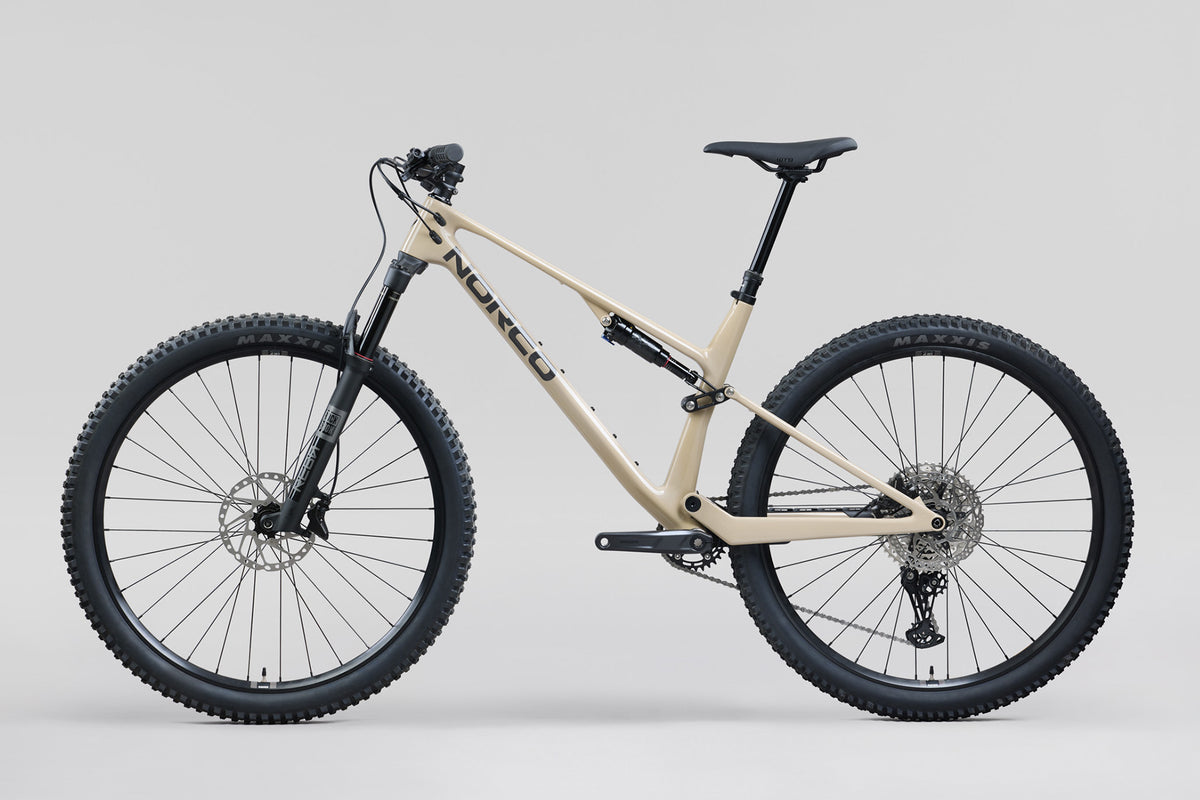

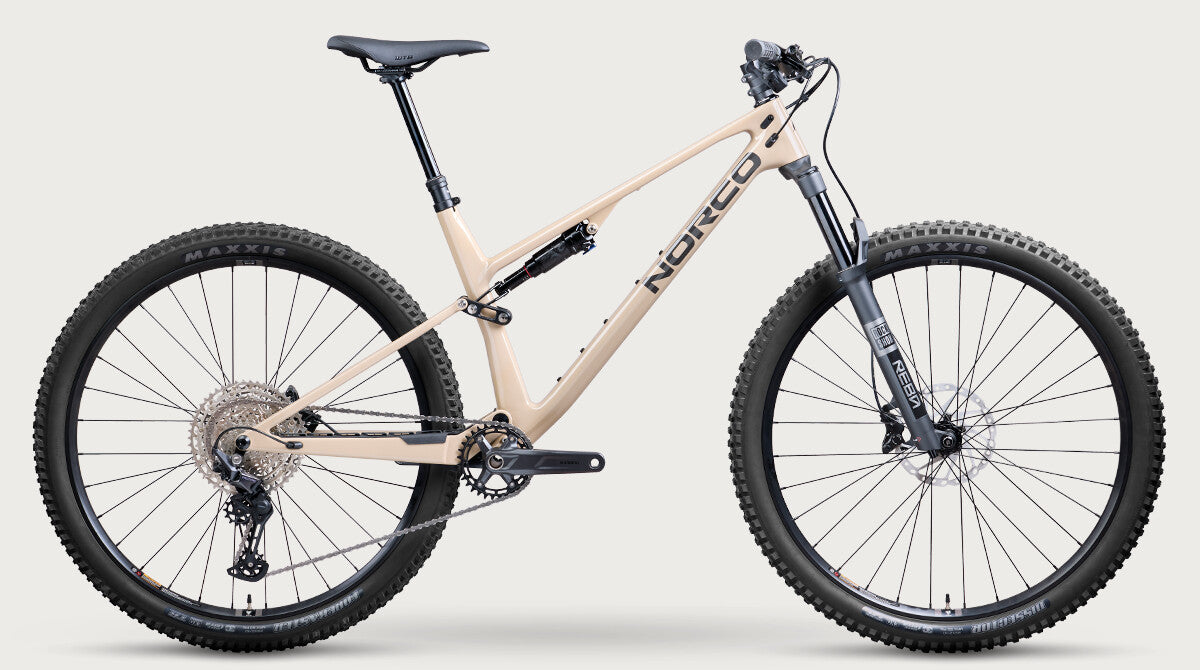

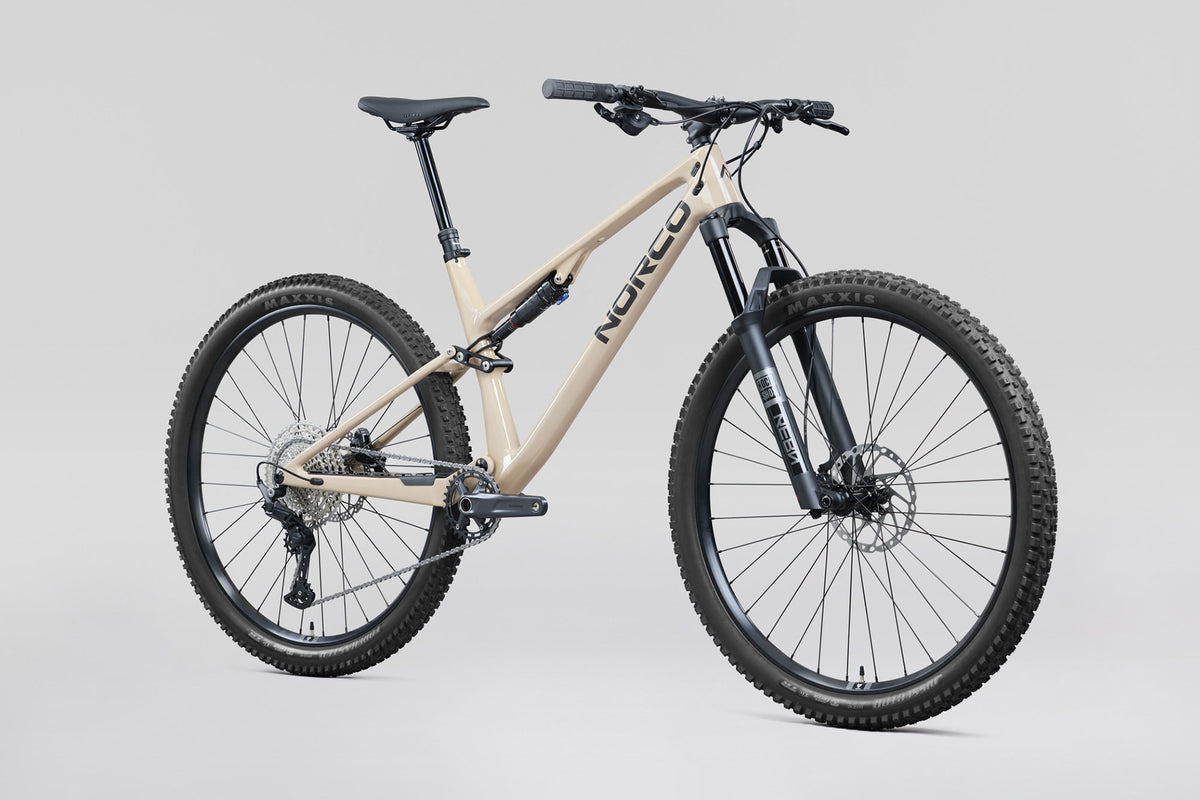

The Revolver LT C3 has 130 mm of travel on the front and 120mm on the rear. With a half-degree slacker head tube angle this bike will go double duty on trail rides as well as spicy XC race days. You'll be amazed at what a 130/120 travel bike can do. Unlock all the secret lines—if you love light, fast, and playful all-day adventures, this one is for you.
Frame
Carbon Frame, 120mm Travel, UDH, Eagle Transmission Compatible, Ride Aligned™
Fork
RockShox Reba RL, Motion Control, 130mm, 44mm offset,
Rear Shock
RockShox SID LUX Select +, 190x45mm, Std eyelet
Rear Shifter
Shimano Deore SL-M6200-IR, 12sp
Rear Derailleur
Shimano Deore RD-M6200, SGS, 12sp
Crankset
Shimano Deore FC-MT520, 32T, CL55, 165mm (S1,S2) -170mm (S3,S4,S5)
Bottom Bracket
Shimano BB-MT501, BSA 73mm
Cassette
Shimano Deore CS-M6200-12, 10-51T, 12sp
Chain
Shimano Deore CN-M6100, 12sp
Front Brake
Shimano BR-MT420, Resin pads
Front Brake Rotor
Shimano SM-RT54, 180mm, C-lock
Rear Brake
Shimano BR-MT420, Resin pads
Rear Brake Rotor
Shimano SM-RT54, 180mm, C-lock
Brake Levers
Shimano BL-MT401
Handlebar
Norco 6061, 760mm (S1,S2,S3) 780mm (S4,S5), 20mm Rise
Stem
6061 Alloy, 40mm Length, 35mm Clamp
Seatpost
TranzX YSI36 RAD+, 31.6mm, 150mm (S1, S2) -170mm (S3) -200mm (S4) - 230mm (S5)
Headset
FSA Integrated Sealed Bearings No. 42 ; Tapered 1-1/8" - 1.5" ( IS42/28.6 | IS52/40 )
Saddle
WTB Silverado Medium
Grips
Norco Lock On, 130 length
Seatpost Clamp
Norco Alloy Nutted Clamp, 34.9mm ID
Front Hub
Shimano HB-TC500-15-B,15x110mm Boost, 32H, C-lock
Rear Hub
Shimano FH-TC500-MS-B, 12x148mm Boost, Micro Spline, 32H, C-lock
Rims
WTB ST TCS 2.0, 27mm ID, 32H
Front Tire
Maxxis NEW Dissector, 3C MaxxTerra EXO, 29X2.4"
Rear Tire
Maxxis NEW Forekaster, 3C MaxxTerra EXO, 29x2.4"
| 1 | 2 | 3 | 4 | 5 | |
|---|---|---|---|---|---|
| Wheel Size | 29" | 29" | 29" | 29" | 29" |
| Travel (mm front) | 130/120 | 130/120 | 130/120 | 130/120 | 130/120 |
| Reach | 418 | 443 | 468 | 493 | 518 |
| Stack | 592 | 601 | 611 | 620 | 629 |
| Head Tube Angle | 66 | 66 | 66 | 66 | 66 |
| Fork Offset | 44 | 44 | 44 | 44 | 44 |
| Seat Tube Length | 392 | 434 | 453 | 477 | 491 |
| Effective Seat Tube Angle | 74.5 | 74.75 | 75 | 75.25 | 75.5 |
| Rear Centre Length | 422 | 426 | 430 | 434 | 438 |
| Bottom Bracket Drop (Front/Rear) | 32/32 | 32/32 | 32/32 | 32/32 | 32/32 |
| Bottom Bracket Height | 342 | 342 | 342 | 342 | 342 |
| Horizontal Top Tube | 581 | 606 | 631 | 655 | 680 |
| Wheelbase | 1135 | 1168 | 1201 | 1234 | 1267 |
| Standover | 683 | 687 | 691 | 698 | 704 |
| Head Tube Length | 90 | 100 | 110 | 120 | 130 |
| Trail | 118 | 118 | 118 | 118 | 118 |
| Recommended Seatpost Drop | 150 | 150 | 170 | 200 | 230 |
| Maximum Post Insertion | 250 | 250 | 270 | 300 | 330 |
| Stem Length | 50 | 50 | 50 | 50 | 50 |
| Crank Length | 165 | 165 | 170 | 170 | 170 |
| Tire Size | 2.35" – 2.5" | 2.35" – 2.5" | 2.35" – 2.5" | 2.35" – 2.5" | 2.35" – 2.5" |
| Water Bottle Compatible | 1 x 750 mL | "2 x 620mL or 1 x 750 mL" | "2 x 620mL or 1 x 750 mL" | 2 x 750 mL | 2 x 750 mL |
