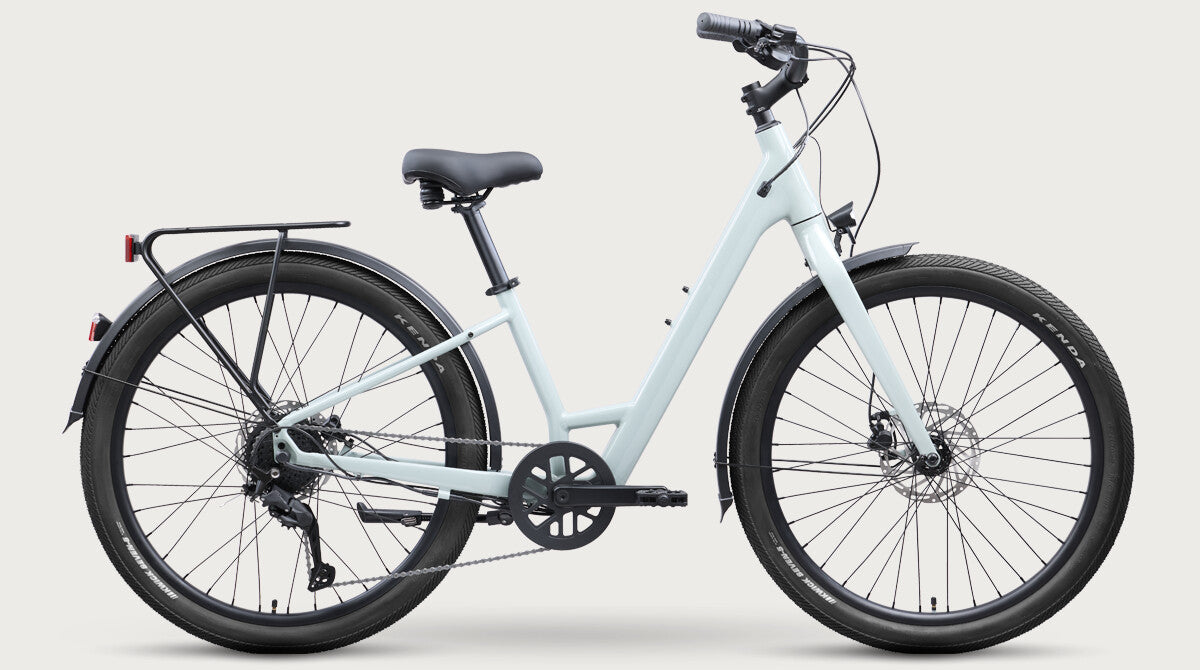

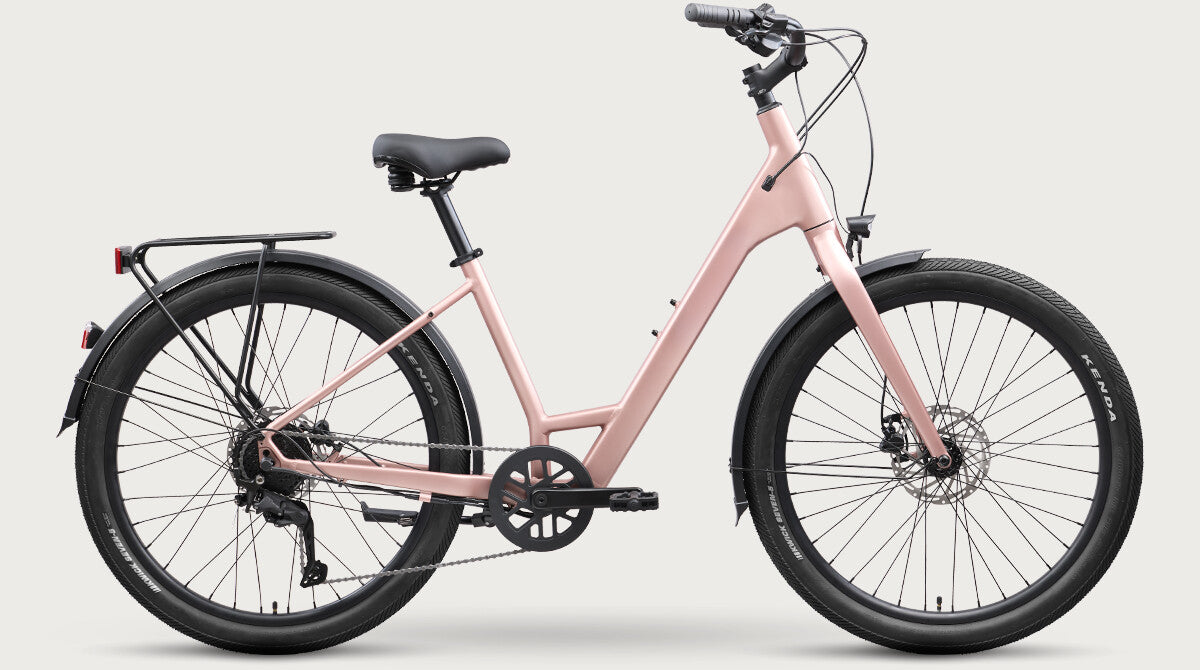

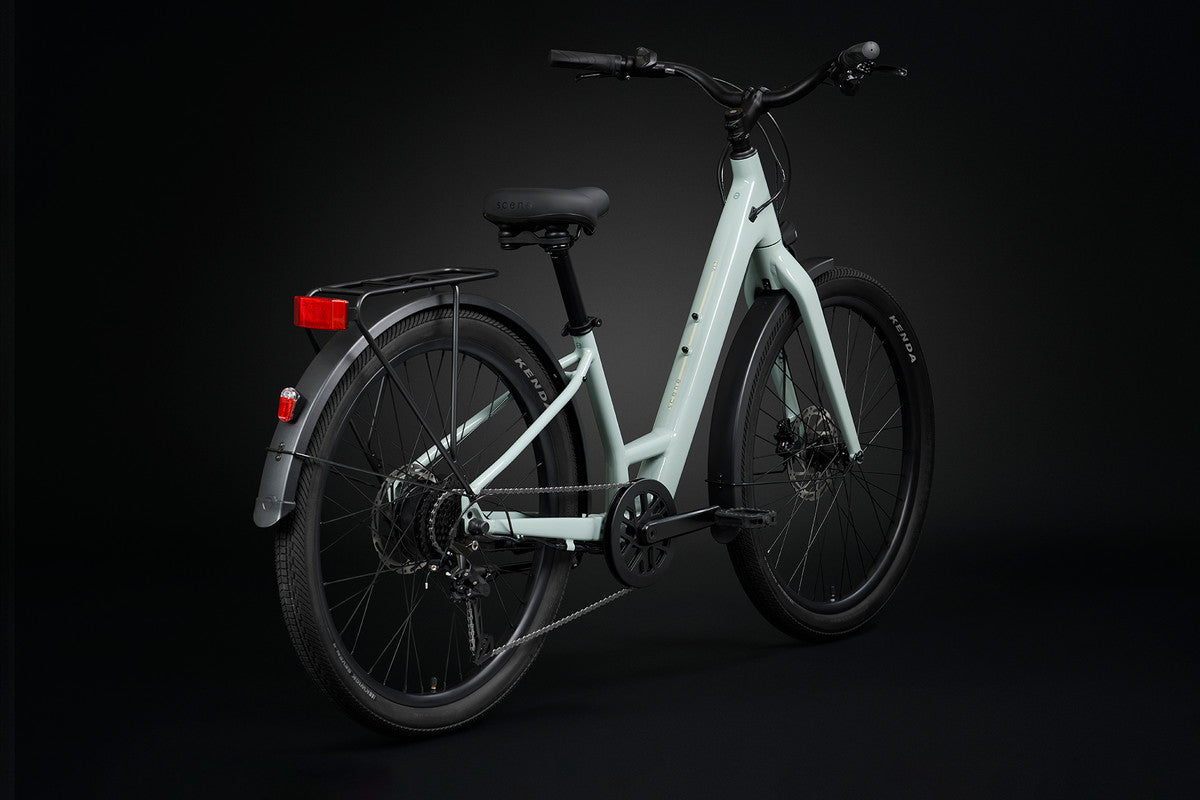

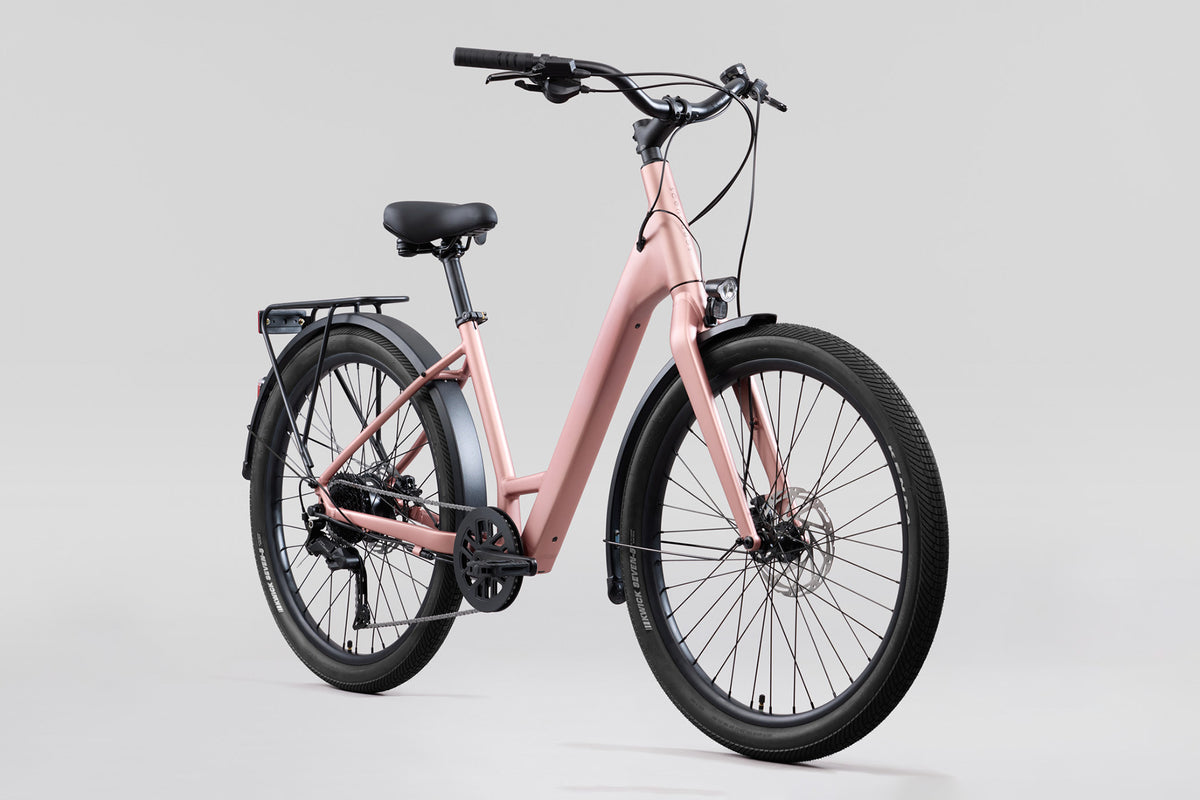

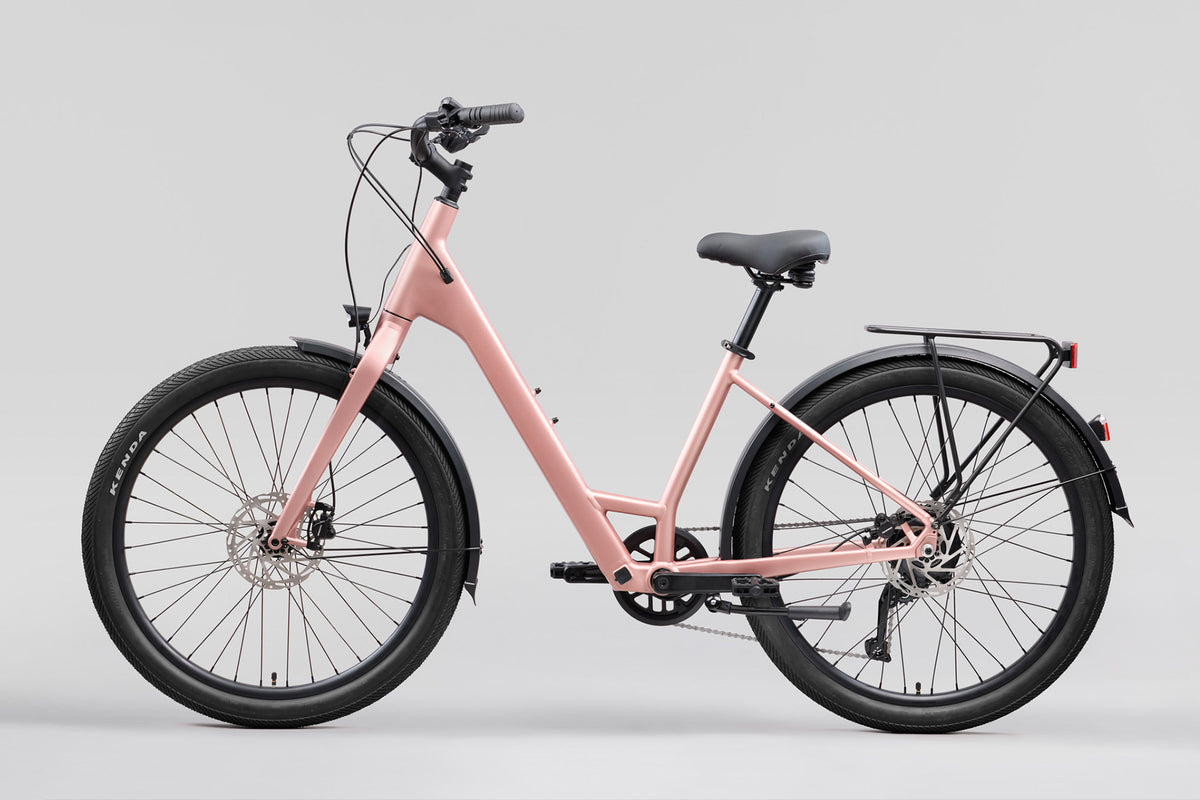

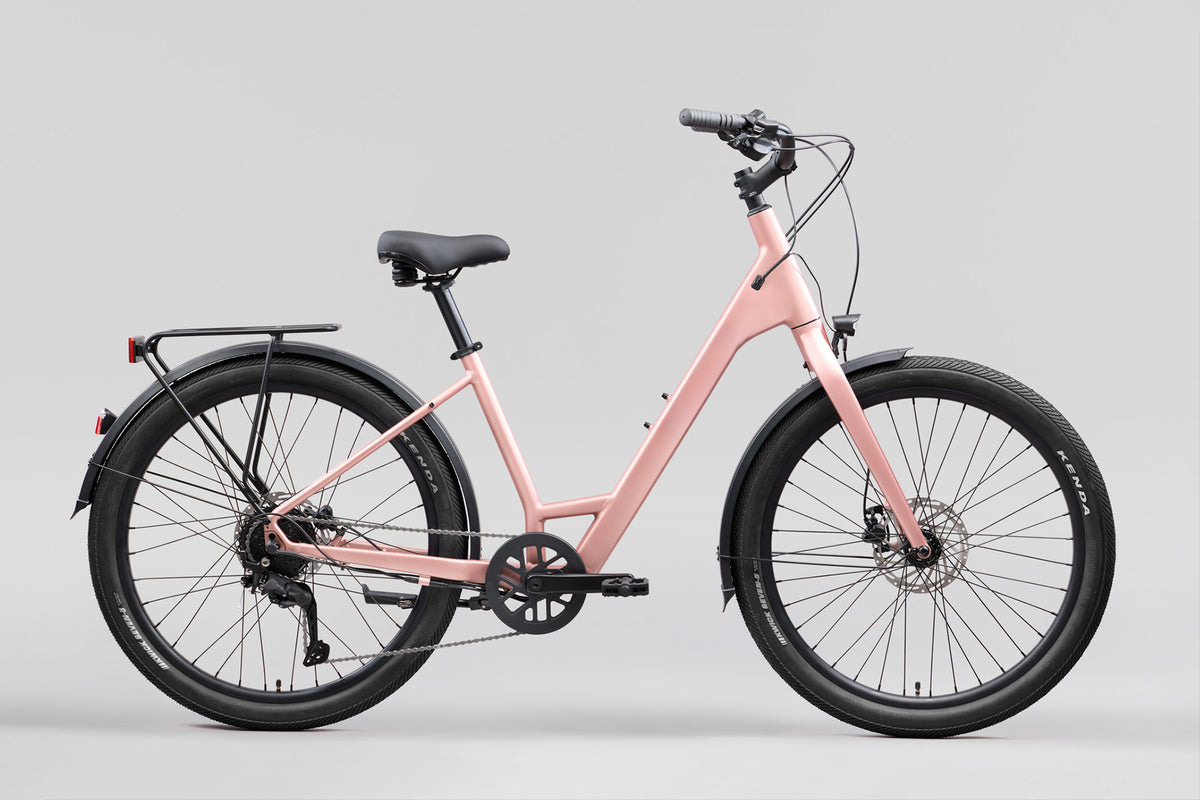

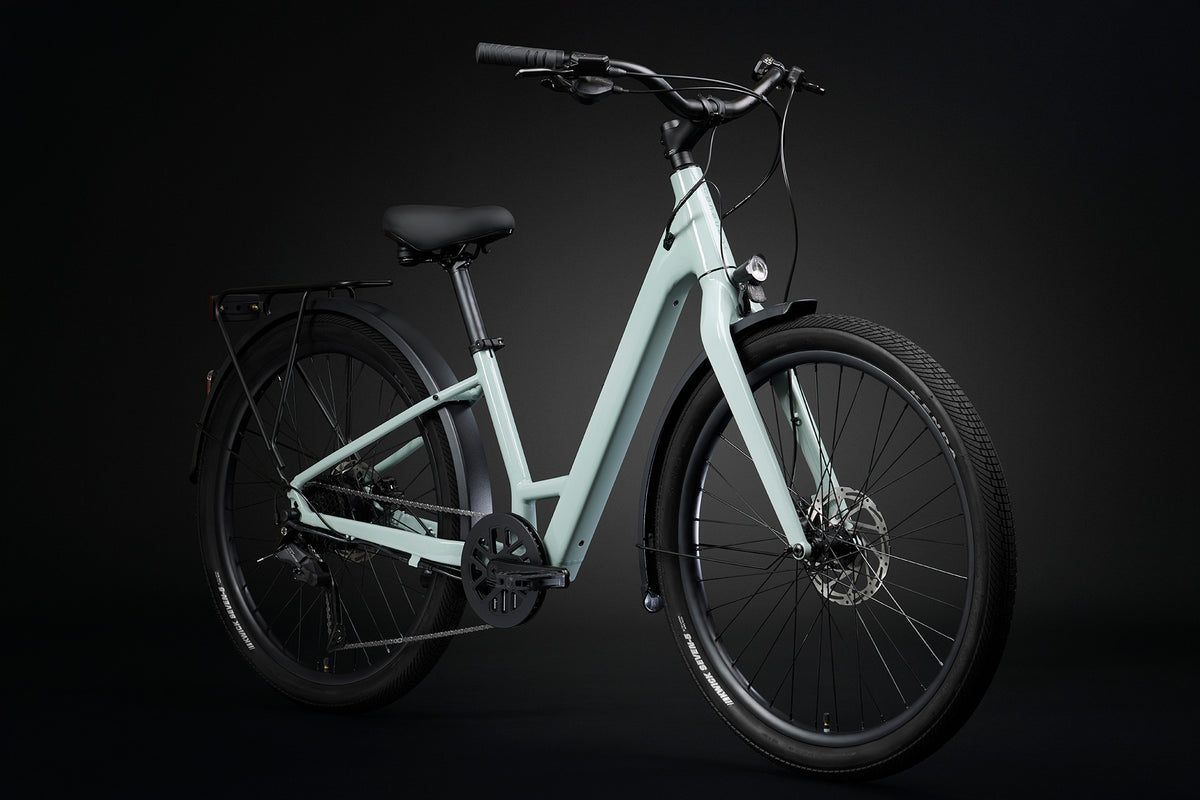

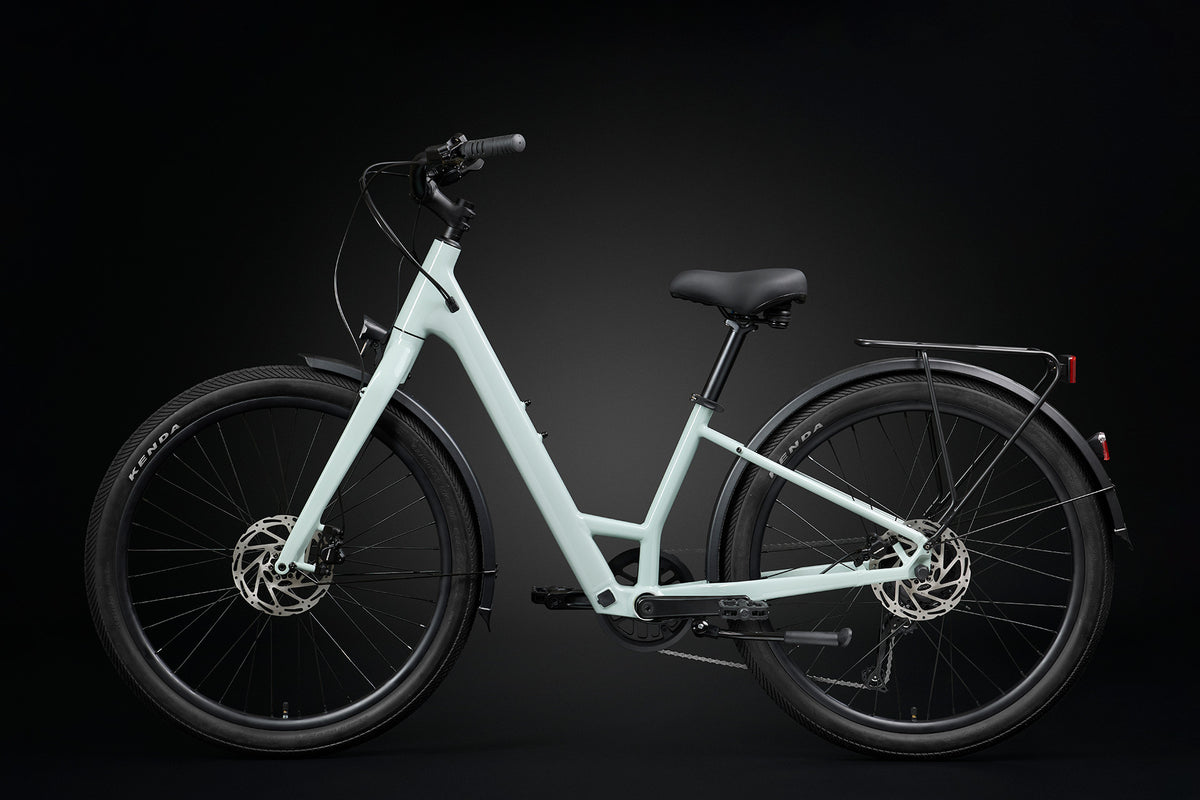

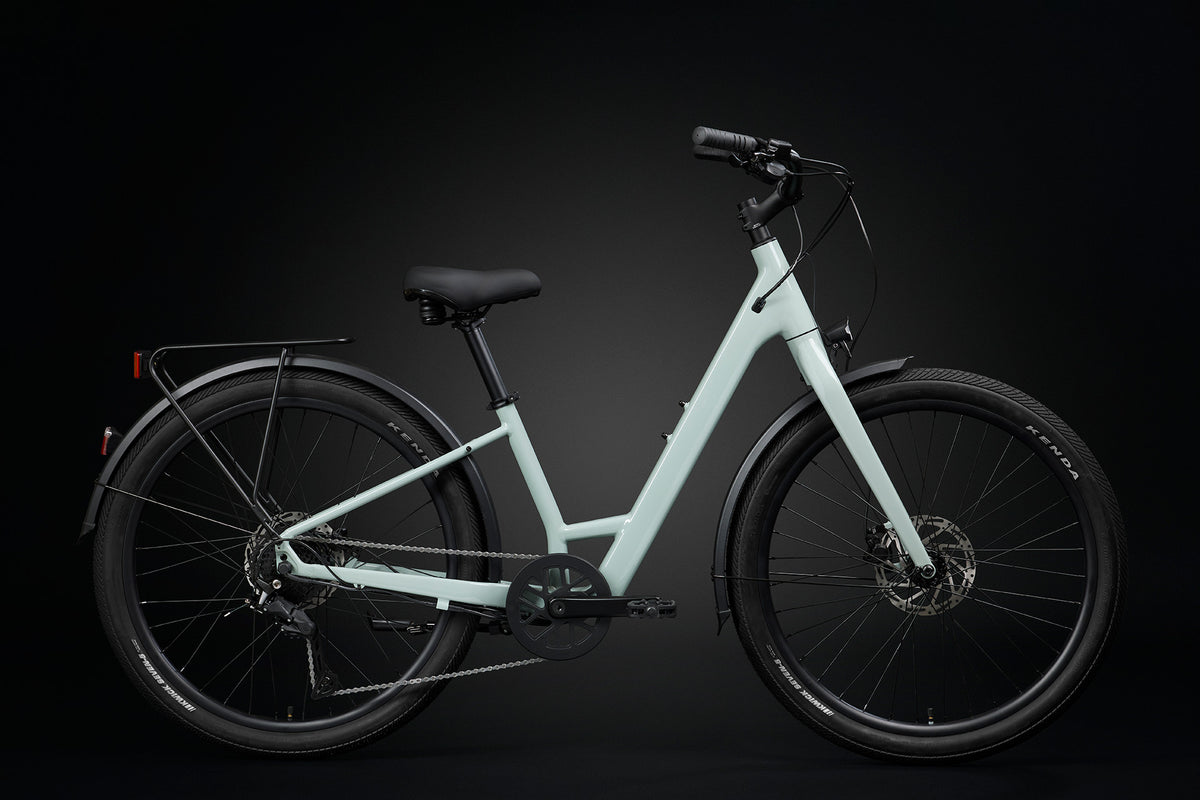

Built on the award-winning Scene VLT platform, the Scene VLT 2 ST delivers smooth pedal assist with the Hyena hub-drive system, integrated lighting, practical cargo capacity, and a comfortable upright riding position with step-through design. Whether you're commuting, cruising, or running errands, it's built to make every ride easier.
Frame
Double Butted Alloy E-Bike Frame, Internal Cables
Fork
Aluminum w/ Light Mount, 12x100 TA, PS
Rear Shifter
Shimano CUES SL-U4000-9R, 9sp
Rear Derailleur
Shimano CUES RD-U3020, 9sp, SGS
Crankset
Prowheel Alloy, 42T, 165mm
Bottom Bracket
Hyena ST-SQ-1 BB, T47
Cassette
Shimano CUES CS-LG300-9, 11-36T, 9sp
Chain
KMC e-9 Sport, 9sp
Front Brake
Shimano BR-MT200, Resin pads
Front Brake Rotor
Shimano SM-RT26, 180mm rotor, C-lock
Rear Brake
Shimano BR-MT200, Resin pads
Rear Brake Rotor
Shimano SM-RT26, 180mm rotor, C-lock
Brake Levers
Shimano BL-MT200

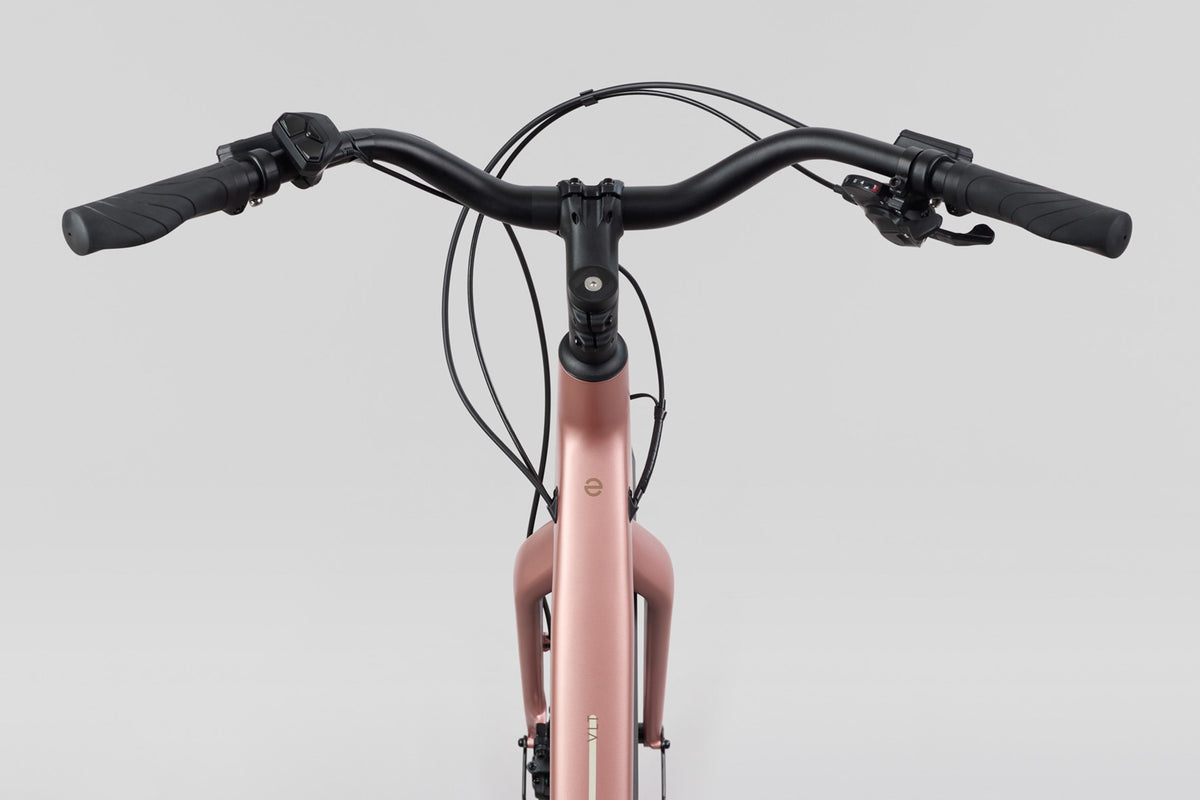

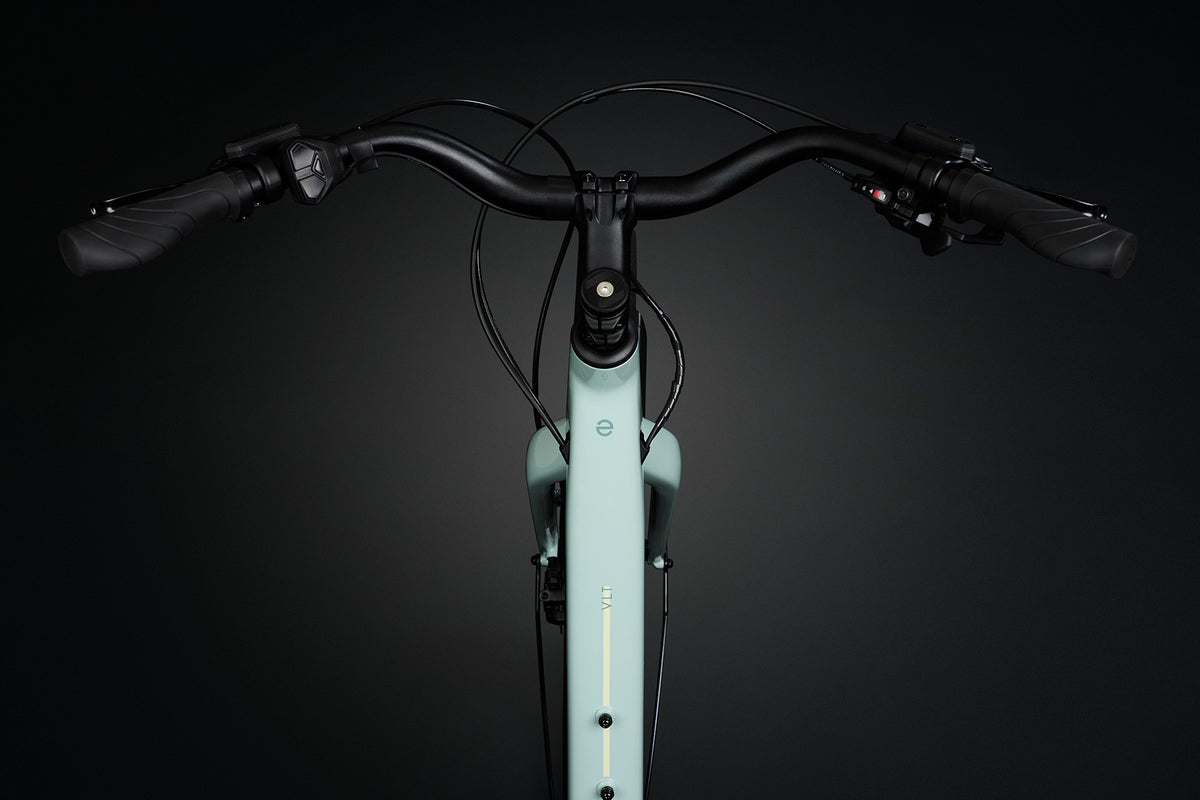

Handlebar
Norco Custom High Rise City Bar, 660mm, 60mm Rise, 30Deg Backsweep
Stem
Norco Aluminum, 70mm (S/M) -80mm (M/L), 17deg Riser, 31.8 clamp
Seatpost
Norco Rigid, 31.6mm
Headset
Tapered 1-1/8"- 1.5",(ZS44/28.6 | ZS56/40)
Saddle
Scene Comfort Saddle w/Elastomer Suspension, 225mm W x 269mm L
Grips
Dual Density Ergonomic Single Lock, 133mm Length
Seatpost Clamp
Aluminum Quick Release 31.8mm ID
Front Hub
Formula DC-221T, 15x100mm TA, 28h, 6-bolt

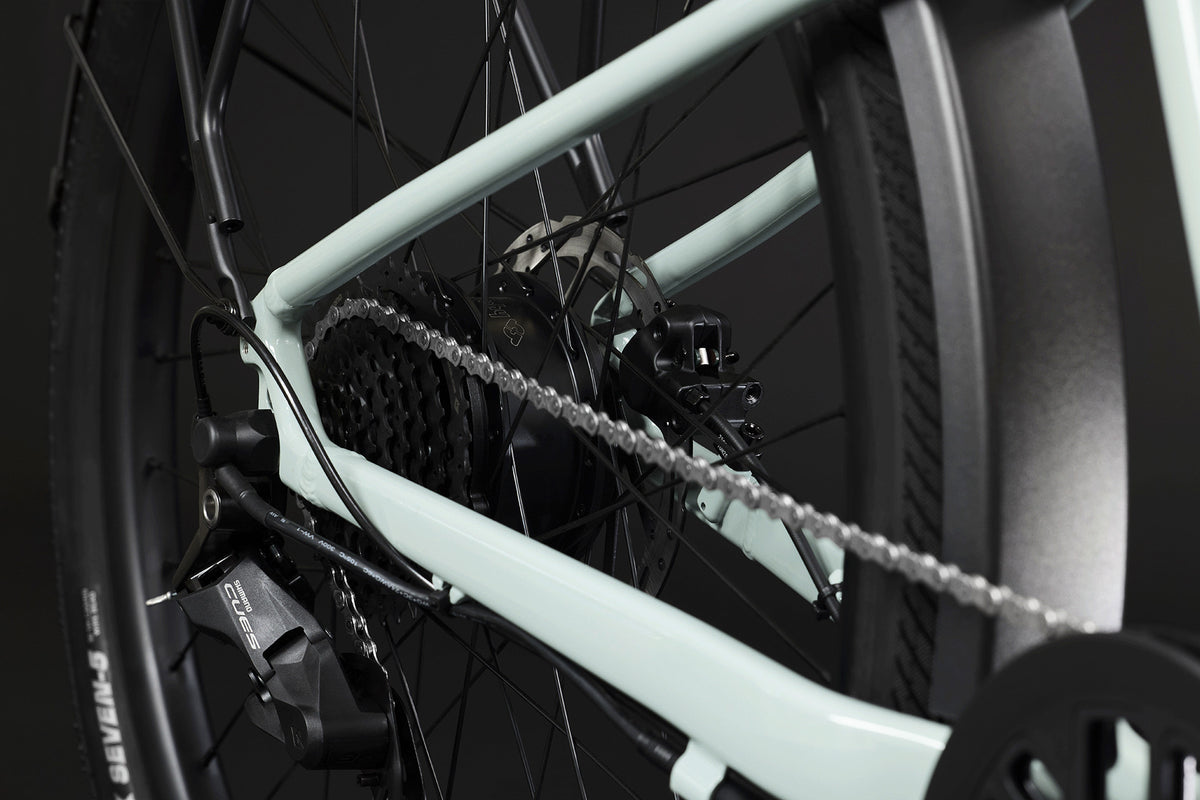

Rear Hub
Hyena MRC-E250 Hub Motor, 36V, 250W, 40Nm, 12x138mm Sloted TA, HG, 36h, 6-bolt
Rims
Alloy Disc DW, 36h, 27.5", 27mm ID,
Front Tire
Kenda Kwick Seven5, 27.5 x 2.4", 30 TPI, Wire
Rear Tire
Kenda Kwick Seven5, 27.5 x 2.4", 30 TPI, Wire
Spokes/Nipples
Stainless Steel, Black
Battery
Hyena BP-B250+, 250Wh
Computer
Hyema CE-03, 3 buttons, LED indicators, Bluetooth connection, Cable length 600mm
Sensor
Hyena ST-SQ-1 Toque Sensor BB, T47
Feature 1
Web Description
| S/M | M/L | |
|---|---|---|
| Wheel Size | 27.5" | 27.5" |
| Reach | 360 | 410 |
| Stack | 642 | 688 |
| Head Tube Angle | 67.5 | 67.5 |
| Fork Offset | 44 | 44 |
| Seat Tube Length | 380 | 450 |
| Effective Seat Tube Angle | 71 | 71 |
| Rear Centre Length | 485 | 485 |
| Bottom Bracket Drop | 70 | 80 |
| Bottom Bracket Height | 289 | 289 |
| Horizontal Top Tube | 581 | 647 |
| Wheelbase | 1124 | 1193 |
| Standover | 434 | 434 |
| Head Tube Length | 170 | 220 |
| Trail | 101 | 101 |
| Recommended Seatpost Drop | 100 | 100 |
| Maximum Post Insertion | 230 | 300 |
| Stem Length | 70 | 70 |
| Crank Length | 165 | 165 |
| Tire Size | 2.4" | 2.4" |
| Water Bottle Compatible | 1 x 620 mL | 1 x 620 mL |
