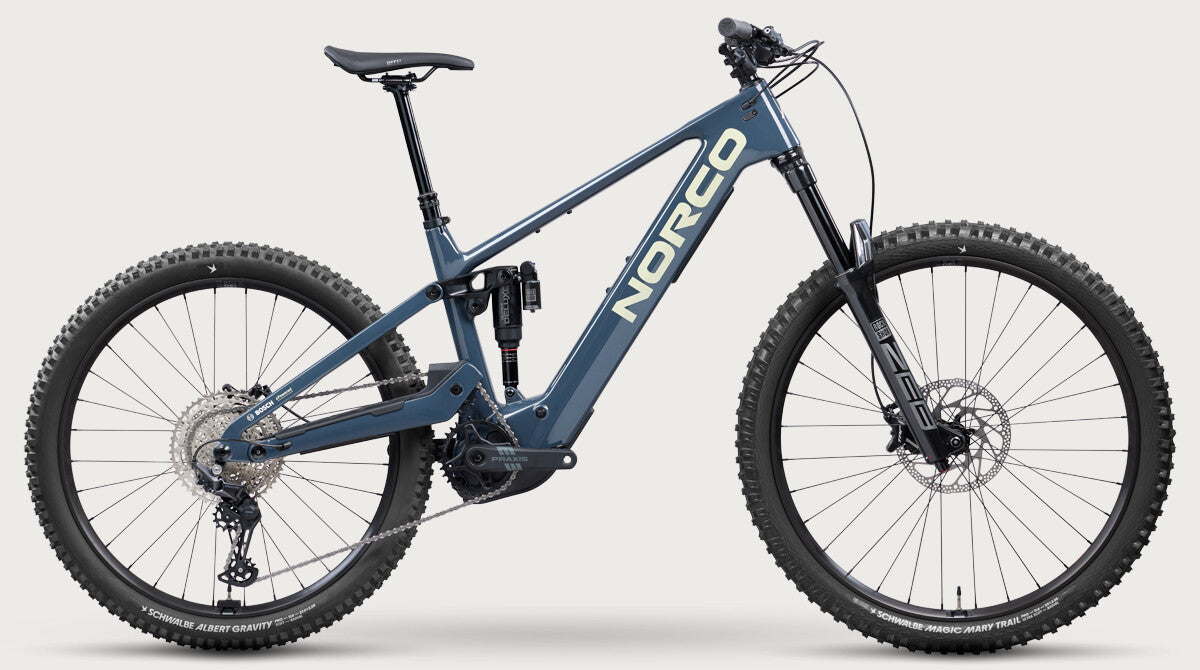

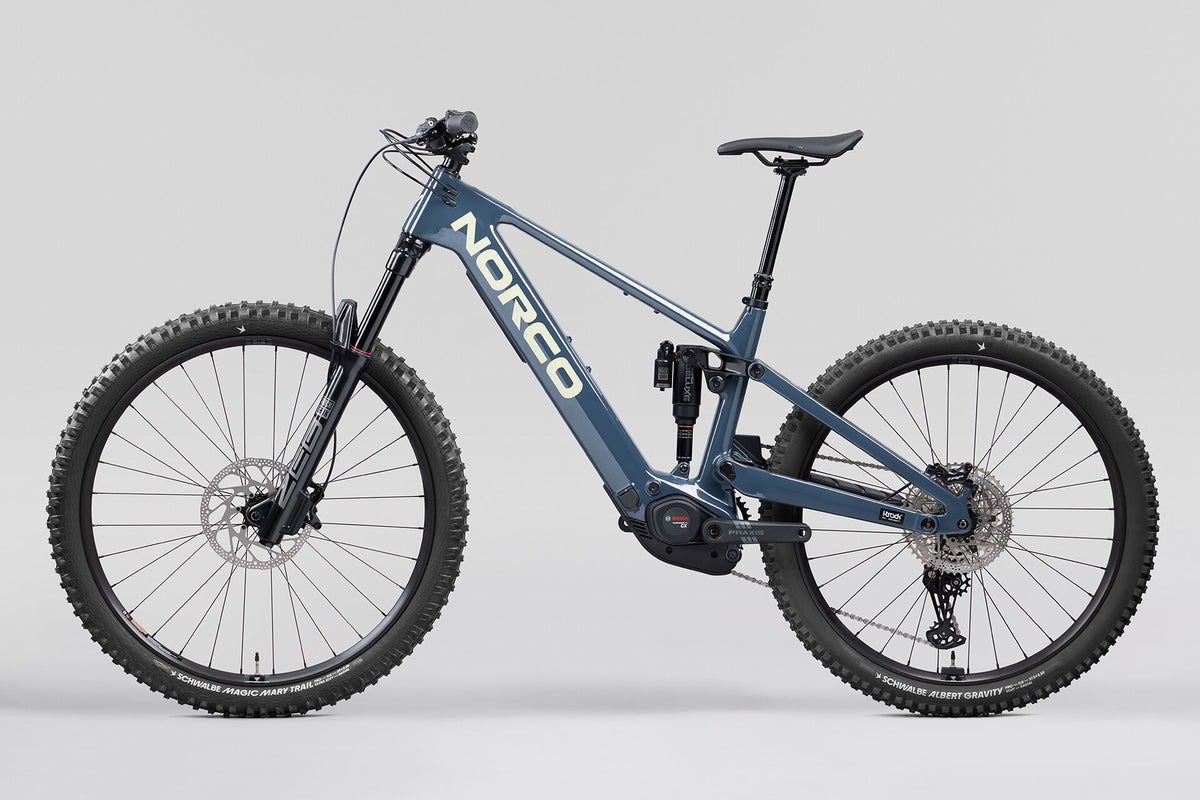

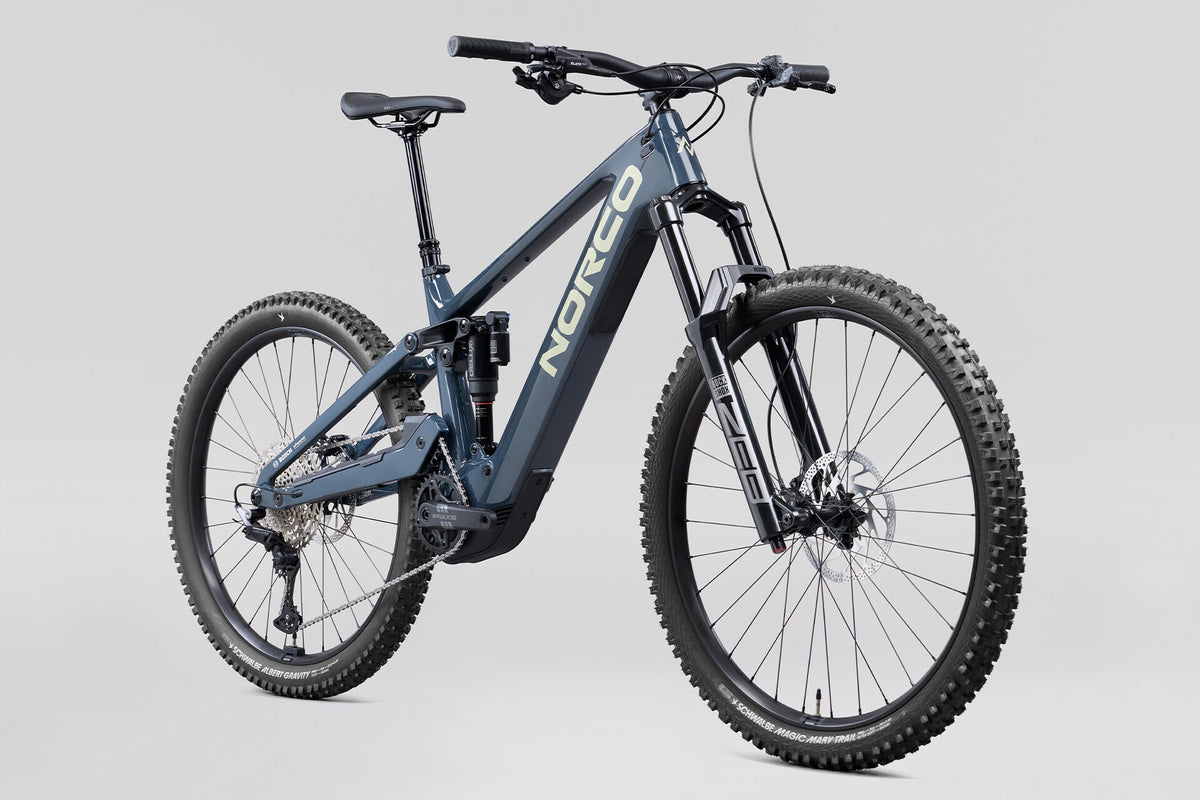

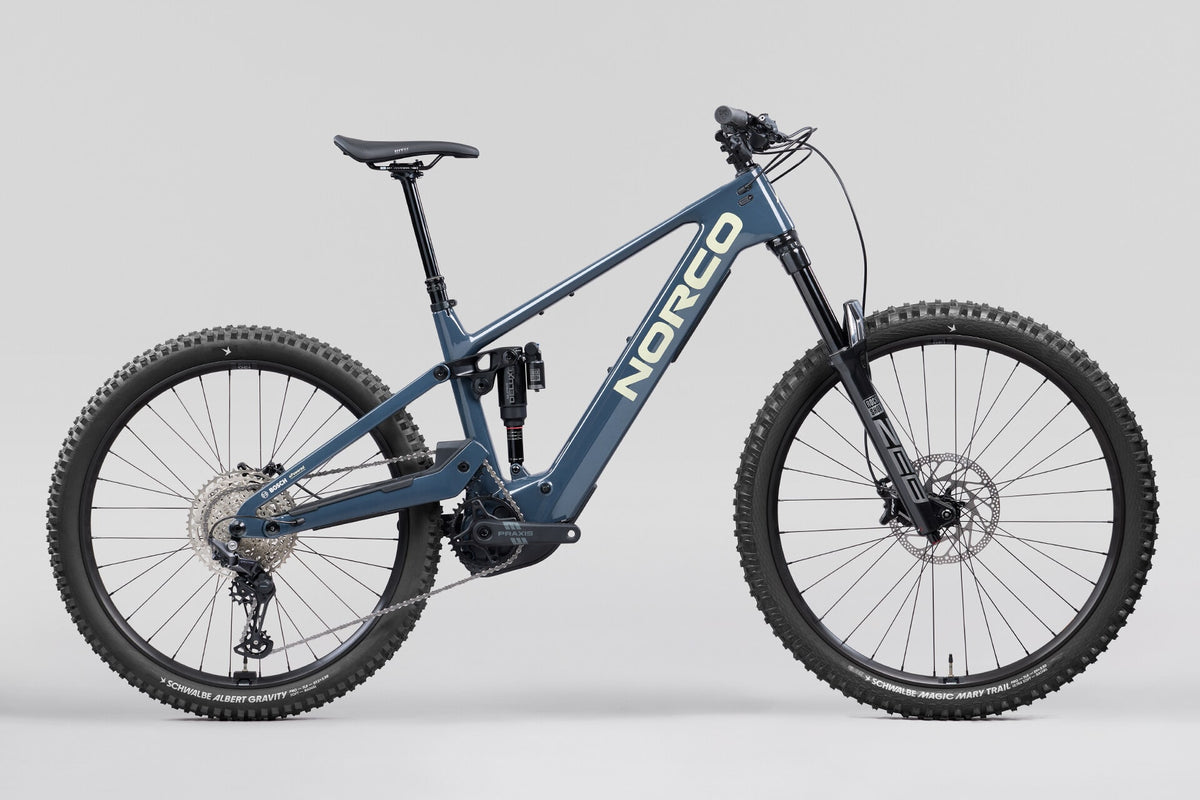

Start fast and finish strong on the new Sight VLT CX. Now with the new Bosch Performance Line CX motor, it’s almost 20% lighter than our previous generation, so you can commit harder and ride longer than ever before. The high pivot suspension layout with 160/150mm travel provides smooth, confident handling through rough terrain; this bike punches above its weight without losing playfulness.
Frame
Carbon Frame, 150mm Travel, UDH, Eagle Transmission Compatible, Ride Aligned™

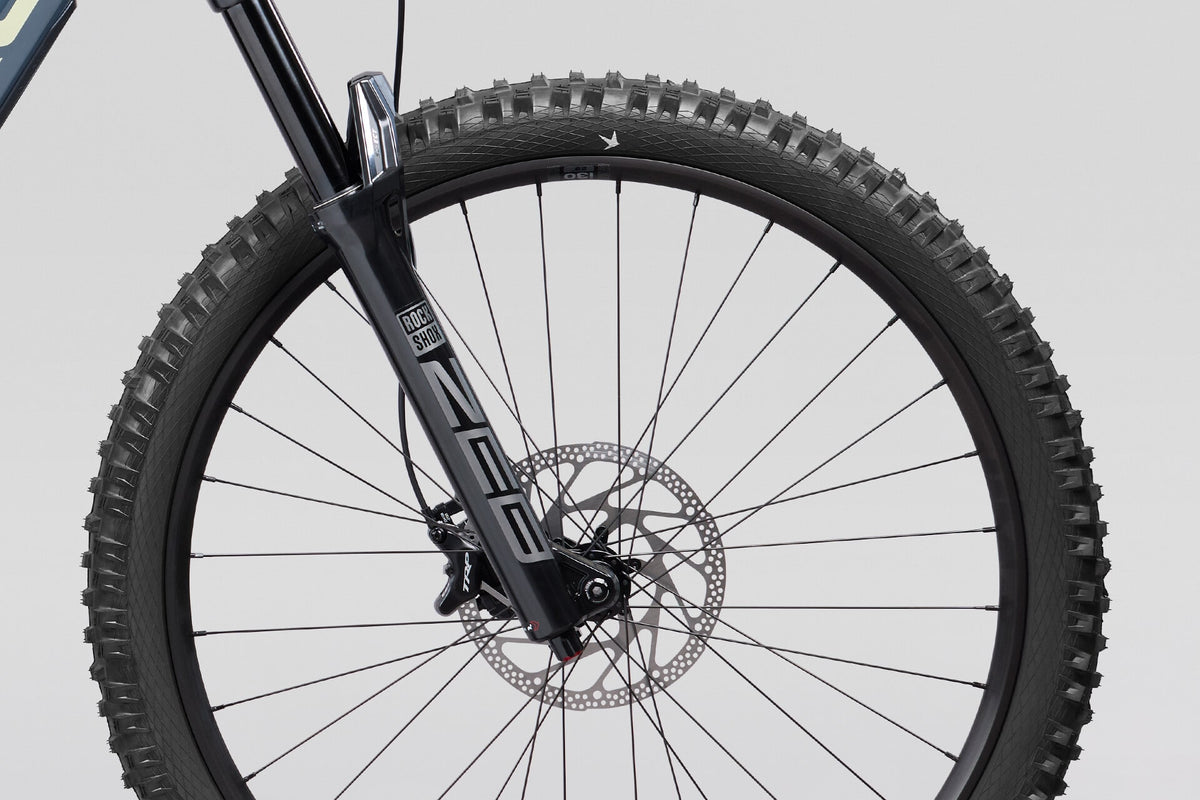

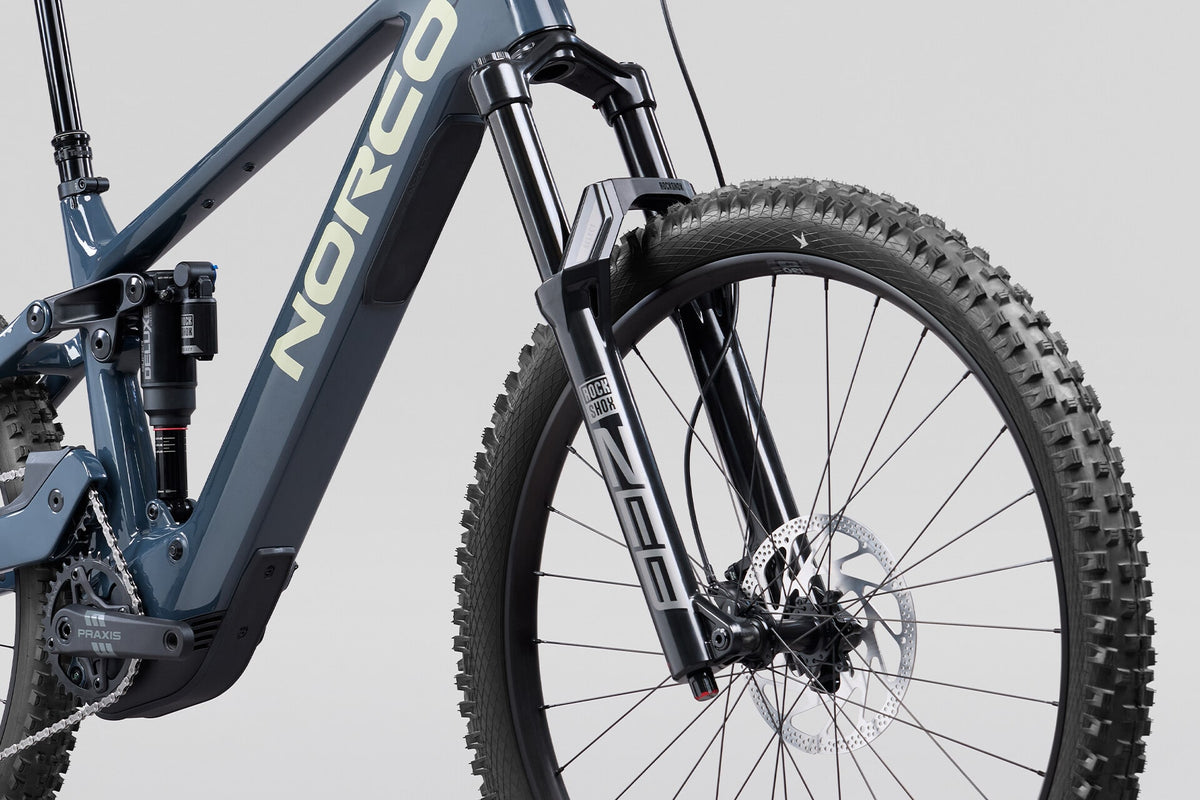

Fork
RockShox Zeb Select,160mm Travel, 44mm Offset, E-MTB Rated, Fender Included

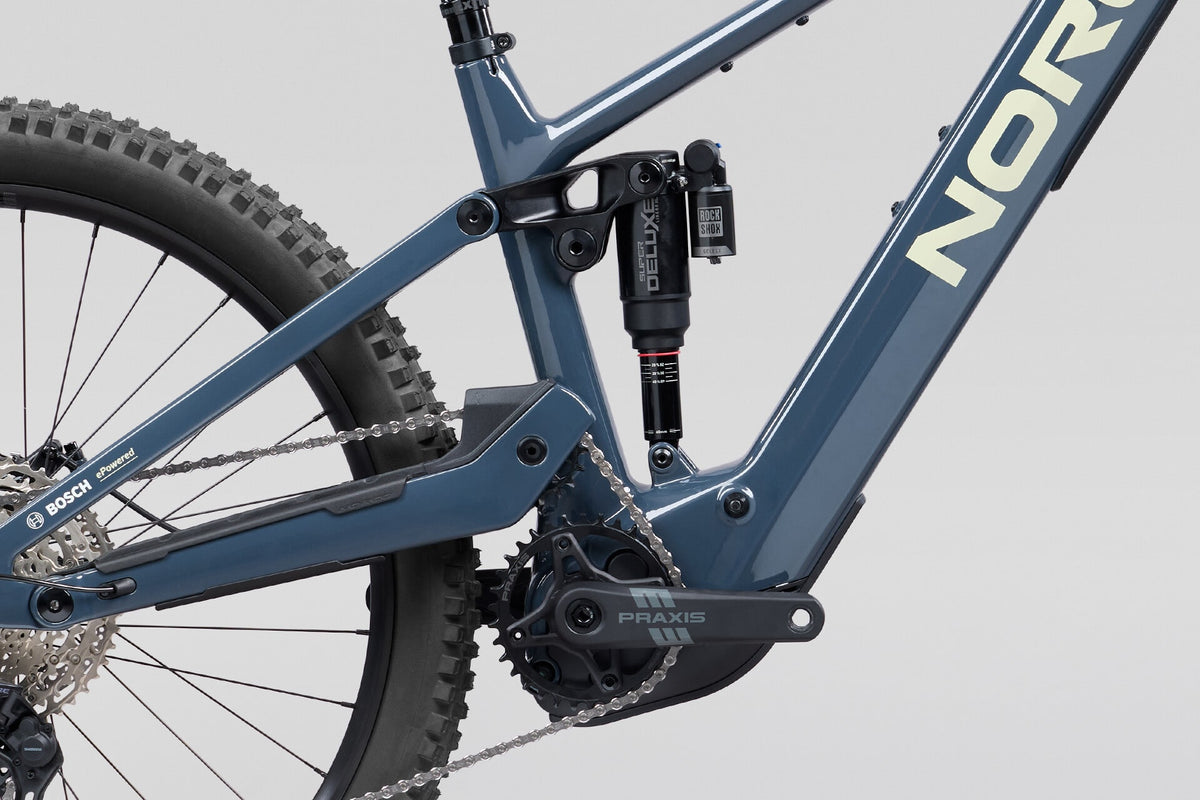

Rear Shock
Rock Shox Super Deluxe Select, 205x60mm TR
Rear Shifter
Shimano Deore SL-M6100-R, 12spd

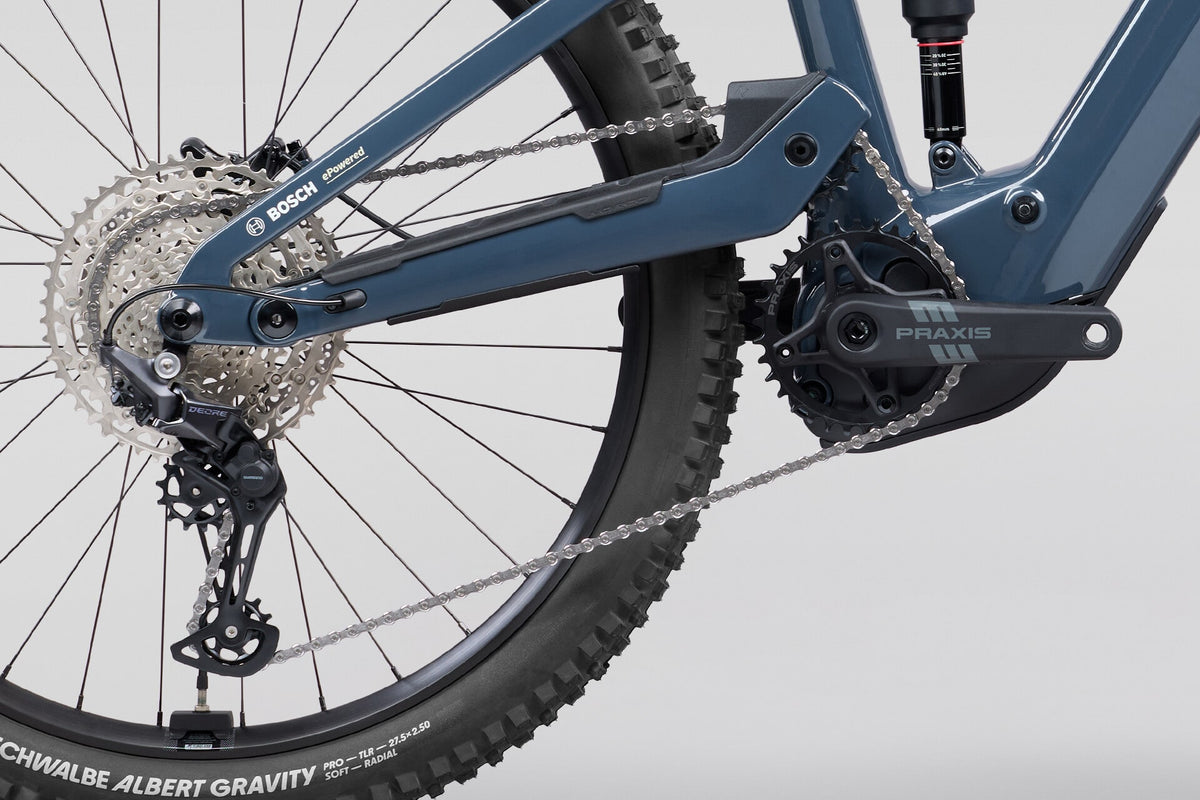

Rear Derailleur
Shimano Deore RD-M6100, SGS, 12spd
Crankset
Praxis HD Aluminum Bosch Cranks, 34T, 155mm (S2,S3) - 160mm (S4, S5)
Bottom Bracket
Bosch BDU38
Cassette
Shimano Deore CS-M6100-12, 10-51T, 12sp
Chain
Shimano Deore CN-M6100, 12spd
Front Brake
TRP Slate EVO, Oraganic Pads
Front Brake Rotor
TRP RS01E, 203mm, 2.3mm Thickness, 6 Bolt
Rear Brake
TRP Slate EVO, Oraganic Pads
Rear Brake Rotor
TRP RS01E, 180mm, 2.3mm Thickness, 6 Bolt
Brake Levers
TRP Slate EVO

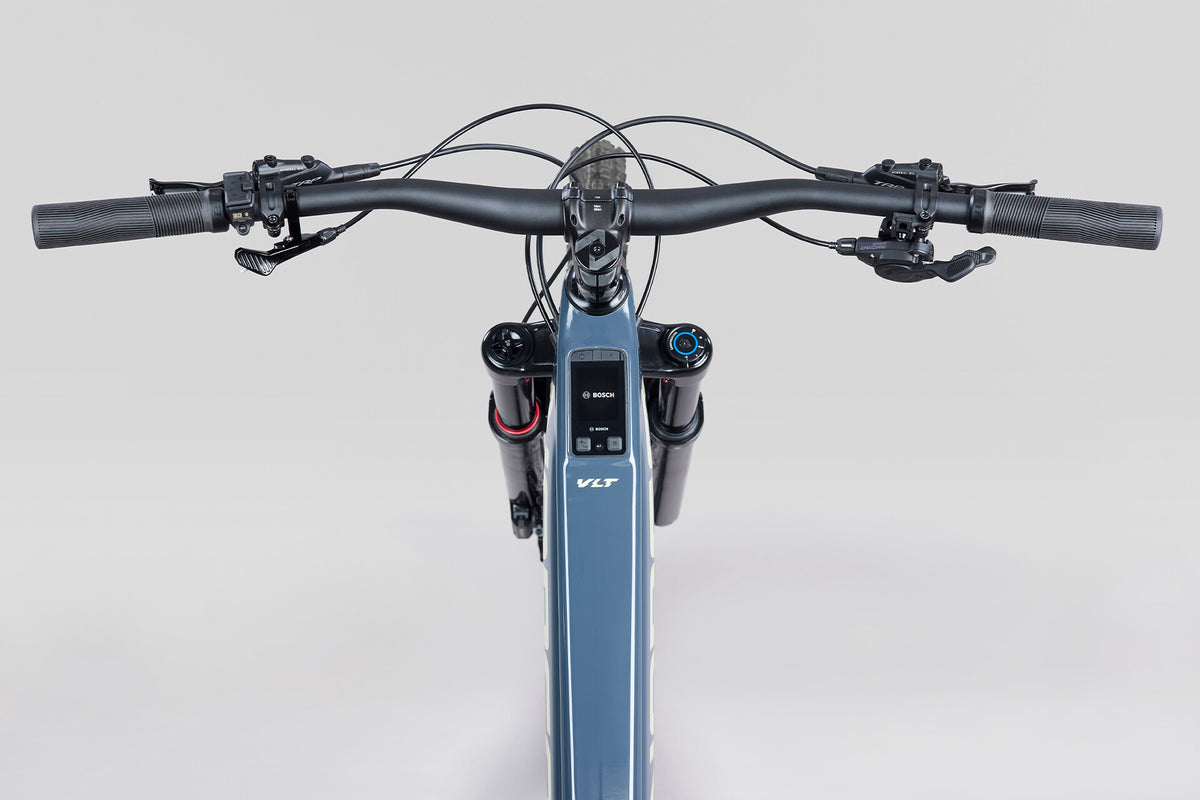

Handlebar
Norco 6061 DB Alloy, 800mm, 25mm Rise(S2) - 35mm Rise(S3,S4,S5)
Stem
Norco 6061, 40mm Length, 35mm Clamp
Seatpost
TranzX YSP23KL, 31.6mm, 150mm (S2) -170mm (S3) -200mm (S4, S5)
Headset
FSA No.55 Sealed Bearing, 1 1/8" - 1.8" Tapered, ( ZS44/28.6 | ZS56/40 )
Saddle
WTB Rocket Fusion Med, 142x250 mm
Grips
WTB Wavelength, 140mm Length
Tool
OneUp EDC Lite
Front Hub
Shimano HB-MTC500-15-B,15x110mm Boost, 32H, C-lock
Rear Hub
Shimano FH-TC500-MS-B, 12x148mm Boost, Micro Spline, 32H, C-lock
Rims
WTB ST i30 TCS 2.0 ,30 mm, 32H, 29"-27.5" F/R
Front Tire
Schwalbe Magic Mary, Trail casing, Ultra Soft , Radial, 29x2.5"
Rear Tire
Schwalbe Albert, Gravity Pro, Soft, Radial, 27.5x2.5"
Spokes/Nipples
Sapim Sprint DB Spokes 2.0/1.8/2.0,Black stainless steel
Drive Unit
Bosch Performance Line CX, 100 Nm / 750W
Battery
Bosh Power Tube 800 Wh
Display
Kiox 400c
Weight
23.33 kg (51.4 lbs)
Weight Size
S3
| 2 | 3 | 4 | 5 | |
|---|---|---|---|---|
| Wheel Size | 29"/27.5" | 29"/27.5" | 29"/27.5" | 29"/27.5" |
| Travel (mm front/mm rear) | 160/150 | 160/150 | 160/150 | 160/150 |
| Reach | 447.5 | 472.5 | 497.5 | 522.5 |
| Stack | 627 | 636 | 645 | 654 |
| Head Tube Angle | 64 | 64 | 64 | 64 |
| Fork Offset | 44 | 44 | 44 | 44 |
| Seat Tube Length | 395 | 415 | 445 | 475 |
| Effective Seat Tube Angle | 77.25 | 77.5 | 77.75 | 78 |
| Rear Centre Length | 432 | 436 | 440 | 444 |
| Rear Centre Length at Sag | 441 | 445 | 449 | 453 |
| Bottom Bracket Drop | 25/5 | 25/5 | 25/5 | 25/5 |
| Bottom Bracket Height | 349 | 349 | 349 | 349 |
| Horizontal Top Tube | 589 | 613 | 637 | 661 |
| Wheelbase | 1222 | 1255 | 1289 | 1322 |
| Standover | 701 | 711 | 714 | 729 |
| Head Tube Length | 115 | 125 | 135 | 145 |
| Trail | 133 | 133 | 133 | 133 |
| Recommended Seatpost Drop | 150 | 170 | 200 | 200 |
| Maximum Post Insertion | 250 | 270 | 300 | 330 |
| Stem Length | 40 | 40 | 40 | 40 |
| Crank Length | 165 | 165 | 165 | 165 |
| Tire Size | 2.35" – 2.6" | 2.35" – 2.6" | 2.35" – 2.6" | 2.35" – 2.6" |
| Water Bottle Compatible | 1 x 620 mL | 1 x 750 mL | 1 x 750 mL | 1 x 750 mL |
