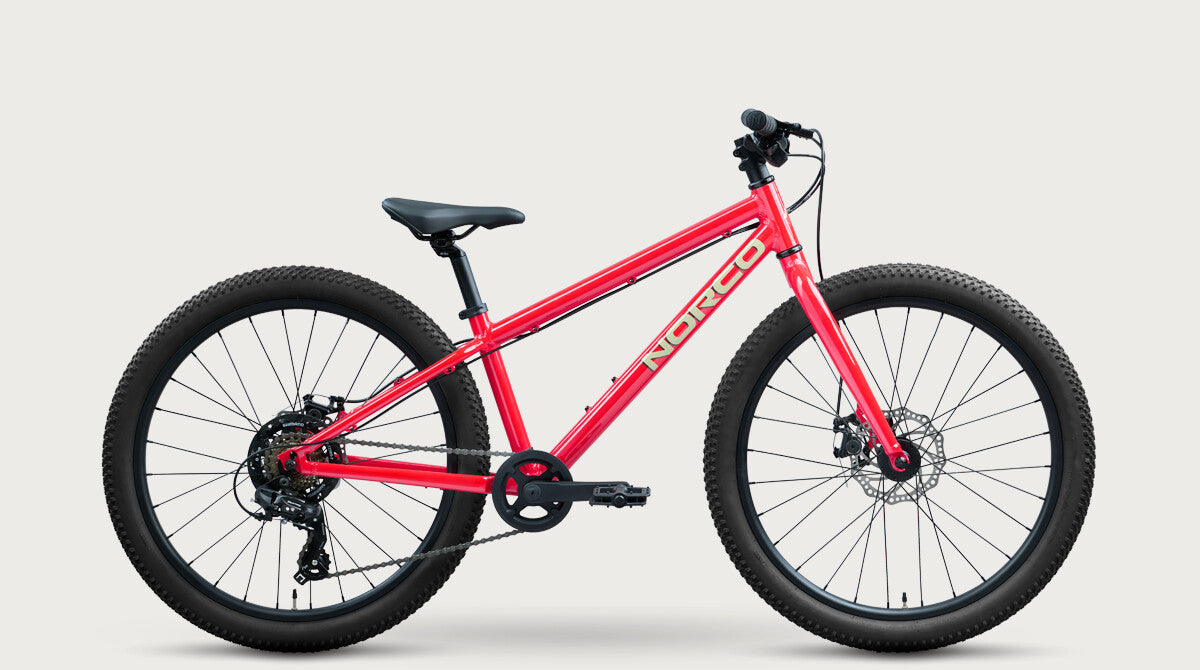

2027 Norco Storm 24 Disc

By Norco
$649.00 CAD
1214416410
Color: Red
View details
Description

Bringing every advantage to the party, the Storm 24 Disc allows groms to find the best line, nail every shift and stop on a dime.

Technical Specifications
Frameset

Fork

Rigid 24" Alloy

Drivetrain

Rear Shifter

Shimano Sl-M315, 7sp, Trigger Shifter

Rear Derailleur

Shimano TY300, 7sp

Crankset

Alloy 3pc, 140mm, 28T Narrow Wide

Bottom Bracket

Sealed Bearing , ST 68mm

Cassette

Shimano MF-TZ500-7, 14T-34T, 7sp, Freewheel

Chain

KMC Z7

Brakes

Front Brake

C-Star, resin Pads, Mechanical Disc

Front Brake Rotor

160mm, 6-Bolt

Rear Brake

C-Star, resin Pads, Mechanical Disc

Rear Brake Rotor

160mm, 6-Bolt

Brake Levers

C-Star Alloy Jr. levers w/reach adjust

Components

Handlebar

Alloy Jr. Riser, 600mm, 30 Rise

Stem

Alloy 45mm Length, 31.8mm Clamp

Seatpost

Norco Alloy 27.2mm, 250mm

Headset

External Cup Ball Bearing

Saddle

Norco Youth Saddle

Grips

Norco Youth Grip

Pedals

Jr. MTB Flat, 9/16

Seatpost Clamp

Alloy QR

Wheels

Front Hub

Formula DC-1420, 9x100mm QR, 28h, 6-bolt

Rear Hub

Formula DC31-RQR, 9x135mm QR, Freewheel, 28h, 6-bolt

Rims

Aluminum DW, 28h, 24" MTB

Front Tire

CY Sparrow, 24x2.25, Wire

Rear Tire

CY Sparrow, 24x2.25, Wire

Spokes/Nipples

Stainless Steel 14g - Black

Geometry
Wheel Size 24"
Reach 360
Stack 484
Head Tube Angle 67.5
Seat Tube Length 305
Effective Seat Tube Angle 71
Rear Centre Length 385
Bottom Bracket Drop 47
Bottom Bracket Height 260
Horizontal Top Tube 527
Wheelbase 967
Head Tube Length 108
Crank Length 152
Product Variants SKU/UPC
  • 2027 Norco Storm 24 Disc: Red / : SKU: 1214416410 - UPC: 058817755606

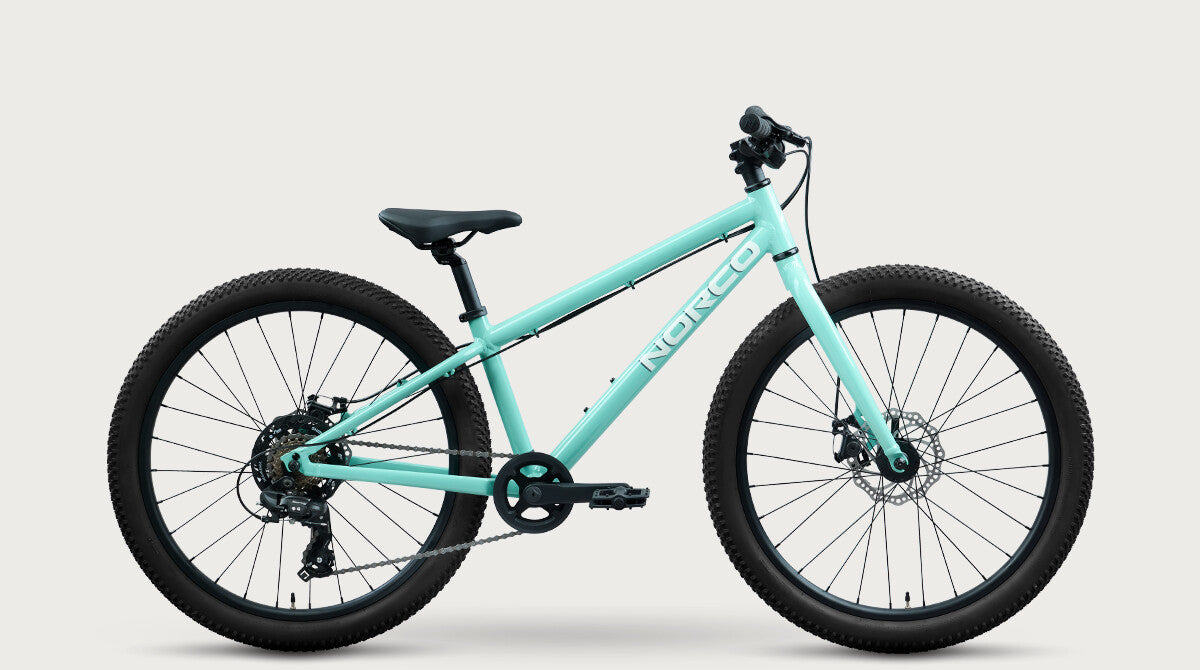

  • 2027 Norco Storm 24 Disc: Turquoise / : SKU: 1214426410 - UPC: 058817755620
