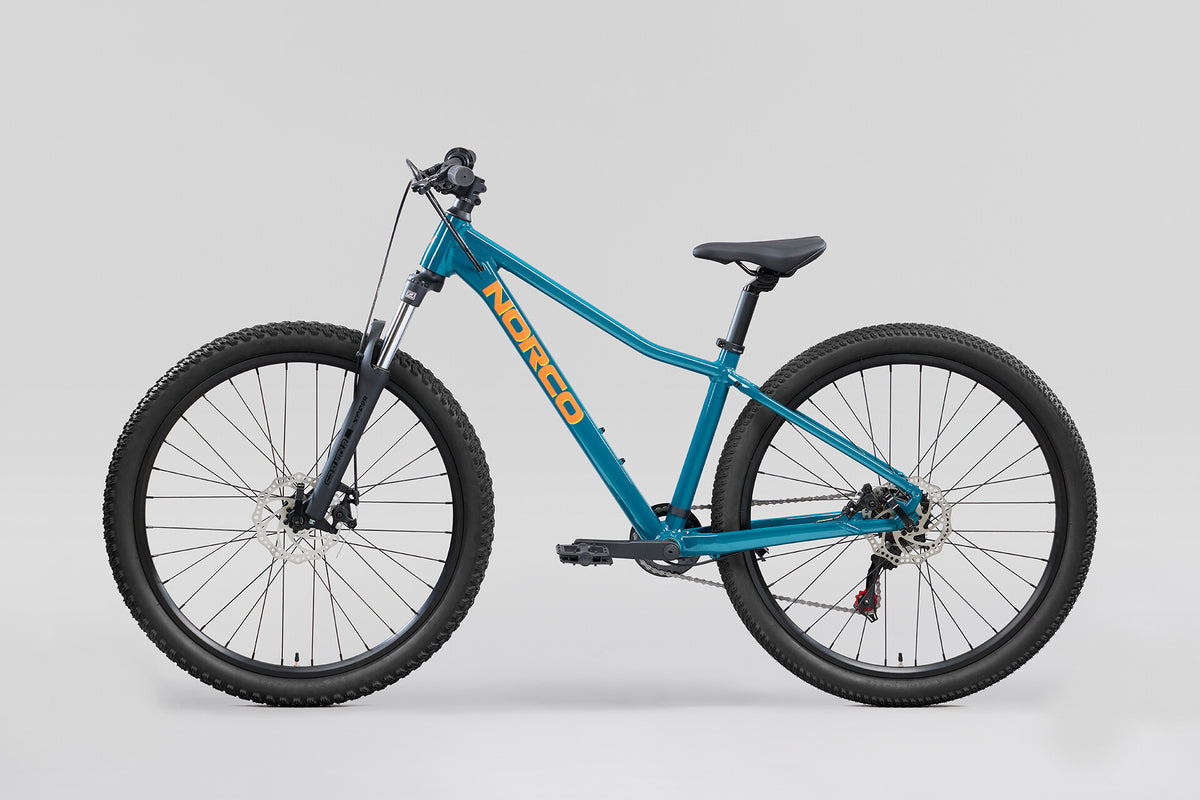

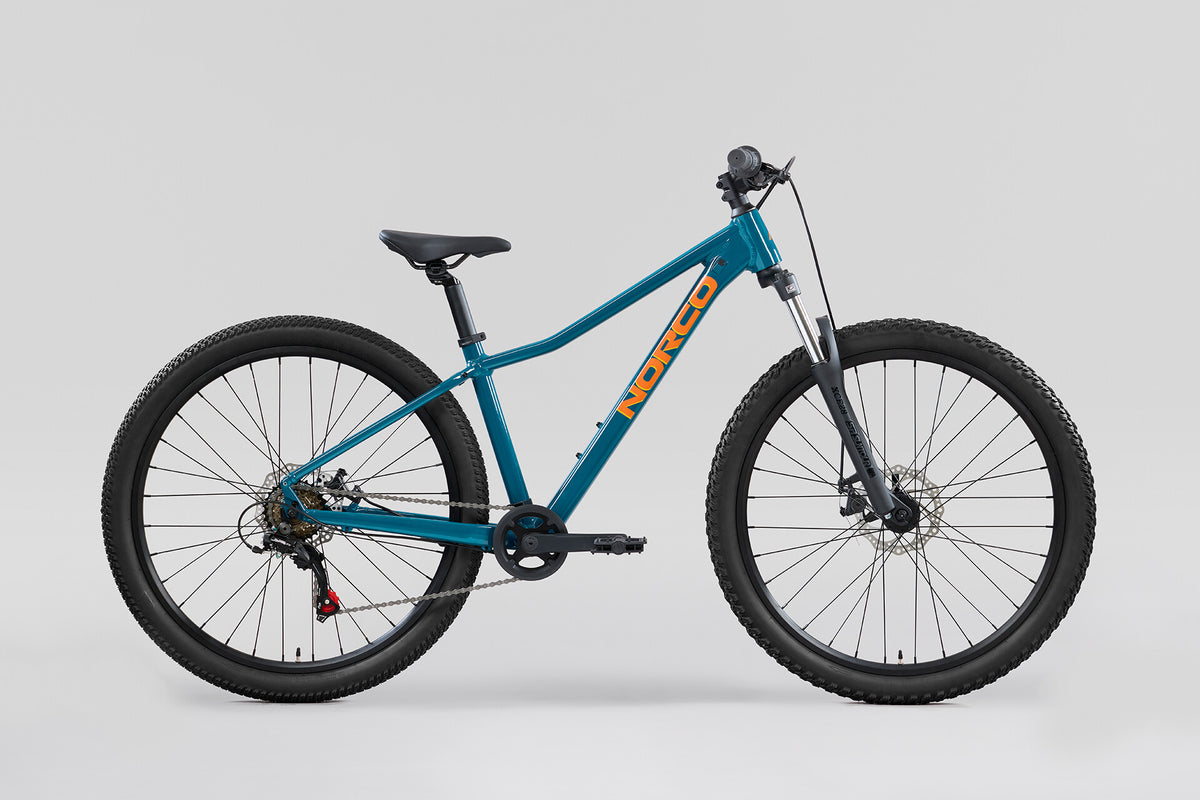

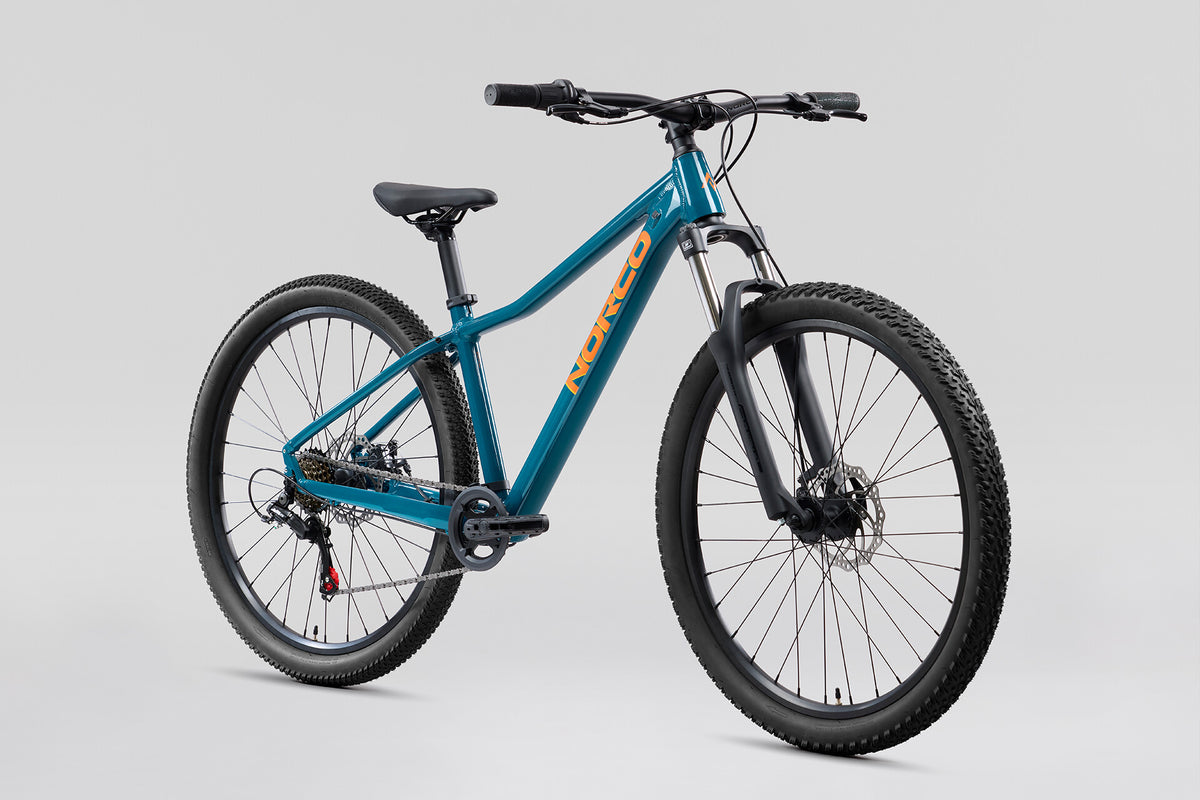

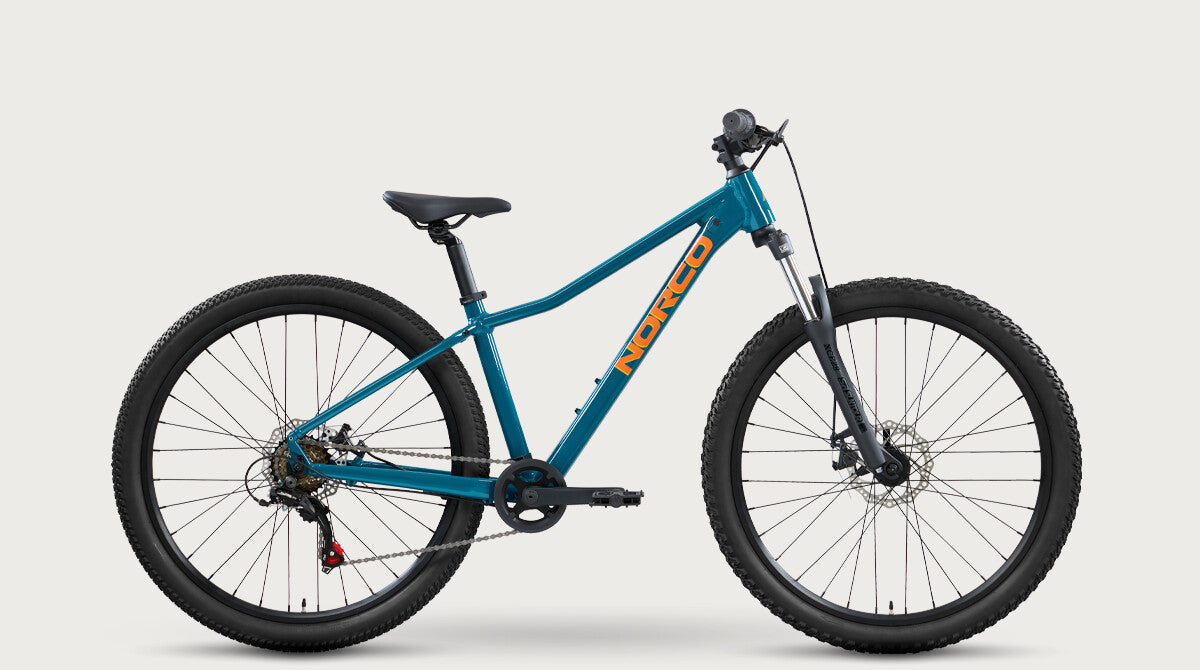

2027 Norco Storm 26

By Norco
$699.00 CAD
1240117654
Color: Teal
View details
Description

The durable and lightweight Storm 26 provides simple upkeep and operation to help young riders find the best line and stop on a dime.

Technical Specifications
Frameset

Frame

Aluminum, 9x135mm QR, 26"

Fork

Sr Suntour XCE Coil w/Soft Spring and Preload, 100mm 9x100mm

Drivetrain

Rear Shifter

Shimano TZ-500, 6sp, Direct mount

Rear Derailleur

Shimano MF-TZ500-6, 14T-28T, 6sp, Freewheel

Crankset

Sealed Bearing , ST 68mm

Bottom Bracket

Jr. MTB Flat, 9/16

Cassette

KMC Z6

Chain

Alloy 3pc, 152mm, 28T Narrow Wide

Brakes

Front Brake

160mm, 6-Bolt

Front Brake Rotor

C-Star, resin Pads, Mechanical Disc

Rear Brake

160mm, 6-Bolt

Rear Brake Rotor

C-Star Alloy Jr. levers w/reach adjust

Brake Levers

Shimano SL-RV200-6R, 6sp, gripshift

Components

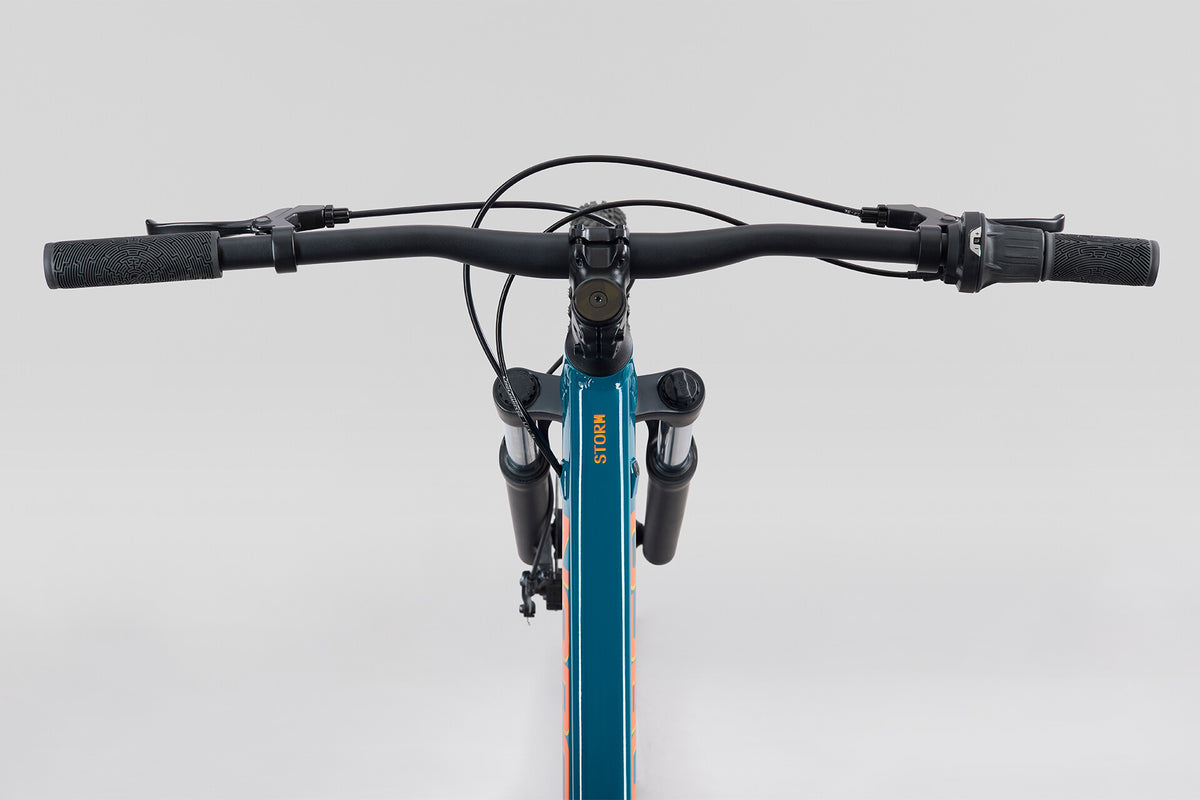

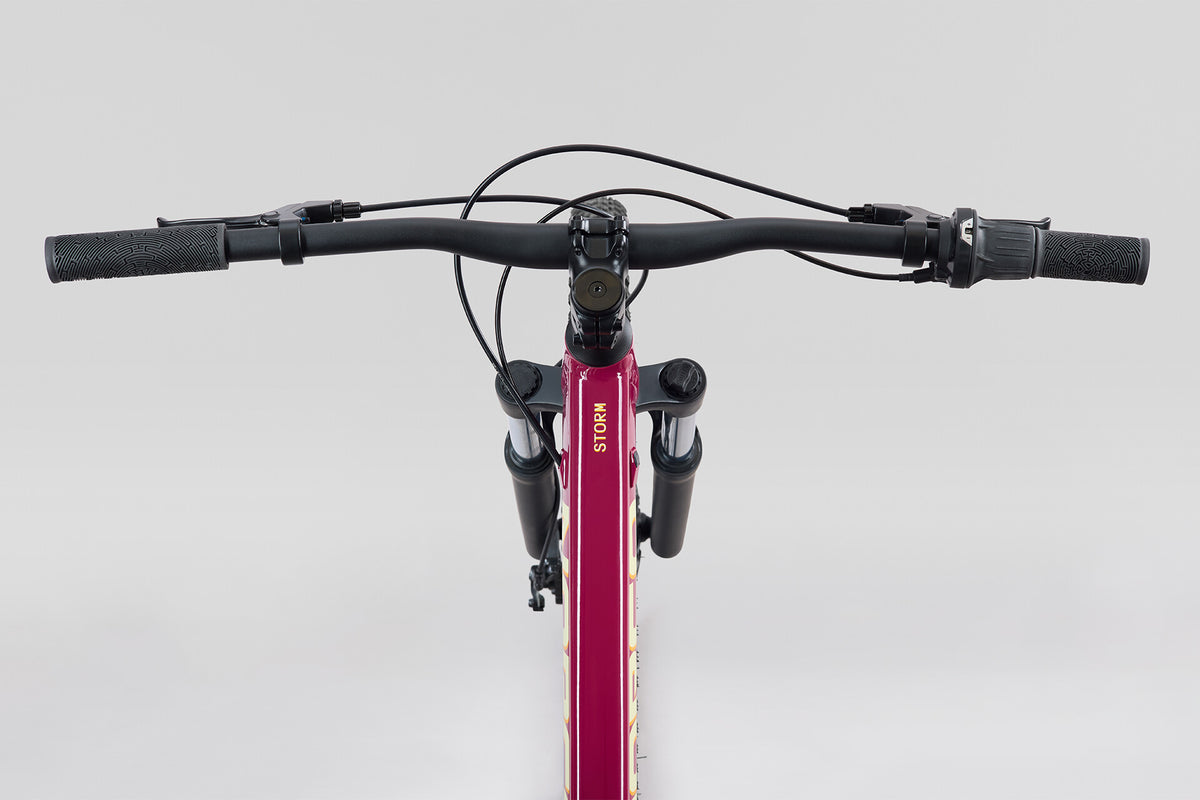

Handlebar

Alloy 40mm Length, 31.8mm Clamp

Stem

Norco Alloy 27.2mm, 250mm

Seatpost

Norco Alloy Boled, 31.8mm ID

Headset

Sealed Cartridge Bearings, Tapered 1-1/8" - 1.5" ( IS42/28.6 | IS52/40 )

Saddle

C-Star, resin Pads, Mechanical Disc

Grips

Alloy Jr. Riser, 720mm, 30mm Rise

Pedals

Formula DC-1420, 9x100mm QR, 28h, 6-bolt

Seatpost Clamp

Norco Jr XC, Steel Rail

Wheels

Front Hub

Formula XDS-2003, 9x135mm QR, Freewheel, 28h, 6-bolt

Rear Hub

Stainless Steel 14g - Black

Rims

CY Trail, 26x2.25, Wire

Spokes/Nipples

Aluminum DW, 28h, 26" MTB

Geometry
Wheel Size 26"
Travel (mm front) 100
Reach 370
Stack 578
Head Tube Angle 66.5
Fork Offset 42
Seat Tube Length 370
Effective Seat Tube Angle 73
Rear Centre Length 410
Bottom Bracket Drop 50
Bottom Bracket Height 290
Horizontal Top Tube 547
Wheelbase 1052
Standover 609
Head Tube Length 100
Trail 102
Maximum Post Insertion 348
Stem Length 45
Crank Length 152
Tire Size 2.2 "-2.4"
Water Bottle Compatible 1 x 620ml
Product Variants SKU/UPC
  • 2027 Norco Storm 26: Teal / : SKU: 1240117654 - UPC: 058817774218

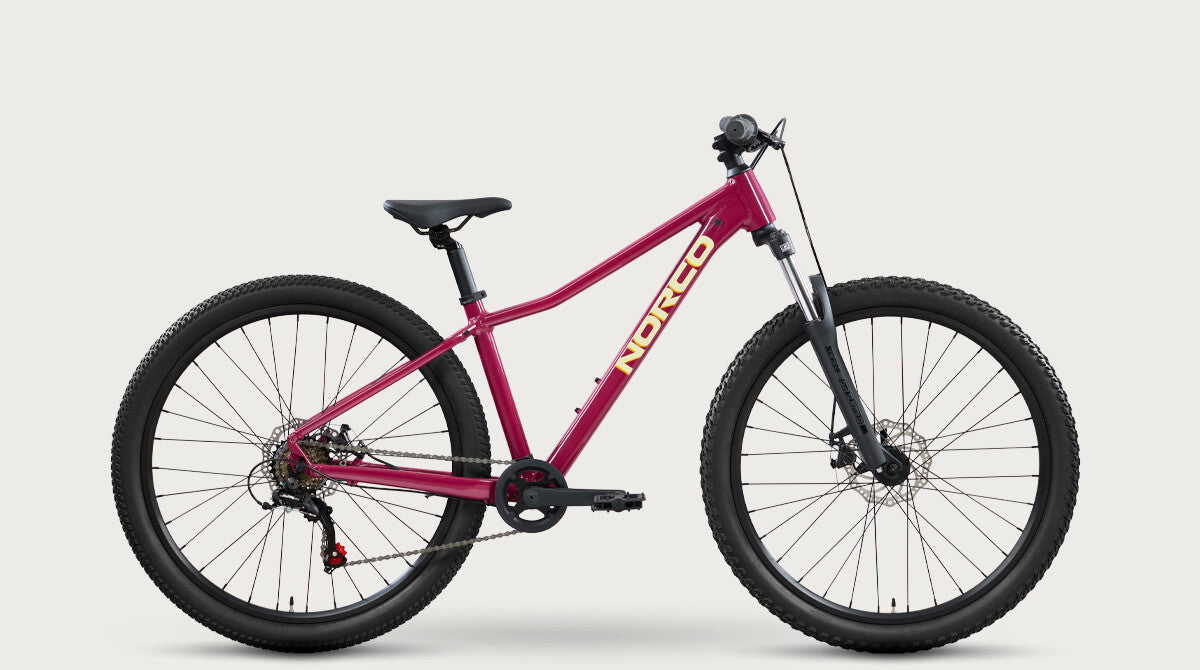

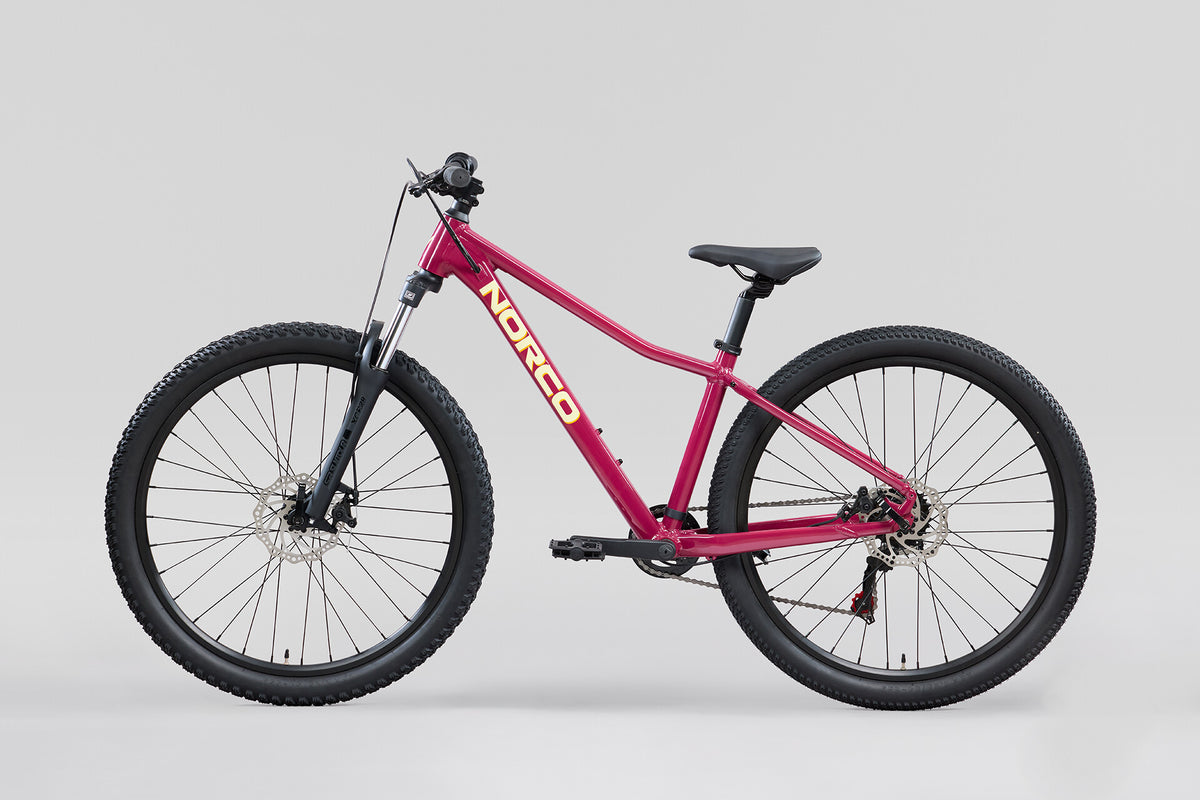

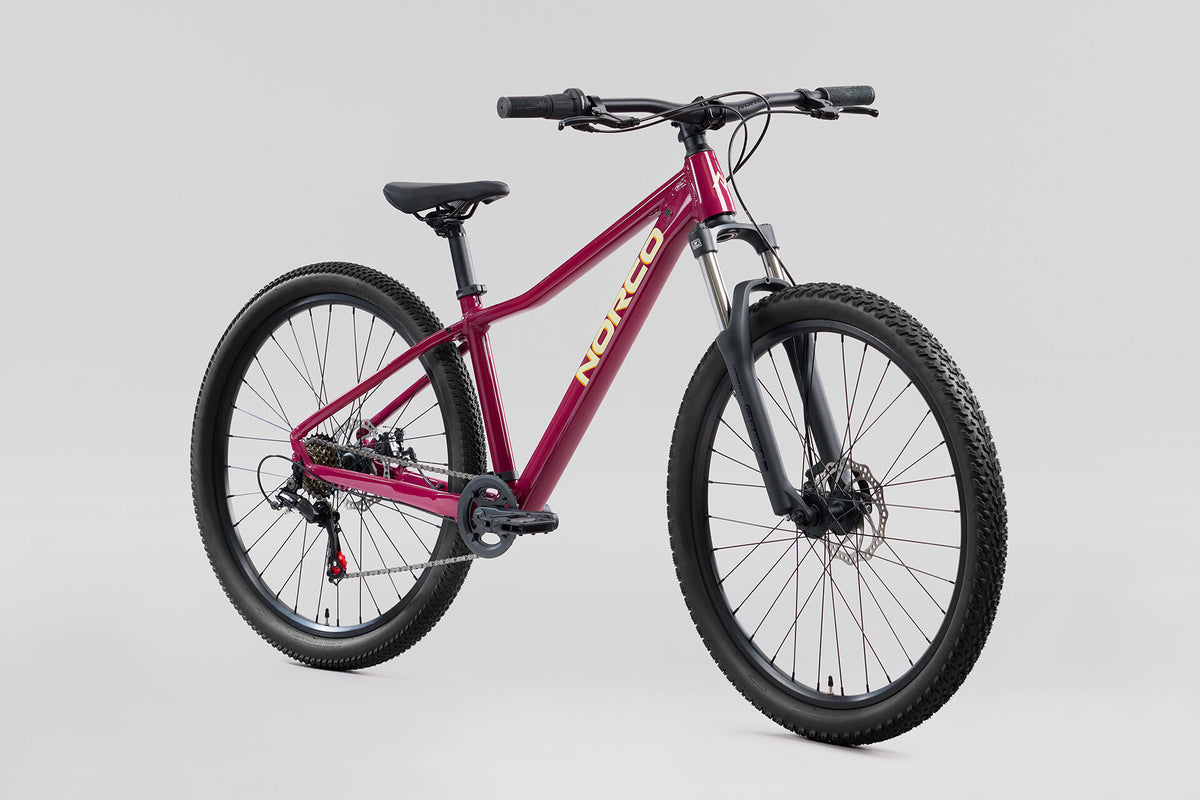

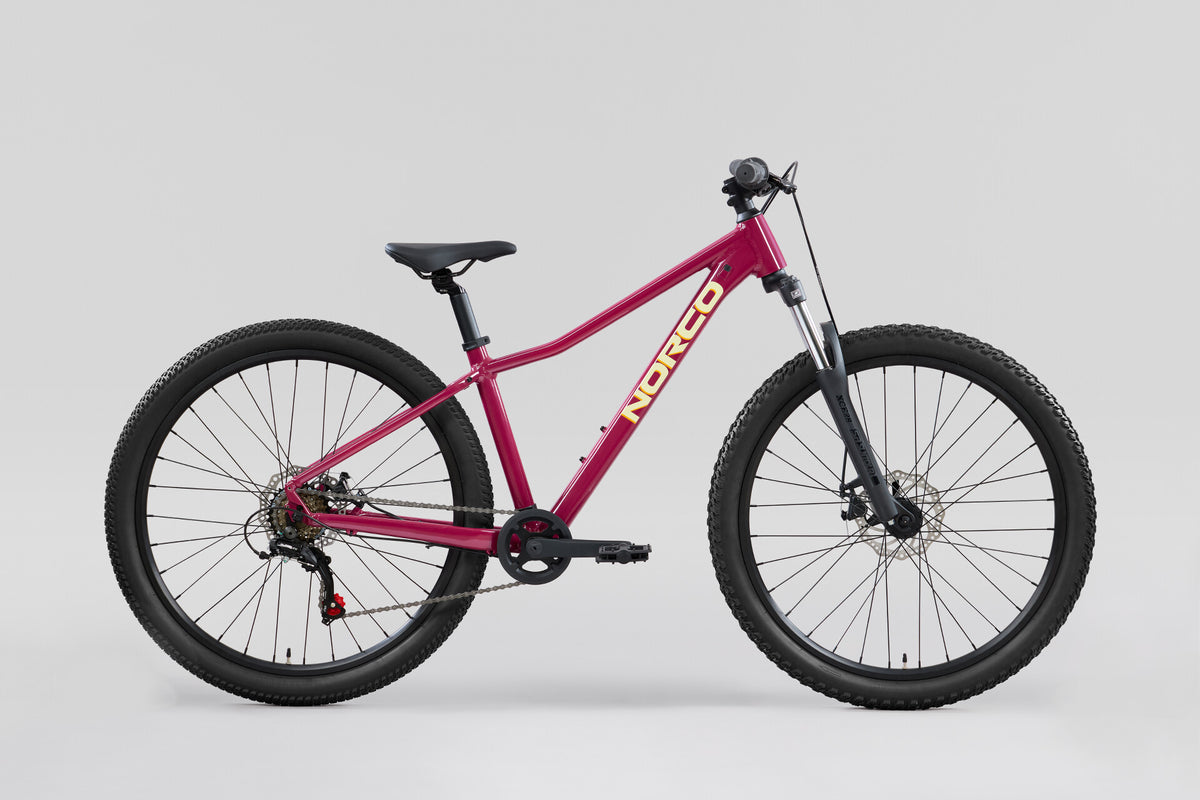

  • 2027 Norco Storm 26: Berry Magenta / : SKU: 1240127654 - UPC: 058817774232
