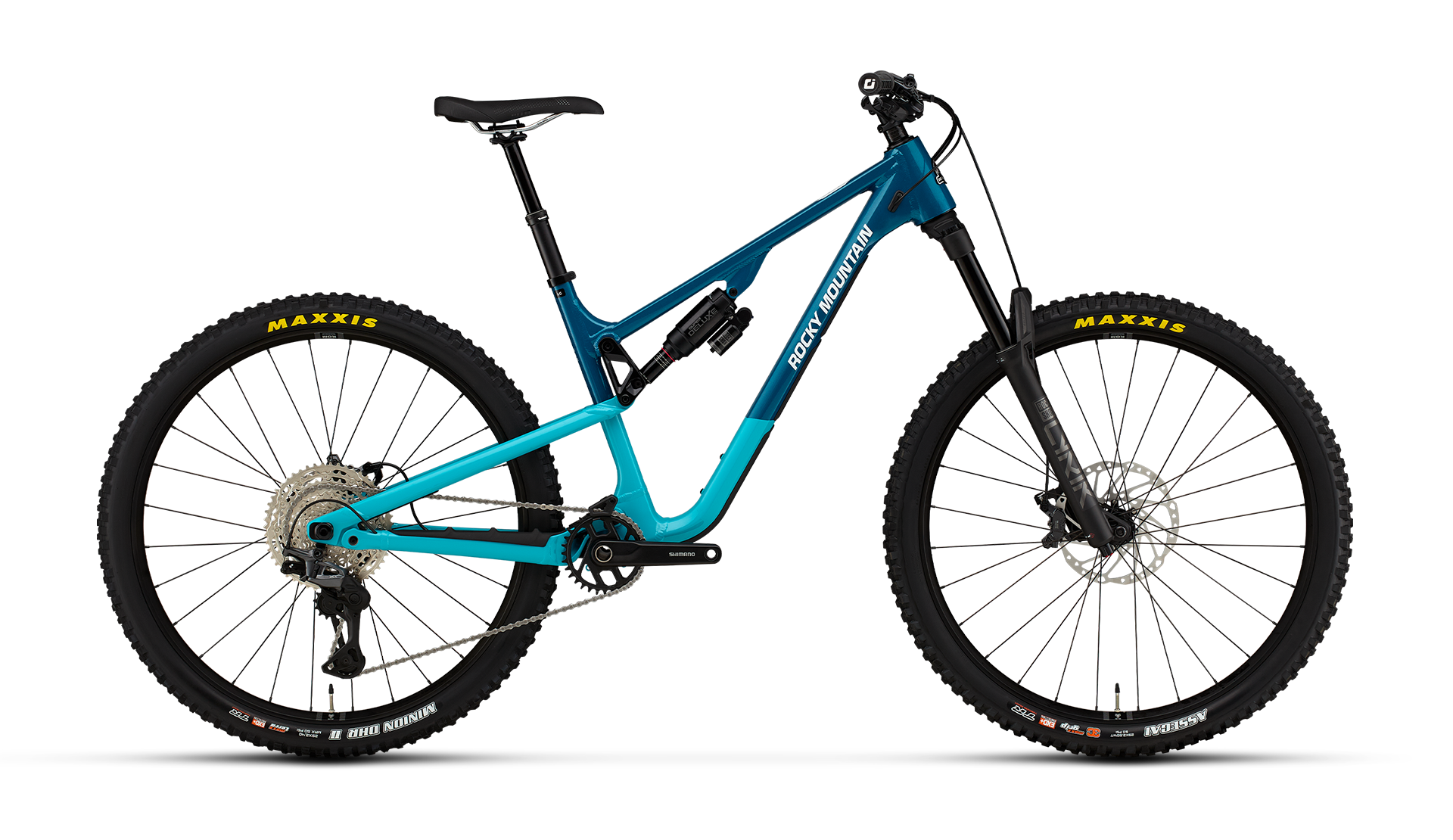

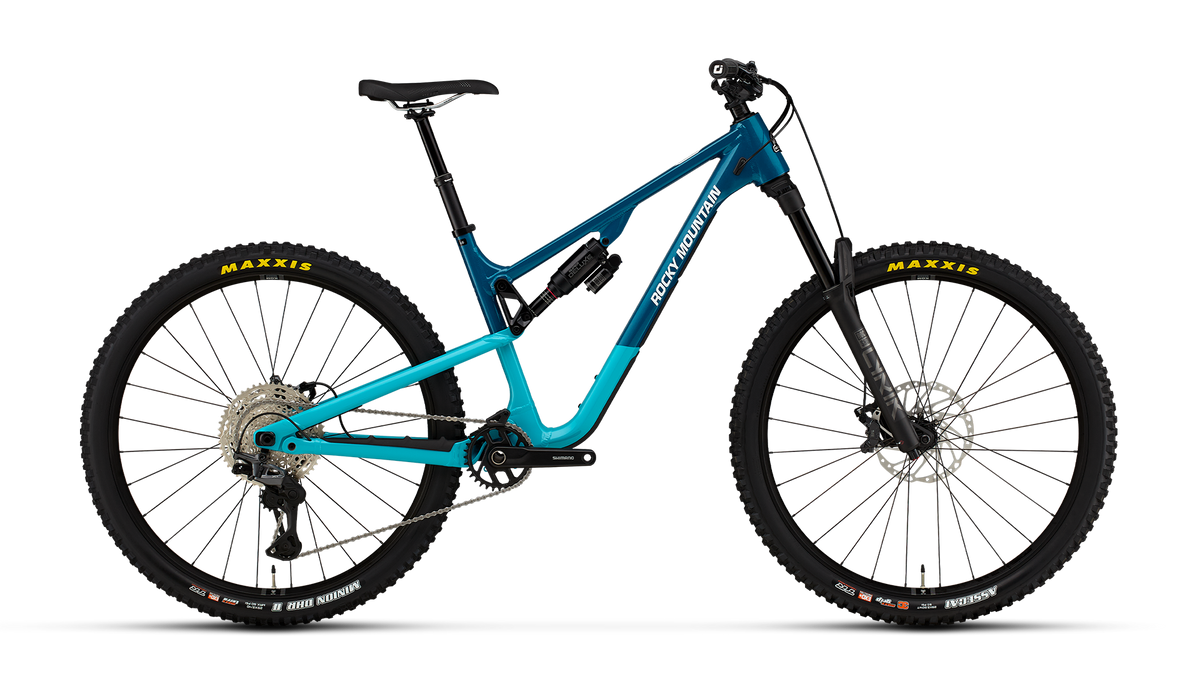

2027 Rocky Mountain Instinct A50

By Rocky Mountain
$5,399.00 CAD
BINSA5027MDBL
Color: Blue / Blue / White
Size
View details
Description

In search of a quiver-killer? we’ve got you covered with the Instinct Alloy. Designed to thrive on technical trails, but still allows you to push the distance and crush the climbs. We’ve updated the Instinct Alloy frame features, geometry, and suspension kinematics to make sure you feel confident on the ups, downs, and everything in between. Trust your Instinct.

Technical Specifications

Frame

FORM™ Alloy | Full Sealed Cartridge Bearings | Press Fit BB | Internal Cable Routing | 2-Bolt ISCG05 Tabs | RIDE-4™ Adjustable Geometry | 2 Position Axle | SM - XL = 145mm | XS = 140mm | FORM™ Alloy Rear Triangle

Fork

RockShox Lyrik Select 160mm | Delta RC Damper | 27.5 = 37mm Offset | 29 = 42mm Offset

Rear Shock

RockShox Super Deluxe Select | Linear XL Air Can | Sealed Bearing Eyelet | 20x8mm F Hardware | XS - SM = 190x45mm | MD - LG - XL = 210x55mm | Size-Specific tune in FAQ

Headset

FSA ZS56/66 Reach Adjust | 0mm Cups Installed | +/- 5mm Cups Included | Sealed Stainless 36°x45° Bearings | 30.2mm x 41mm x 6.5mm Upper | 40mm x 51.8mm x 8.0mm Lower | 1.5" Crown Race

Stem

Rocky Mountain 35 AM | 0° Rise | All Sizes = 40mm

Handlebar

Rocky Mountain AM | 780mm Width | 38mm Rise | 9° Backsweep | 5° Upsweep | 35 Clamp

Grips

ODI Elite Pro Lock On

Brakes

Shimano XT Trail 4 Piston | Metal Pads

Shifters

Shimano XT

Rear Derailleur

Shimano XT

Crankset

Shimano Deore | 32T | 24mm Spindle | Crankarm Length: XS - SM = 165mm | MD - XL = 170mm

Bottom Bracket

Shimano SM-BBMT500

Cassette

Shimano Deore 10-51T 12spd

Chain

Shimano M6100

Hub (F)

Shimano TC500 | 15mm Boost

Hub (R)

Shimano TC500 Boost 148mm

Spokes

DT Swiss Elemental 2.0

Rims

WTB KOM Team i30 TCS 2.0 | 28H

Tires

F: Maxxis Assegai 2.5 3C MaxxGrip EXO+ Tubeless Ready | R: Maxxis Minion DHR II 2.4 3C MaxxTerra EXO+ Tubeless Ready

Seatpost

Tranz X +RAD1.0 Adjustable Dropper Post | 30mm Adjustment | Alloy I-Spec EV GL Lever | 30.9mm | XS = 125mm | SM = 150mm | MD = 170mm | LG - XL = 200mm

Saddle

WTB Volt Race 142 | Cromoly rails

Geometry
29 inch — POS.1 Slack
sm md lg xl
Top Tube Horizontal (mm) 572 621 640 649
Head Tube Angle (deg) 63.5 63.5 63.5 63.5
Head Tube Length (mm) 100 110 125 135
Seat Tube Angle (deg) 76.5 76.5 76.5 76.5
Seat Tube Length (mm) 365 410 440 470
Rear Centre (mm) 440 - 450 440 - 450 440 - 450 440 - 450
Bottom Bracket Drop (mm) 44 44 44 44
Reach (mm) 423 449 474 504
Stack (mm) 572 599 628 659
Standover Height (mm) 760 798 796 792
Wheelbase (mm) 1198 1227 1259 1293
29 inch — POS.2
sm md lg xl
Top Tube Horizontal (mm) 572 622 638 644
Head Tube Angle (deg) 63.7 63.7 63.7 63.7
Head Tube Length (mm) 100 110 125 135
Seat Tube Angle (deg) 76.7 76.7 76.7 76.7
Seat Tube Length (mm) 365 410 440 470
Rear Centre (mm) 440 - 450 440 - 450 440 - 450 440 - 450
Bottom Bracket Drop (mm) 40 40 40 40
Reach (mm) 427 452 477 507
Stack (mm) 572 599 628 659
Standover Height (mm) 762 799 798 794
Wheelbase (mm) 1198 1227 1259 1293
29 inch — POS.3
sm md lg xl
Top Tube Horizontal (mm) 572 622 636 645
Head Tube Angle (deg) 64 64 64 64
Head Tube Length (mm) 100 110 125 135
Seat Tube Angle (deg) 77 77 77 77
Seat Tube Length (mm) 365 410 440 470
Rear Centre (mm) 440 - 450 440 - 450 440 - 450 440 - 450
Bottom Bracket Drop (mm) 36 36 36 36
Reach (mm) 430 455 480 510
Stack (mm) 572 599 627 659
Standover Height (mm) 763 794 799 796
Wheelbase (mm) 1198 1227 1258 1293
29 inch — POS.4 Steep
sm md lg xl
Top Tube Horizontal (mm) 571 623 634 645
Head Tube Angle (deg) 64.3 64.3 64.3 64.3
Head Tube Length (mm) 100 110 125 135
Seat Tube Angle (deg) 77.3 77.3 77.3 77.3
Seat Tube Length (mm) 365 410 440 470
Rear Centre (mm) 440 - 450 440 - 450 440 - 450 440 - 450
Bottom Bracket Drop (mm) 32 32 32 32
Reach (mm) 437 458 483 513
Stack (mm) 571 599 626 659
Standover Height (mm) 765 801 800 798
Wheelbase (mm) 1197 1227 1258 1293
27.5 inch — POS.1 Slack
xs sm
Top Tube Horizontal (mm) 540 567
Head Tube Angle (deg) 63.5 63.5
Head Tube Length (mm) 100 110
Seat Tube Angle (deg) 76.5 76.5
Seat Tube Length (mm) 355 365
Rear Centre (mm) 430 - 440 430 - 440
Bottom Bracket Drop (mm) 27 27
Reach (mm) 398 423
Stack (mm) 585 594
Standover Height (mm) 757 753
Wheelbase (mm) 1150 1179
27.5 inch — POS.2
xs sm
Top Tube Horizontal (mm) 540 567
Head Tube Angle (deg) 63.7 63.7
Head Tube Length (mm) 100 110
Seat Tube Angle (deg) 76.7 76.7
Seat Tube Length (mm) 355 365
Rear Centre (mm) 430 - 440 430 - 440
Bottom Bracket Drop (mm) 26 26
Reach (mm) 399 424
Stack (mm) 584 593
Standover Height (mm) 757 753
Wheelbase (mm) 1150 1179
27.5 inch — POS.3
xs sm
Top Tube Horizontal (mm) 540 567
Head Tube Angle (deg) 64 64
Head Tube Length (mm) 100 110
Seat Tube Angle (deg) 77 77
Seat Tube Length (mm) 355 365
Rear Centre (mm) 430 - 440 430 - 440
Bottom Bracket Drop (mm) 19 19
Reach (mm) 405 430
Stack (mm) 582 591
Standover Height (mm) 759 756
Wheelbase (mm) 1149 1178
27.5 inch — POS.4 Steep
xs sm
Top Tube Horizontal (mm) 539 567
Head Tube Angle (deg) 64.3 64.3
Head Tube Length (mm) 100 110
Seat Tube Angle (deg) 77.3 77.3
Seat Tube Length (mm) 355 365
Rear Centre (mm) 430 - 440 430 - 440
Bottom Bracket Drop (mm) 15 15
Reach (mm) 408 433
Stack (mm) 582 591
Standover Height (mm) 760 757
Wheelbase (mm) 1148 1177
Product Variants SKU/UPC
  • 2027 Rocky Mountain Instinct A50: Blue / Blue / White / SM (29): SKU: BINSA5027SMBL - UPC: 770416015997
  • 2027 Rocky Mountain Instinct A50: Blue / Blue / White / MD (29): SKU: BINSA5027MDBL - UPC: 770416015973
  • 2027 Rocky Mountain Instinct A50: Blue / Blue / White / LG (29): SKU: BINSA5027LGBL - UPC: 770416015959
  • 2027 Rocky Mountain Instinct A50: Blue / Blue / White / XL (29): SKU: BINSA5027XLBL - UPC: 770416016017

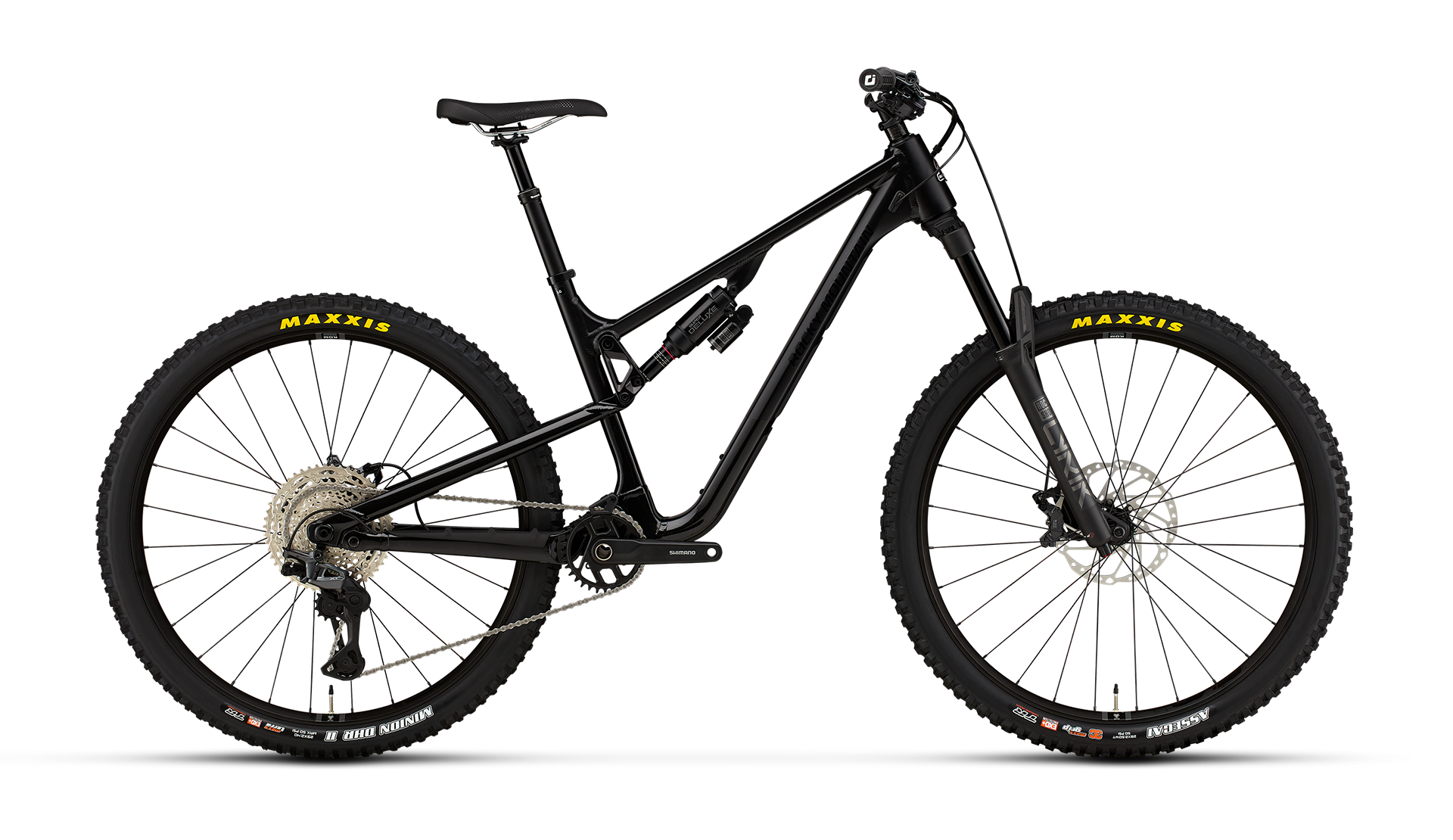

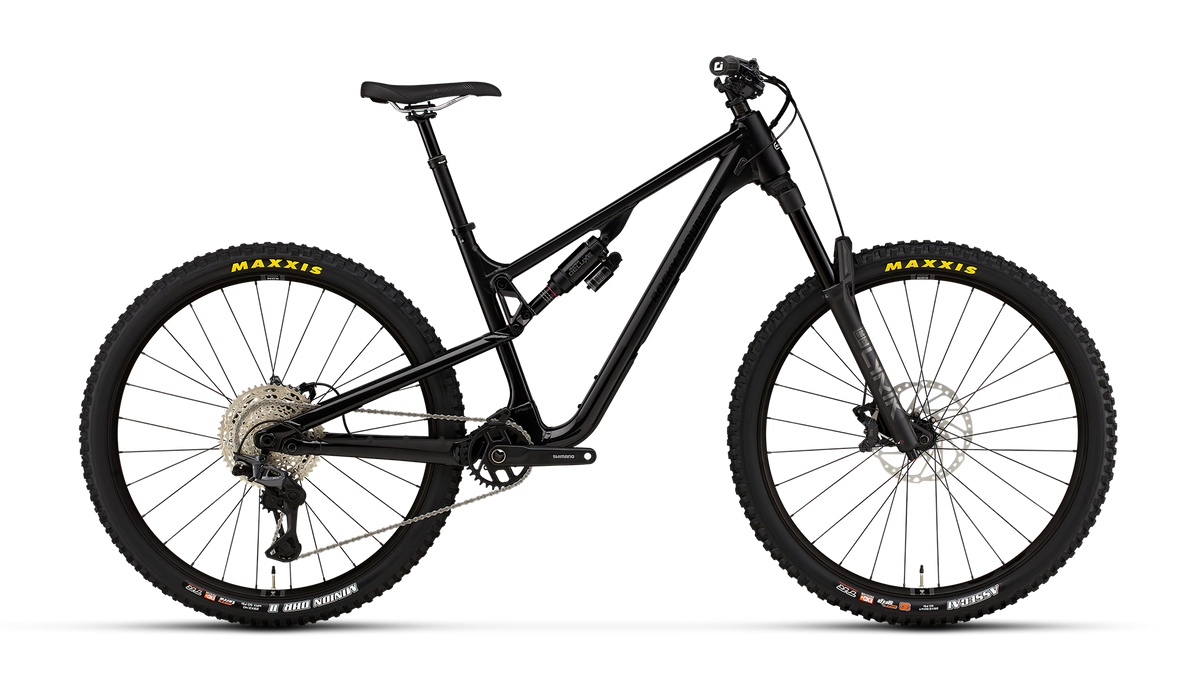

  • 2027 Rocky Mountain Instinct A50: Black/Black/Black / SM (29): SKU: BINSA5027SMBK - UPC: 770416017373
  • 2027 Rocky Mountain Instinct A50: Black/Black/Black / MD (29): SKU: BINSA5027MDBK - UPC: 770416017359
  • 2027 Rocky Mountain Instinct A50: Black/Black/Black / LG (29): SKU: BINSA5027LGBK - UPC: 770416017335
  • 2027 Rocky Mountain Instinct A50: Black/Black/Black / XL (29): SKU: BINSA5027XLBK - UPC: 770416017397
