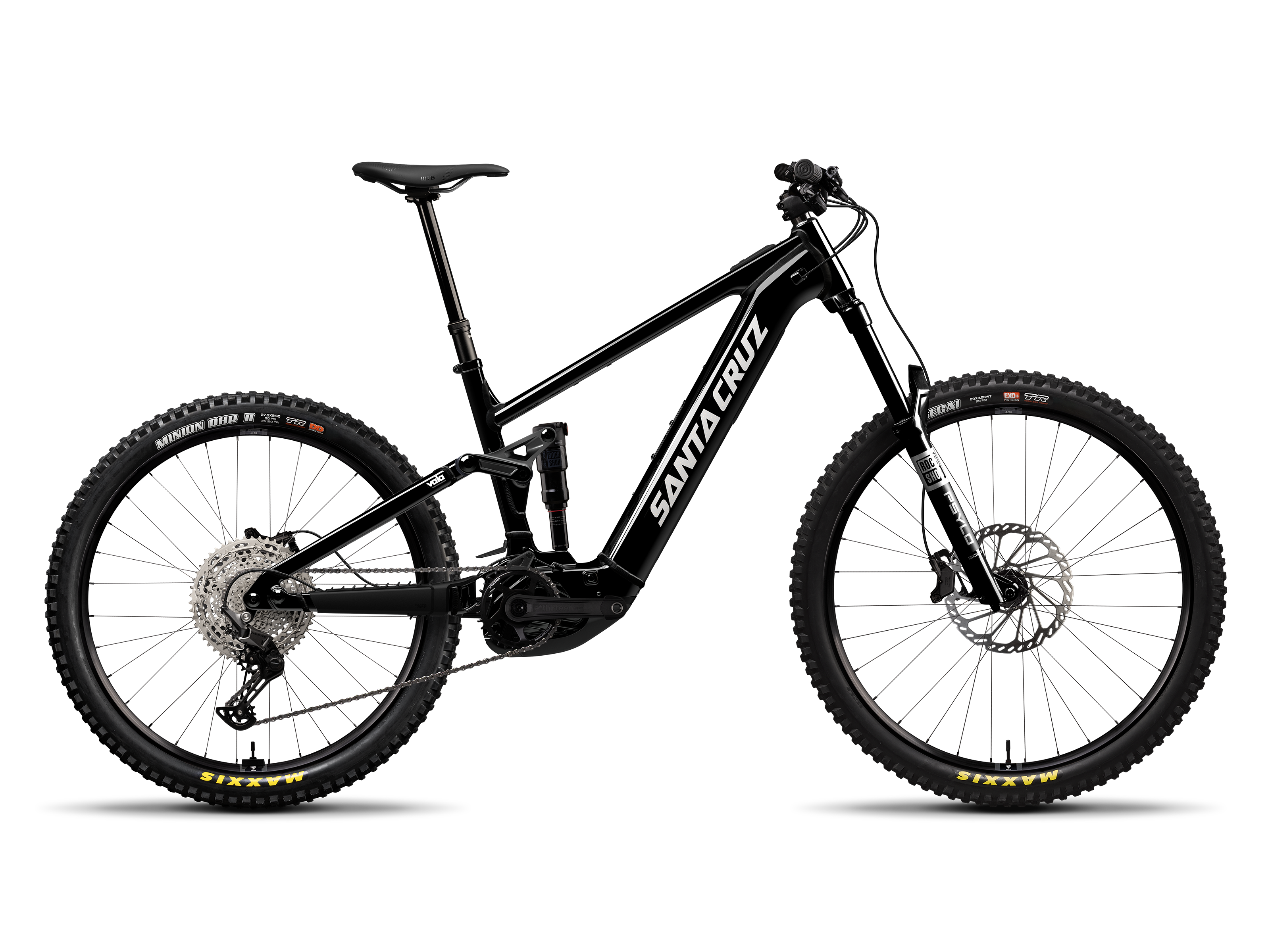

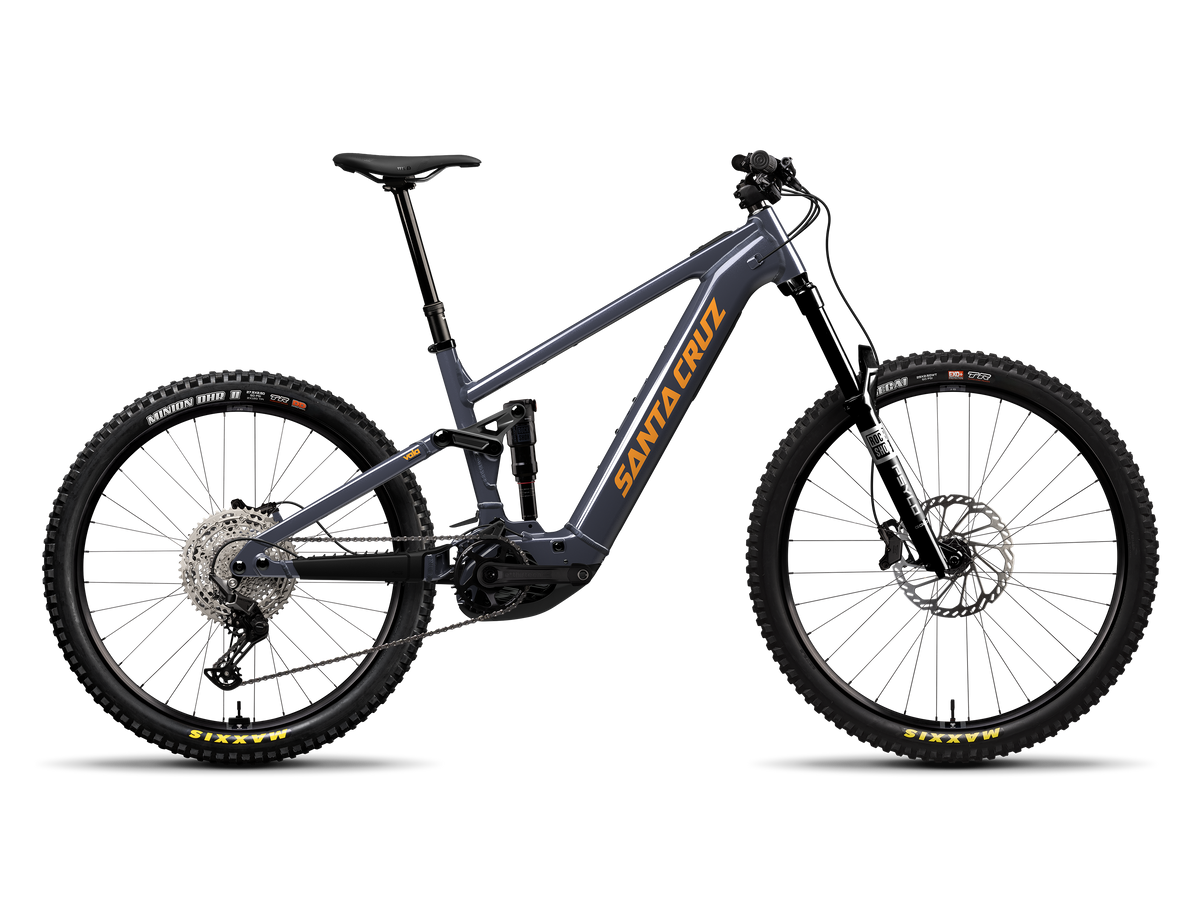

2027 Santa Cruz Vala AL 6200 Deore-Kit

By Santa Cruz
$6,599.00 CAD

This product is available for in-store pickup only.

58-27315-475-4-949-314301-01
Color: Gloss Black
Size
View details
Description

The Vala is a full-power ebike that delivers precision and power. It’s made for riders looking for focused performance on the best trails. Perfectly balanced, refined suspension and the finest quality construction, as always.

Technical Specifications

Frame

Aluminum MX 150mm Travel 4-Bar

Travel (mm)

150

Frame Material

AL

Wheel Size

MX

Weight

52.46 lbs / 23.79 kg

Battery

Bosch PowerTube Battery 600Wh

Brakes

Shimano Deore MT6220

Cassette

Shimano Deore M6200, 10-51t

Chain

Shimano Deore M6100, 12spd

Chainguide

OneUp Chainguide

Crankset

e13 Helix Core e*spec
All Sizes: 160mm

Motor

Bosch Performance CX BDU38

Fork

RockShox Psylo Gold RC, 160mm

Front Hub

Shimano TC500, 15x110, Centerlock, 32h

Front Rim

WTB ST Tough 30

Front Rotor

Shimano RT750, Centerlock, 220mm

Front Tire

Maxxis Assegai 29x2.5", EXO+

Grips / Bar Tape

Santa Cruz Bicycles House Grips

Handlebars

Santa Cruz Bicycles Aluminum Bar, 35mm
S: 780mm, 20mm Rise, M-XL: 800mm, 30mm Rise
-or-
RaceFace Aeffect R, 20mm Rise, 780mm (small only)

Headset

FSA IS-2/47/42 ACB

Rear Derailleur

Shimano Deore M6200, 12spd

Rear Hub

Shimano TC600, 12x148, MicroSpline, Centerlock, 32h

Rear Rim

WTB ST Tough 30

Rear Rotor

Shimano RT750, Centerlock, 200mm

Rear Shock

RockShox Deluxe Select, 205x60

Rear Tire

Maxxis Minion DHRII, 27.5"x2.5", DoubleDown

Right Shifter

Shimano Deore M6200, 12spd

Saddle

WTB Silverado, Steel

Seatpost

TransX Dropper, 31.6
S: 125mm, M: 170mm, L-XL: 200mm

Stem

OneUp Enduro Stem
All Sizes: 42mm

Valves

Reserve Fillmore Valves

Headset Headtube

Integrated (IS41/52)

Fork Axle To Crown

571mm

Fork Offset

44mm

Suspension System

Four-bar

Rear Travel

151mm

Recommended Sag

30%

Eye To Eye Length

205mm

Stroke

60mm

Shock Mounting Bushing Front

54x10 Trunnion

Shock Mounting Bushing Rear

30x8

Bb Shell

EMTB

Max Chainring Size

36t

Front Derailleur Mount

No Compatibility

UDH Compatible

Yes

Rear Spacing

148mm

Brake Mount

200mm PM

Max Rotor Size

220mm

Max Tire Size

2.5"

Seatpost Diameter

31.6mm

Seat Clamp

36.4mm

Water Bottle Mounts

1

Specifications are subject to change.

Geometry
No Chip (Aluminum Only)
S M L XL
Reach 433 458 478 498
Stack 625 634 643 656
Head tube angle 64.1° 64.1° 64.1° 64.1°
Head Tube Length 110 120 130 145
Rear Center 440 440 445 445
Front Center 771 800 825 851
BB Height 342 342 342 342
BB Drop Front 30 30 30 30
BB Drop Rear 13 13 13 13
Wheelbase 1211 1241 1270 1297
Top Tube Length 578 606 628 652
Seat Tube Length 380 400 420 460
Seat Tube Angle 76.9° 76.9° 76.8° 76.8°
Standover Height 744 745 729 732
