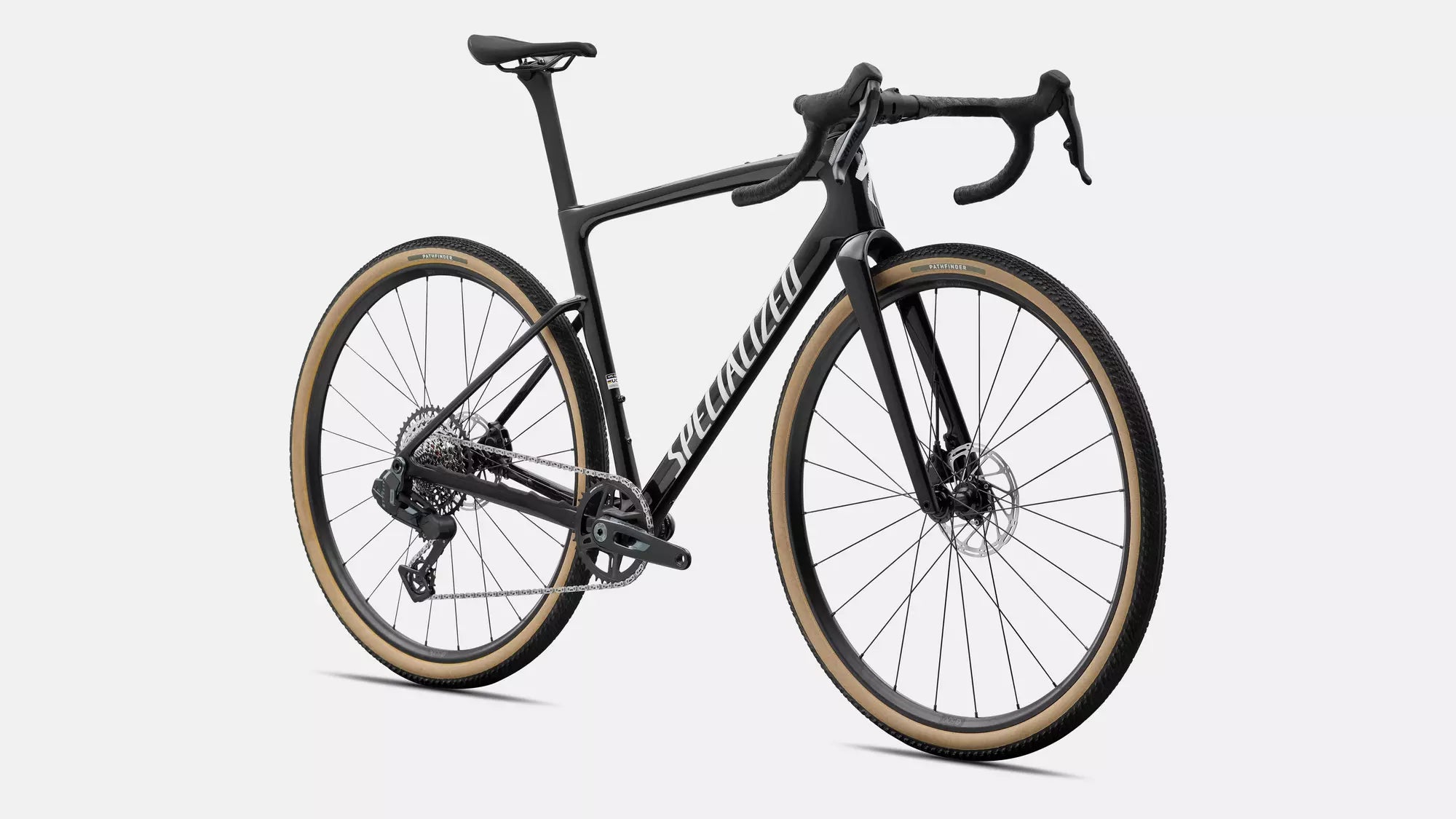

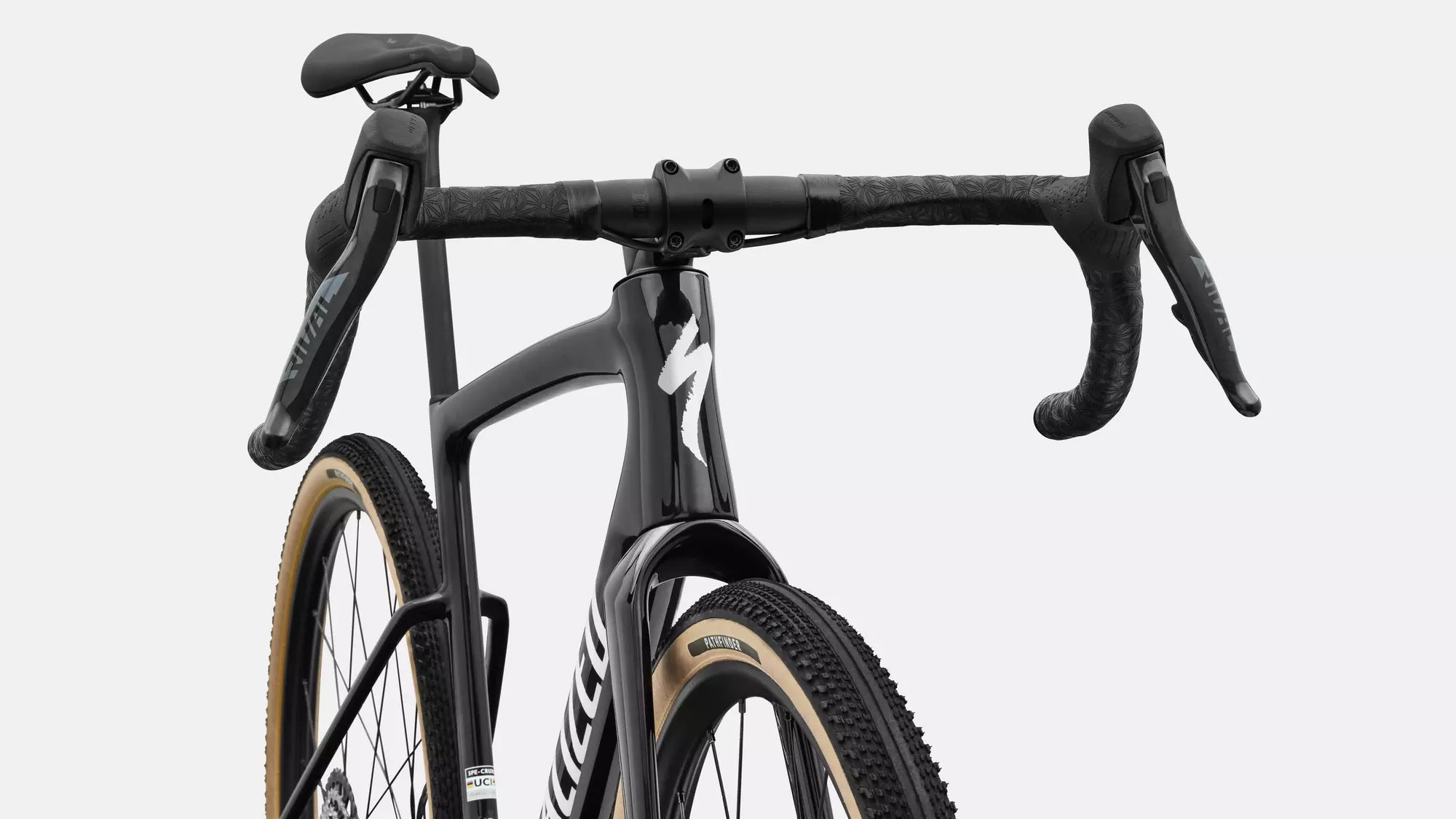

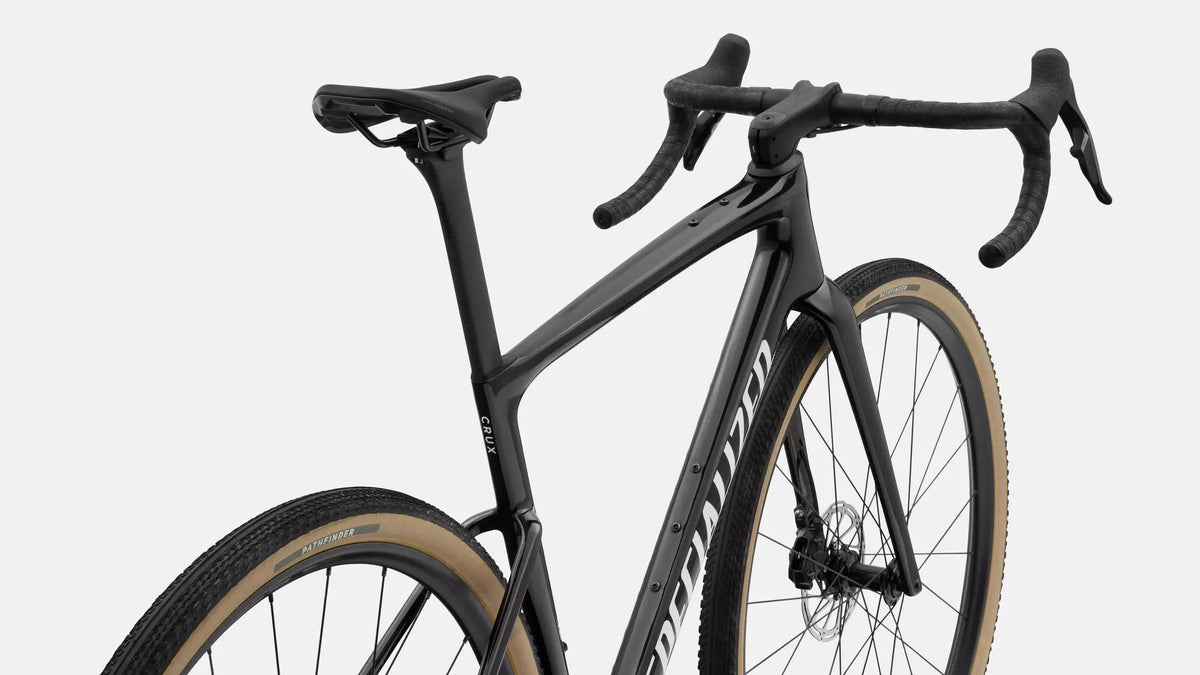

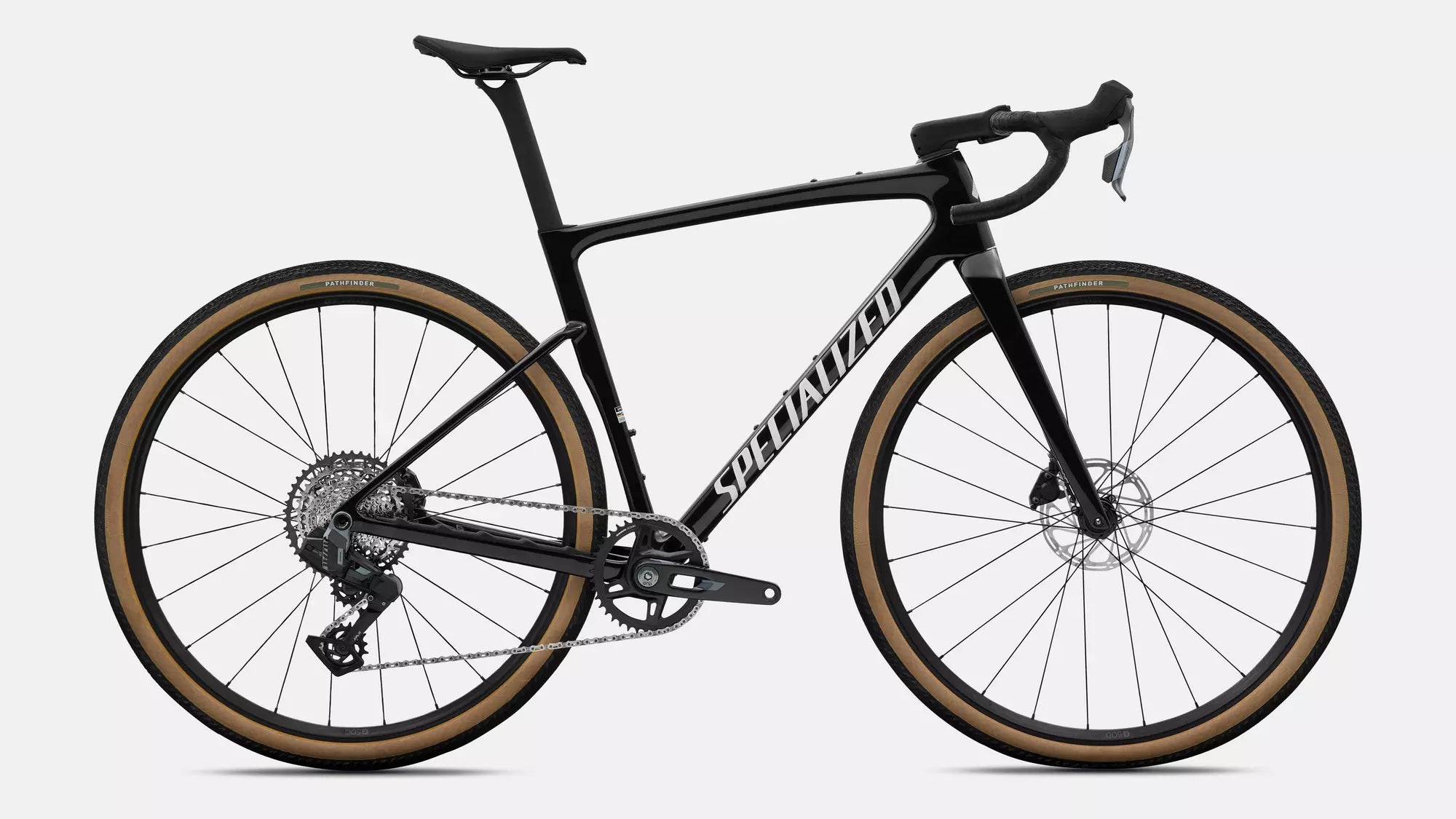

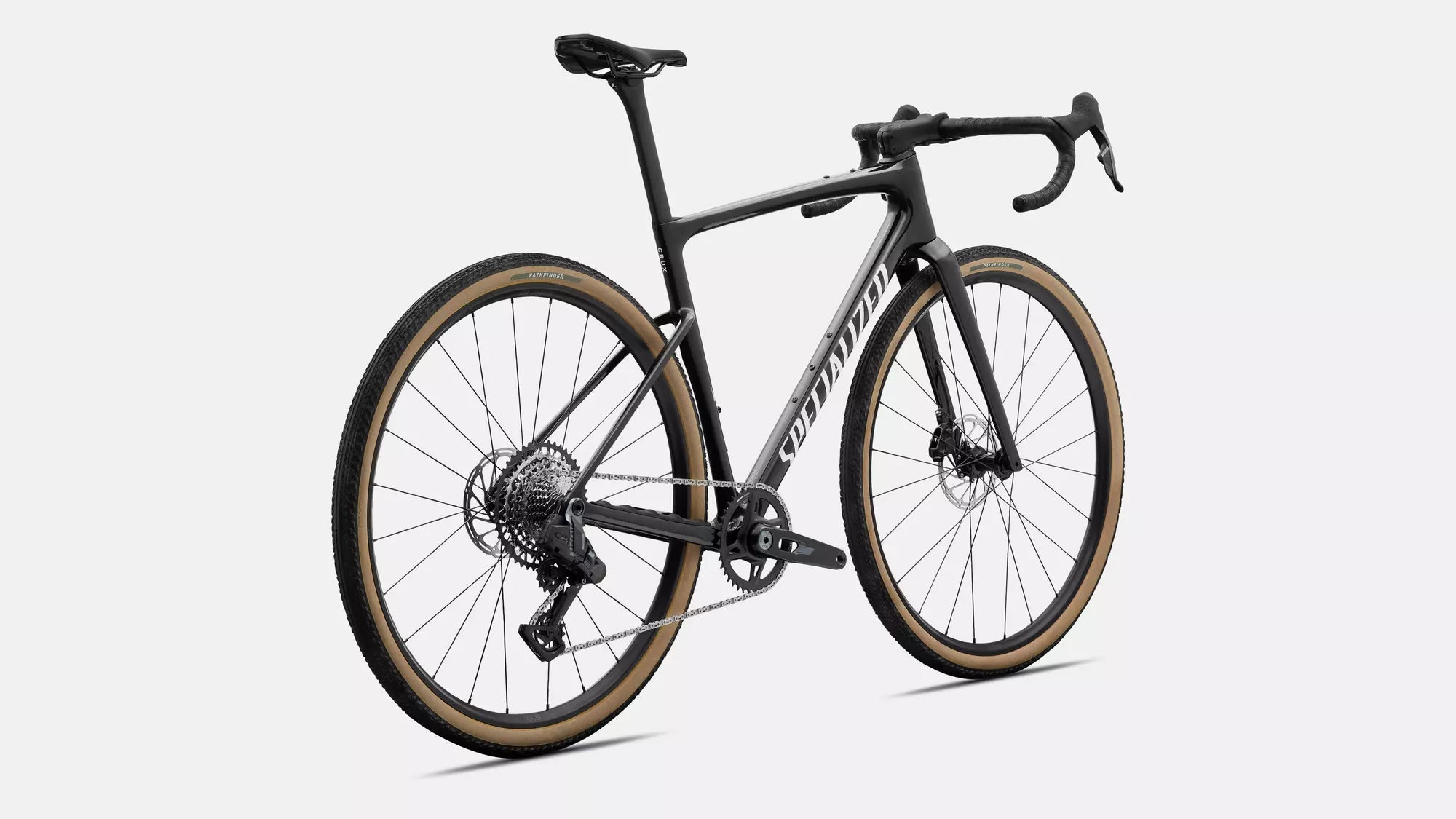

2027 Specialized Crux 5 Comp SRAM Rival XPLR

Eat My Dust

The Crux 5 was born from the fastest gravel race bike ever made. Not just because it’s the lightest. Not just because it’s our most aero. Not just because it handles dirt like a Tarmac handles pavement. But because it delivers the lowest real-world Time to Finish of any gravel bike ever made. Crux 5 turns more of your effort into pure speed—validated for real race courses, real terrain, and real riders. When the goal is the top step, nothing in gravel gets you there faster.

Frame

Crux 5 FACT 10r Carbon, Rider First Engineered™, Threaded BB, 12x142mm thru-axle, flat-mount disc, UDH dropout

Suspension

Fork

S-Works FACT Carbon, 12x100mm thru-axle, flat-mount disc

Brakes

Front Brake

SRAM Rival E1, hydraulic disc

Rear Brake

SRAM Rival E1, hydraulic disc

Drivetrain

Shift Levers

SRAM Rival AXS E1

Rear Derailleur

SRAM Rival AXS E1 XPLR, 13-speed

Cassette

SRAM Rival E1 XPLR, 13-speed, 10-46t

Chain

SRAM Rival E1

Crankset

SRAM Rival E1 XPLR, DUB Wide, 40t

Bottom Bracket

SRAM DUB BSA 68 Wide

Wheels & Tires

Front Tire

Pathfinder 700x45, Tubeless Ready

Front Wheel

DT Swiss G500 rim, 26mm internal width, tubeless ready, 24h, Specialized full sealed bearing thru axle hub, centerlock disc, DT Swiss Champion 14G stainless steel spokes, DT Swiss brass nipples

Rear Tire

Pathfinder 700x45, Tubeless Ready

Rear Wheel

DT Swiss G500 rim, 26mm internal width, tubeless ready, 24h, Specialized full sealed bearing thru axle hub, centerlock disc, DT Swiss Champion 14G stainless steel spokes, DT Swiss brass nipples

Inner Tubes

700x32-50mm, 40mm Presta valve

Cockpit

Stem

Roval Rapide, alloy, 4 bolt, -6 degrees

Handlebars

Specialized Adventure Gear, 118.9mm drop x 70mm reach x 12º flare

Tape

Supacaz Super Sticky Kush

Saddle

Body Geometry Power Comp, chrome alloy rails

Seatpost

S-Works Tarmac SL8 Carbon seat post, FACT Carbon, 15mm offset

Seat Binder

Integrated Wedge

Product Details

Product ID

294832

Weight

Weight

8.89 kg (19 lb, 9.6 oz)

Weight Size

56

* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
