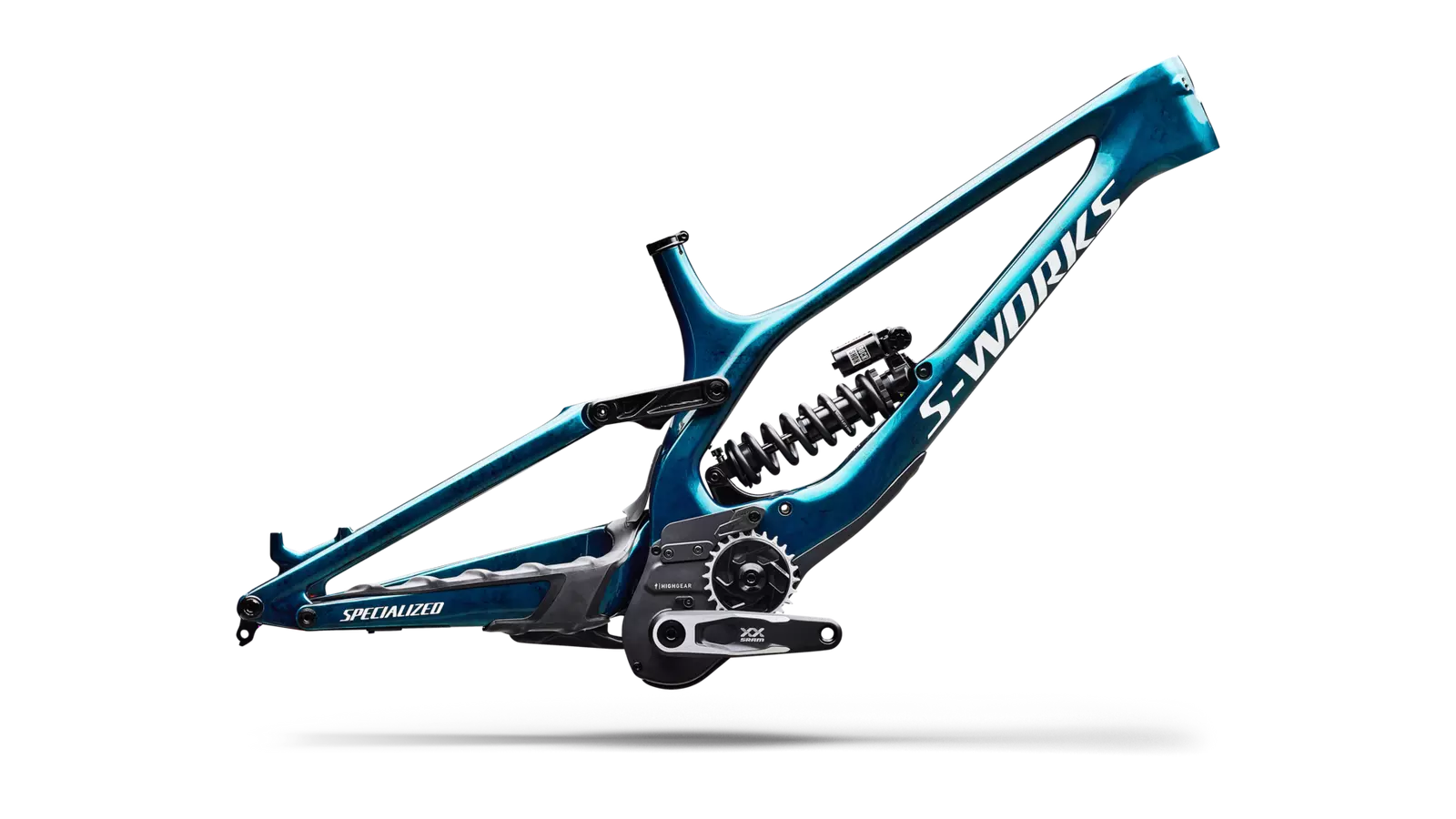

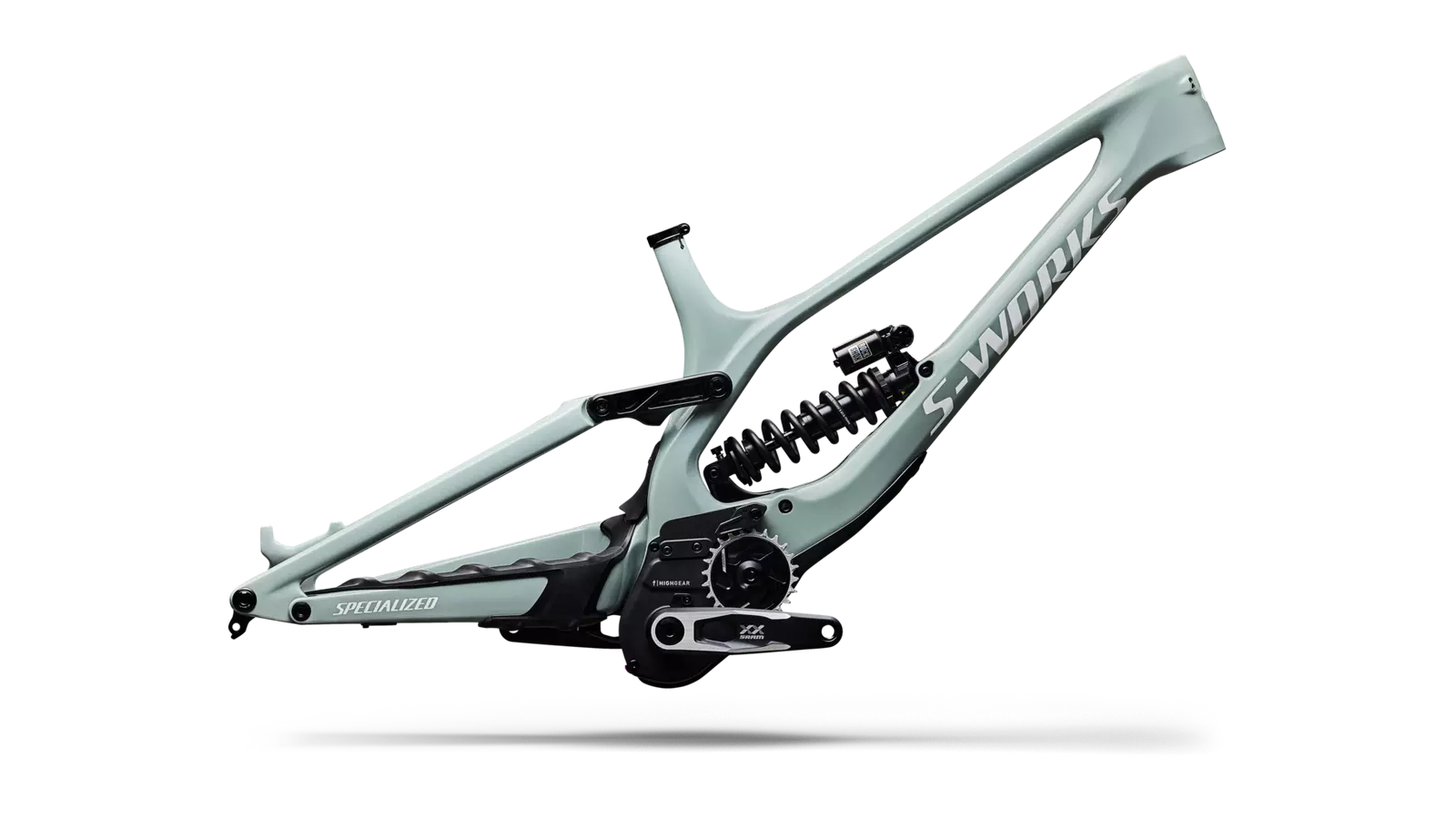

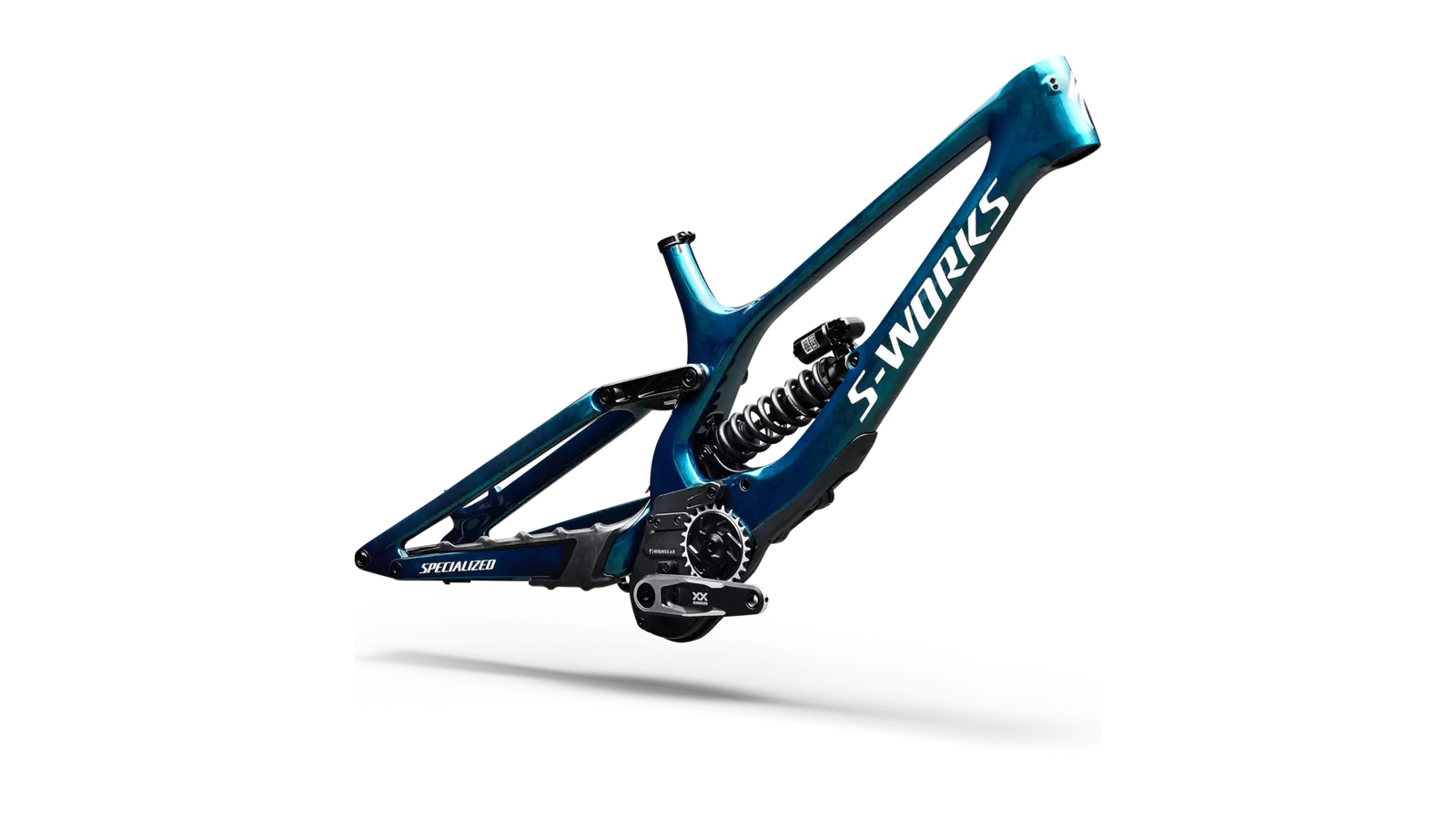

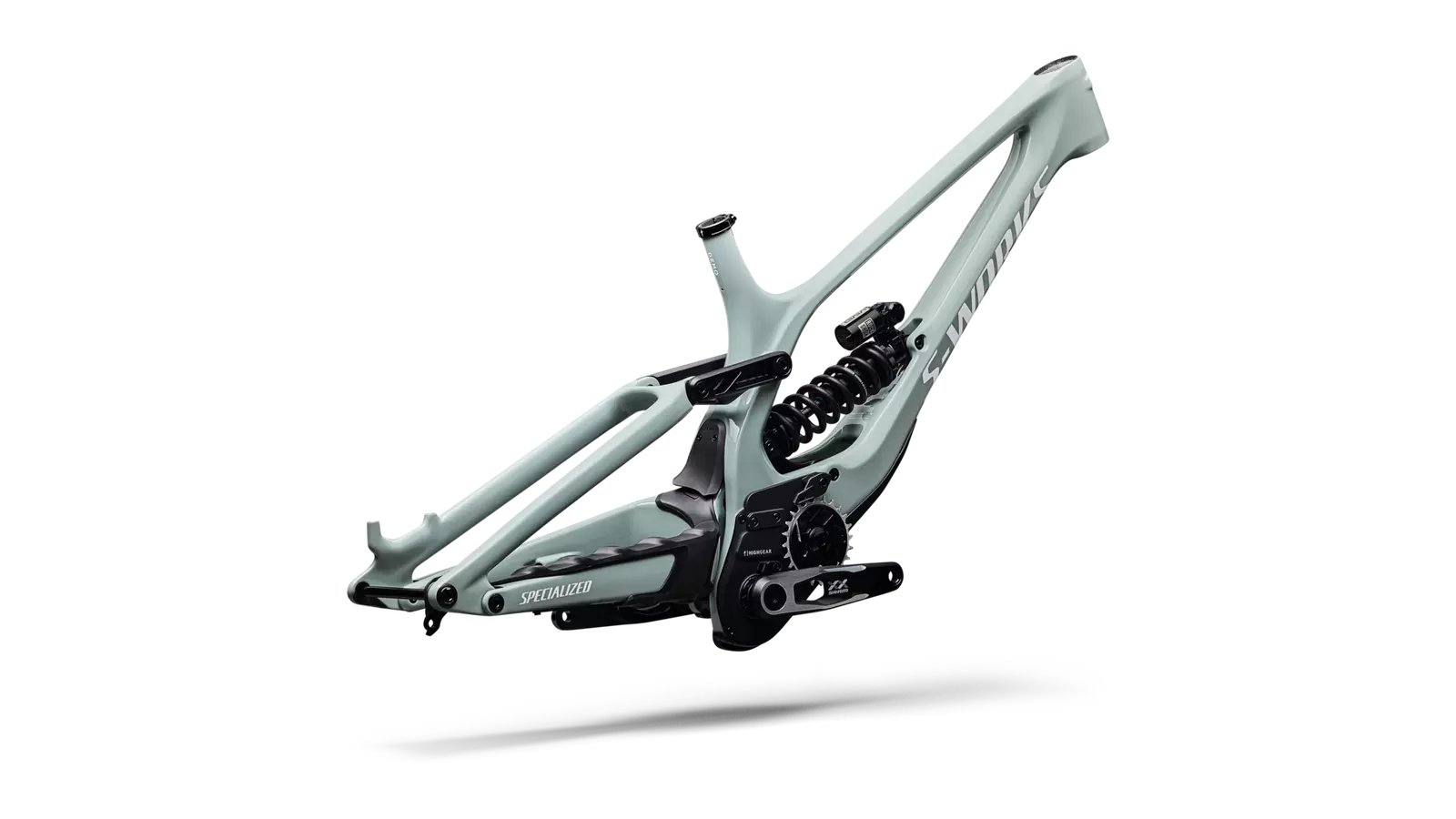

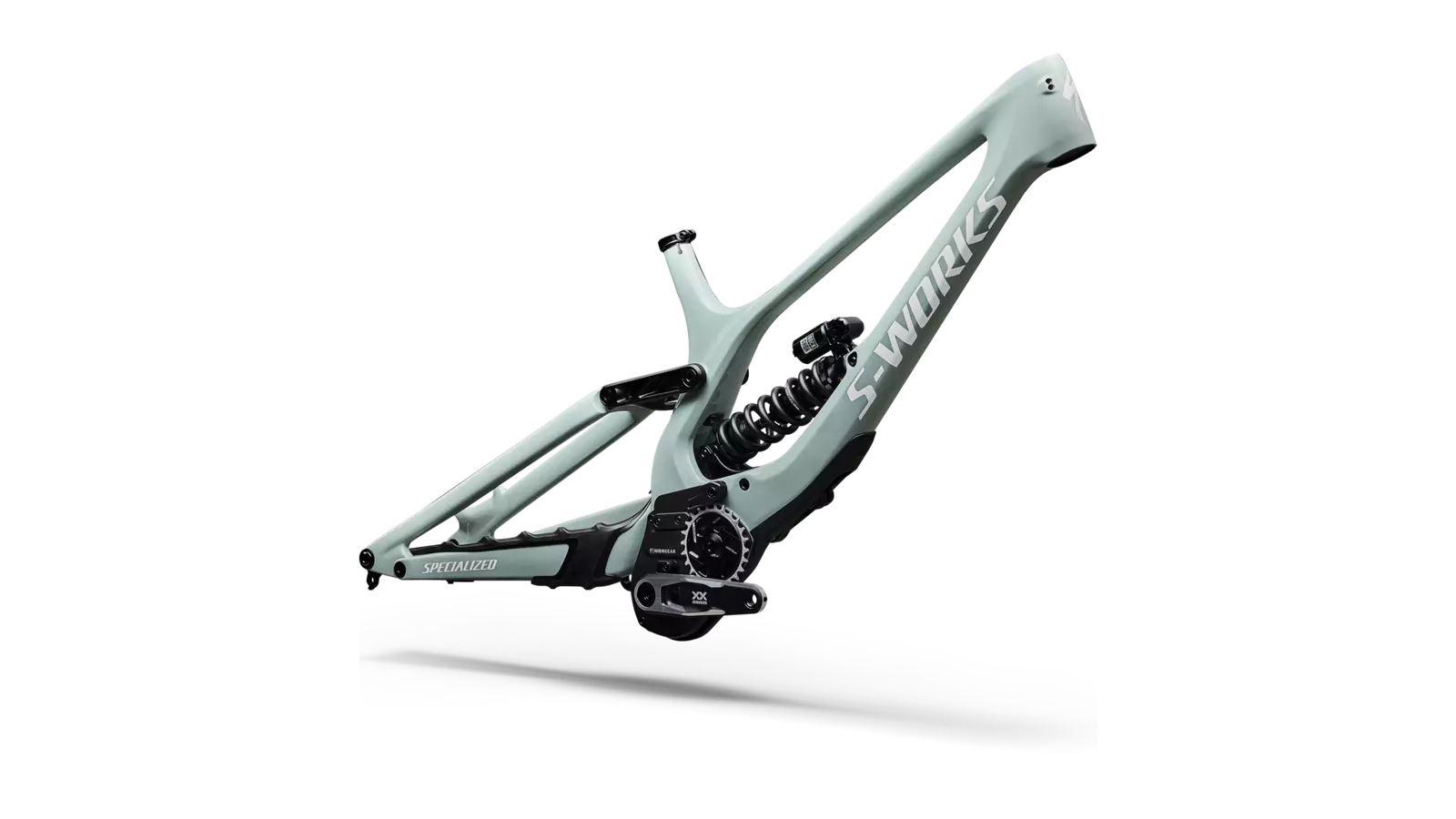

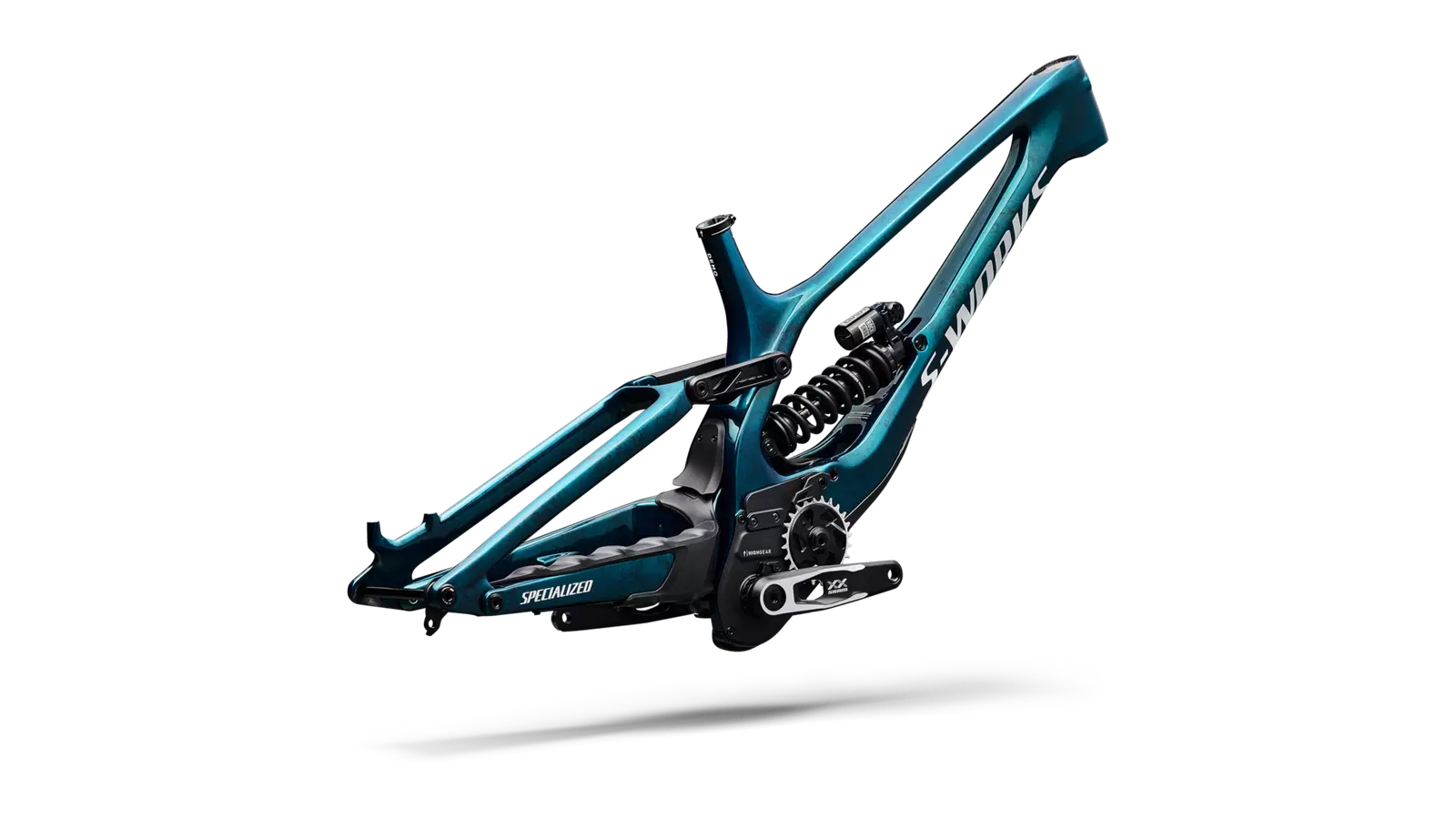

2027 Specialized S-Works Demo 11 Frameset

By Specialized
$9,000.00 CAD
74527-0103
Color: Gloss Agave Grey / Metallic White Silver
Size
View details
Description

The Speed of Trust

Unmatched Control, Composure, Speed.

Developed over three years with World Cup-winning prototypes and the fastest riders on the planet, Demo 11 had one objective: go faster everywhere. Not through hype. Through race-proven innovation that delivers the predictable control and composure racers trust to drop into flow instantly, commit harder, hold faster lines, and carry more speed from gate to finish.

Frameset

Frame

200mm travel FACT 11m carbon frame with HighGear system, 165mm cranks, reach adjust headset cups, BB adjust, full internal cable routing, 148mm rear spacing

Seat Binder

Specialized Alloy 34.9, Steel Bolt
Suspension

Rear Shock

Rockshox Vivid Coil Ultimate DH, 250x75mm,S3 - 450lbs., S4 - 500lbs., S5 - 525lbs
Drivetrain

Crankset

SRAM XX HighGear Crankset, 165mm length.

Bottom Bracket

SRAM GXP
Product Details

Product ID

293957
Weight

Weight

5.79 kg (12 lb, 12.2 oz) with Cranks and HighGear System

Weight Size

S4

Geometry
S3 S4 S5
Crank Length 165mm 165mm 165mm
Stack (high) 640mm 640mm 640mm
Stack (low) 645mm 645mm 645mm
Reach (middle) 445mm 475mm 500mm
Reach Adjustment 6+/- 6+/- 6+/-
Headtube Length 110mm 110mm 110mm
Headtube Angle 62.5° 62.5° 62.5°
BB Height (high) 355mm 355mm 355mm
BB Height (low) 348mm 348mm 348mm
BB Drop 20mm 20mm 20mm
Fork Length (full) 611mm 611mm 611mm
Trail 137mm 137mm 137mm
Fork Rake/Offset 52mm 52mm 52mm
Front Center 825mm 857mm 880mm
Horizontal Rear Center 435mm 445mm 455mm
Chainstay Length 435mm 445mm 455mm
Wheelbase 1260mm 1302mm 1335mm
Seat-Tube Length 420mm 400mm 420mm
Seat-Tube Angle 78° 78° 78°
Top Tube Length 582mm 614mm
Product Variants SKU/UPC
  • 2027 Specialized S-Works Demo 11 Frameset: Gloss Agave Grey / Metallic White Silver / S3: SKU: 74527-0103 - UPC: 196625299391
  • 2027 Specialized S-Works Demo 11 Frameset: Gloss Agave Grey / Metallic White Silver / S4: SKU: 74527-0104 - UPC: 196625299254
  • 2027 Specialized S-Works Demo 11 Frameset: Gloss Agave Grey / Metallic White Silver / S5: SKU: 74527-0105 - UPC: 196625299308
  • 2027 Specialized S-Works Demo 11 Frameset: Gloss Teal Tint Carbon / Smoke / White / S3: SKU: 74527-0003 - UPC: 196625299278
  • 2027 Specialized S-Works Demo 11 Frameset: Gloss Teal Tint Carbon / Smoke / White / S4: SKU: 74527-0004 - UPC: 196625299346
  • 2027 Specialized S-Works Demo 11 Frameset: Gloss Teal Tint Carbon / Smoke / White / S5: SKU: 74527-0005 - UPC: 196625299261
