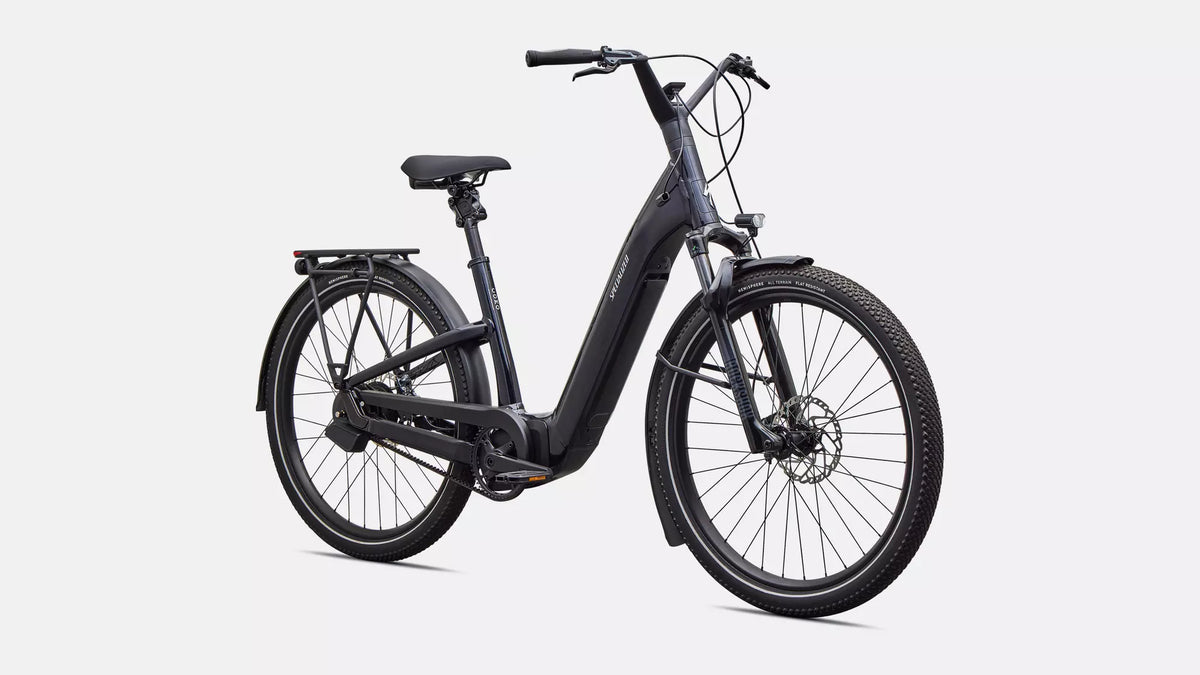

E-Bike

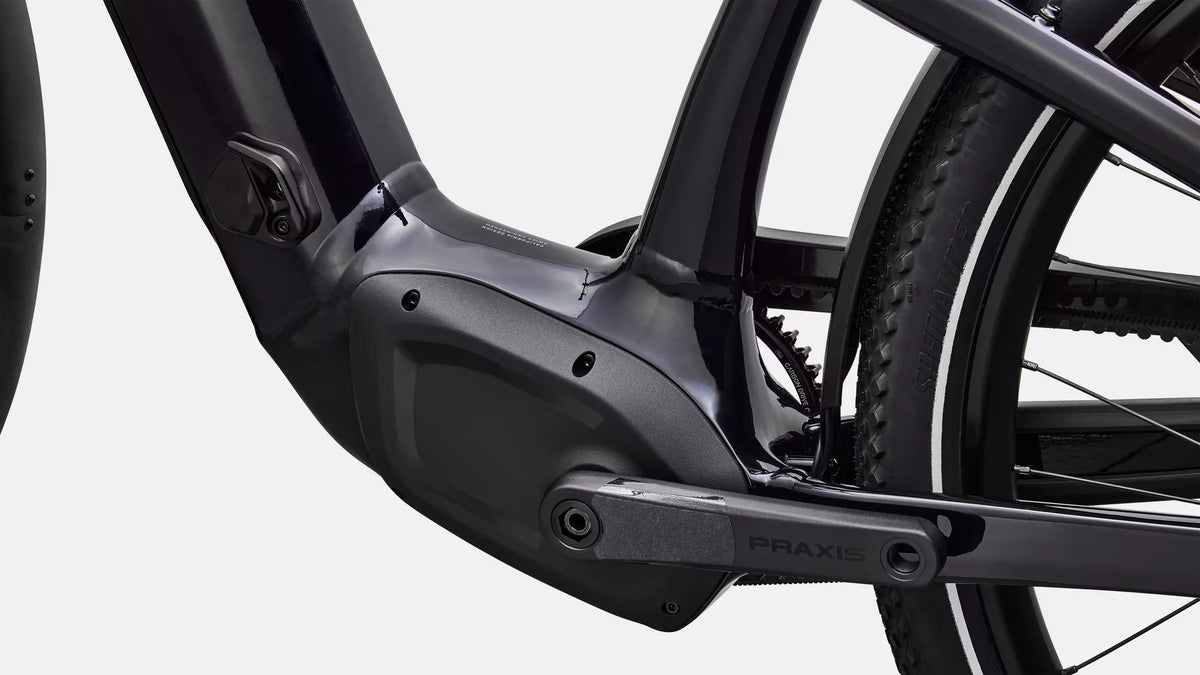

Motor

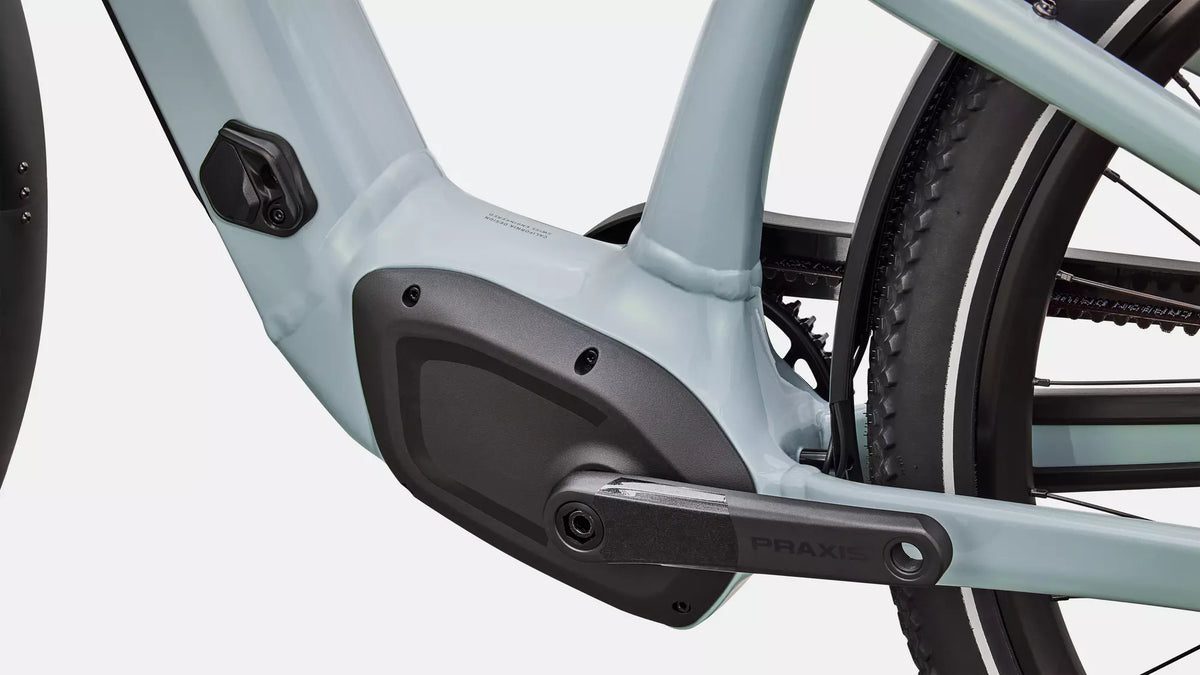

Motor, Brose, gen2, torque 90nm, 28mph
Battery
Specialized integrated battery, state of charge display, 710Wh, UL
UI/Remote
Display with handlebar remote, Bluetooth® connectivity, customizable display pages
Charger
Custom charger, 42V4A w/ Rosenberger plug, 100-240V
Frameset
Frame
E5 Aluminum, bottom bracket motor mount, fully integrated &lockable downtube battery, internal cable routing, lock and front rack mount, sliding dropout
Seat Binder
Specialized bolt-type, alloy, 42.9mm
Suspension
Fork
Rockshox Recon Silver RL, 80mm travel, Motion-Control
Brakes
Front Brake
Shimano CUES BL-U8000. 4 Pistons
Rear Brake
Shimano CUES BL-U8000. 4 Pistons
Drivetrain
Rear Derailleur
Enviolo Automatic, 380%
Cassette
Gates Carbon Drive Sprocket, 22T
Chain
Gates Carbon Drive CDX 122t belt, black
Crankset
Praxis, Brose Isis, 165mm, Bcd 104mm
Chainrings
Gates Carbon Drive CDX 50T chainring, black
Chaincase
Specialized Belt Cover
Wheels & Tires
Rims
27.5 front & rear, 30mm inner width, 32h
Front Hub
Specialized alloy front hub disc, sealed cardridge bearings, 6-bolt, 15x110mm thru-axle, 32h
Rear Hub
REAR HUB, CVP, ENVIOLO CHINA, CVP-TR-32-DC-OE-2, TREKKING, 32 SPOKE, DISC BRAKE - 40T SPLINE
Spokes
DT Swiss Elemental
Front Tire
Hemisphere Flat Protection Reflect, 650b X 2.3
Rear Tire
Hemisphere Flat Protection Reflect, 650b X 2.3
Inner Tubes
Standard 40mm Schrader valve 650Bx1.75-2.4
Cockpit
Stem
Specialized integrated stem

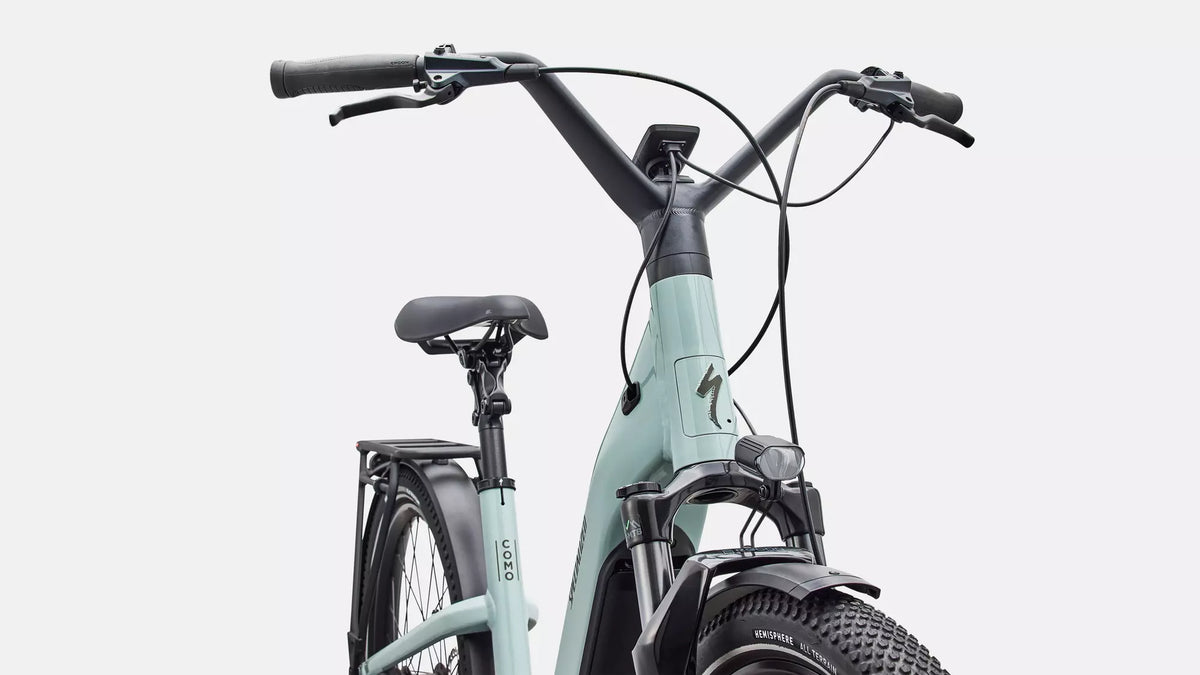

Handlebars
Specialized Como handlebar/stem combo
Grips
ERGON extra comfort Custom, 132mm Length

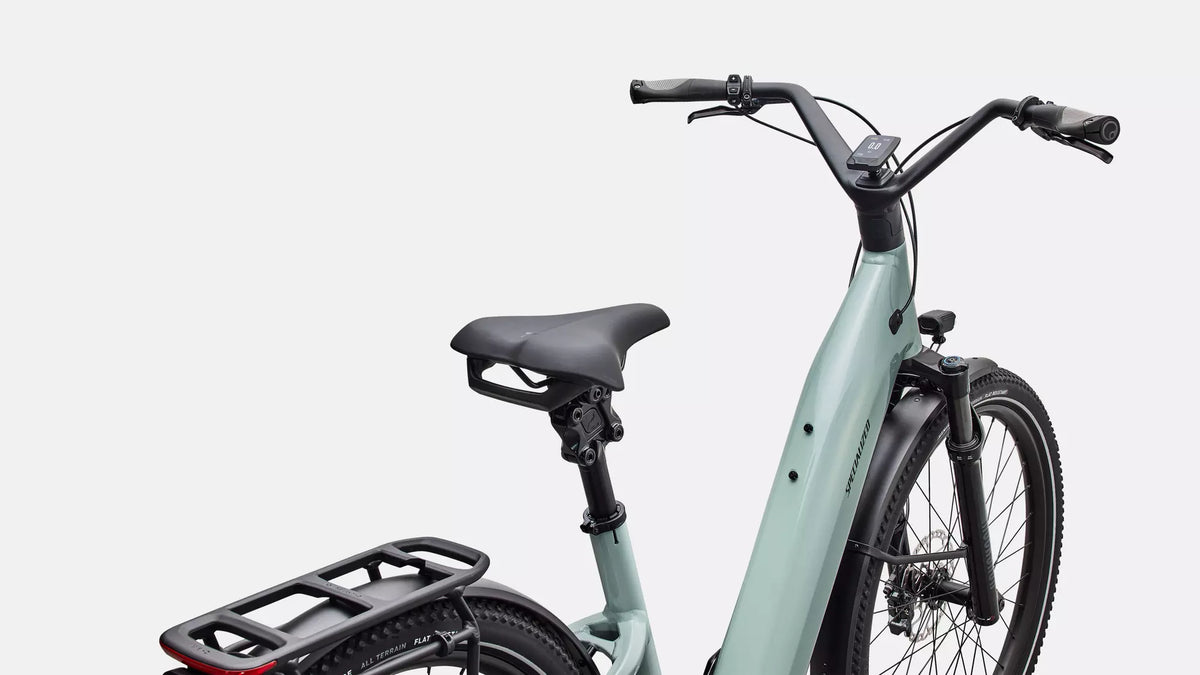

Saddle
Body Geometry Comfort Gel, 200mm W/ Handle
Seatpost
Suspended Cane Creek, Thudbuster St, 30.9 mm
Accessories
Radar
Integrated Garmin Radar, with custom information displayed directly on the Mastermind TCD
Headlight
Lezyne, Ebike Power Stvzo E450+, 450 Lumen, 160Cm Wire, With Reflector
Taillight
Spanninga, Stvzo, Commuter Glow With auto Brake

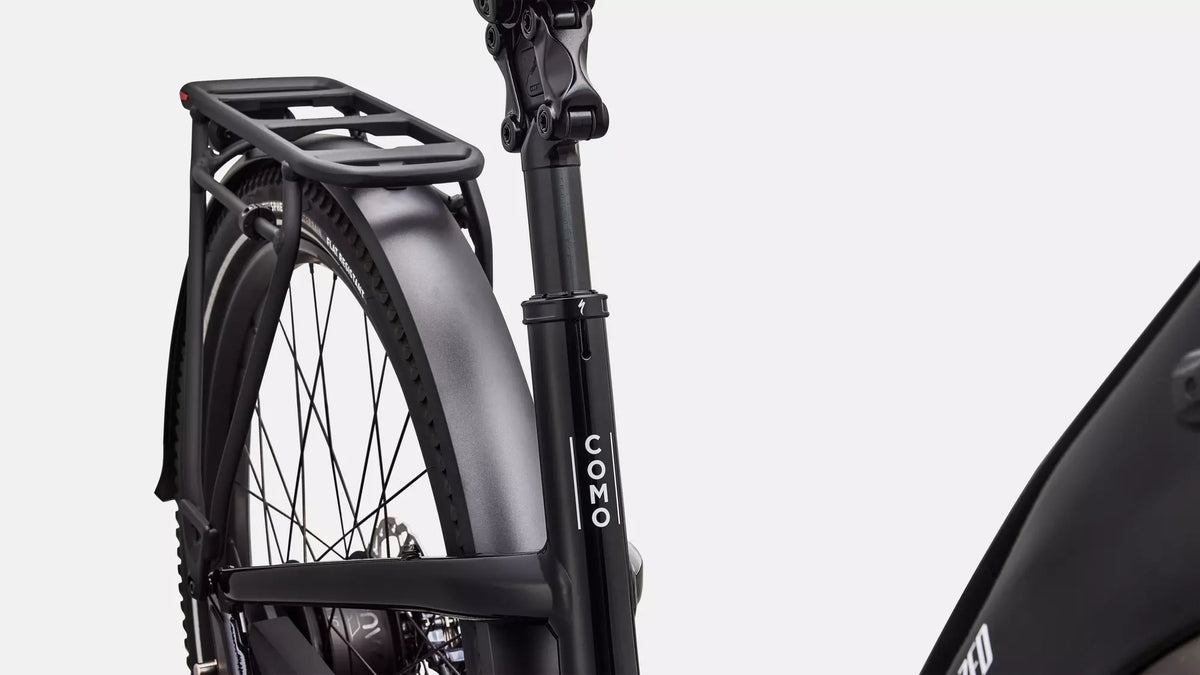

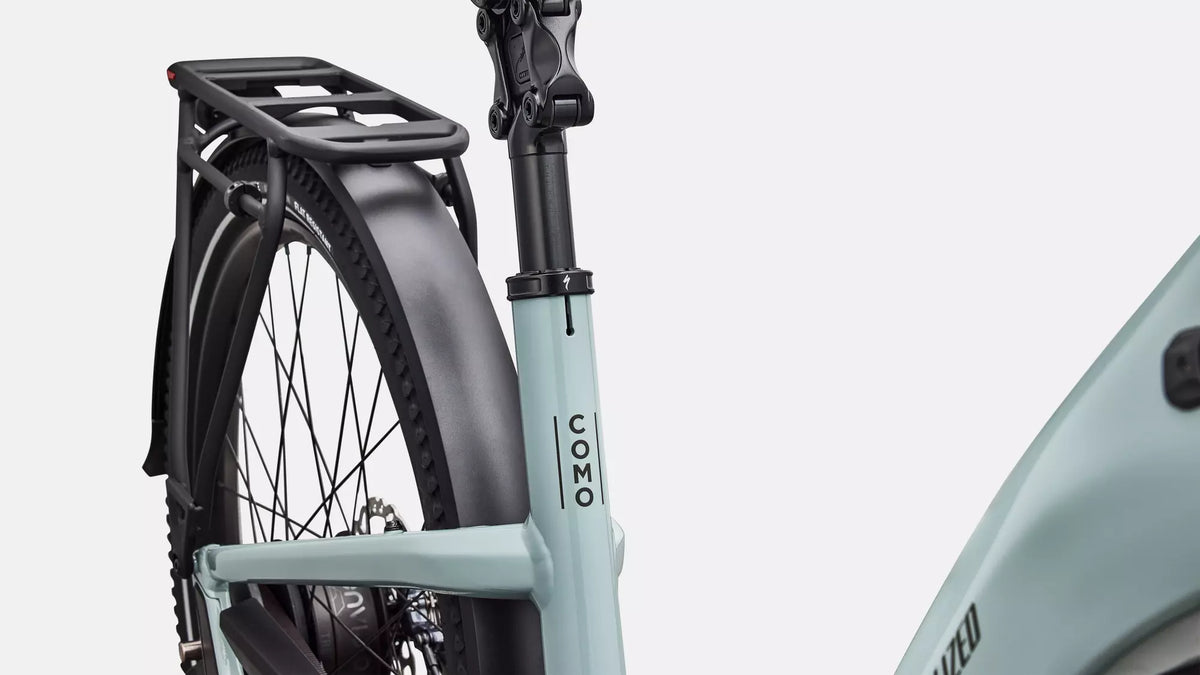

Rack
Specialized rack, MIK HD interface, built-in pannier mounts, 27kg max load
Bike Lock
Turbo System Lock
Fenders
Specialized DRYTECH fenders, 65mm width, extra strong aluminum fenderstay
Kickstand
Specialized kickstand, 40mm mount
Bell
Bell
Product Details
Product ID
222075
Compliance Certification
As applicable, certified to UL 2849 (e-system) and/or UL 2271 (battery) by UL Solutions and/or SGS.
For information on lithium-ion battery standards and regulations in New York City, visit: www.nyc.gov/fdny/batteries
Weight
Weight
29.1 kg (64 lb, 2.5 oz)
Weight Size
MD
* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
