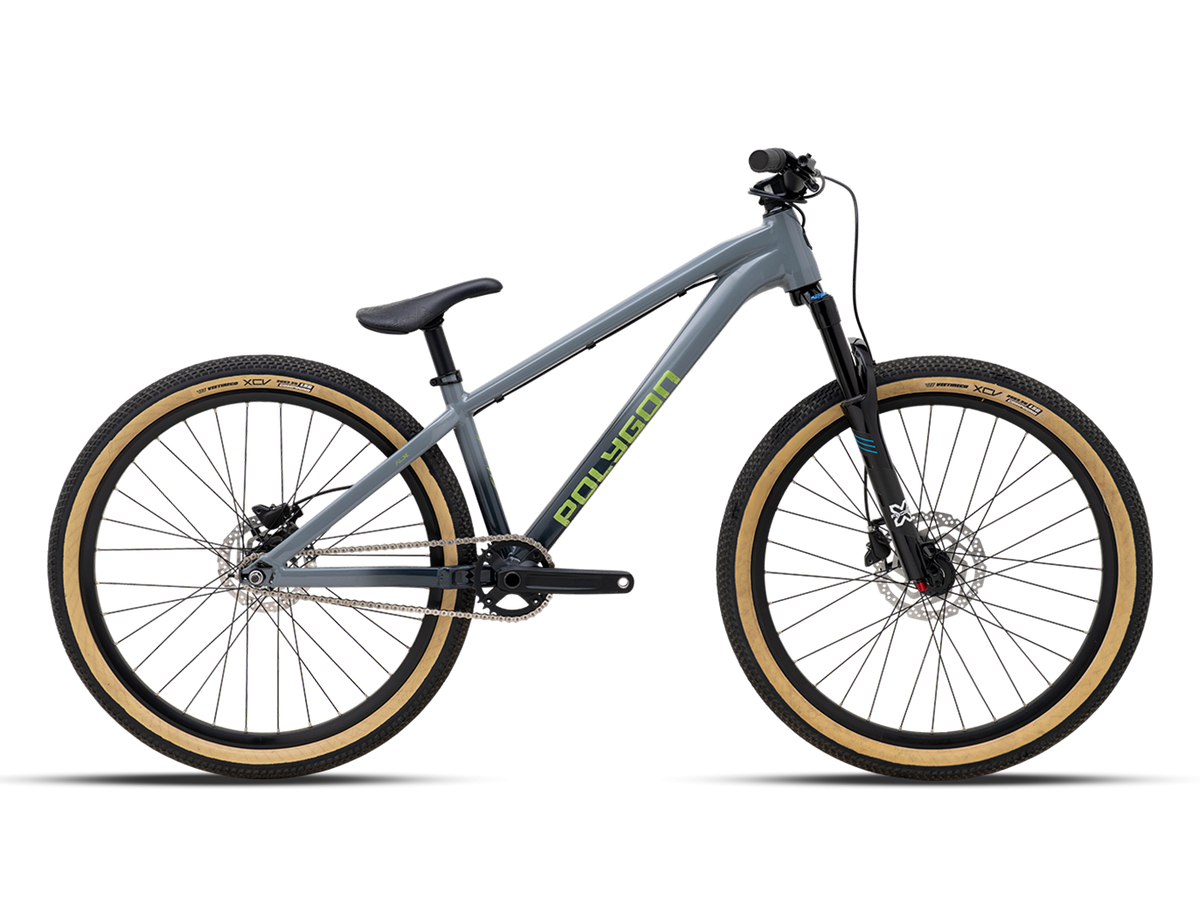

2026 Polygon Trid

By Polygon
$1,399.00 CAD
503260001
Color: Grey
Size
View details
Description

TRID: The Jump Bike that Does it All

Front Suspension | 26 Inch Wheels | AL6 Alloy

Developed, tested and tweaked by Sam Reynolds himself, the Polygon TRID is built for the dirt jumps, pump track, skatepark and street riding. Expect versatile, dependable riding that works for everyone from beginners to seasoned pros. Built around the proven TRID frame, and loaded with features every dirt jump rider expects. The TRID is one bike that truly does it all!
Technical Specifications

Frameset

  • Frameset: AL6 DIRT JUMP
  • Fork: X-FUSION SLANT AIR 100MM TRAVEL
  • Size: ALL SIZE
  • Frame Color: GREY
  • Decal Color: GREEN GLOSS

Drivetrain

  • Crank: SAMOX TAF38, 32T
  • Cassette: 2.3x14T COG
  • BB: BSA THREADED 68/73mm
  • Chain: KMC HALF LINK
  • Pedal: ONE PIECE PP BODY

Cockpit

  • Saddle: BLACK, PIVOTAL
  • Seatpost: DxL: 30.9 x 200mm
  • Handlebar: ALLOY HANDLEBAR, W: 760mm, BB: 31.8mm, R/D: 3mm, B: 10degree
  • Handlestem: ALLOY STEM, EXT: 40mm, BB: 31.8mm, R/D: 0degree
  • Headset: SEALED BEARING, ZS 44/28.6 | ZS 56/40

Wheel & Tire

  • Wheel Set: ALLOY WHEELS
  • Wheel Size: 26"
  • Tire: VEE TIRE XCV 26"x2.25 559-57
  • Rim: 559x25C 32H FOR TYRE 559-44/76 W/ EYELET
  • Hub: F: NOVATEC D041SB-15 15x100mm 32H 6B / R: KT HUB KT-MI5R 3/8x135mm 32H 6B FOR SINGLE SPROCKET
  • Spokes: F: 14G STAINLESS NDS:256mm DS:258mm W/ 12mm BRASS NIPPLE / R: 14G STAINLESS NDS:258mm DS:258mm W/ 12mm BRASS NIPPLE

Brake

  • Brake Lever: SHIMANO MT201
  • Brake Caliper: SHIMANO HYDRAULIC DISC BRAKE
  • Rotor: SMRT26SP
Geometry
All Size
Height (cm) 172-185
Seat Tube Length (A) 330
Seat Tube Angle (B) 72
Effective Seat Tube Angle (C) 72
Head Tube Length (D) 120
Head Tube Angle (E) 70
Effective Top Tube (F) 600
Bb Height (G) 327
Bb Offset (H) 12
Chainstay Length (I) 385
Wheelbase (J) 1043.2
Frame Reach (K) 416.7
Frame Stack (L) 563.27
Standover Height (M) 651.9
Product Variants SKU/UPC
  • 2026 Polygon Trid: Grey / OS: SKU: 503260001 - UPC:
