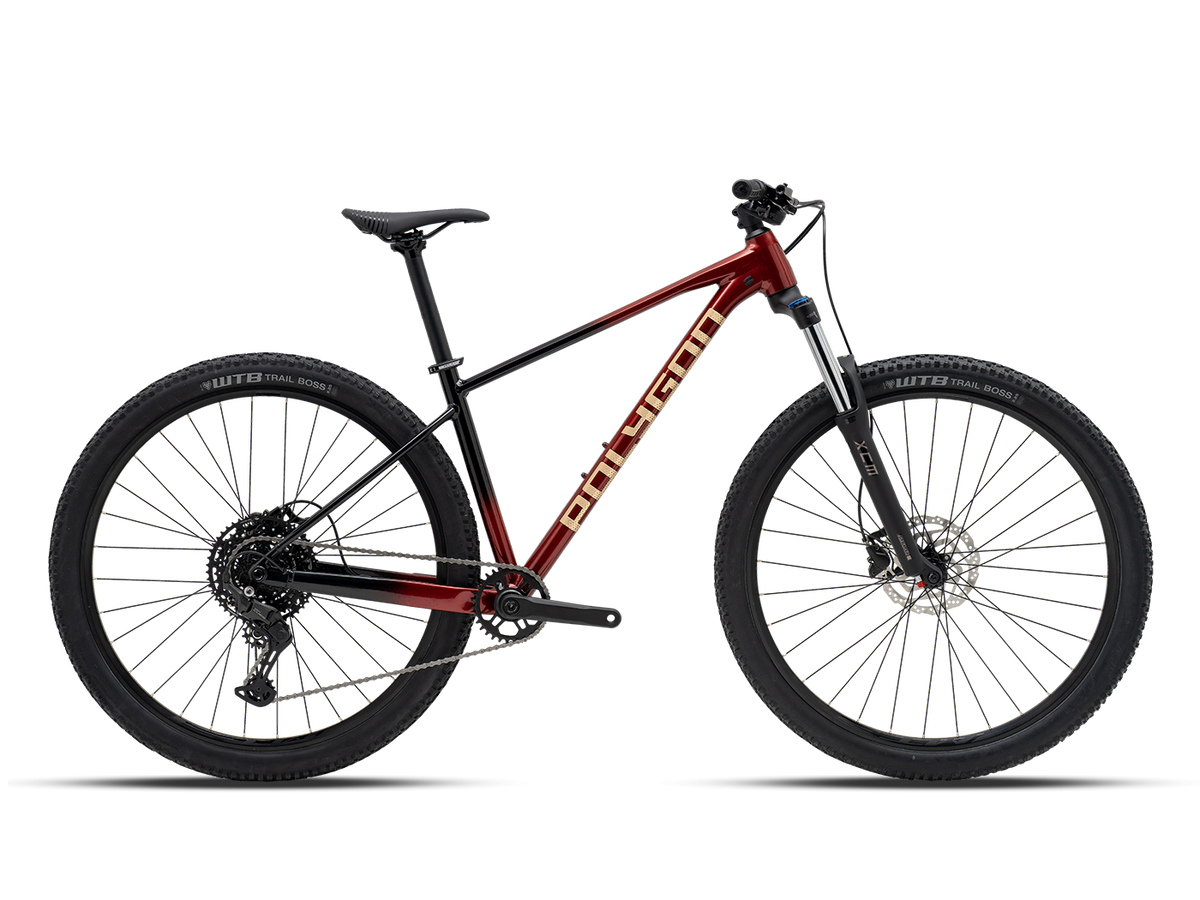

2026 Polygon Xtrada 5

By Polygon
$899.00 CAD
503535001
Color: Red Black
Size
View details
Description

XTRADA: Fast. Light. Endlessly Versatile

Cross-Country | 120mm Travel | ALX Alloy | 29" or 27.5" Wheels

Whether taking on the local singletrack or heading out to the hills, the XTRADA is ready for mountain bike adventures. It features a dependable alloy frame, 120mm suspension fork and trail-ready components that we have carefully selected to ensure maximum value without breaking the bank.
Technical Specifications

Frameset

  • Frameset: ALX XC 29"
  • Fork: SUNTOUR XCM 32 120MM TRAVEL BOOST THRU AXLE
  • Rear Shock: -
  • Frame Color: RED BLACK
  • Decal Color: GOLD BLACK

Drivetrain

  • Shifter: SHIMANO CUES SL-U6000 1x10-SPEED TRIGGER
  • Crank: PROWHEEL RMZ-MD25S-TT 32T 170mm
  • Cassette: SHIMANO CS-LG300 10-SPEED 11-48T
  • Rear Derailleur: SHIMANO CUES RD-U6000 DIRECT ATTACH
  • BB: PROWHEEL 2 PIECE CRANKSET BSA THREADED
  • Chain: KMC X-GLIDE
  • Pedal: ONE PIECE PP BODY

Cockpit

  • Saddle: LINC VOID SADDLE, STEEL ø 7mm
  • Seatpost: POLYGON SPORT SEATPOST, DXL: 30.9 x 350mm, OFFSET: 0mm, SEAT CLAMP: 34.9mm QR TYPE
  • Handlebar: POLYGON SPORT, W: 760mm, BB: 31.8mm, R/D: 20mm, B: 9degree
  • Handlestem: POLYGON SPORT, EXT: 40mm, BB: 31.8mm, R/D: 7degree
  • Headset: ZERO STACK W/ SEALED BEARING, ZS 44/28.6 | ZS 56/40

Wheel & Tire

  • Wheel Set: ALLOY WHEELS
  • Tire: WTB TRAIL BOSS 29"X2.25"
  • Rim: ALLOY DOUBLE WALL H: 19mm W: 23mm 32H FOR TYRE 622-68
  • Hub: F: ALLOY HUB THRU AXLE 15x110mm 32H CENTERLOCK / R: ALLOY HUB THRU AXLE 12x148mm 32H CENTERLOCK
  • Spokes: F: 14G STAINLESS NDS: 294mm DS: 292mm 12MM NIPPLE BRASS / R: 14G STAINLESS NDS: 292mm DS: 290 12MM NIPPLE BRASS

Brake

  • Brake Lever: SHIMANO BL-MT200
  • Brake Caliper: SHIMANO MT200 HYDRAULIC DISC BRAKE
  • Rotor: SHIMANO SM-RT10 F: 180mm R: 160mm CENTERLOCK
Geometry
S M L XL
Height (cm) 152-165 162-175 172-185 182-195
Seat Tube Length (A) 390 430 450 470
Seat Tube Angle (B) 73 73 73 73
Effective Seat Tube Angle (C) 74 74 74 74
Head Tube Length (D) 90 100 110 120
Head Tube Angle (E) 67 67 67 67
Effective Top Tube (F) 586 609 632 655
Bb Height (G) 313 313 313 313
Bb Offset (H) 60 60 60 60
Chainstay Length (I) 432 432 437 437
Wheelbase (J) 1121 1145 1174 1198
Frame Reach (K) 410 430 450 470
Frame Stack (L) 620 629 638 647
Standover Height (M) 725 756 772 788
Product Variants SKU/UPC
  • 2026 Polygon Xtrada 5: Red Black / SM: SKU: 503535001 - UPC:
  • 2026 Polygon Xtrada 5: Red Black / MD: SKU: 503535002 - UPC:
  • 2026 Polygon Xtrada 5: Red Black / LG: SKU: 503535003 - UPC:
  • 2026 Polygon Xtrada 5: Red Black / XL: SKU: 503535004 - UPC:
