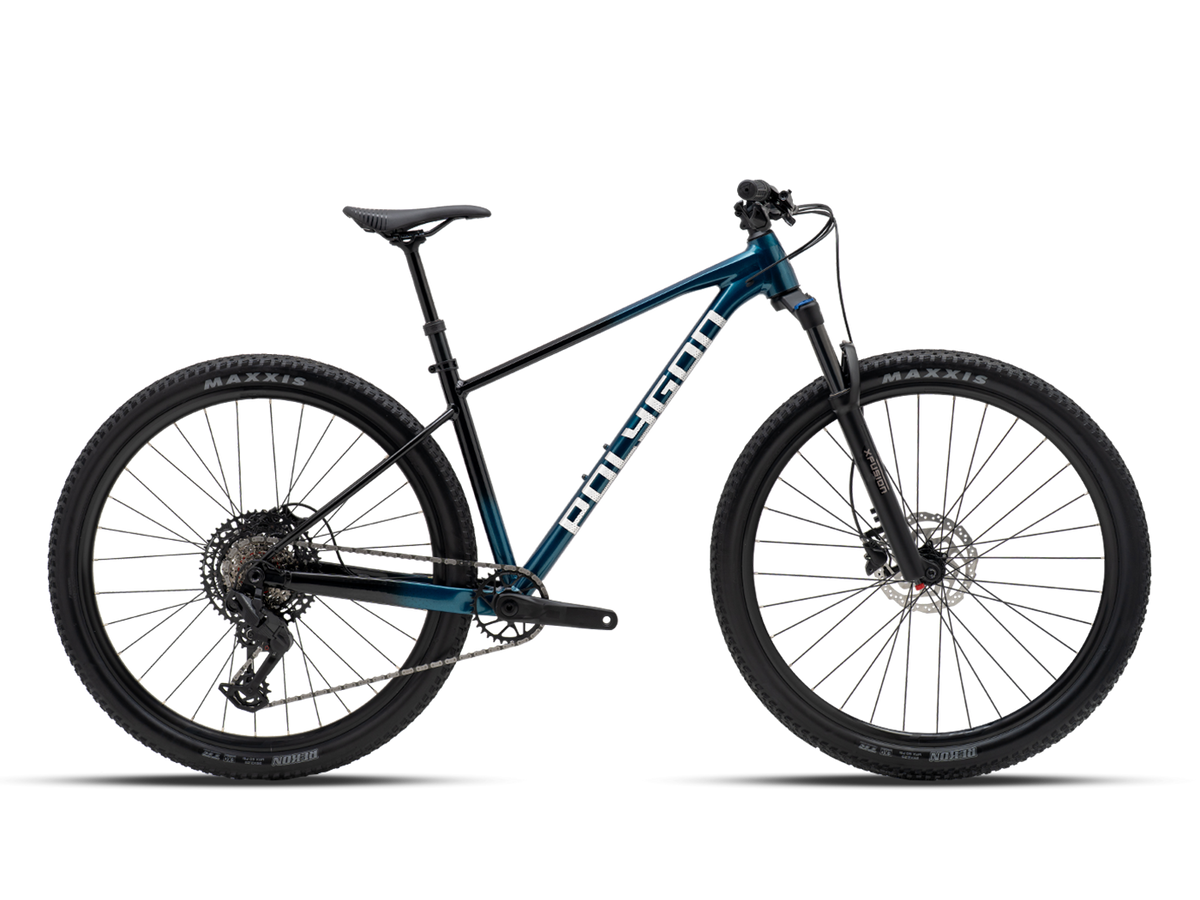

2026 Polygon Xtrada 7

By Polygon
$1,499.00 CAD
503537001
Color: Blue Black
Size
View details
Description

XTRADA: Fast. Light. Endlessly Versatile

Cross-Country | 120mm Travel | ALX Alloy | 29" or 27.5" Wheels

Whether taking on the local singletrack or heading out to the hills, the XTRADA is ready for mountain bike adventures. It features a dependable alloy frame, 120mm suspension fork and trail-ready components that we have carefully selected to ensure maximum value without breaking the bank.
Technical Specifications

Frameset

  • Frameset: ALX XC 29
  • Fork: X-FUSION MIGO RC DAMPER 32 120mm TRAVEL BOOST THRU AXLE
  • Rear Shock: -
  • Frame Color: BLUE BLACK
  • Decal Color: SILVER BLACK

Drivetrain

  • Shifter: SRAM SL-70-A1 1x12-SPEED TRIGGER
  • Crank: SRAM EAGLE 70 T-TYPE 32T
  • Cassette: SRAM CS-XS-1270-A1 12-SPEED 10-52T
  • Rear Derailleur: SRAM RD-70-A1 T-TYPE
  • BB: DUB BSA 73mm
  • Chain: EAGLE 70 T-TYPE
  • Pedal: ONE PIECE PP BODY

Cockpit

  • Saddle: LINC VOID SADDLE, STEEL ø7mm
  • Seatpost: DROPPER POST 150mm TRAVEL, DXL: 30.9 x 429mm, SEAT CLAMP: 34.9mm BOLT TYPE
  • Handlebar: POLYGON SPORT ALLOY, W: 760mm, BB: 31.8mm, R/D: 20mm, BEND: 9degree
  • Handlestem: POLYGON SPORT ALLOY, EXT: 40mm, BB: 31.8mm, R/D: 7degree
  • Headset: ZERO STACK W/ CAGED BEARING, ZS 44/28.6 | ZS 56/40

Wheel & Tire

  • Wheel Set: ALLOY WHEELS
  • Tire: MAXXIS REKON 29"X2.25" TLR
  • Rim: F: ALLOY DOUBLE WALL H:23mm W: 30mm 32H FOR TYRE 622-68 / R: ALLOY DOUBLE WALL H:23mm W: 30mm 32H FOR TYRE 622-68
  • Hub: F: NOVATEC D041SB THRU AXLE 15x110mm 32H CENTERLOCK / R: NOVATEC D442SB THRU AXLE 12x148mm 32H CENTERLOCK
  • Spokes: F: 14G STAINLESS NDS: 288mm DS: 290mm 12mm NIPPLE BRASS / R: 14G STAINLESS NDS: 288mm DS: 286mm 12mm NIPPLE BRASS

Brake

  • Brake Lever: SHIMANO BL-MT200
  • Brake Caliper: SHIMANO MT200 HYDRAULIC DISC BRAKE
  • Rotor: SHIMANO SM-RT10 F: 180mm R: 160mm CENTERLOCK
Geometry
S M L XL
Height (cm) 152-165 162-175 172-185 182-195
Seat Tube Length (A) 390 430 450 470
Seat Tube Angle (B) 73 73 73 73
Effective Seat Tube Angle (C) 74 74 72 74
Head Tube Length (D) 90 100 110 120
Head Tube Angle (E) 67 67 67 67
Effective Top Tube (F) 586 609 632 655
Bb Height (G) 313 313 313 313
Bb Offset (H) 60 60 60 60
Chainstay Length (I) 432 432 437 437
Wheelbase (J) 1121 1145 1174 1198
Frame Reach (K) 410 430 450 470
Frame Stack (L) 620 629 638 647
Standover Height (M) 724 756 772 788
Product Variants SKU/UPC
  • 2026 Polygon Xtrada 7: Blue Black / SM: SKU: 503537001 - UPC:
  • 2026 Polygon Xtrada 7: Blue Black / MD: SKU: 503537002 - UPC:
  • 2026 Polygon Xtrada 7: Blue Black / LG: SKU: 503537003 - UPC:
  • 2026 Polygon Xtrada 7: Blue Black / XL: SKU: 503537004 - UPC:
